Model | PCR-RFQ161 | PCR-RFQ164 |
---|---|---|
Sample Capacity | 16×0.2ml (2×8well, dual block) | |
Consumable | Clear 0.2 ml PCR tube /8-tube strips | |
Reaction Volume | 15-100μL | |
Temperature Control Technology | Marlow customized peltier allow 1000000 cycles | |
Temperature Range | 0-100℃ (Resolution: 0.1℃) | |
MAX. Ramp Rate | 6℃/s | 8℃/s |
Temperature Fluctuation | ±0.1℃ | |
Uniformity | ±0.25℃ | |
Accuracy | ±0.25℃ | |
Hot Lid Temperature | 30-110℃ (Adjustable, default 105℃) | |
Temperature Control | Block/Tube | |
Excitation Wavelength | 300-800nm | |
Emission Wavelength | 500-800nm | |
Factory Calibrated Dyes | F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F3: ROX F4: CY5 | |
Excitation | Long life LED | |
Detection | High sensitivity photoelectric detector | |
Dynamic Range | 1-1010 Copies | |
Sensitivity | 1 copy | |
Feature Function | Quantitative/Qualitative analysis, Melting curve, Genotyping | |
Date Export Formats | Excel, csv, txt | |
Printing | Report can be printed (optional USB thermal printer) | |
Control Method | 7 inch color TFT touch screen, Can be connected to computer control | |
Communication | USB2.0 | |
Power Supply | AC220V, 50Hz | |
Power | DC15V, 255W | |
Size(W×D×H)(mm) | 300×267×198 | |
Shipping Size(W×D×H)(mm) | 500×420×350 | |
N.W./G.W. (kg) | 8.5/13 |

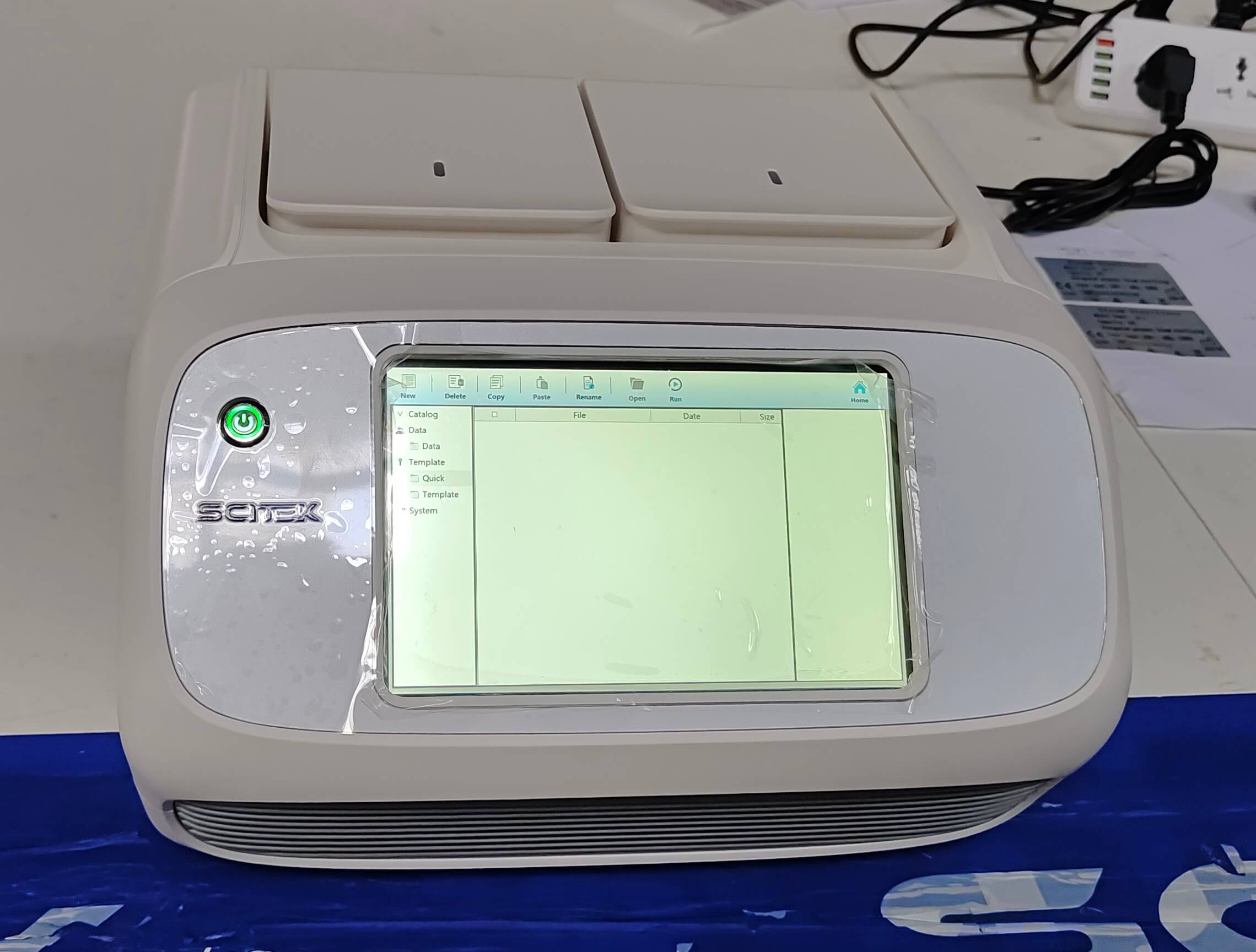

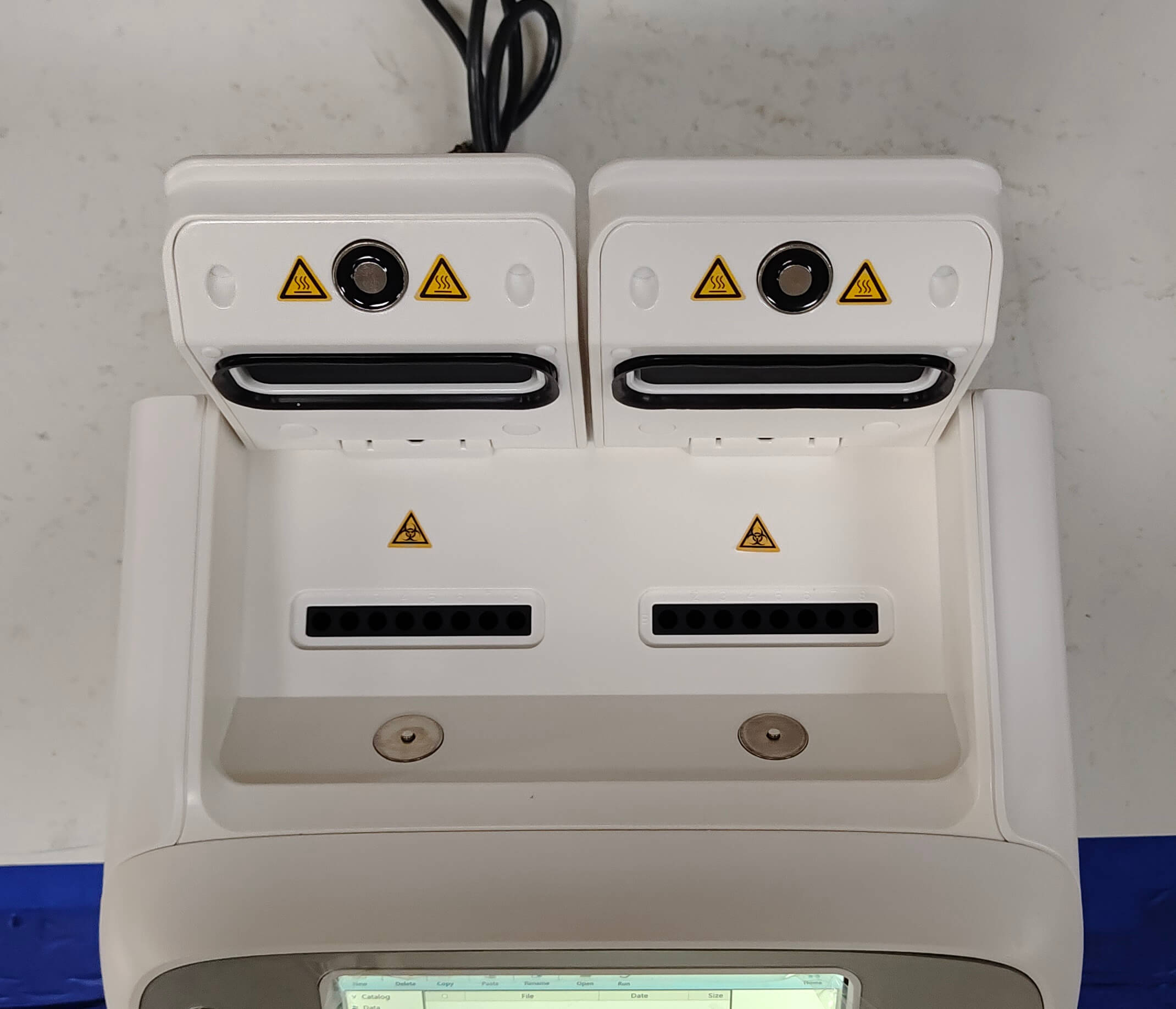

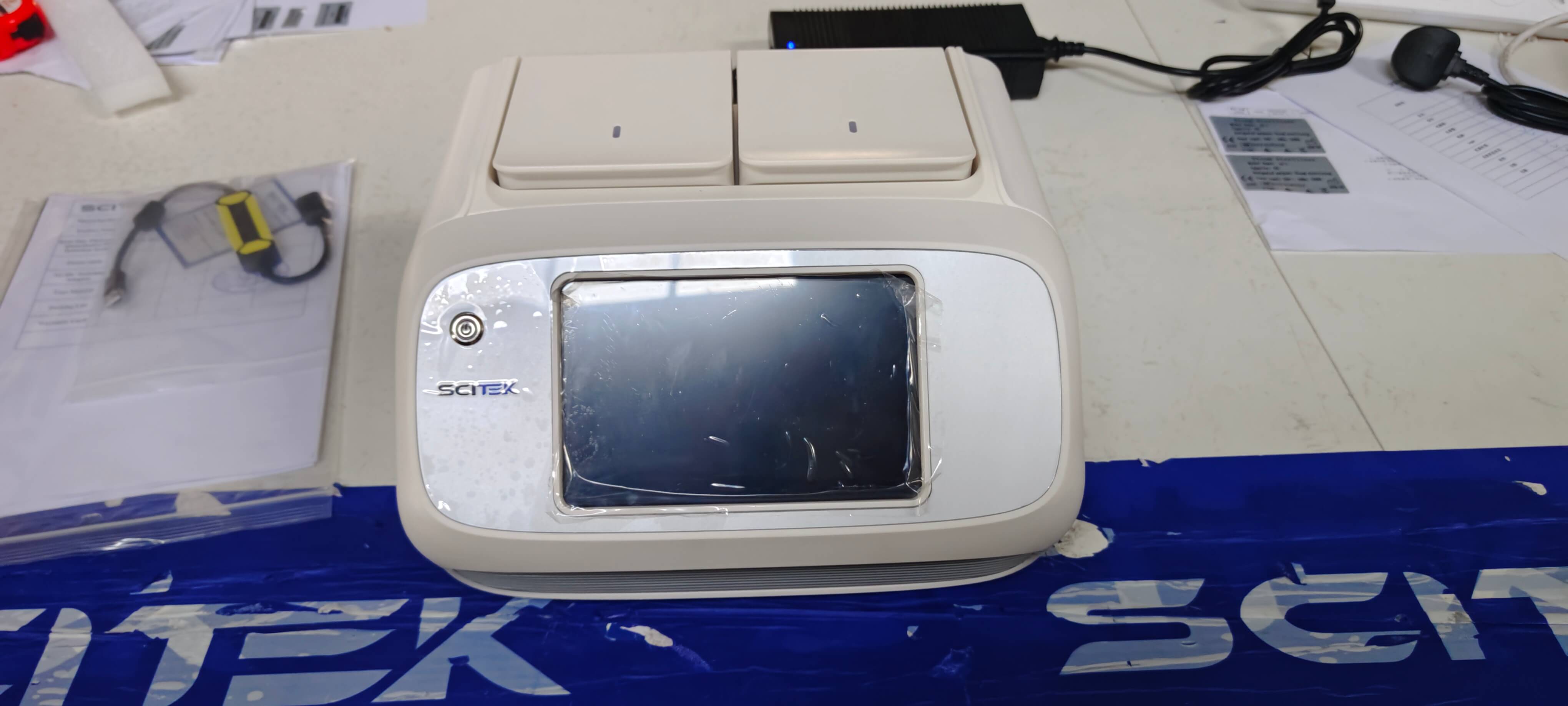

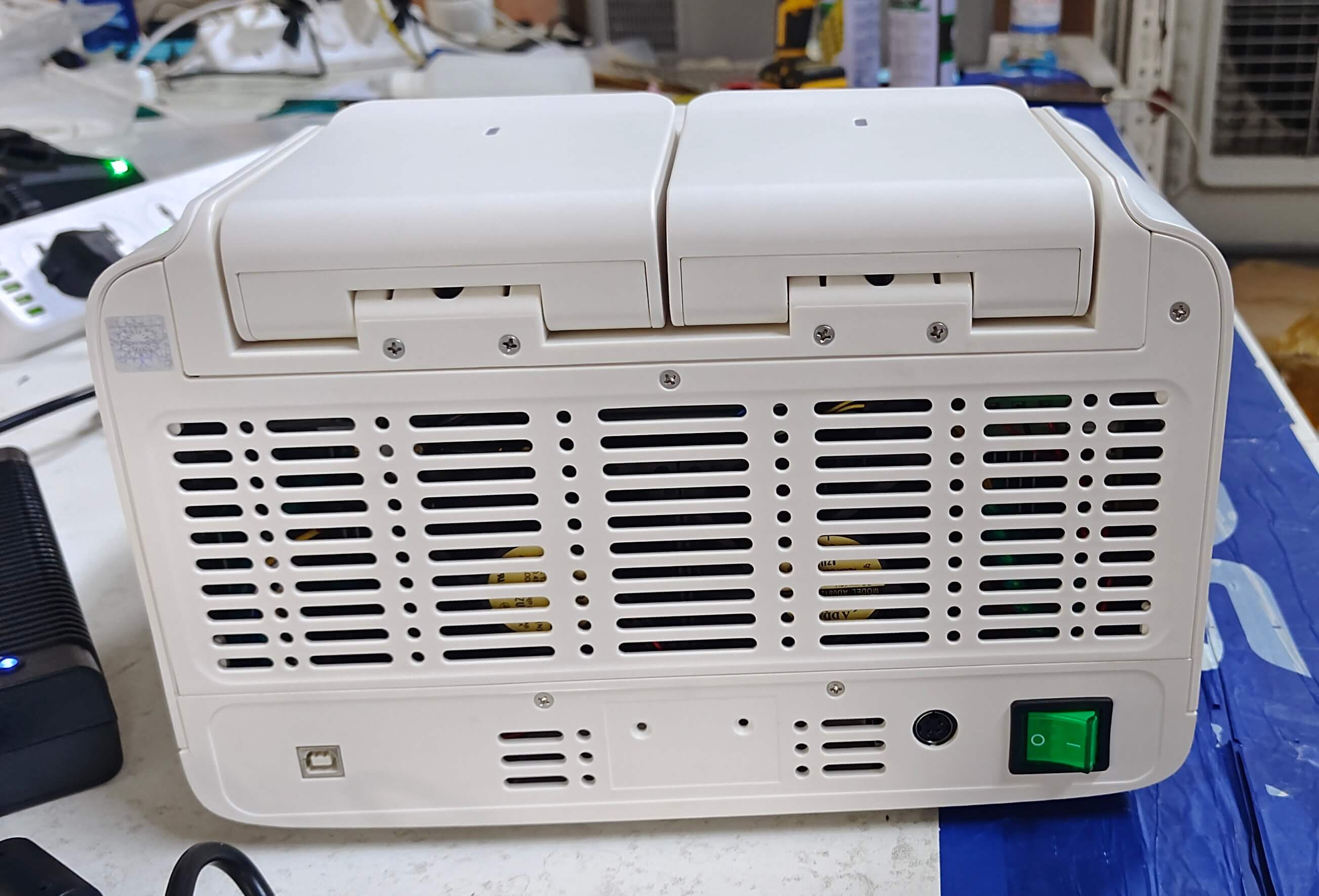

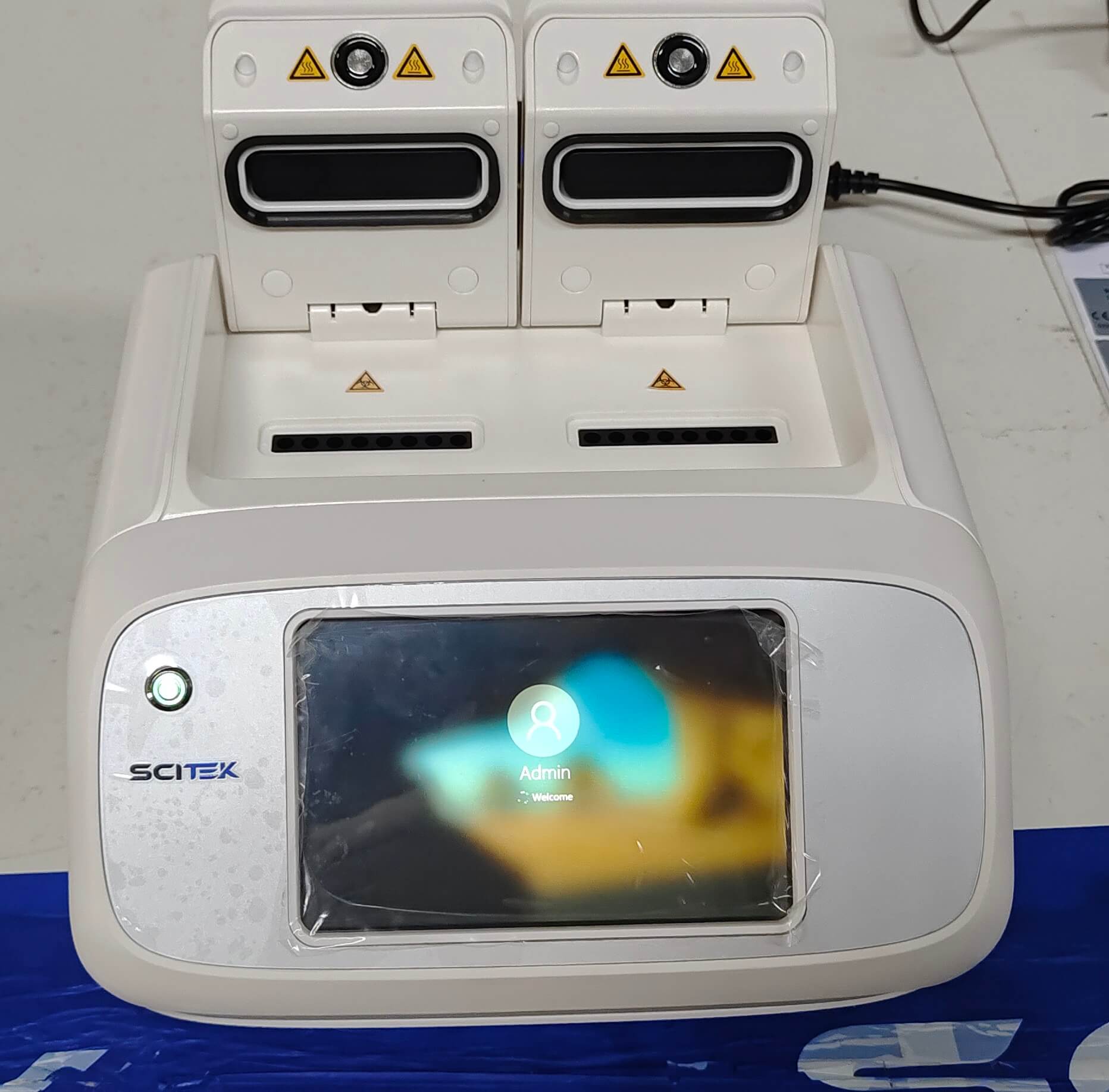

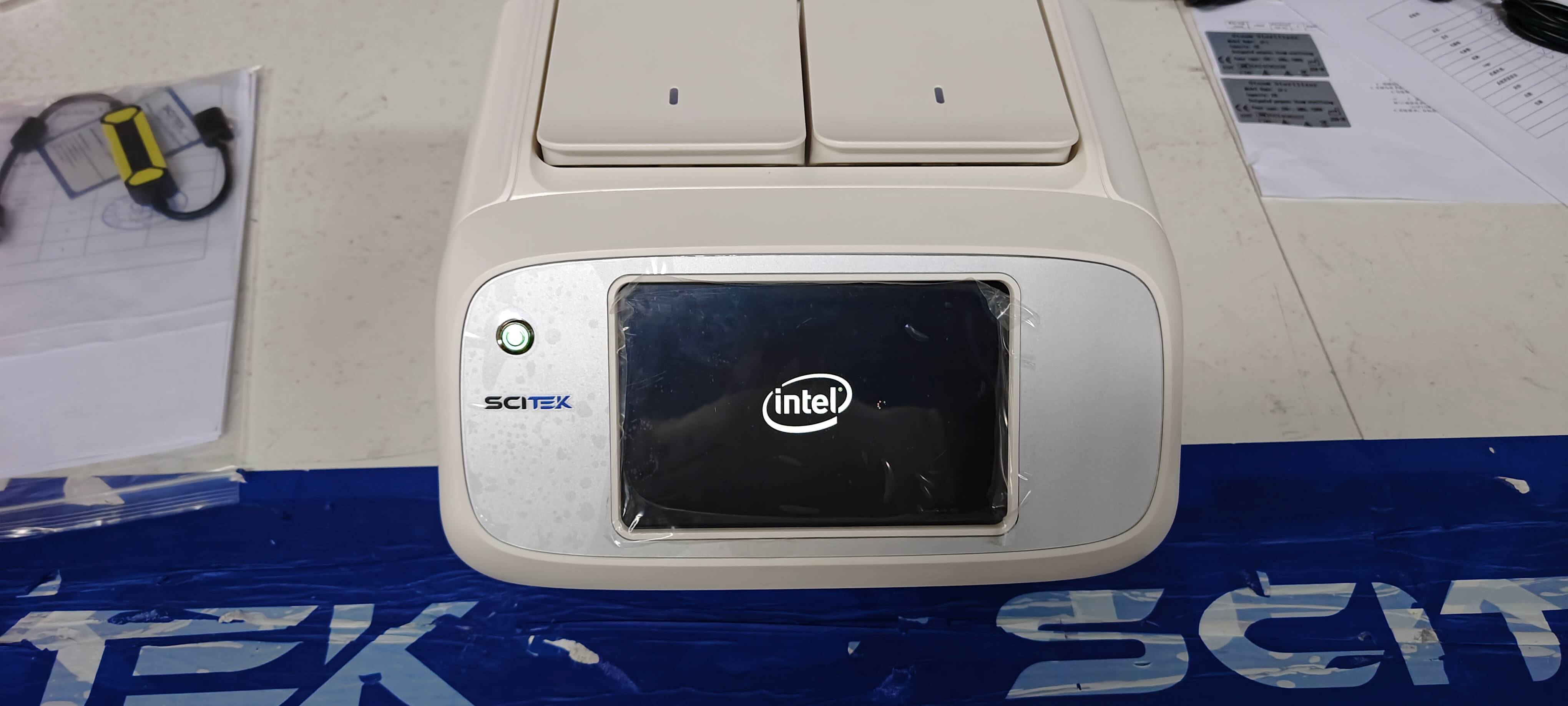

This is a portable real-time quantitative PCR, incorporating several advanced technologies, with a dual-channel, dual 8-well module, which can run two different files simultaneously. win10 operating system with the analysis software, without a computer needing to complete the quantitative analysis and print reports.
The temperature control accuracy is ±0.1℃, ensuring the temperature stability of the reaction system and providing highly accurate experimental results.
The temperature uniformity reaches ±0.25℃, ensuring that the samples in the experiment are uniformly heated throughout the reaction process. The temperature range of the hot cover is adjustable, which can meet the needs of different experimental conditions and guarantee the experiment's reliability.
The high sensitivity photoelectric sensor and the kinetic range of 1-10^10 parts make the product capable of reliable detection in multiple concentration ranges.
Supports block and tube mode temperature control to adapt to different experimental needs and provide more flexible operation options.
It can detect single-copy genes and is suitable for various experimental scenarios, providing users with more comprehensive gene detection and analysis.
Provide quantitative/qualitative melting curves, genotyping, and other software analysis functions to meet the user's needs for various experimental results.
Directly printable report, optional USB thermal printer, convenient for users to record and share the experimental results.
7-inch color touchscreen and computer connection control can be achieved through a WIFI or USB 2.0 interface, making the operation more flexible and convenient.
Powerful software analysis function for quantitative analysis, melting curve analysis, genotyping and so on.
20G flash memory can save 40000 experimental data.
