Real-time Fluorescence Quantitative PCR Detection System, RFQ96 Series

Share to:

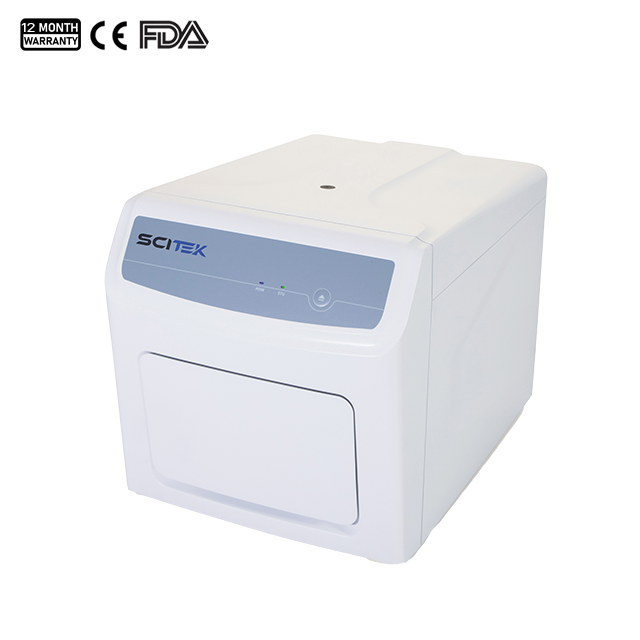

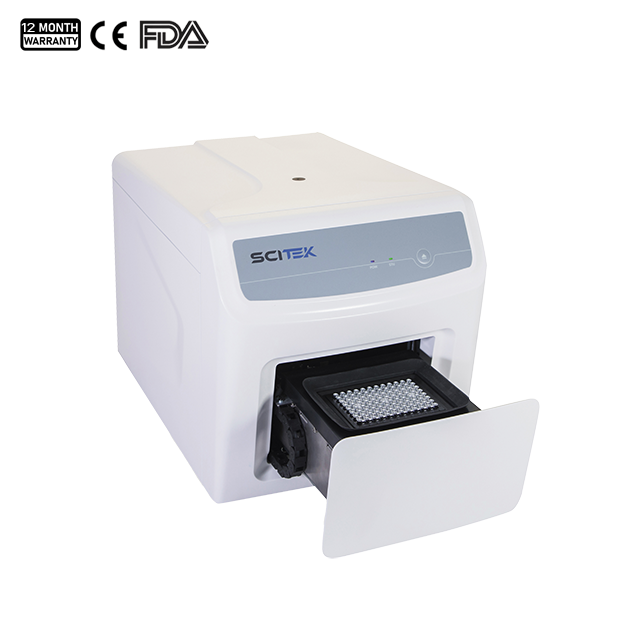

Real-time Fluorescence Quantitative PCR Detection System, RFQ96 Series

Model : PCR-RFQ96; PCR-RFQ96I

Sample Capacity : 0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
MAX. Ramp Rate : 6℃/s
Reaction Volume : 10-50 μl

Sizes (W×D×H)(mm) : 720x560x620

The real-time fluorescence quantitative PCR system is highly sensitive and suitable for use in research and clinical diagnostics.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Real-time Fluorescence Quantitative PCR Detection System Specifications:

Model	PCR-RFQ96	PCR-RFQ96I
Sample Capacity	0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
Reaction Volume	10-50 μl
Thermal Cycle Technology	Peltier
Temperature Control system
Max. Heating/Cooling Rate	6.0°C/s
Heating Temperature Range	4-100 °C
Temperature Accuracy	± 0.2°C
Temperature Uniformity	±0.2℃ @60℃, ±0.3℃ @95℃
Temperature Gradient Setting Range	30-100°C
Temperature Gradient Difference Setting range	1-36°C
Detection System
Excitation Light Source	5 monochrome high efficiency LEDs	6 monochrome high efficiency LEDs
Detection Device	PMT
Detection Mode	Time-resolved signal separating technology
Excitation/detection Wavelength Range	455-650nm	510-715nm
Fluorescent Channels	5 channels	6 channels
Supported Dye	FAM/SYBR Green, VIC/HEX ROX, Cy5, Cy3 (only for PCR-RFQ96I)
Sensitivity	Single copy gene
Resolution	1.33 folds copy number difference can be distinguished in single-plex qPCR
Dynamic Range	10 orders of magnitude copies
Sizes (W×D×H)(mm)	720x560x620
Shipping Size(W×D×H)(mm)	980x680x780
N.W./G.W. (kg)	36/50

Real-time Fluorescence Quantitative PCR Detection System Features:

The real-time fluorescence quantitative PCR detection system is a new optical scanning detection system that uses an innovative scanning method and time-resolved signal separation technology to ensure accurate and reliable results. The PCR-RFQ96 real-time PCR System is an essential choice for quantitative analysis in molecular biology, and it is widely used in various fields, such as scientific research and quality and safety testing.

Up to 6 fluorescence detection channels allow multiplex PCR.
Effectively reduces multi-colour crosstalk and fringing effects without ROX correction.
New optical scanning detection system to ensure the accuracy of the detection results
Innovative scanning method and time-resolved signal separation technology to improve detection efficiency
Unique edge temperature compensation technology to improve the precision of control temperature

Model	PCR-RFQ96	PCR-RFQ96I
Sample Capacity	0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
Reaction Volume	10-50 μl
Thermal Cycle Technology	Peltier
Temperature Control system
Max. Heating/Cooling Rate	6.0°C/s
Heating Temperature Range	4-100 °C
Temperature Accuracy	± 0.2°C
Temperature Uniformity	±0.2℃ @60℃, ±0.3℃ @95℃
Temperature Gradient Setting Range	30-100°C
Temperature Gradient Difference Setting range	1-36°C
Detection System
Excitation Light Source	5 monochrome high efficiency LEDs	6 monochrome high efficiency LEDs
Detection Device	PMT
Detection Mode	Time-resolved signal separating technology
Excitation/detection Wavelength Range	455-650nm	510-715nm
Fluorescent Channels	5 channels	6 channels
Supported Dye	FAM/SYBR Green, VIC/HEX ROX, Cy5, Cy3 (only for PCR-RFQ96I)
Sensitivity	Single copy gene
Resolution	1.33 folds copy number difference can be distinguished in single-plex qPCR
Dynamic Range	10 orders of magnitude copies
Sizes (W×D×H)(mm)	720x560x620
Shipping Size(W×D×H)(mm)	980x680x780
N.W./G.W. (kg)	36/50
