Model | LNC-5-40 | LNC-15-40 | LNC-30-40 | LNC-50-40 |
---|---|---|---|---|
Performance | ||||
LN₂ Capacity (L) | 5 | 15 | 30 | 50 |
Neck Opening (mm) | 40 | 40 | 40 | 40 |
Daily Evaporation Rate Of Static Liquid Nitrogen (%) | 3 | 2.5 | 2.5 | 2 |
Transfusion Volume (L/min) | / | / | / | / |
Maximum Storage Capacity | ||||
Overall Height (mm) | 510 | 750 | 879 | 991 |
Outer Diameter (mm) | 329 | 404 | 454 | 506 |
Weight Empty (kg) | 15 | 23 | 32 | 54 |
Standard Working Pressure (mPa) | 0.05 | |||
Maximum Working Pressure (mPa) | 0.09 | |||
Setting Pressure of the First Safety Valve (mPa) | 0.099 | |||
Setting Pressure of the Second Safety Valve (mPa) | 0.15 | |||
Pressure Gauge Indication Range (mPa) | 0~0.25 | |||
Gross Weight (kg) | 25.88 | 31.86 | 44.81 | 60.74 |
Shipping Size(WxDxH) (mm) | 390x390x785 | 490x490x935 | 500x500x1080 | 605x605x1250 |
Model | LNC-100-40 | LNC-150-40 | LNC-200-40 | LNC-240-40 | LNC-300-40 | LNC-500-40 |
---|---|---|---|---|---|---|
Performance | ||||||
LN₂ Capacity (L) | 100 | 150 | 200 | 240 | 300 | 500 |
Neck Opening (mm) | 40 | 40 | 40 | 40 | 40 | 40 |
Daily Evaporation Rate of Static Liquid Nitrogen (%) | 1.3 | 1.3 | 1.2 | 1.2 | 1.1 | 1.1 |
Transfusion Volume (L/min) | / | / | / | / | / | / |
Maximum Storage Capacity | ||||||
Overall Height (mm) | 1185 | 1188 | 1265 | 1350 | 1459 | 1576 |
Outer Diameter (mm) | 606 | 706 | 758 | 758 | 857 | 1008 |
Weight Empty (kg) | 75 | 102 | 130 | 148 | 202 | 255 |
Standard Working Pressure (mPa) | 0.05 | |||||
Maximum Working Pressure (mPa) | 0.09 | |||||
Setting Pressure of the First Safety Valve (mPa) | 0.099 | |||||
Setting Pressure of the Second Safety Valve (mPa) | 0.15 | |||||
Pressure Gauge Indication Range (mPa) | 0~0.25 | |||||
Gross Weight (kg) | 95.43 | 129 | 161.43 | 174 | 229.5 | 321 |
Shipping Size(WxDxH) (mm) | 710x710x1410 | 810x810x1400 | 860x860x1450 | 860x860x1530 | 960x960x1640 | 1120x1120x1770 |

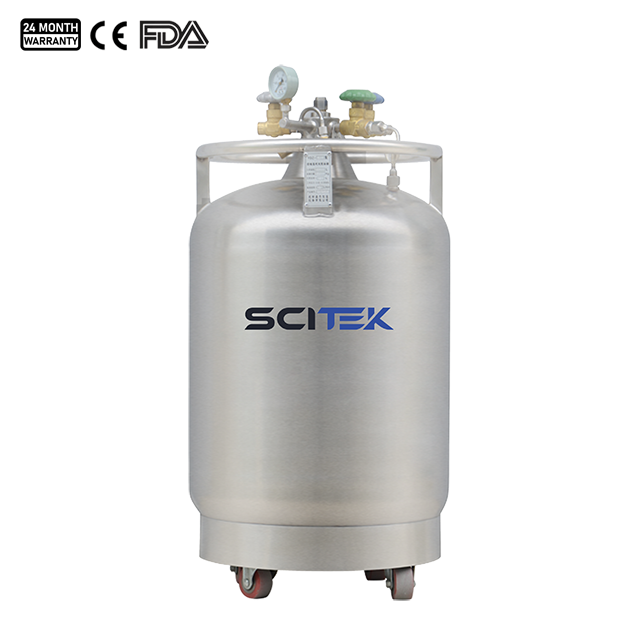

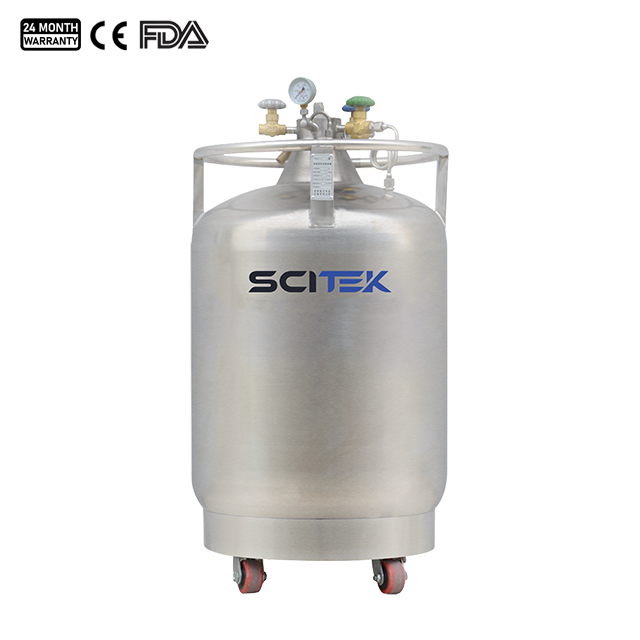

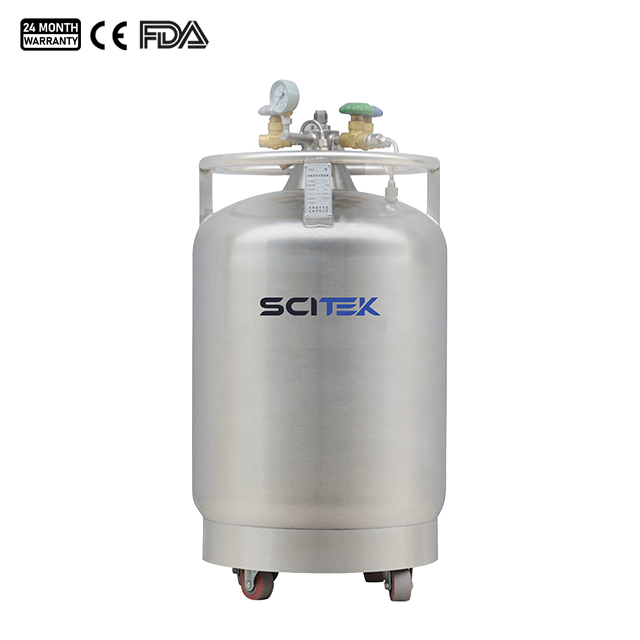

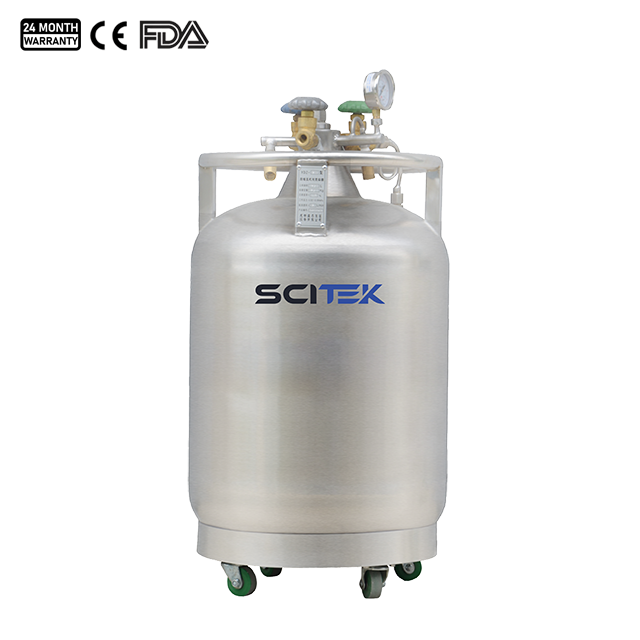

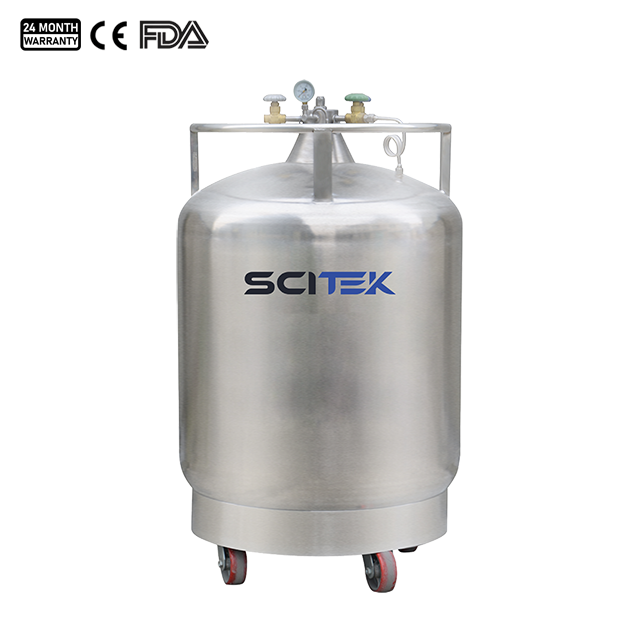

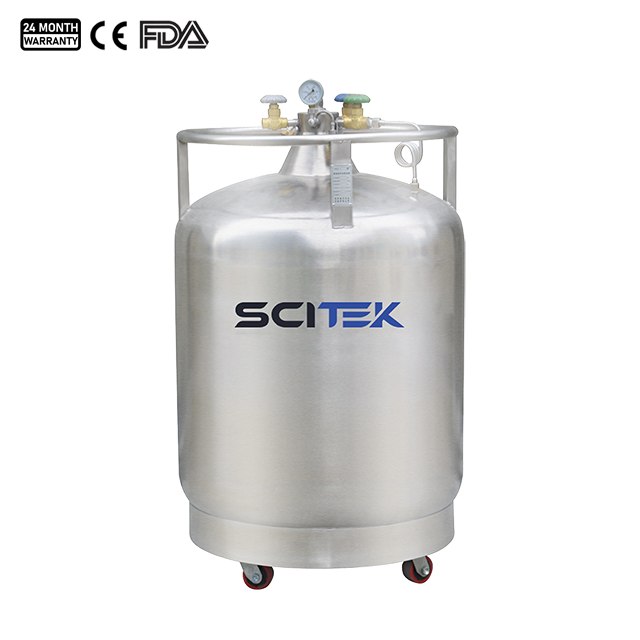

Liquid nitrogen tank mainly applicable to laboratory users and chemical users for liquid nitrogen storage and liquid nitrogen automatic supply.
Unique neck design, low evaporation loss rate.
With rollers for easy to move.
Level display is optional.
Regulator is optional for stable pressure.
Solenoid valve is optional.
Reliability
A protective operating ring.
Safe structure.
Stainless steel tank.
Five years vacuum warranty;
The stainless steel structure design is suitable for most environment and reduces the rate of evaporation losses.
