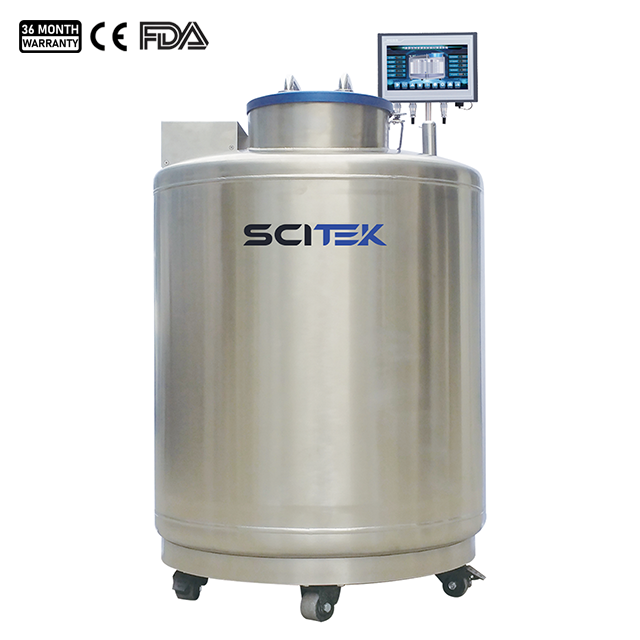

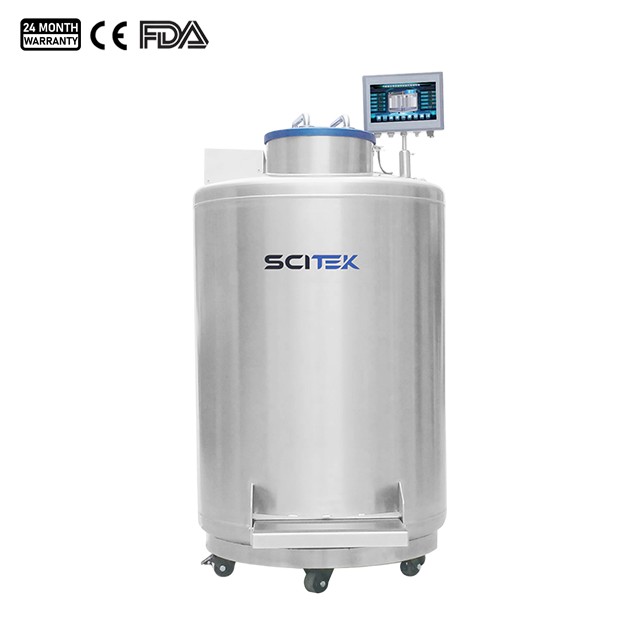

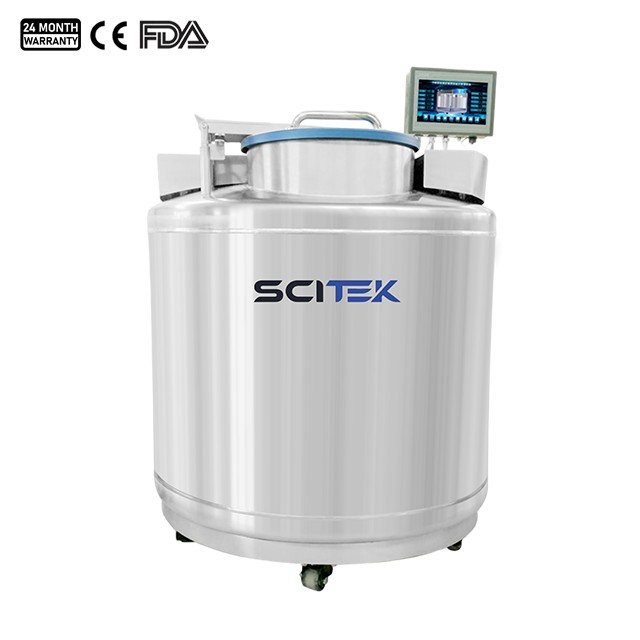

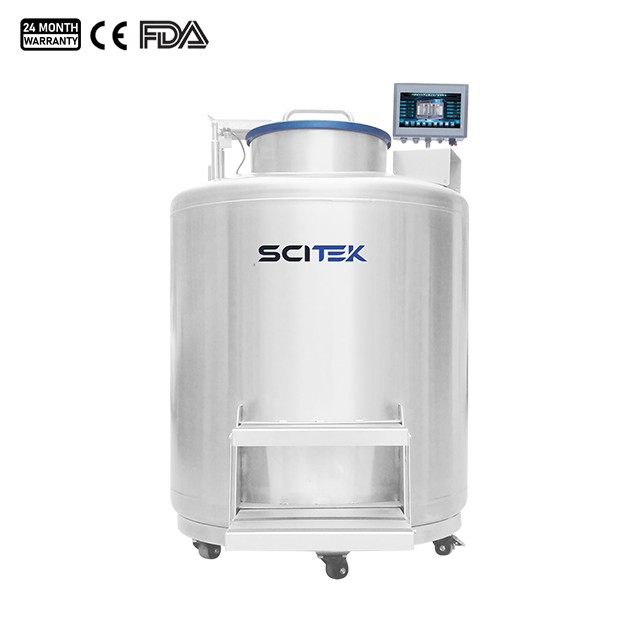

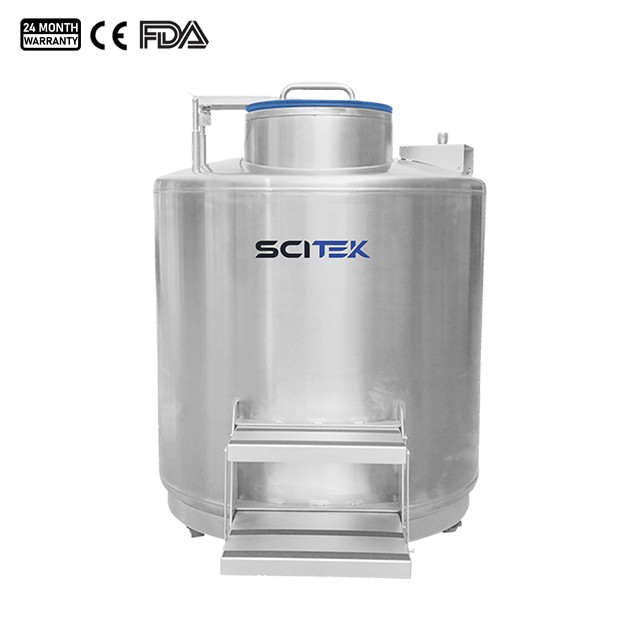

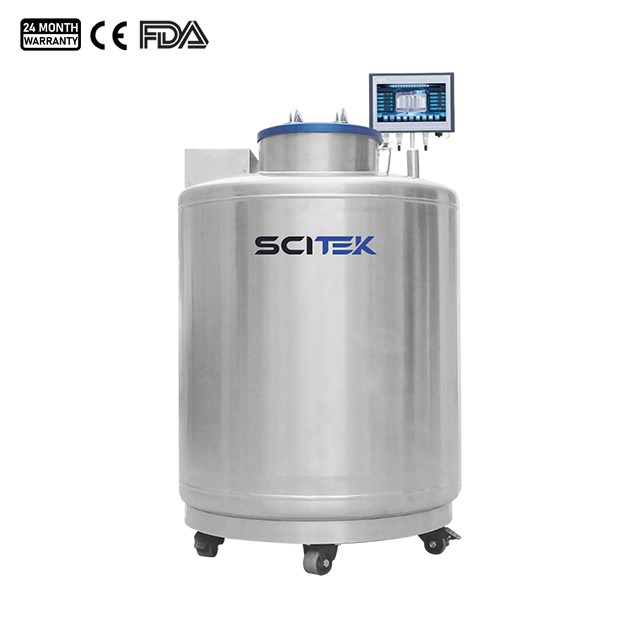

Model | LNC-350-326C | LNC-450-326C | LNC-550-445C | LNC-750-445C | LNC-850-465C | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LN₂ Capacity Under Platform Vapor Storage (L) | 55 | 55 | 80 | 80 | 135 | ||||||||||
LN₂ Capacity (L) | 350 | 460 | 587 | 783 | 890 | ||||||||||
Neck Opening (mm) | 326 | 326 | 445 | 445 | 465 | ||||||||||
Usable Internal Height (mm) | 600 | 828 | 600 | 828 | 773 | ||||||||||
Outer Diameter (mm) | 875 | 875 | 1104 | 1104 | 1190 | ||||||||||
Overall Height(mm) Containing Instrument Height | 1326 | 1558 | 1321 | 1591 | 1559 | ||||||||||
Weight Empty (kg) | 219 | 277 | 328 | 372 | 441 | ||||||||||
Operation Height (mm) | 1263 | 1212 | 1266 | 1216 | 980 | ||||||||||
Weight Liquid Full (kg) | 502 | 649 | 802 | 1005 | 1160 | ||||||||||
Door Width Requirement (≥mm) | 895 | 895 | 1124 | 1124 | 1210 | ||||||||||
Maximum Storage Capacity of 2ml Internal Rotary Freeze Storage Tube | |||||||||||||||
1.2,1.8 & 2 ml Vials (Internally Threaded) (ea) | 13000 | 18200 | 27000 | 37800 | 42900 | ||||||||||

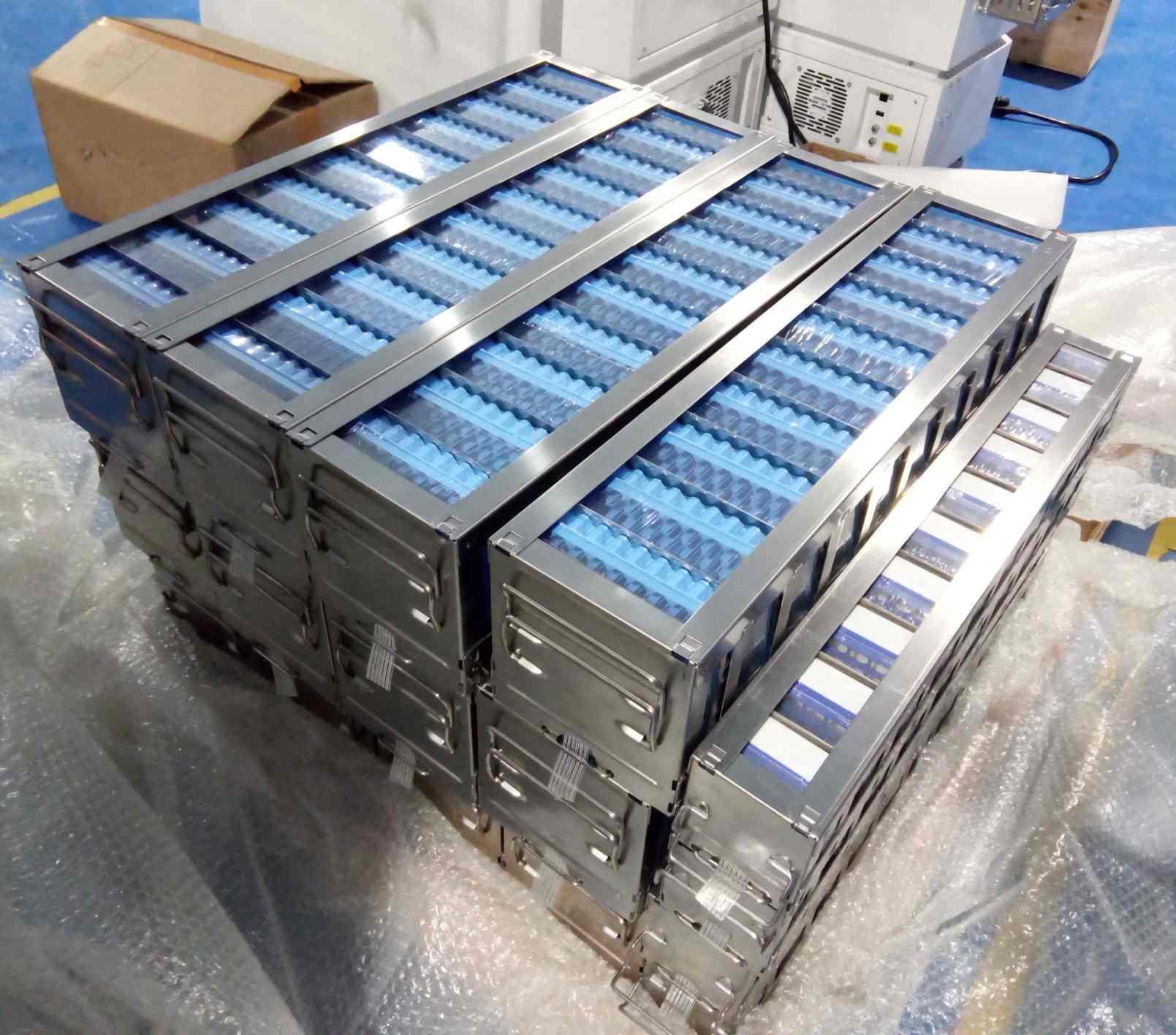

Number of Racks With 25 (5x5) Cell Boxes (ea) | 4 | 4 | 12 | 12 | 4 | ||||||||||
Number of Racks With 100 (10x10) Cell Boxes (ea) | 12 | 12 | 24 | 24 | 32 | ||||||||||
Number of 25 (5x5) Cell Boxes (ea) | 40 | 56 | 120 | 168 | 52 | ||||||||||
Number of 100 (10x10) Cell Boxes (ea) | 120 | 168 | 240 | 336 | 416 | ||||||||||
Number of Stages Per Rack (ea) | 10 | 14 | 10 | 14 | 13 | ||||||||||
Maximum Straw Capacity | |||||||||||||||
High Security Straw Capacity (0.5 mL) (ea) | 111312 | 131220 | 203040 | 253800 | 304920 | ||||||||||
High Security Straw Capacity (0.25 mL) (ea) | 254592 | 301120 | 468544 | 585680 | 699360 | ||||||||||
Number of Canisters (76 mm) (ea) | 52 | 52 | 112 | 112 | 120 | ||||||||||
Number of Canisters (63 mm) (ea) | 8 | 8 | 0 | 0 | 16 | ||||||||||
Number of Canisters (38 mm) (ea) | 28 | 12 | 24 | 24 | 40 | ||||||||||
Number of Levels Per Canister (ea) | 4 | 5 | 4 | 5 | 5 | ||||||||||
Level Height (mm) | 135 | 135 | 135 | 135 | 135 | ||||||||||
Gross Weight (kg) | 274 | 340 | 396 | 448 | 524.1 | ||||||||||
Shipping Size (WxDxH) (mm) | 1020x1020x1520 | 1020x1080x1740 | 1250x1250x1510 | 1380x1250x1750 | 1440x1330x1750 |
Maximum Blood Bag Capacity | ||||||
---|---|---|---|---|---|---|
Blood Bag Type | 25 mL (791 OS/U) | 50 mL (4R9951) | 200 mL (DF-200) | 250 mL (4R9953) | 500 mL (4R9955) | 700 mL (DF-700) |
Total Bags | 1296 | 792 | 168 | 300 | 192 | 96 |
Bags/ Frame | 6 | 6 | 3 | 3 | 3 | 3 |
No. Frames | 216 | 132 | 56 | 100 | 64 | 32 |
Total Bags | 1728 | 1056 | 280 | 500 | 320 | 128 |
Bags/ Frame | 8 | 8 | 5 | 5 | 5 | 4 |
No. Frames | 216 | 132 | 56 | 100 | 64 | 32 |
Total Bags | 2376 | 1416 | 336 | 552 | 408 | 204 |
Bags/ Frame | 6 | 6 | 3 | 3 | 3 | 3 |
No. Frame | 396 | 236 | 112 | 184 | 136 | 68 |
Total Bags | 3168 | 1888 | 560 | 920 | 680 | 272 |
Bags/ Frame | 8 | 8 | 5 | 5 | 5 | 4 |
No. Frames | 396 | 236 | 112 | 184 | 136 | 68 |
Total Bags | 3360 | 2072 | 544 | 944 | 640 | 320 |
Bags/ Frame | 7 | 7 | 4 | 4 | 4 | 4 |
No. Frames | 480 | 296 | 136 | 236 | 160 | 80 |

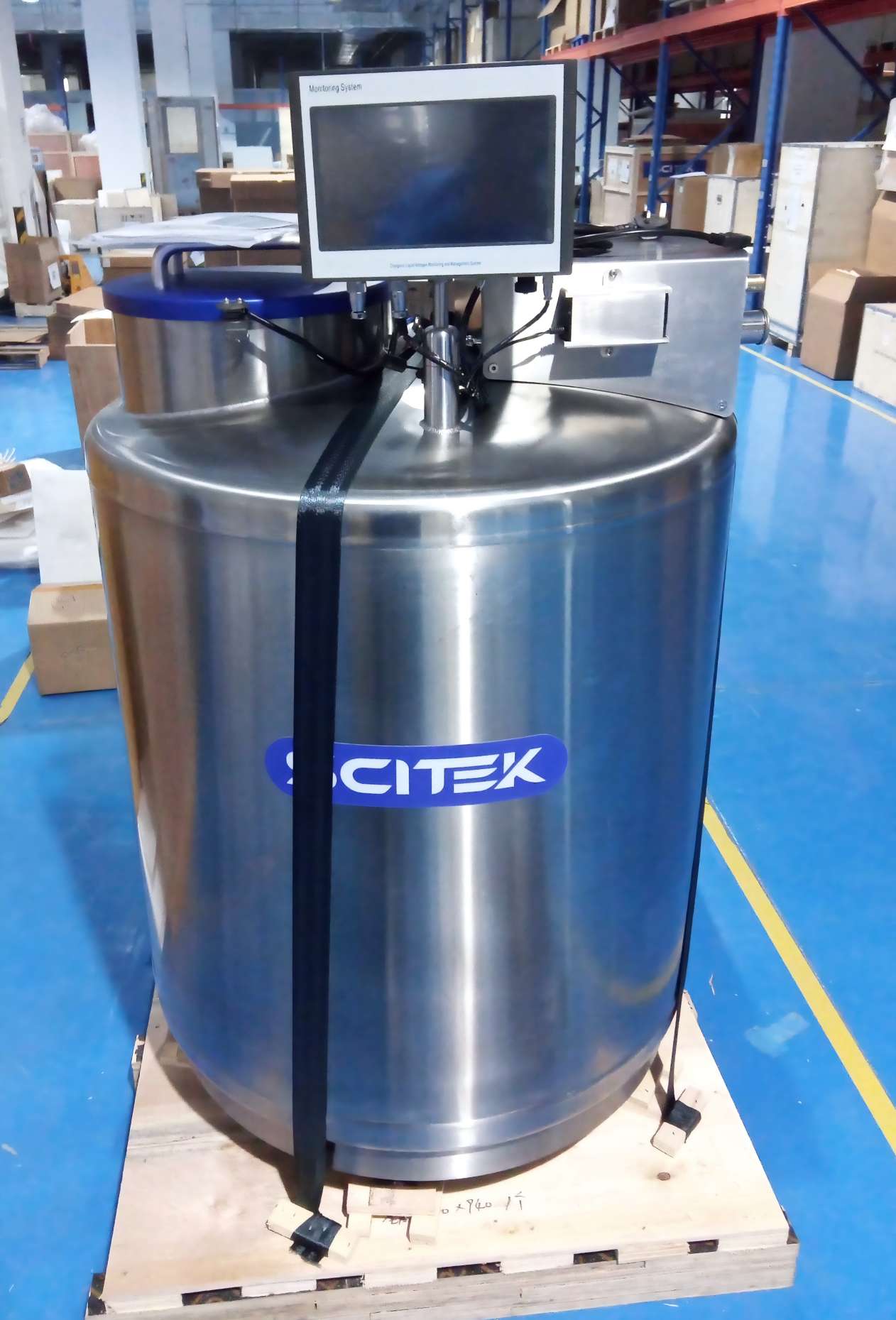

Liquid nitrogen tank used in hospitals and research institutions to build biological sample banks, common tissues and organ banks, such as blood bank, corneal bank, bone marrow bank; Cell line library of normal cells, genetic mutation cells, tumor cells and hybridoma cell lines; Various stem cell banks such as cord blood stem cell banks and embryonic stem cell banks, as well as genome banks of various races and diseases.
Compatible with vapor and liquid storage modes.
Various capacity optional to meet your storage requirements.
More specimen capacity in a limited space to reduce the storage costs.
One button to demist, easy to search, pick and place specimen.
User-friendly design, comfortable operation.
Equipped with folding steps and workbench.
Reliability
Advanced temperature, level monitoring and alarm system, microprocessor-based control system and the vertical double platinum resistance temperature probe can display real time temperature.
The user can set their own alarm temperature value, with alarm mute option.
Automatic filling liquid nitrogen system, safe and efficient.
Lockable lid, fully guarantee the safety of the specimen.
Excellent temperature uniformity and stability, vacuum insulated stainless steel structure, high vacuum coverage to ensure excellent insulation properties.
Excellent temperature stability after opening lid, innovative lid and excellent small neck openings design can greatly reduce the liquid nitrogen evaporation rate.
Controlling system can permanently store operating data.
