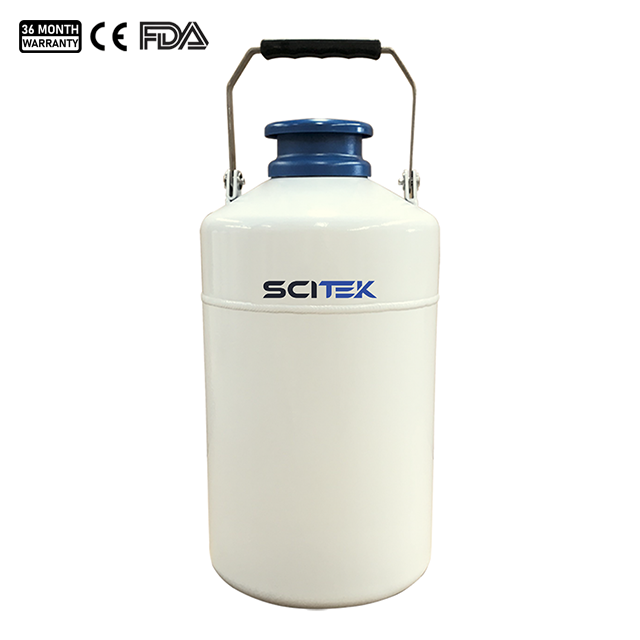

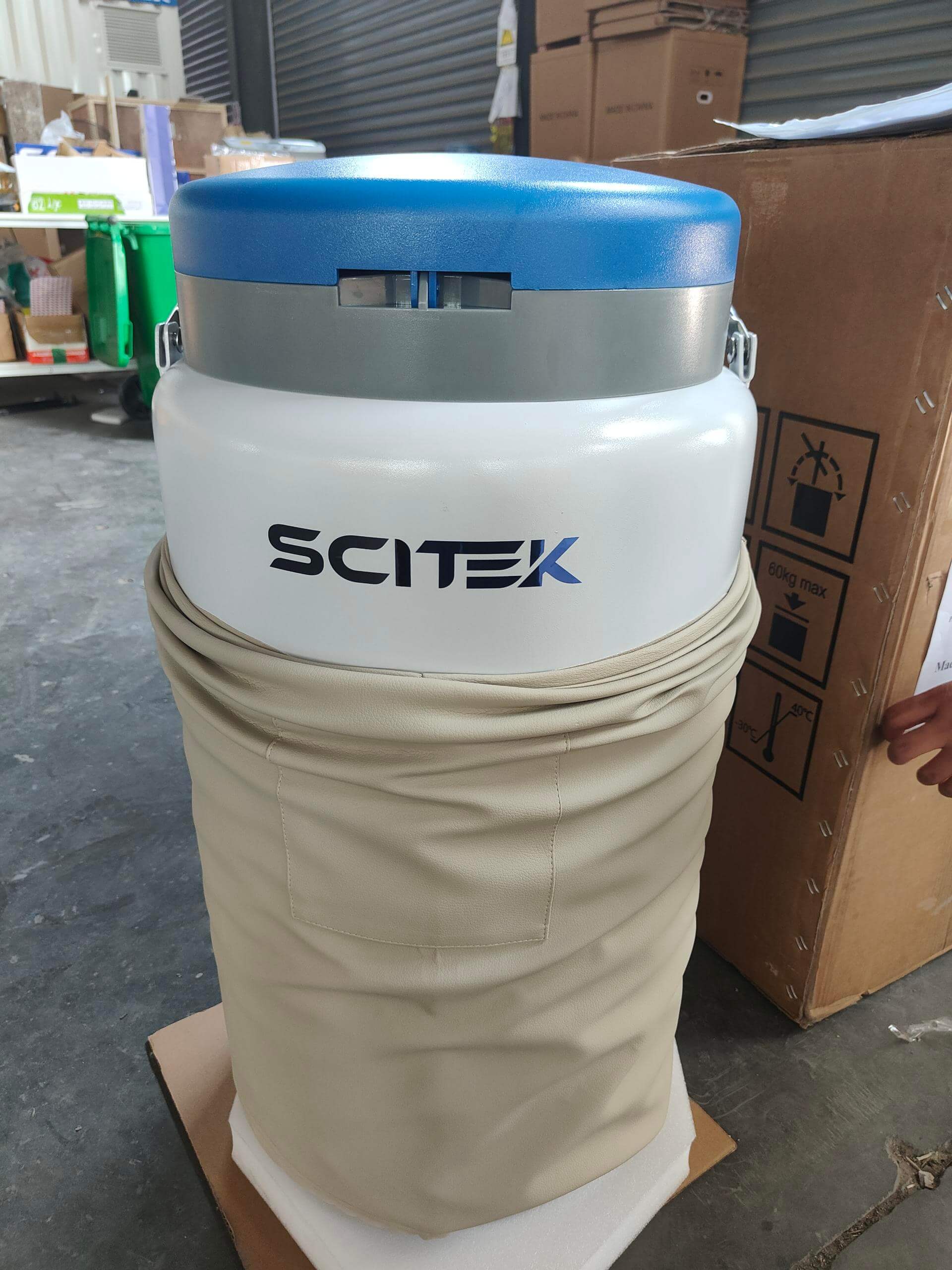

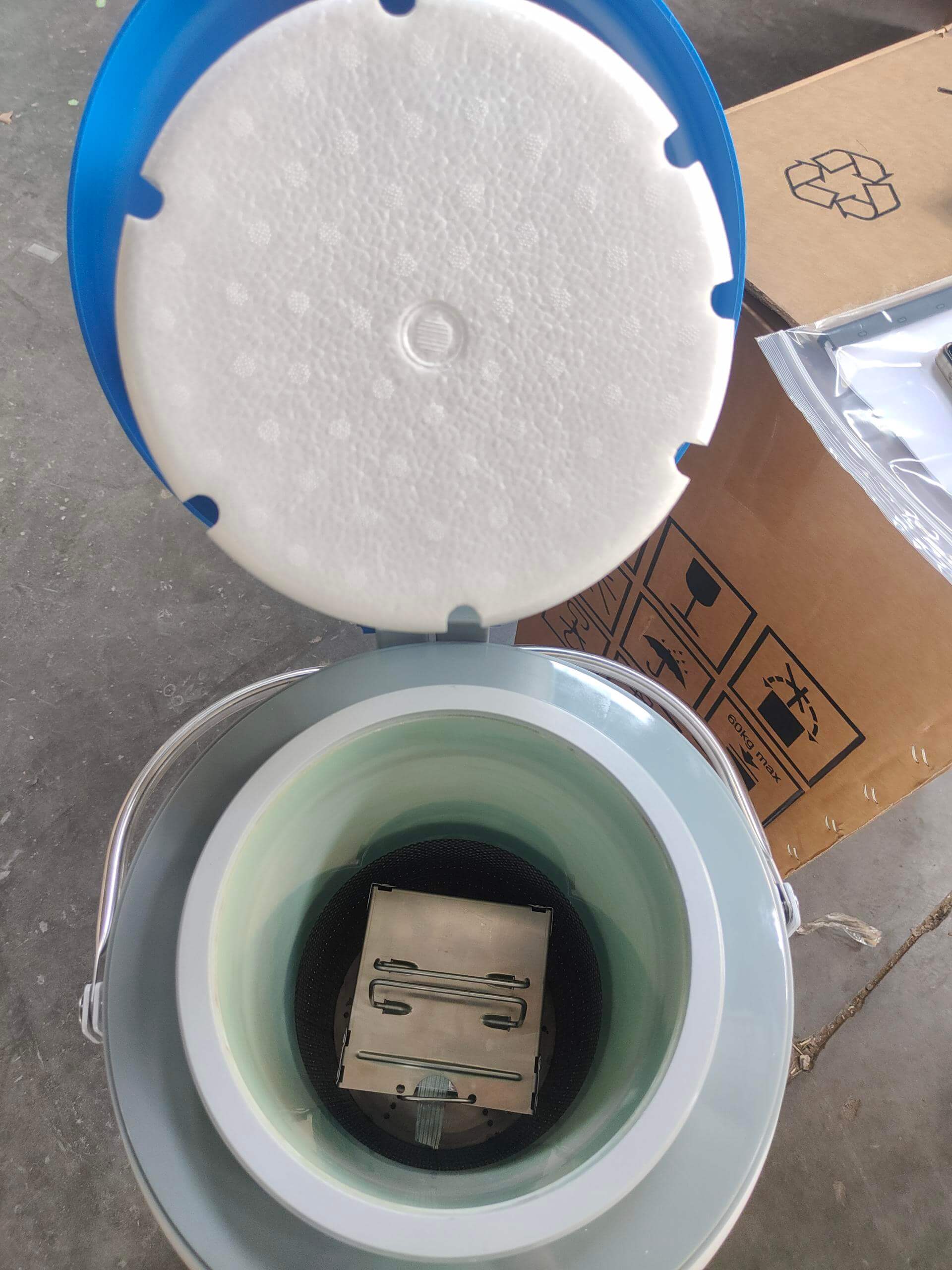

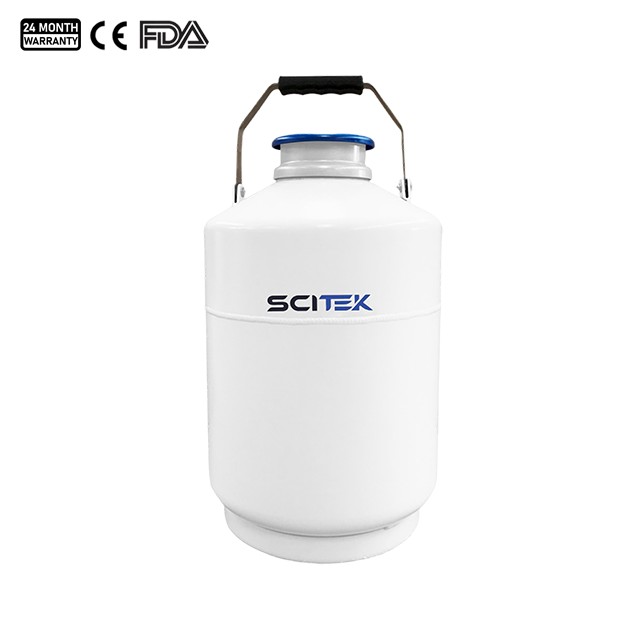

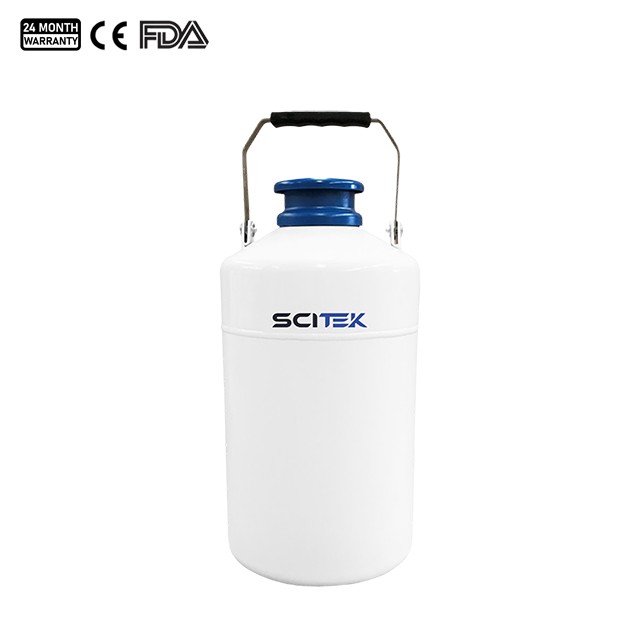

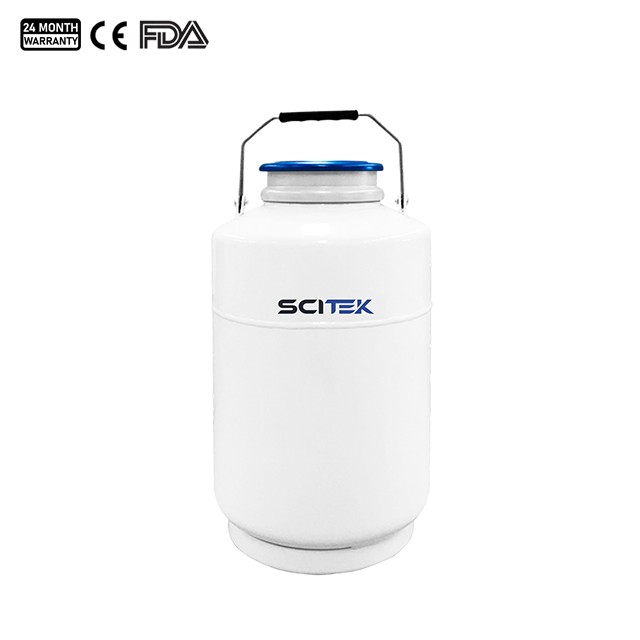

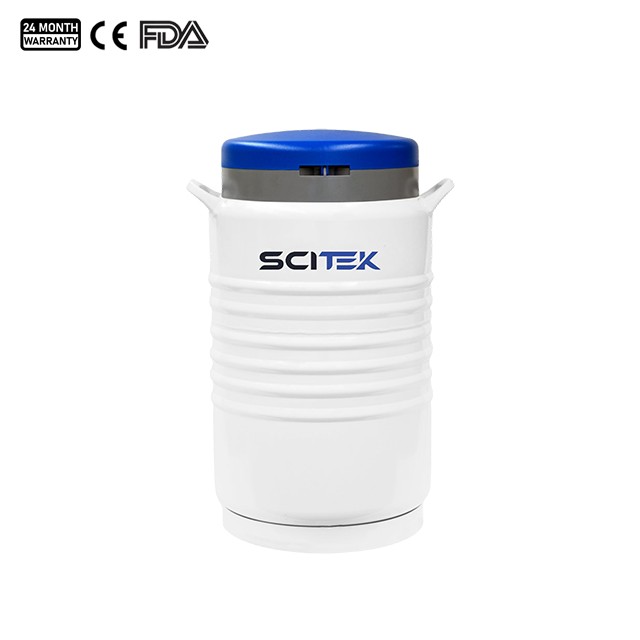

This dry shipper liquid nitrogen tank is a container for cryogenic transport. It is mainly used for transporting items that need to be kept at low temperatures, such as biological samples, cells, vaccines and so on. Nitrogen liquid container adopts vacuum insulation technology and contains a certain amount of liquid nitrogen inside, which can maintain the low temperature environment for several months.
Model | LNC-1-50D | LNC-3-80D | LNC-4-125D | LNC-9-216D | ||
---|---|---|---|---|---|---|
Performance | ||||||
Effective Capacity (L) | 1.3 | 2.9 | 3.4 | 9 | ||
Weight Empty (kg) | 3.2 | 4.9 | 6.7 | 15 | ||
Neck Opening (mm) | 50 | 80 | 125 | 216 | ||
Outer Diameter (mm) | 223 | 300 | 300 | 394 | ||
Overall Height (mm) | 435 | 487 | 554 | 716 | ||
Static Evaporation Rate (L/day) | 0.16 | 0.2 | 0.43 | 0.89 | ||
Static Holding Time (day) | 20 | 37 | 23 | 29 | ||
Effective Shelf Life | 8 | 14 | 8 | 10 | ||
Maximum Storage Capacity | ||||||
Canister | Canister Diameter (mm) | 38 | 63 | 97 | / | |
Canister Height (mm) | 120 | 120 | 120 | / | ||
Number of Canisters (ea) | 1 | 1 | 1 | / | ||
Straws Capacity (120 mm Canister) | 0.5 mL (ea) | 132 | 374 | 854 | / | |
0.25 mL (ea) | 298 | 837 | 1940 | / | ||

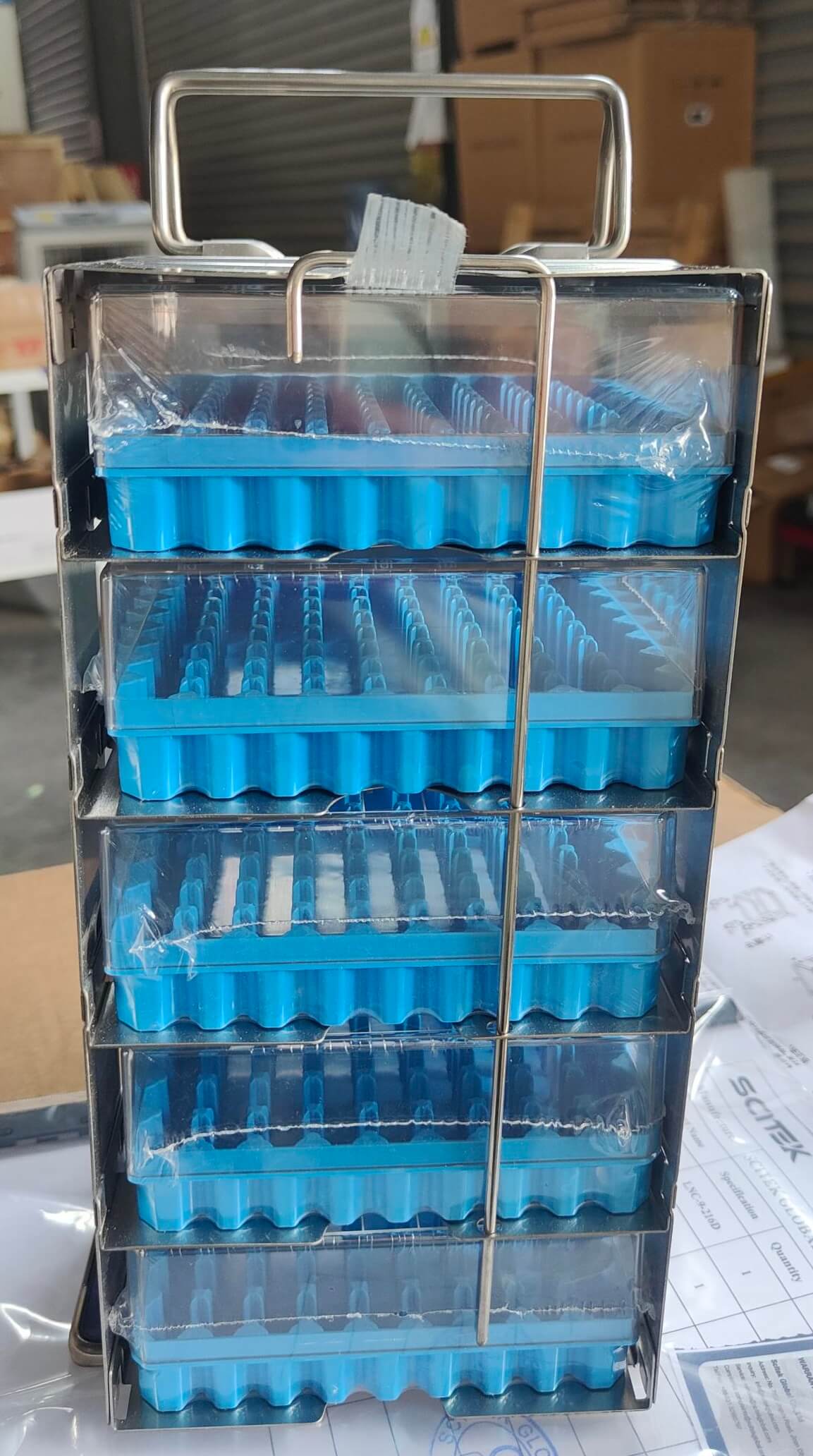

Racks &Vials Boxes | Number of Racks (ea) | / | / | 1 | 1 | |
Vial Boxes Size (mm) | / | / | 76x76 | 134x134 | ||
Boxes Per Rack (ea) | / | / | 4 | 5 | ||
1.2;1.8&2 mL Vials (Internally Threaded) | / | / | 100 | 500 | ||
25 mL Blood Bag | Number of Racks (ea) | / | / | 1 | 1 | |
Stages Per Rack (ea) | / | / | 1 | 2 | ||
Boxes Per Stage (ea) | / | / | 3 | 15 | ||
Blood Bag Capacity (ea) | / | / | 3 | 30 | ||
50 mL Blood Bag | Number of Racks (ea) | / | / | 1 | 1 | |
Stage Per Rack (ea) | / | / | 1 | 1 | ||
Boxes Per Stage (ea) | / | / | 3 | 15 | ||
Blood Bag Capacity (ea) | / | / | 3 | 15 | ||
Gross Weight (kg) | 4.48 | 6.74 | 8.56 | 19.54 | ||
Shipping Size(WxDxH)(mm) | 270x270x510 | 340x340x555 | 340x340x615 | 425x425x800 | ||
Optional Accessories | ||||||
Lockable Lid | Standard | Standard | Standard | Standard | ||
PU Bag (Protective Jacket) | Standard | Standard | / | / | ||
Smart Cap | / | / | / | / |
Dry nitrogen tank series is suitable for cryogenic environment (vapor storage at temperatures below -190 °C) transportation for samples. It could avoid the risk of the liquid nitrogen releasing during transportation, especially designed for short-term air transport. Dry nitrogen tank mainly used for laboratory users and short-term delivery of small number samples.
Vapor cryogenic storage
Fast liquid nitrogen filling
High strength aluminum construction
Straws or vials storage is optional
Reliability
Three years vacuum warranty

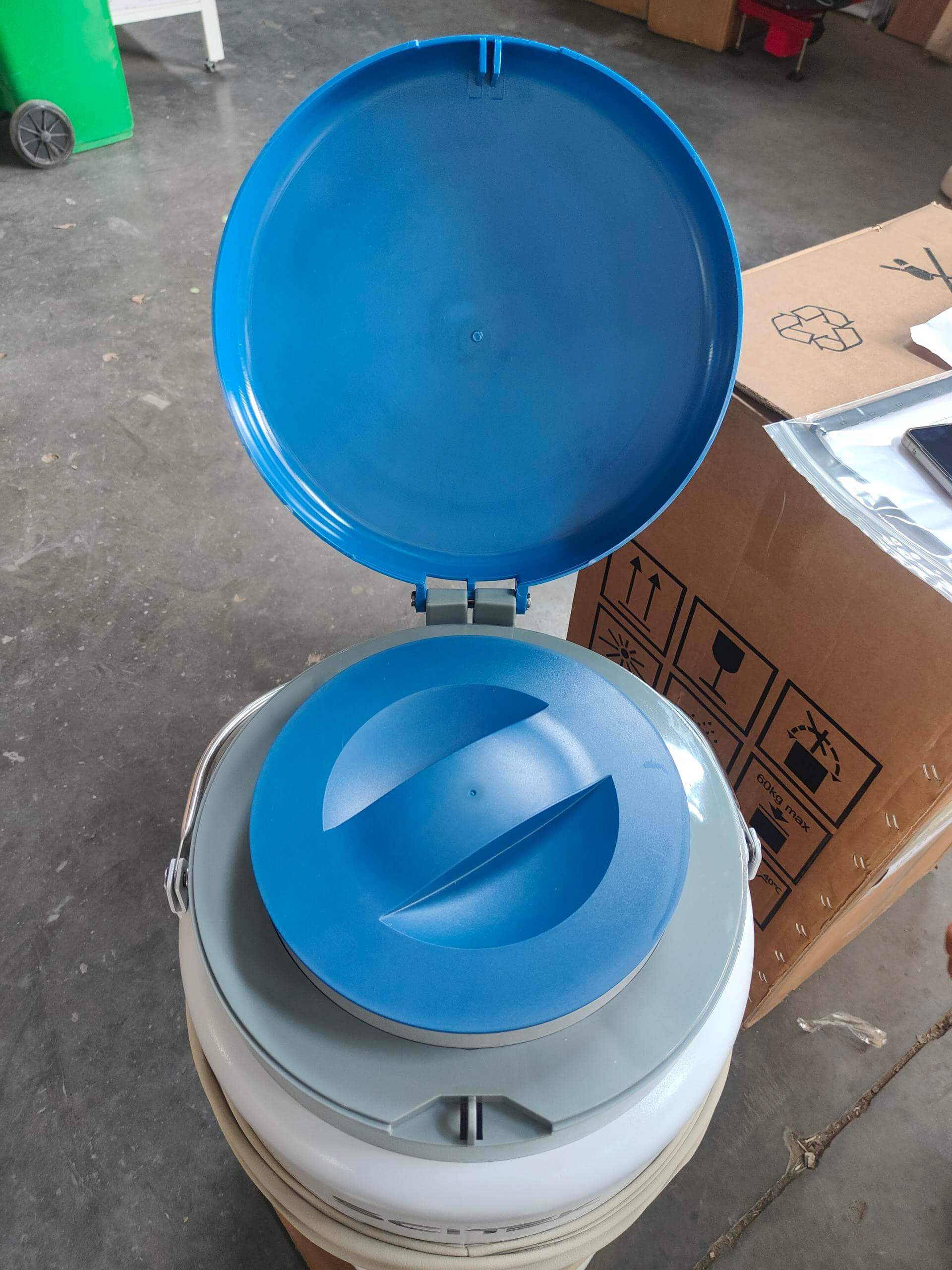

Lockable lid
No liquid nitrogen overflow
Canister of liquid nitrogen, as an extremely low-temperature liquid, is widely used for cold storage and cryopreservation in medical, biological, chemical and other fields. Unlike traditional liquid nitrogen tanks, the dry shipper liquid nitrogen tank does not require regular replenishment, making it more convenient and safer. It has a double-layer insulated design to keep the internal temperature stable.
3 Years Limited Warranty
CE and FDA European Standards
1-2 Days Handling and 7-30 Days Shipping
