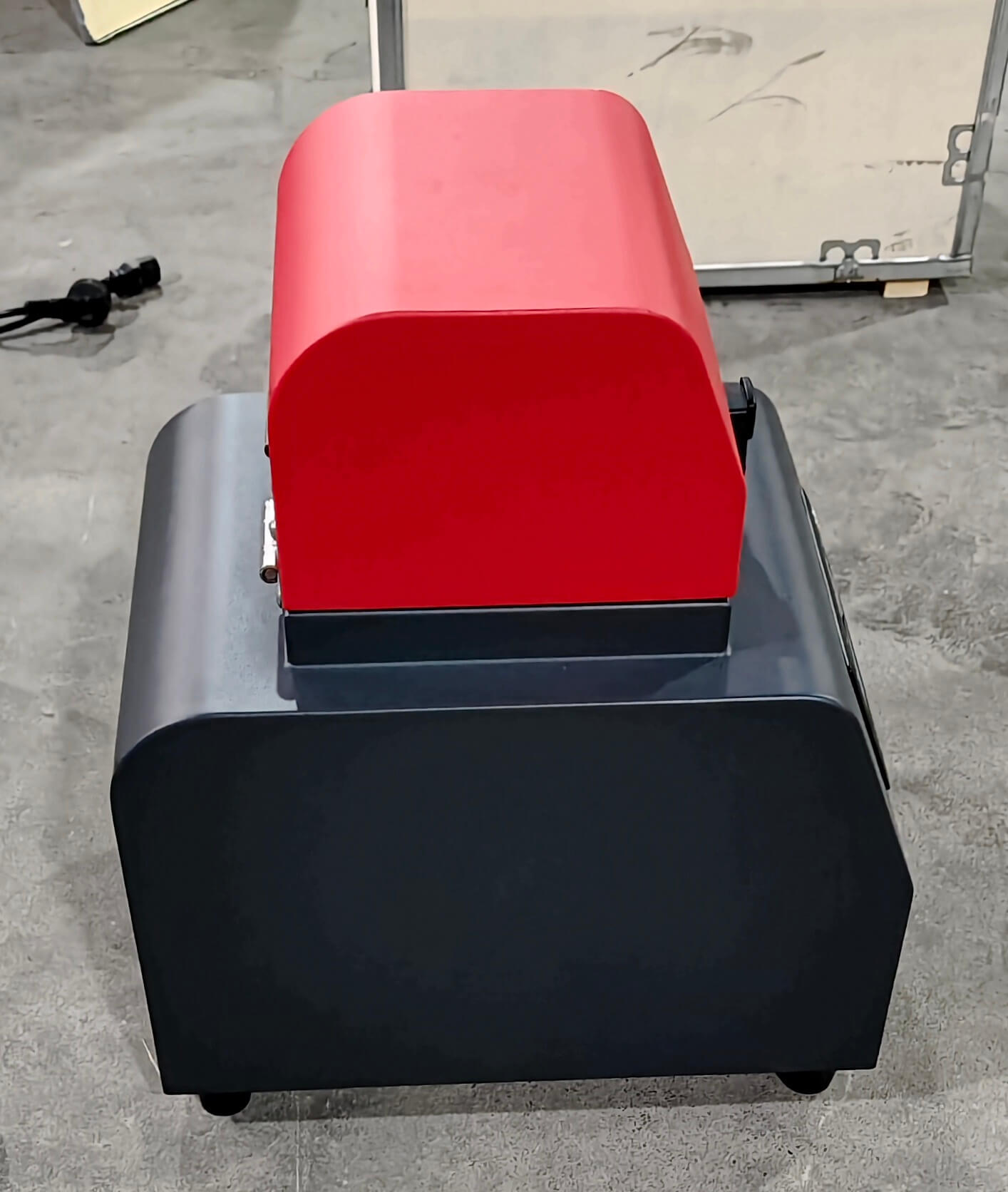

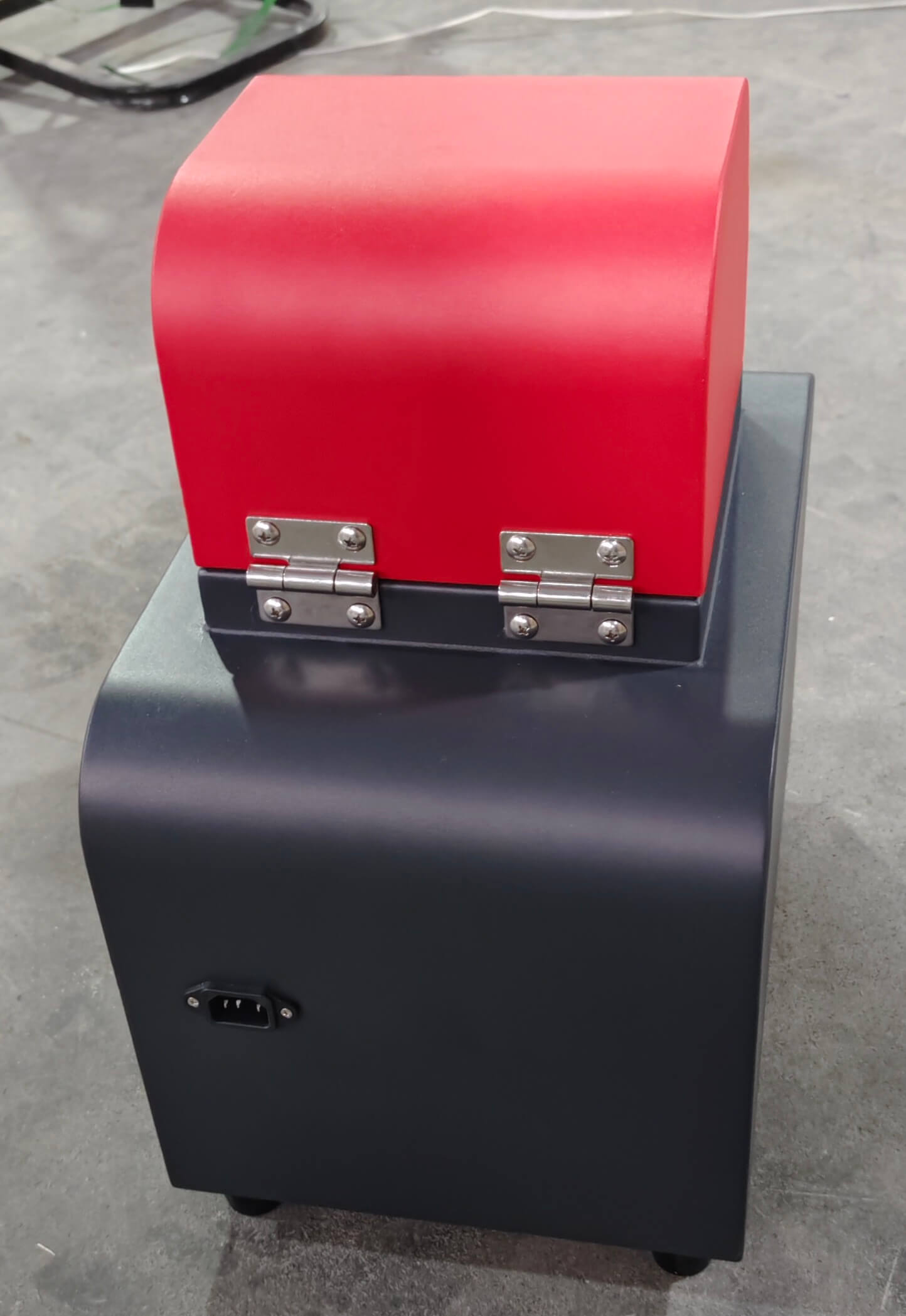

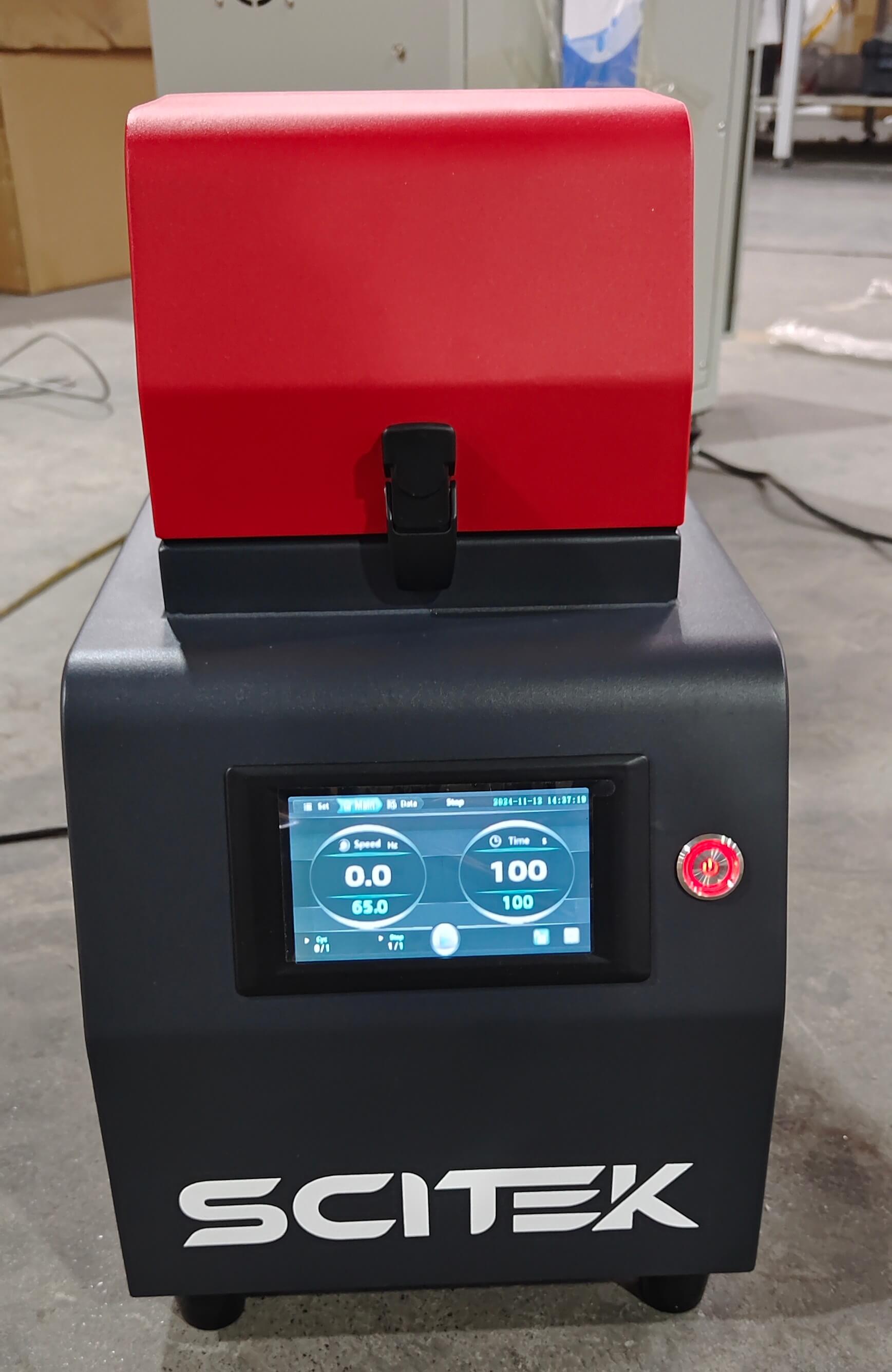

Grinding Machine GM Series

Model : GM-24; GM-48; GM-96

Grinding Frequency : 0-70 Hz/s
Acceleration/deceleration Time : 1-60s adjustable

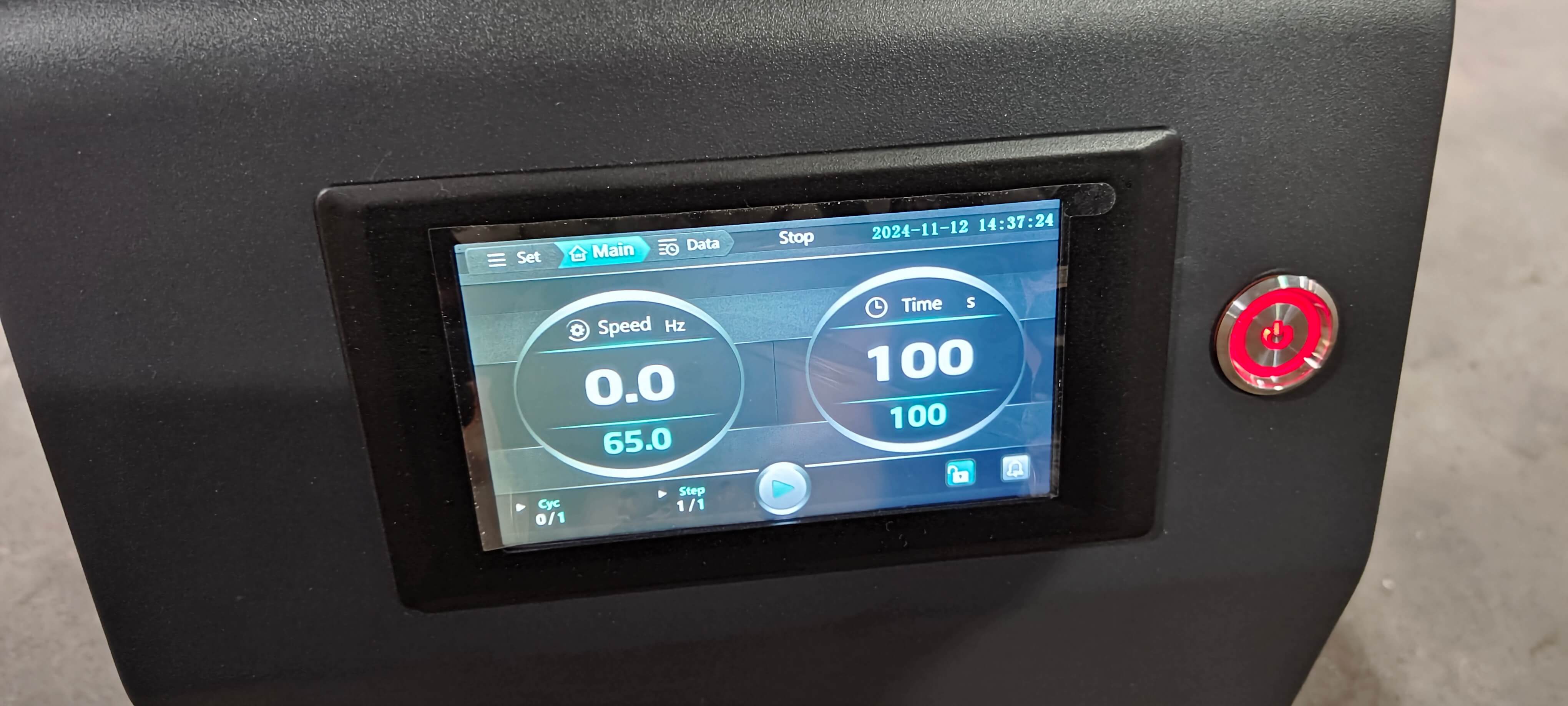

Display : OLED touch screen
Shock Absorption Function : Yes
Grinding Ball Diameter : 0.1-30mm

Availability:
Quantity:

Grinding Machine Features:

  1. Preset grinding plan, single group cycle or multiple groups of intermittent grinding; grinding conditions are automatically recorded, and the recording interval is adjustable to facilitate traceability analysis.

  2. The transmission shaft is surface hardened, equipped with precision linear bearings, automatic center positioning fastening device, and has a design life of 50,000 minutes.

  3. High-frequency vertical bead grinding method, the same plane is uniformly stressed, ensuring the crushing effect and uniformity of the sample, and facilitating parallel comparison experiments.

  4. The centrally symmetrical matrix adapter has high working efficiency and long equipment life; the adapter auxiliary fixing device makes fixing more convenient and safe.

  5. The sample tubes are pressed and fixed in parallel to reduce the risk of tube breakage. The integrity rate of the sample tubes under high-frequency working conditions is higher than 99.9%.

  6. Full metal body, damping hinges can limit the opening of the door at any angle, pressure sensors automatically identify the state of the warehouse door, anti-loosening locking door locks.

  7. Multi-unit close transmission high-frequency oscillation technology can be soil, animal and plant tissues, organs, bacteria, yeast, fungi, spores, paleontological specimens, and other samples for grinding and crushing. In turn, the original DNA, RNA and proteins are extracted and purified.

Grinding Machine Specifications:

ModelGM-24GM-48GM-96
Grinding Frequency0-70 Hz/s
Grinding Time0-9999s
Acceleration/Deceleration Time1-60s adjustable
DisplayOLED touch screen
Control ModePID microcomputer intelligent control
Shock Absorption FunctionYes
Program Mode30 sets of recipe data storage
Grinding Ball Diameter0.1-30mm
Noise Level<55dB
MotorOriginal imported
Grinding Ball MaterialAlloy steel, chromium steel, zirconia, tungsten carbide, quartz sand, etc.
Adaptive Capacity2ml PE tube, 5ml PE tube (5ml, 10ml, 15ml, 25ml, 50ml, 100ml) stainless steel grinding tank
Aluminium Alloy Adapter2ml×24, 5ml×12, 10ml×4, 15ml×2, 25ml×22ml×48, 5ml×12, 10ml×8, 15ml×2, 25ml×2, 50ml×22ml×96, 5ml×12, 10ml×8, 15ml×4, 25ml×4, 50ml×2, 100ml×2
PE Adapter2ml×24, 5ml×12, 10ml×4, 15ml×2, 25ml×22ml×48, 5ml×12, 10ml×8, 15ml×2, 25ml×2, 50ml×22ml×96, 5ml×12, 10ml×8, 15ml×4, 25ml×4, 50ml×2,
100ml×2
Power SupplyAC220V; 50-60Hz
Power120W180W300W
External Size(W×D×H)(mm)260x380x500260x380x500340x380x600
Shipping Size(W×D×H)(mm)480x350x510480x350x510520x440x630
Net/Gross Weight(kg)25/3528/3835/55
