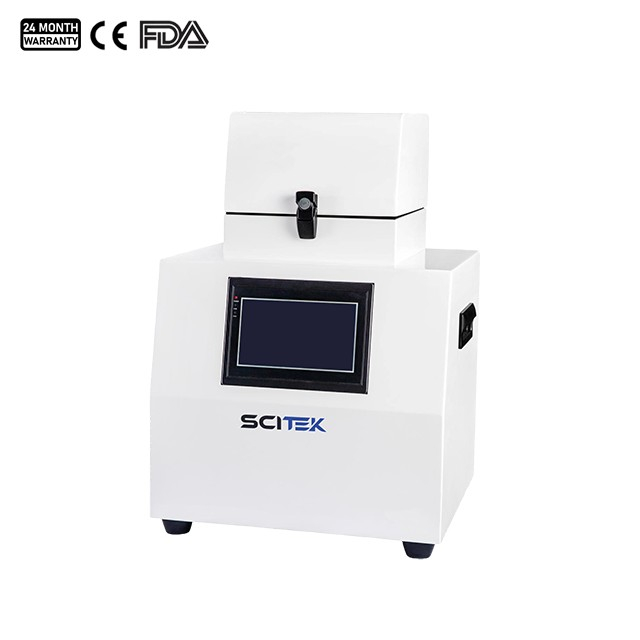

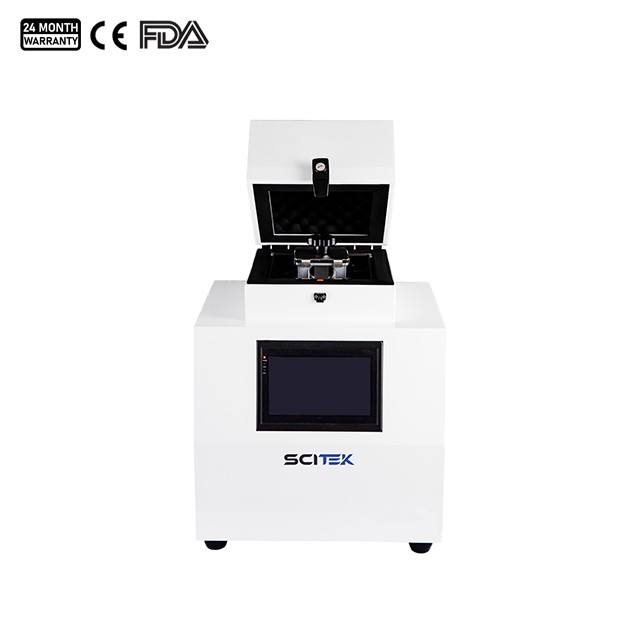

High Throughput Grinding Machine

Model : GM-192

Grinding Frequency : 0-70 Hz/s; 0-2100R/min
Typical Grinding Time : 15s to 2min
Clamp Stroke : 40mm Vertical
Display : LCD display
External Size(W×D×H)(mm) : 520x380x520
Availability:
Quantity:

Grinding Machine Features:

  1. Large number of operations, good effect, efficient and fast work, can complete the grinding of 192*2ml samples in more than 30 seconds. save time and energy.

  2. No cross-contamination, the grinding jar is fully enclosed during the crushing process, and disposable centrifuge tubes and beads can be used. The samples are completely retained in the tank to avoid cross-contamination between samples and external contamination.

  3. Easy to operate, user-friendly touch screen operation interface, built-in program controller, which can set grinding time, rotor vibration frequency and other parameters

  4. When a low-temperature grinding environment is required, the adapter containing the sample can be immersed in liquid nitrogen to cool for 1-2 minutes. After taking it out, move it to the host and quickly fix it to start grinding. There is no need to freeze again, saving liquid nitrogen.

  5. Set the same procedure for the same tissue sample to obtain the same grinding effect. The working time is short and the sample temperature will not rise.

Grinding Machine Specifications:

ModelGM-192
Grinding Frequency0-70 Hz/s; 0-2100R/min
Grinding Time Setting0-9999min
Typical Grinding Time15s to 2min
Clamp Stroke40mm Vertical
DisplayLCD display
Grinding WayWet grinding, dry grinding, ultra-low temperature grinding
SampleHard, medium hard, soft, brittle, elastic, fibrous
Discharge Size≤3um
Liquid Nitrogen Pre-freezingYes
Protection TypeIP30
Grinding Tank MaterialHard steel, stainless steel, tungsten carbide, agate, zirconia, PTFE, aluminum alloy, etc.
Grinding Ball MaterialHard steel, stainless steel, tungsten carbide, agate, zirconia, ceramics, tungsten carbide, quartz sand
Grinding Ball Diameter0.1-30mm
Adapter384x(0.2-0.5ml)/192x2ml/48x(5-10)ml/24x15ml/4x25ml/4x50ml Two adapters come standard
Consumption500W
Power Supply220V/50Hz
External Size(W×D×H)(mm)520x380x520
Shipping Size(W×D×H)(mm)580x480x700
Net/Gross Weight(kg)51/58
