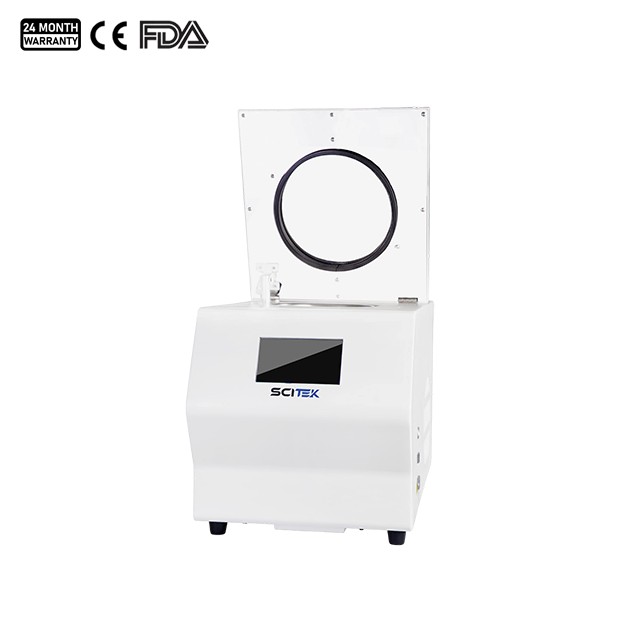

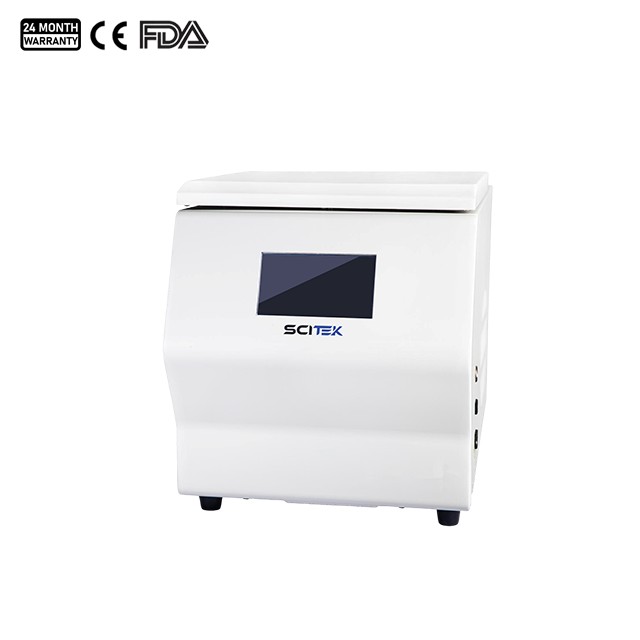

Grinding Machine, GM-VF24

Model : GM-VF24

Grinding Frequency : 0-70 Hz/s; 0-2100R/min
Typical Grinding Time : 15s to 2min
Clamp Stroke : 34mm Vertical
Display : LCD display
External Size(W×D×H)(mm) : 630x300x480

Availability:
Quantity:

Grinding Machine Features:

  1. Frozen model, mainly suitable for grinding and crushing heat-sensitive samples

  2. Large number of operations, good effect, efficient and fast work, can complete the grinding of 192x2ml samples in more than 30 seconds. save time and energy.

  3. The extracted protein has higher activity and longer nucleic acid fragments.

  4. No cross-contamination, the grinding jar is fully enclosed during the crushing process, and disposable centrifuge tubes and beads can be used. The samples are completely retained in the tank to avoid cross-contamination between samples and external contamination.

  5. Easy to operate, user-friendly touch screen operation interface, built-in program controller, which can set grinding time, rotor vibration frequency and other parameters

  6. Good repeatability, the same tissue sample can be set to the same procedure to obtain the same grinding effect. The working time is short and the sample temperature will not rise

  7. No wearing parts design, electromagnetic locking protection

  8. Stainless steel inner cavity, easy to clean and disinfect

Grinding Machine Specifications:

ModelGM-VF24
Grinding Frequency0-70 Hz/s; 0-2100R/min
Grinding Time Setting0-9999min
Typical Grinding Time15s to 2min
Clamp Stroke34mm Vertical
DisplayLCD display
Grinding WayWet grinding, dry grinding, ultra-low temperature grinding
SampleHard, medium hard, soft, brittle, elastic, fibrous
Discharge Size≤5um
Liquid Nitrogen Pre-freezingYes
Protection TypeIP30
Grinding Tank MaterialHard steel, stainless steel, tungsten carbide, agate, zirconia, PTFE, aluminum alloy, etc.
Grinding Ball MaterialHard steel, stainless steel, tungsten carbide, agate, zirconia, ceramics, tungsten carbide, quartz sand
Grinding Ball Diameter0.1-30mm
Adapter48x(0.2-0.5ml)/24x2ml/16x5ml/8x(10-15)ml/2x25ml/2x50ml Two adapters come standard
Noise Level<50db
Power Supply220V/50Hz
External Size(W×D×H)(mm)630x300x480
Shipping Size(W×D×H)(mm)770x450x550
Net/Gross Weight (kg)73/81
