Availability: | |
---|---|
Quantity: | |
Model | ET-S01 | |
---|---|---|
Glass Tray (W×L)(mm) | 350×350 | |
Gel Tray (W×L)(mm) | 310×330 | |
Buffer Capacity | 750ml | |
Sampling Comb | 68, 100 teeth (The gun for adding samples can be used.) | |
Sizes (W×D×H)(mm) | 415×160×380 | |
Shipping Size (W×D×H)(mm) | 620×620×820 | |
N.W./G.W. (kg) | 12/18 | |
Standard Accessories | ||
Name | Specification | Quantity |
Electrophoresis Main Tank (Main Body) | 1 | |
Concave Glass Plate | 2 | |
Flat Glass Plate | 2 | |
Shark Sample Comb | 100 samples | 2 |
68 samples | 2 | |
Filler Strip | 4 | |
Wire | 1 | |
Water Pipe | 1 |

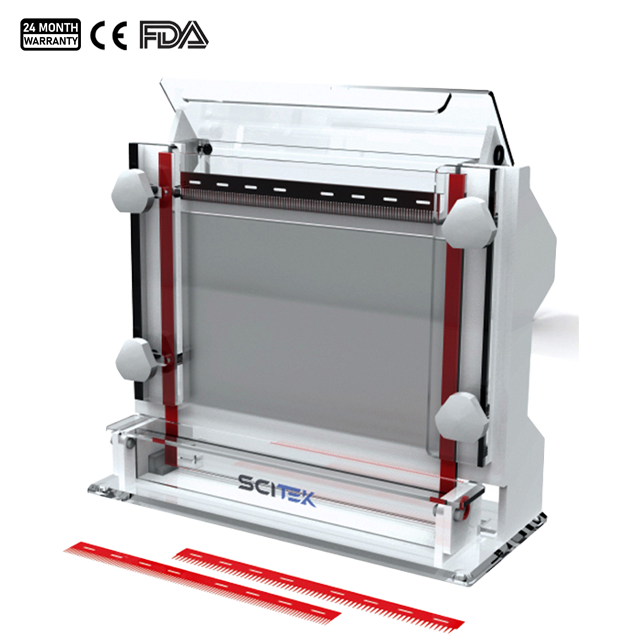

Our sequencing electrophoresis tank suits various experiments, including AFLP, SSR, SSCP, HA, DNAFOOTPRINTING, Rnase, and 1Nuclease. The design uniquely uses a specially treated flat, flexible aluminum plate for heat dissipation, ensuring the bands do not "smile."
The sequencing electrophoresis tank has a large sample capacity of 96 PCR samples at one time, significantly improving the working efficiency and making the experiments more efficient and faster.
The electrophoresis tank is equipped with high-quality shark tooth combs, which can meet the requirements of lance loading, are easy to observe, and avoid sample tampering at the same time.
It is extremely easy to operate with four sturdy knobs. The unit not only saves buffer but also prevents glue leakage.
In addition, the upper buffer outlet and the movable bottom groove are designed to make it easy to remove residual liquid and keep the equipment clean and hygienic.
The power-off function ensures the safety of experimental operation, providing users with a more reliable practical environment.
