Model | ET-T02 |
---|---|
Transfer Gel Tray(W×L)(mm) | 110x90 |
Buffer Capacity | 700ml |
Sizes (W×D×H)(mm) | 150x120x130 |
Shipping Size(W×D×H)(mm) | 310×310×220 |
N.W./G.W. (kg) | 0.8/1.2 |
Standard Accessories | |
Name | Quantity |
Electrophoresis Tank (upper cover) | 1 |
Electrophoresis Tank (lower tank) | 1 |
Transfer Core | 1 |
Transfer Clip | 2 |
Sponge Cushion | 4 |
Ice Box | 1 |
Lan Bing Box | 2 |
Wireway | 1 |
Bubble Rolling | 1 |

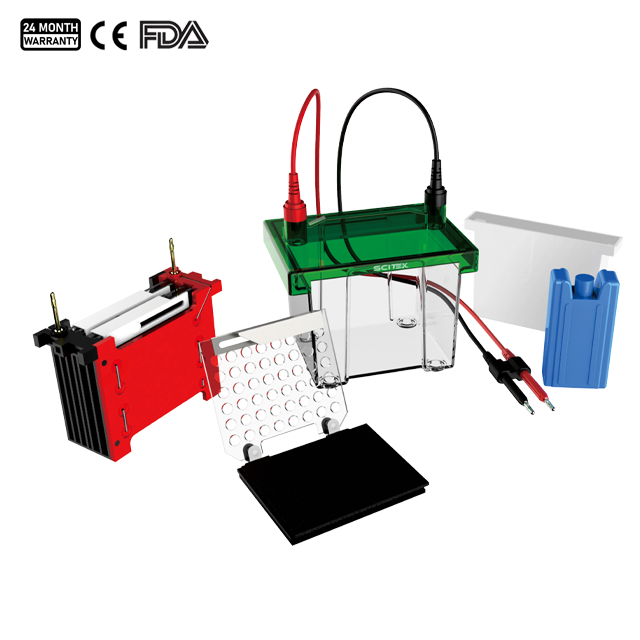

Our transfer electrophoresis system is designed for fast and efficient blot transfer of small gels. Its electrode filaments are spaced 4 cm apart, which is set to generate a strong electric field to ensure effective and fast protein transfer.
Using 99.99% high-purity platinum electrode wires dramatically improves its electrical conductivity and corrosion resistance, resulting in more stable and reliable operation.
The specially designed color-marked transfer clips and electrodes make the operation easier and ensure the correct gel placement orientation, guaranteeing the transfer's accuracy.
In addition, the built-in ice box of the device can quickly absorb the heat generated during the transfer process to maintain a stable operating temperature and provide a better transfer environment.
Model | ET-T02 |
---|---|
Transfer Gel Tray(W×L)(mm) | 110x90 |
Buffer Capacity | 700ml |
Sizes (W×D×H)(mm) | 150x120x130 |
Shipping Size(W×D×H)(mm) | 310×310×220 |
N.W./G.W. (kg) | 0.8/1.2 |
Standard Accessories | |
Name | Quantity |
Electrophoresis Tank (upper cover) | 1 |
Electrophoresis Tank (lower tank) | 1 |
Transfer Core | 1 |
Transfer Clip | 2 |
Sponge Cushion | 4 |
Ice Box | 1 |
Lan Bing Box | 2 |
Wireway | 1 |
Bubble Rolling | 1 |
Our transfer electrophoresis system is designed for fast and efficient blot transfer of small gels. Its electrode filaments are spaced 4 cm apart, which is set to generate a strong electric field to ensure effective and fast protein transfer.
Using 99.99% high-purity platinum electrode wires dramatically improves its electrical conductivity and corrosion resistance, resulting in more stable and reliable operation.
The specially designed color-marked transfer clips and electrodes make the operation easier and ensure the correct gel placement orientation, guaranteeing the transfer's accuracy.
In addition, the built-in ice box of the device can quickly absorb the heat generated during the transfer process to maintain a stable operating temperature and provide a better transfer environment.
