Multiparameter Benchtop Turbidimeter

Model : TB-B200

Measuring Range : 0 to 2000 NTU / 0 to 500 EBC / 0 to 9999 ASBC
Minimum Resolution(NTU) : 0.01, 0.1, 1, automatic
Accuracy : ±2% of reading (0~500 NTU), ±3% of reading (501~2000 NTU)
Calibration : 2 to 7 points
Calibration Standard : 0.02 / 10 / 200 / 500 / 1000 / 1500 / 2000 NTU

This benchtop turbidimeter is designed to measure turbidity and TSS quickly and easily in the laboratory.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Multiparameter benchtop turbidimeter with a total suspended solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units, the meter is suitable for laboratory use.

Benchtop Turbidimeter Specifications:

Model		TB-B200
Turbidity	Measuring Range	0 to 2000 NTU/0 to 500 EBC/0 to 9999 ASBC
	Minimum Resolution (NTU)	0.01, 0.1, 1, automatic
	Accuracy	±2% of reading (0~500 NTU), ±3% of reading (501~2000 NTU)
	Calibration	2 to 7 points
	Calibration Standard	0.02/10/200/500/1000/1500/ 2000 NTU
TSS	Range	Depending on the TSS conversion factor
	Resolution	0.1 / 1
	Accuracy	±3% of reading
Other Specification	Light Source	Infrared-emitting diode, wavelength 850 nm
	Detector	Silicon photodiode
	Stray Light	< 0.02 NTU
	Sample Vial	60×25(Ø) mm
	Sample Volume (ml）	20
	Auto-Power Off	2 hours after last key pressed
	Memory	Stores up to 200 data sets
	Output	USB communication interface
	Display	4.5 inches TFT LCD
	Power Supply	12V DC power adapter
	Size(W×D×H)(mm）	250x177x96
	Shipping Size (W×D×H)(mm）	300x200x200
	N.W./G.W.(kg)	1.2/1.5

Benchtop Turbidimeter Features:

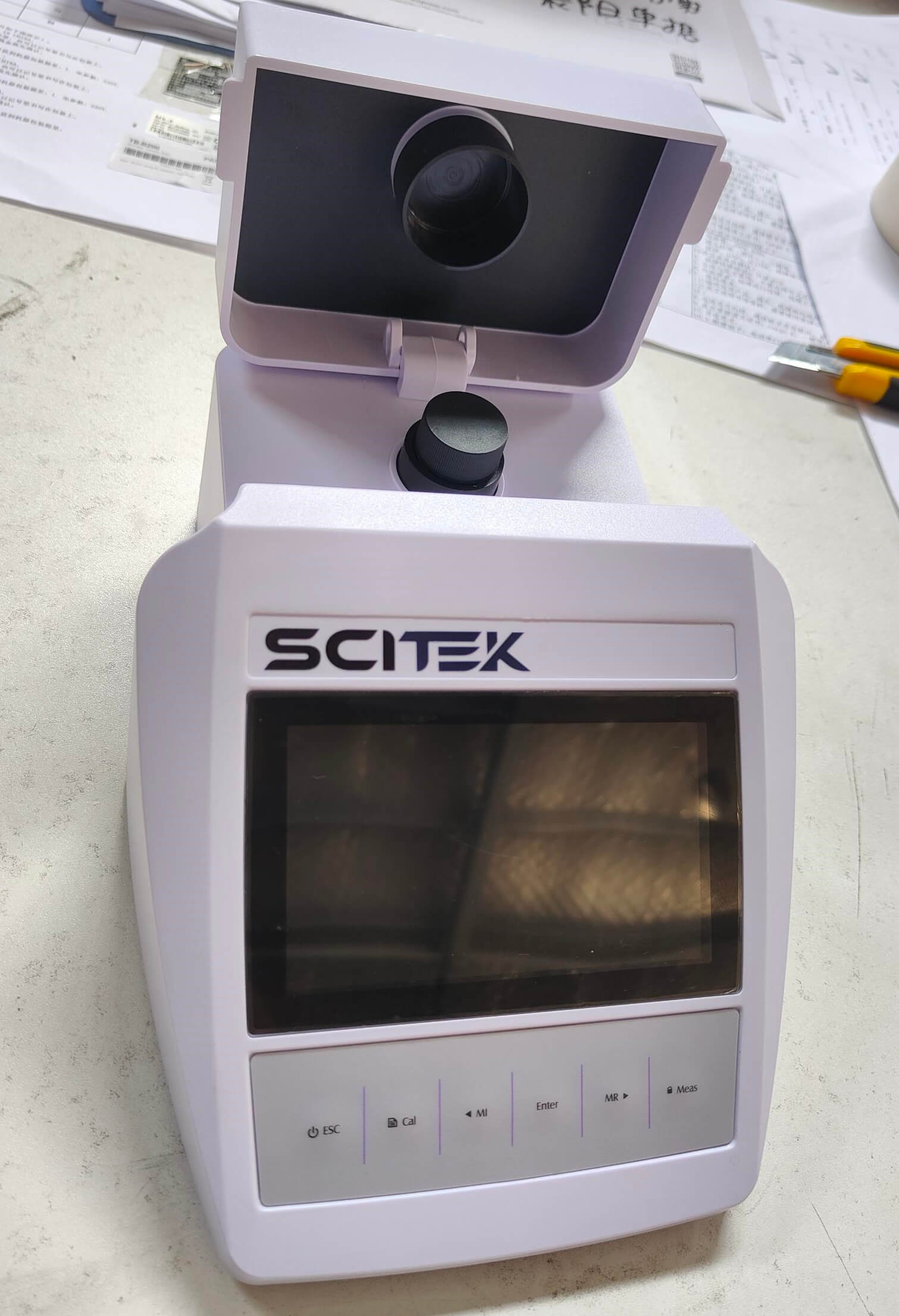

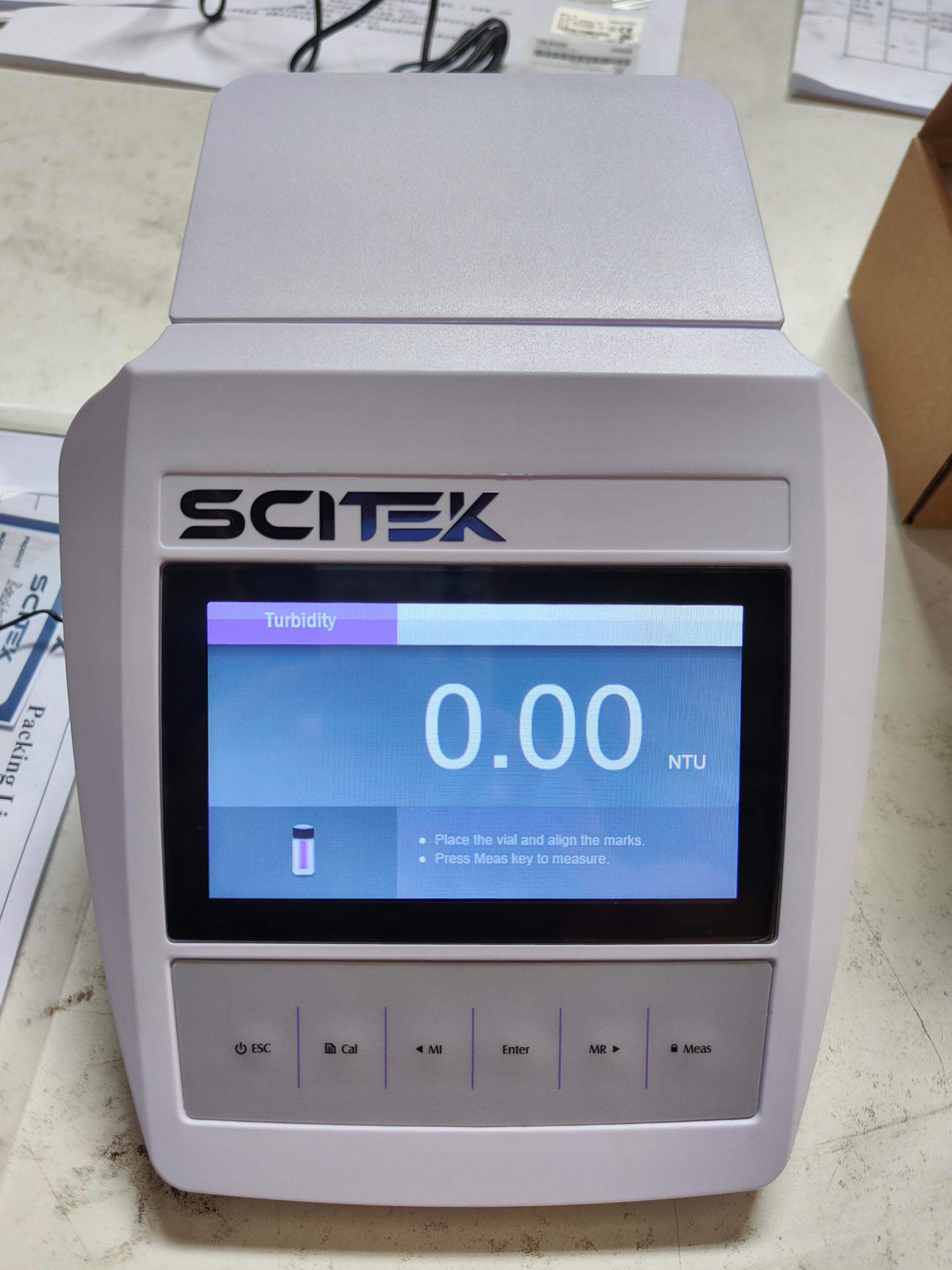

Multiparameter benchtop turbidimeter is equipped with a 4.5 inches TFT display.
2 to 7 points calibration using the Formazin Standards.
Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
TSS conversion factor ensures the accurate measurement of total suspended solids.
Auto-read function senses and locks a stable reading.
Setup menu allows setting the date and time, measurement mode, resolution, auto-power off, etc.
Password protection prevents the unauthorized calibration and settings.
Expanded memory stores or recalls up to 200 data sets.
Reset function automatically resumes all settings back to the factory defaults.
USB communication interface enables easy transfer of data from the meter to a PC.

Application of Benchtop Turbidimeter:

Industrial wastewater plants
Municipal water and other industrial applications
