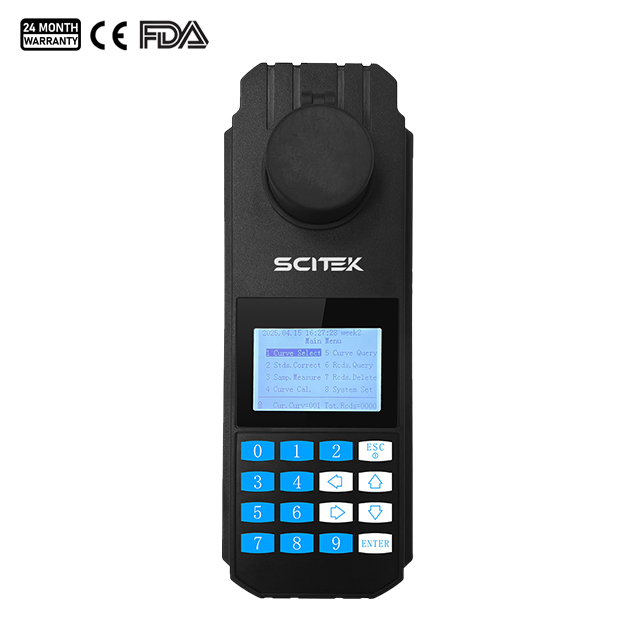

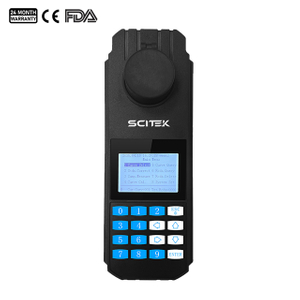

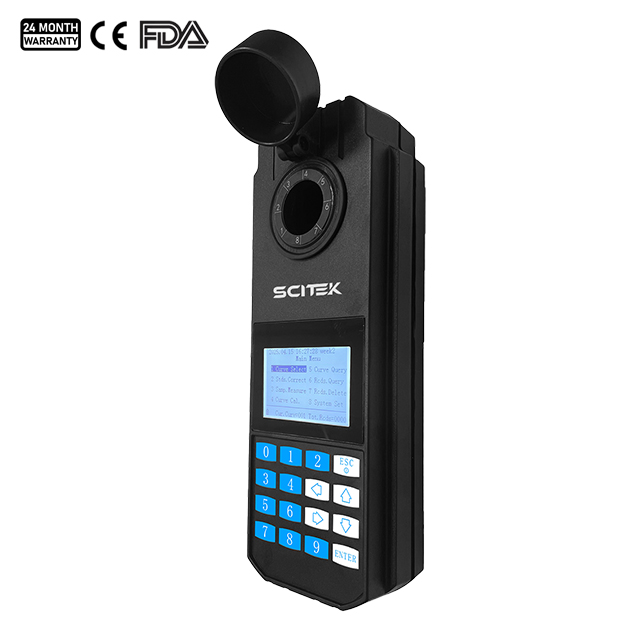

Portable Turbidimeter, LCD Screen

Model : TB-P301

Measuring Range(NTU) : 0~400 (Divided into four measuring ranges: 0-20; 20-100; 100-400)
Accuracy : ≤± 2 %
Repeatability(F.S) : ≤ ± 2 %
Minimum Resolution(NTU) : 0.01
Sample Volume(ml) : 15
This portable turbidimeter is ideally suited for both rigorous process control applications and field use.
Availability:
Quantity:

Portable Turbidimeter Specifications:

ModelTB-P301
Measuring Range (NTU)0~400 (Divided into four measuring ranges: 0-20; 20-100; 100-400)
Accuracy≤± 2 %
Repeatability (F.S)≤ ± 2 %
Minimum Resolution (NTU)0.01
Sample Volume (ml)15
CalibrationStandard calibration solution
DisplayLCD Screen
Memory

20 standard curves and 1000 measured values, will not be lost when the power is turned off.

OutputUSB communication interface
Run continuously in the following environments half an hour after it is powered on:Ambient temperature: 5~40℃
Ambient Humidity: ≤70%

Avoid direct exposure to strong light,  no significant vibration and strong electromagnetic interference

Power supply: AC (220±10%)V; 50Hz
Packing Contents ListMain instrument×1, colorimetric tubes×3, Lens hood×1, turbidity standard solution (60ml)×1, portable case×1, USB charging power supply×1, instruction manua×1,  product certificate×1 and warranty card ×1.
Power SupplyAC(220±10%)V; 50Hz
Size(W×D×H)(mm)80×230×55
Shipping Size (W×D×H)(mm)420×240×330
N.W./G.W.(kg)1/2.3

Portable Turbidimeter Features:

  1. Using imported high-performance, long-life (100,000 hours), high-brightness light source, coupled with a narrow-band filter system, the optical stability is extremely strong and is not susceptible to interference from various lights, so the instrument has high precision and good stability.

  2. Large-screen LCD Chinese display, Chinese menu operation, simple and intuitive.

  3. The portable turbidimeter has two or more points of calibration, supports adding curves, self-calibration curves, etc.

  4. It has a one-click factory reset function to prevent curves from being lost or accidentally deleted.

  5. It can save 20 standard curves and 1000 measured values, and will not be lost when the power is turned off.

  6. The main machine casing is made of molded ABS material, which has good waterproof and dustproof performance.

  7. Adopt high-performance, low-power consumption 16-bit microcontroller system with excellent performance.

  8. Rechargeable lithium battery, data power-off protection function.

  9. Equipped with a USB port, the data records can be transferred to the computer, and the data can be stored and printed in the form of files.
