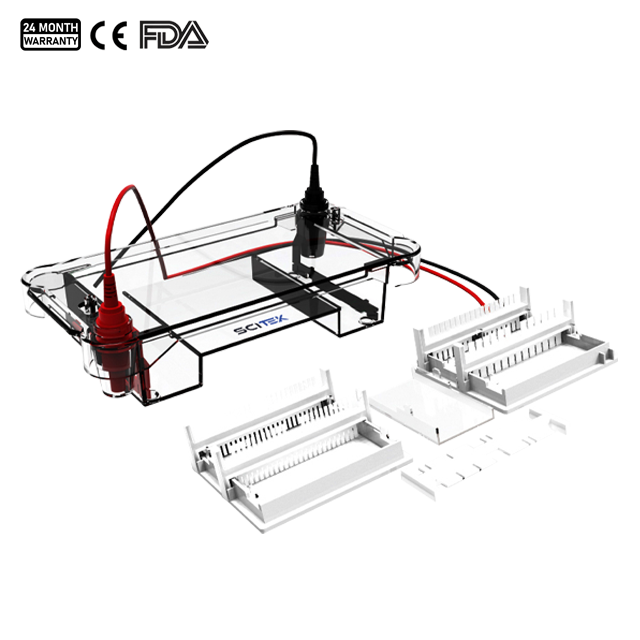

Horizontal Electrophoresis Tank ET-H02

Model : ET-H02

Sample Comb : 2+3, 6+13, 8+18,11+25 samples
Number of Samples : 2~50pcs

Buffer Capacity : 700ml
Sizes (W×D×H)(mm) : 270×140×80

The horizontal electrophoresis tank allows samples to be separated horizontally and is suitable for small to medium scale DNA, RNA and protein electrophoresis analysis.
Availability:
Quantity:

Horizontal Electrophoresis Tank Specifications:

ModelET-H02
Gel Tray(W×L)(mm)120×120, 120×60, 60×120, 60×60
Gel Thickness1&1.5mm
Sample Comb2+3, 6+13, 8+18,11+25 samples
Number of Samples2~50pcs
Buffer Capacity700ml
Sizes (W×D×H)(mm)270×140×80
Shipping Size(W×D×H)(mm)420×380×290
N.W./G.W. (kg)1/2
Standard Accessories
NameSpecificationQuantity
Main Body Groove (Upper Cover)
1
Main Tank (Lower Tank)
1
ElectrodePositive pole (red)1
Negative electrode (black)1
Glue MakerBig1
Fission1
Large Tray120×1201
Middle Tray120×601
60×1201
Small Tray60×602
Sample Comb2/3 samples1
6/13 samples2
8/18 samples2
1/25th samples2
Wireway
1

Horizontal Electrophoresis Tank Features:

  1. The electrophoresis apparatus tank is made of an imported high-strength transparent material through a one-time injection molding to ensure product quality and durability.

  2. The upper cover adopts an open-hole design, which is conducive to heat dissipation and allows users to observe the internal experimental situation.

  3. Horizontal electrophoresis tank is equipped with a unique elastic compression-type gel maker, which prevents the gel from remaining on the tray, making the preparation process simpler, safer and faster.

  4. The product is designed with removable electrodes, which is convenient for cleaning and maintenance and ensures the long-term stability and reliability of the equipment.

  5. At the same time, using 99.99% high-purity platinum electrode wire greatly improved its conductivity and corrosion resistance to ensure the accuracy and durability of the experimental process. These characteristics make the product important in the laboratory, providing users with a convenient and reliable practical environment.
