Availability: | |
---|---|
Quantity: | |
Model | ET-V04I | |
---|---|---|
Gel Tray(W×L)(mm) | 300×85 | |
Sample Comb | 102, 68 samples (optional) | |
Gel Thickness | 1.0mm | |
Buffer Capacity | 800ml | |
Sizes (W×D×H)(mm) | 350×130×110 | |
Shipping Size(W×D×H)(mm) | 480×330×380 | |
N.W./G.W. (kg) | 4/6 | |
Standard Accessories | ||
Name | Specification | Quantity |
Electrophoresis Tank | 1 | |
Concave Glass Plate | 2 | |
Flat Glass Plate | 2 | |
Sampling Comb | 102 samples | 2 |
68 samples | 2 | |
Air Bubble Hook | 2 | |
Drain Pipe | 2 | |
Wire | 1 |

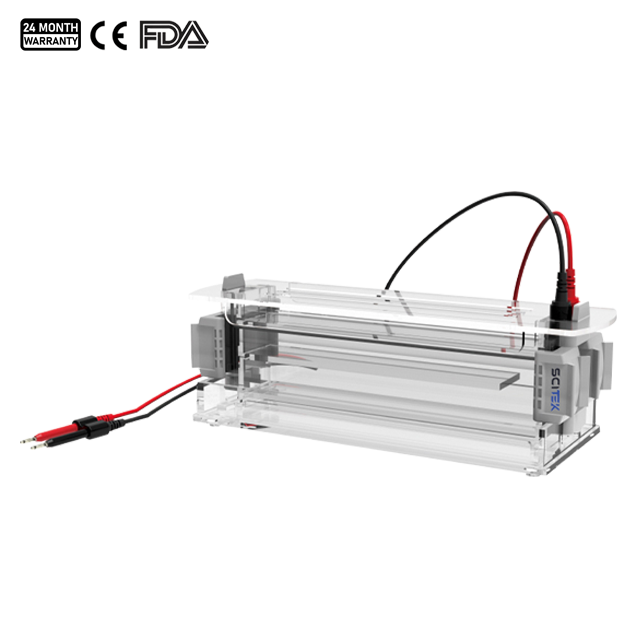

This gel electrophoresis chamber is used to perform high-throughput SSR (Simple Repeat Sequence) experiments and is especially suitable for non-denaturing polyacrylamide gels. Vertical electrophoresis tank provides researchers with convenient and reliable experimental conditions, making it an essential equipment in the laboratory.
Connected with a low-temperature circulator to maintain a constant electrophoresis temperature, providing the stable conditions required for experiments.
Unique, integrated glass and sidebar design make gel preparation easy and efficient.
Large capacity, up to 200 samples can be processed simultaneously, which improves the efficiency of experiments.
Gel electrophoresis chamber equipped with three sets of high-purity platinum electrodes to ensure a stable electric field for each gel plate, thus ensuring the reliability of experimental results.
