Model | GD-36S | GD-54S |
---|---|---|
Operating System | 5.5-inch color touch screen | |
Number of Sample Holes | 36 holes | 54 holes |
Aperture | Φ32mm | |
Heating Module Material | high density graphite | |
Digestion Tube | high borosilicate glass 50ml (standard, optional: ptfe) | |
Designed Temperature | 450℃/ Long-term use temperature: 400℃ | |
Temperature Control Accuracy | ±1℃ | |
Heating Rate | ≈3-15℃/min | |
Control Mode | Dual-mode of 1-40 sections of the curve (program) heating / single point heating | |
Recipe Management | 9 groups | |
Shutdown Time | 1-999minutes for any setting | |
Power Supply | AC220V, 50Hz | |
Heating Power | 2.5KW | 4KW |
Shipping Size (W×D×H)(mm) | 700x580x510 | 990x580x520 |
G.W. (kg) | 55 | 45 |

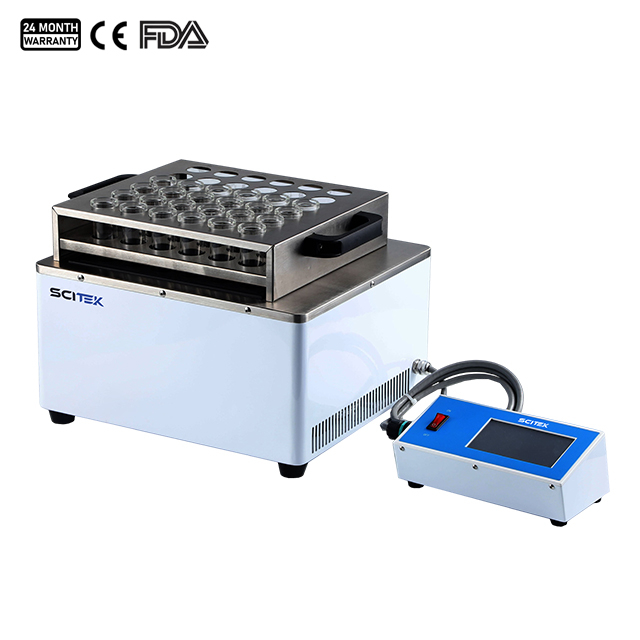

This multifunctional graphite digester can ablate and transform different samples, and it is an ideal companion for AAS, AFS, ICP-MS and other analytical instruments. It can complete Sample immersion, digestion and acid driving with one button, which is convenient to operate.
It can process a large number of samples at one time, and the consistency of digestion is good and the efficiency is high to save operation time.
The heating module is high-density graphite, and the heating temperature is evenly distributed.
The small temperature difference between the holes is conducive to speeding up the heating and sample digestion.
Insulation material adopts imported ceramic fiber heat insulation, which is more energy-saving and environmentally friendly.
Color touch screen, function page color, and application page color are separated for easy identification.
Can arbitrarily select 0-40 segments of the program, set up
Intelligent PID self-tuning high precision, reliable and stable
The heating body and controller split structure are conducive to extending the service life of the equipment
