Project | WB-1L1HII | WB-1L2HII | WB-1L3H | WB-1L1HIII |
---|---|---|---|---|
Temp. Setting Range(℃) | 0~100°C | 0~100°C | 0~100°C | 0~100°C |
Temp. Control Range(℃) | RT+5~100°C | RT+5~100°C | RT+5~100°C | RT+5~100°C |
Timing Range | 1min~99h59min | 1min~99h59min | 1min~99h59min | 1min~99h59min |
Temp. Accuracy(℃) | ≤±0.3 | |||
Display Accuracy(℃) | 0.1 | |||
Temp. Uniformity(℃) | ≤±0.3 | |||
Heating Time | ≤ 30min(25°C ~100°C) | |||
Number of Tanks | 1 | 2 | 3 | 1 |
Tank Capacity | 1×2L | 2×2L | 3×2L | 5L |
Power(W) | 300 | 600 | 900 | 900 |
Power Supply | AC220/110V; 50/60Hz | |||
Chamber Size (W×D×H)(mm) | 125×100×115 | 125×100×115×2 | 125×100×115×3 | 263×120×115 |
Sizes (W×D×H)(mm) | 206×254×310 | 397×254×310 | 588×254×310 | 355×270×309 |
Shipping Size (W×D×H)(mm) | 360×330×310 | 520×390×330 | 720×440×350 | 520×390×330 |
N.W./G.W. (kg) | 2.2/6 | 5.5/9 | 8.5/12 | 5.1/9 |
Scitek's digital thermostatic water bath is a high-precision temperature control instrument using a combination of microcomputer and PID control technology. The entire unit is made of corrosion-resistant stainless steel. The built-in stainless steel tank is molded in one piece, simple, beautiful and easy to clean.

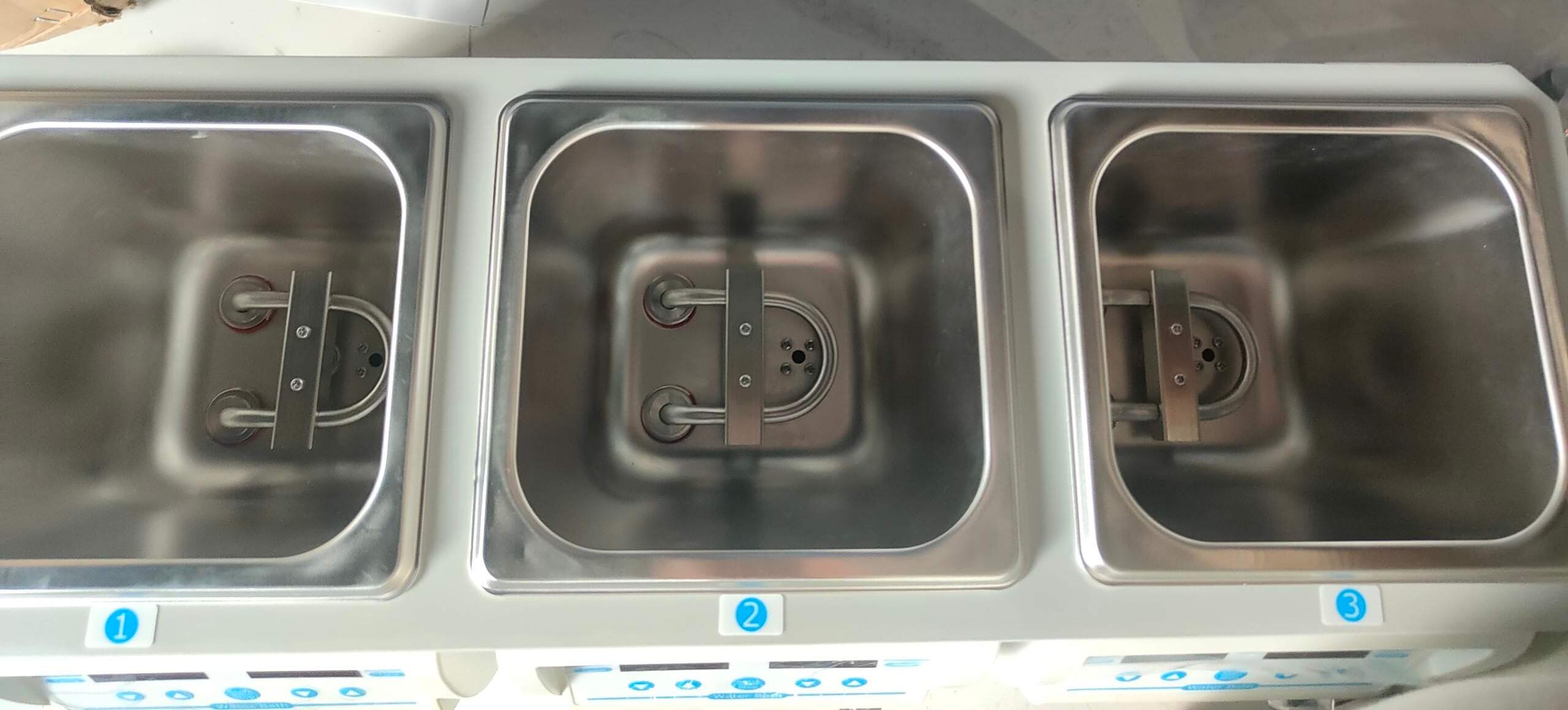

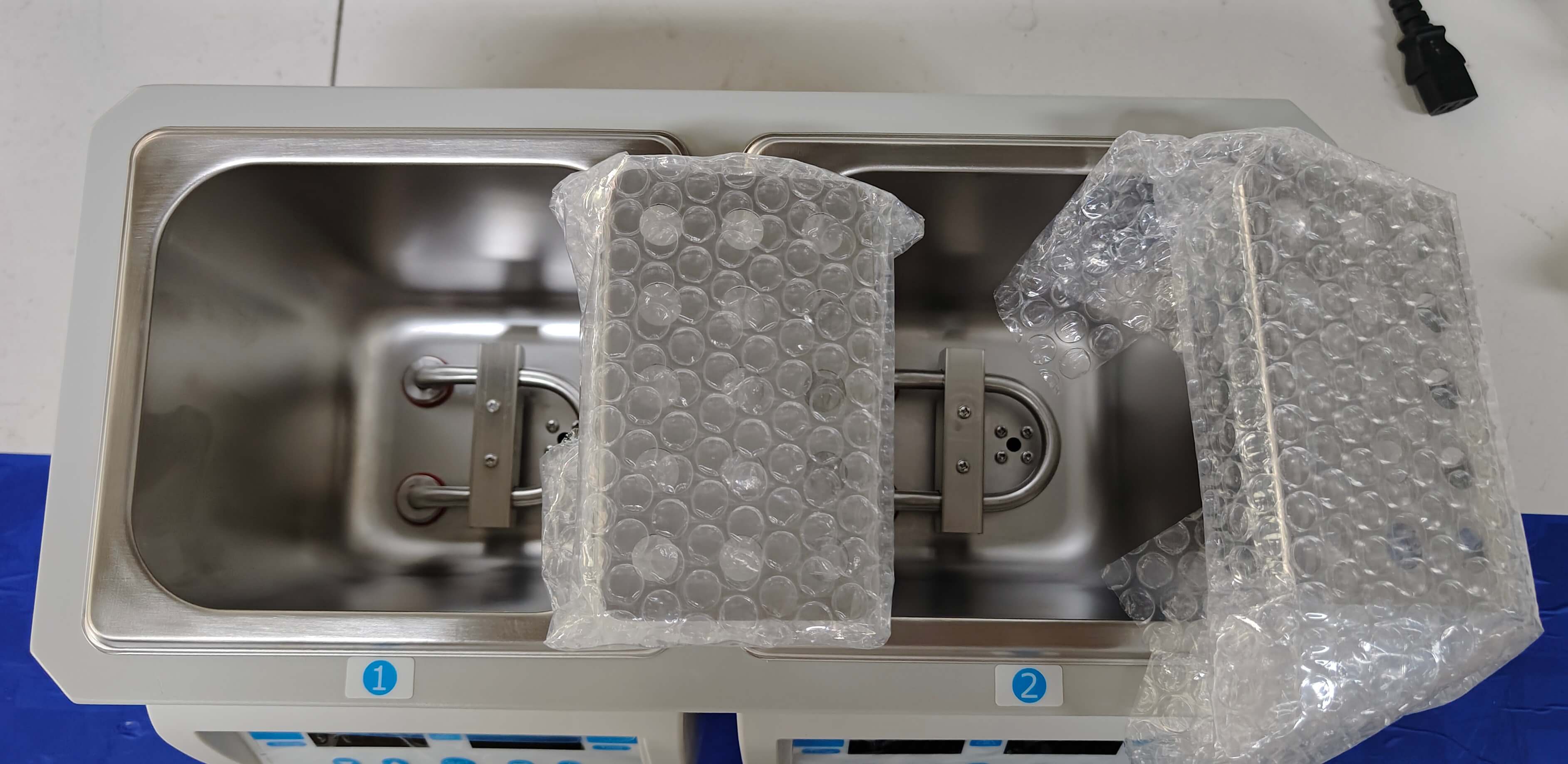

The heating tube adopts a U-type stainless steel tube, which is uniformly heated, corrosion-resistant, and with less heat loss.

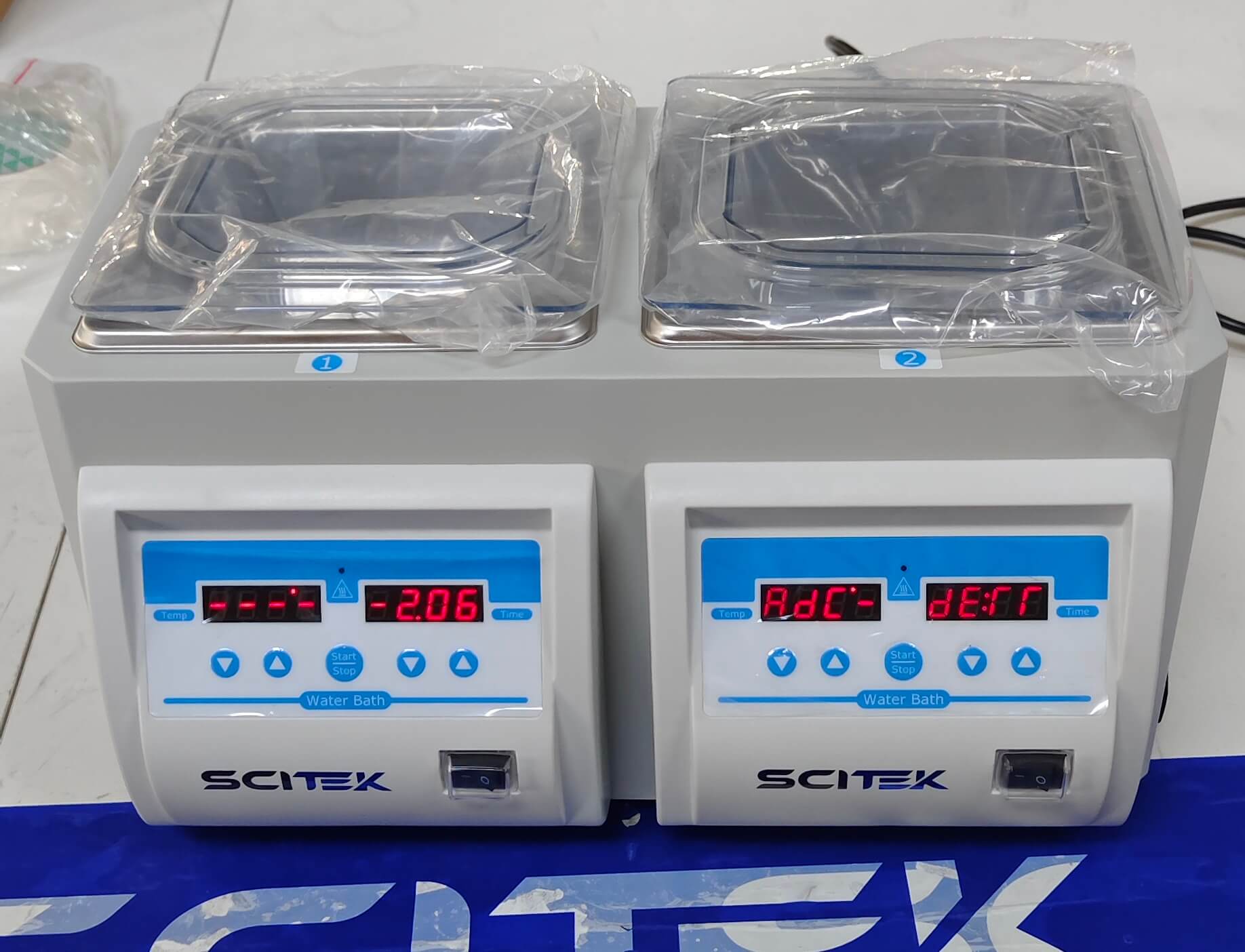

The operation interface is simple and easy to understand, can display a variety of real-time information, and is convenient for checking the equipment operating status
Adopts microcomputer program PID automatic temperature control, uniform temperature control, and high precision temperature control.
Adopt a one-time stamping molding stainless steel pot liner with a unique sealing structure to eliminate water leakage.
The sink side of the independent drain port can easily clean the inner liner after exhausting sewage.
Built-in unique PT instantaneous over-temperature alarm system is more sensitive and stable than the water level sensor.
Built-in software over-temperature protection device, more reliable use.
