Model | WB-1L1H | WB-1L2H | WB-2L4H | |
---|---|---|---|---|
Classification Specifications | 1 hole | 1 row & 2 holes | 2 rows & 4 holes | |
Heating Mode | Nature water convection heat transfer | |||
Function | Temp. Range | RT+5~100℃ | ||
Temp. Resolution Ratio | 0.1℃ | |||
Temp. Motion | ±0.5℃ | |||
Temp. Uniformity | ±1.0℃ | |||
Structure | Inner Chamber | Stainless steel | ||
Outer Shell | Cold-rolled steel plate, resistance to chemical reagents coating on the surface | |||
Heater | Stainless steel heating tube | |||
Power Rating | 0.4kW | 0.5kW | 1.0kW | |
Controller | Temp. Control Mode | PID | ||
Temp. Setting Mode | Touch button setting | |||
Temp. Display Mode | Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row | |||
Timer | 0~9999min (with timing wait function) | |||
Operation Function | Fi×ed temperature operation, timing function, auto stop. | |||
Program Mode | Optional | |||
Additional Function | Deviation Correction, menu key locked,power failure back-up, power-off memory | |||
Sensor | NTC | |||
Safety Device | Over temperature alarm | |||
Specification | Volume | 3.4L | 6.1L | 14.6L |
Load Per Rack | 5kg | |||
Shelf Number | 1 | |||
Power Supply | AC220/110V, 50/60Hz | |||
Chamber Size (W×D×H)(mm) | 150×135×150 | 300×135×150 | 325×300×150 | |
Sizes (W×D×H)(mm) | 170×154×210 | 318×168×210 | 350×318×210 | |
Shipping Size (W×D×H)(mm) | 240×230×280 | 390×240×280 | 420×390×280 | |
N.W./G.W. (kg) | 3.3/6 | 4.5/7 | 6/9 |

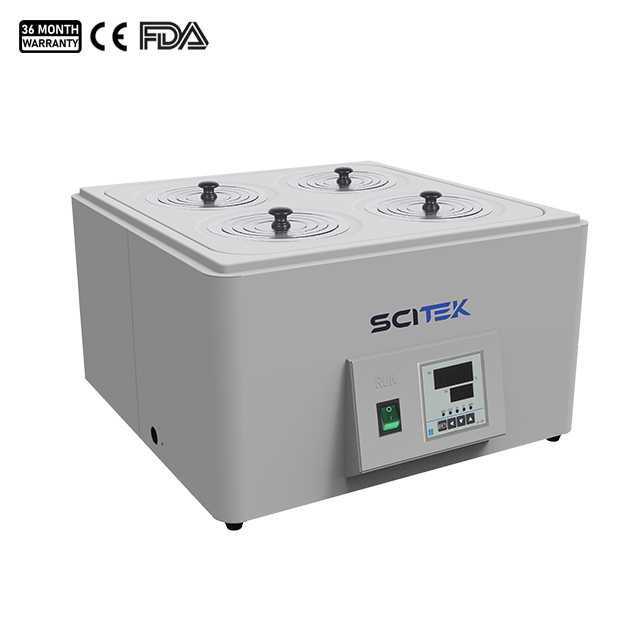

Scitek's lab water bath creates a constant temperature with an immersion circulator and open reservoir. The adjustable temperature range is from RT+5 to 100°C and the small temperature error is ideal for heating temperature-sensitive samples.

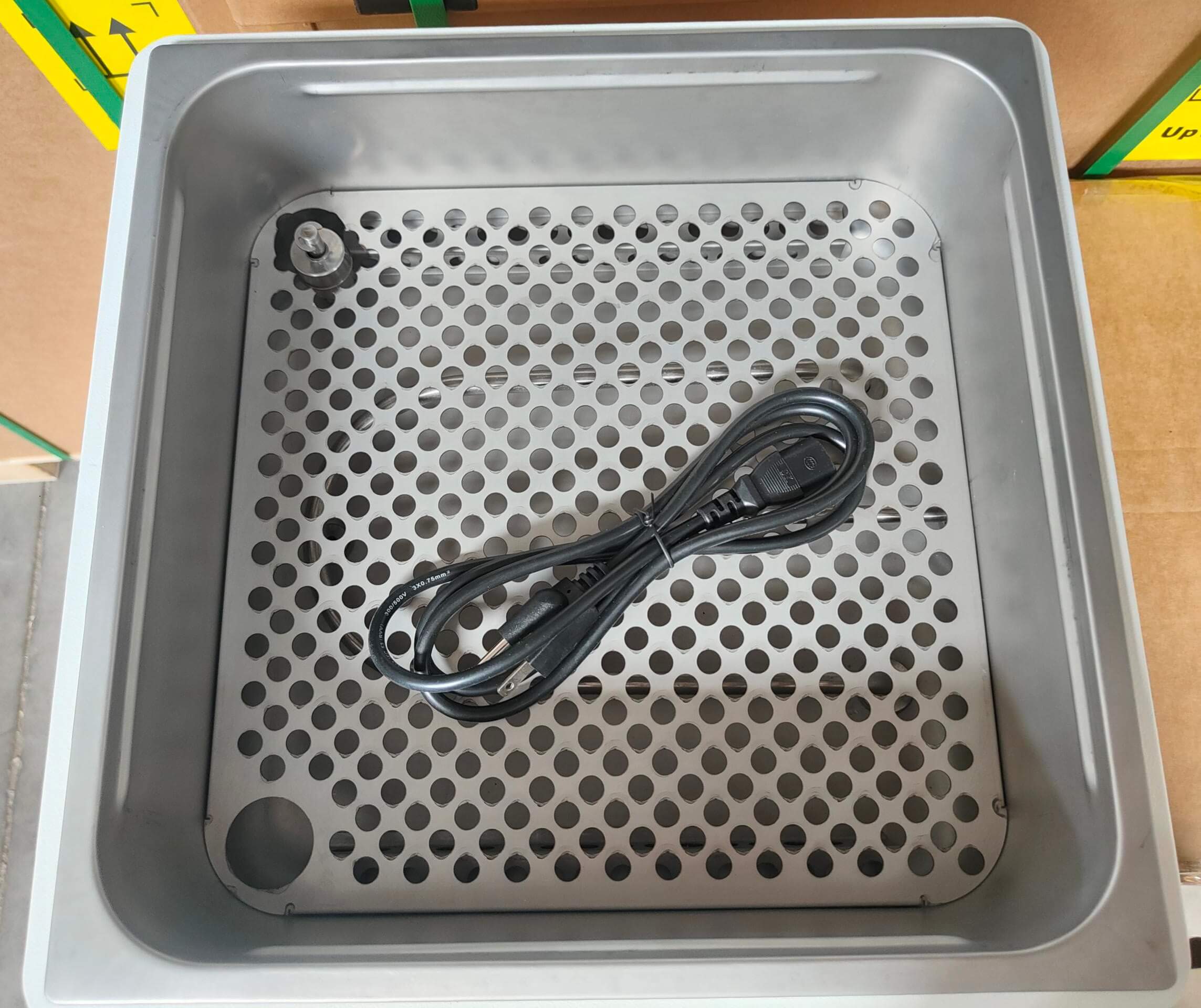

The overall material of the Lab water bath is stainless steel. The stainless steel reservoir is seamless, eliminating the possibility of rust and leakage. The surface design is simple and easy to clean.

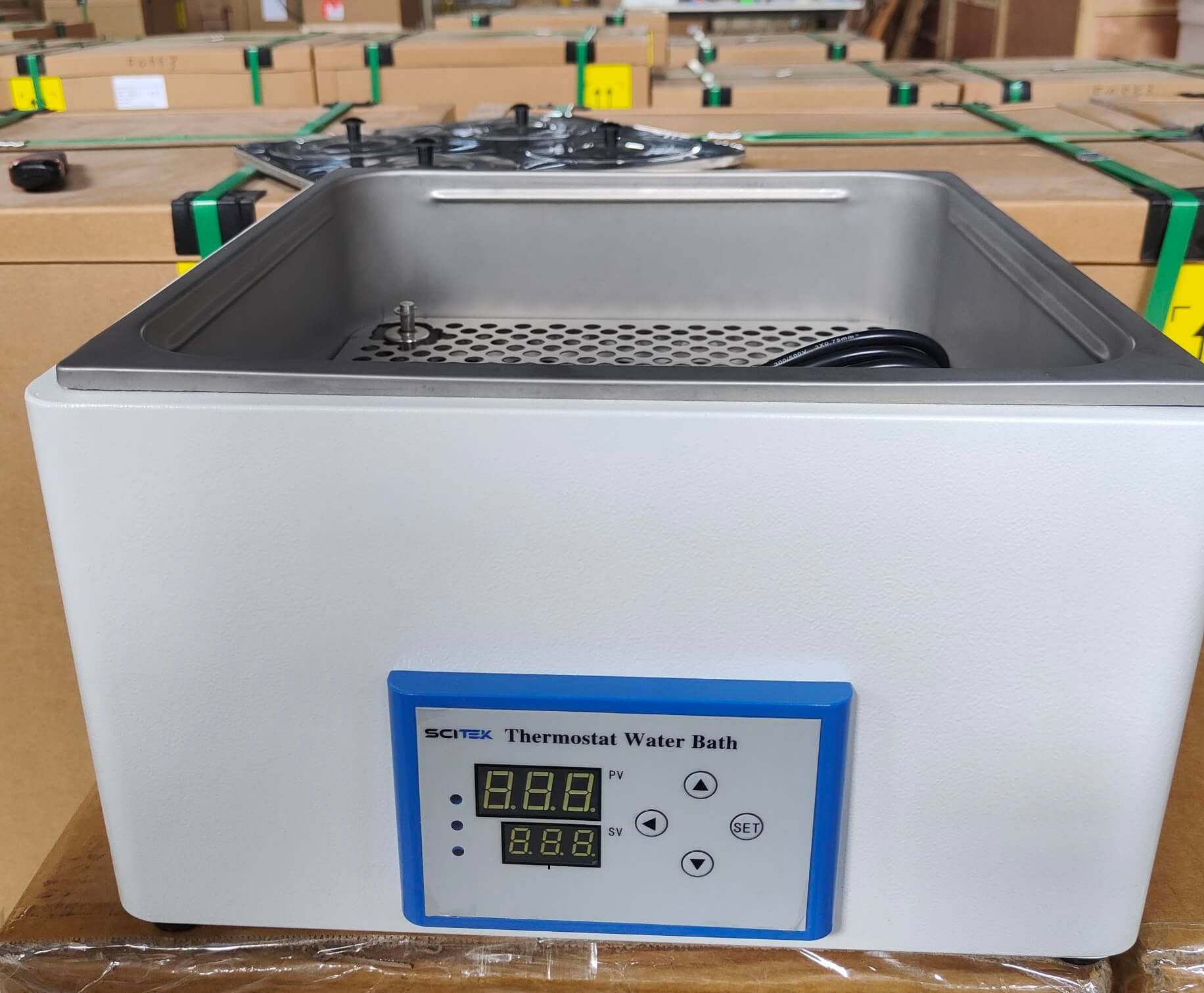

The control unit quickly reaches the desired temperature and maintains a constant temperature to prevent sample overheating. Use the touchpad digital controller to select the desired setting and view the temperature on the red LED display.
This compact thermostatic water bath is necessary for many university laboratories or research institutes.
Advantages of Thermostatic Water Bath:

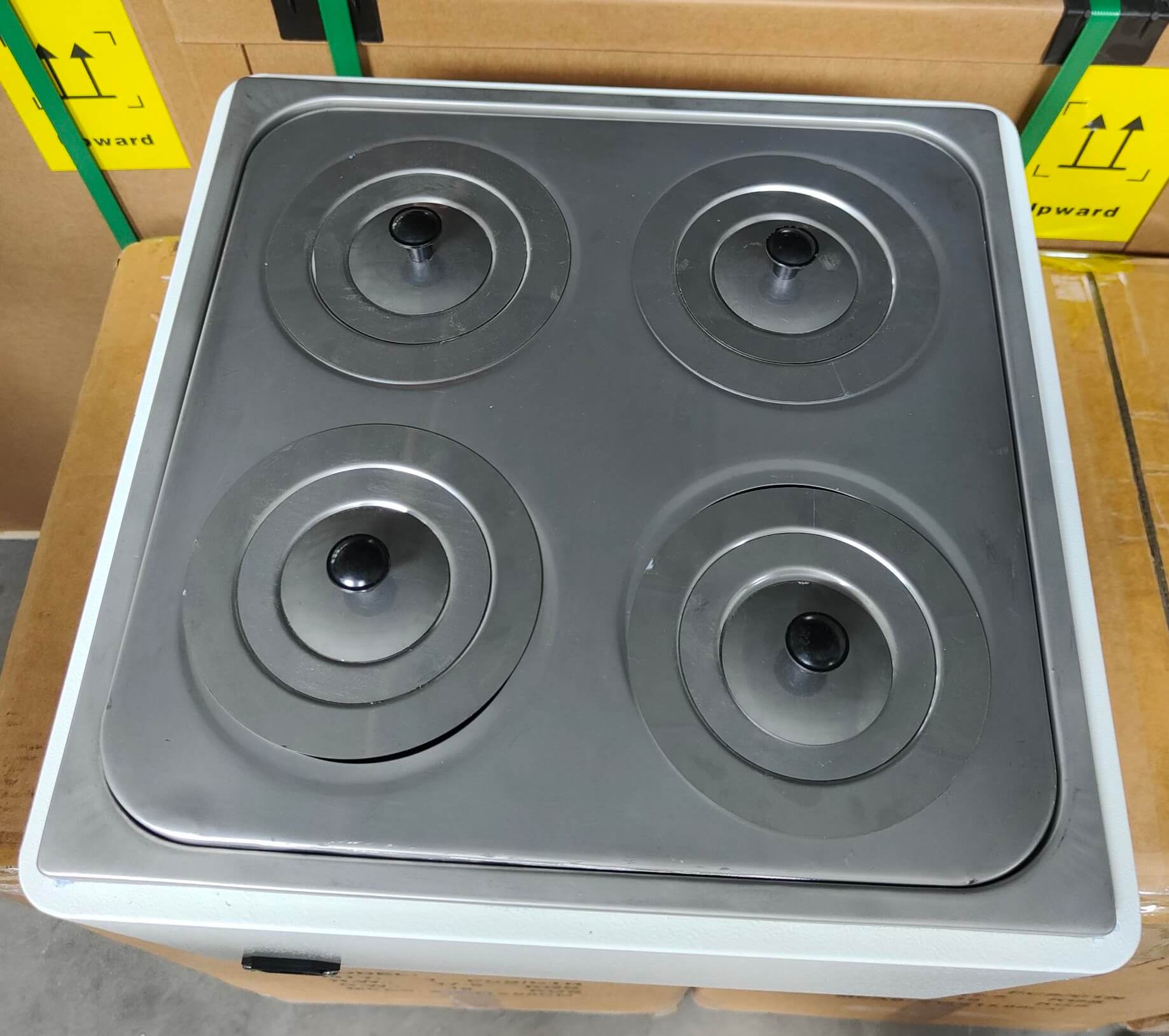

Stainless steel stretching inner container and roof cover.
Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.

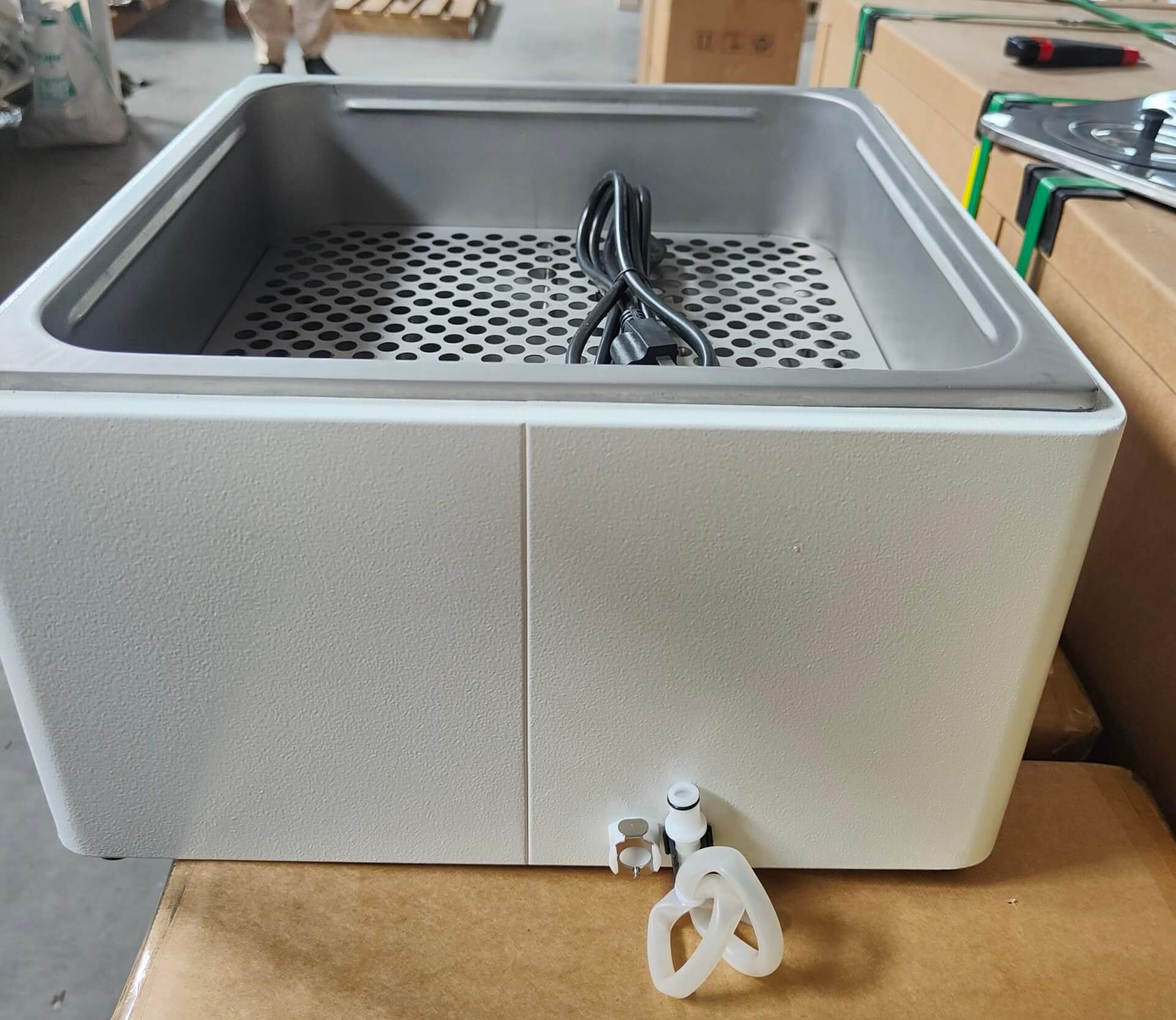

Add the electric drain switch, one-button operation, convenient to drain.
Note: single hole water baths have no drain function.
Power off when water shortage to ensure the safe operation of the product.
