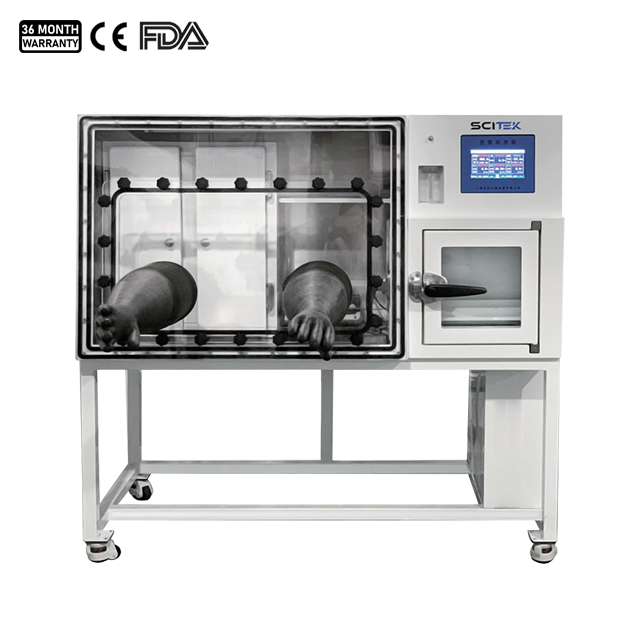

Anaerobic Chamber, Auto Pressure Control

Model : ICB-3ANI

Operation Chamber Size(W×D×H) : 950×680×750mm
Anaerobic Level : Operation room<5ppm
Time for Creating Anaerobic State in Sample Chamber : <10 minutes
Anaerobic Status Creating : Vacuum+air replacement(N2+mixed gas)
The two ports of the controlled atmosphere anaerobic chamber provide a leak-proof environment for handling contamination-sensitive materials.
Availability:
Quantity:

Automated Anaerobic Chamber Specifications:

ModelICB-3ANI
Temperature RangeRT+3~60℃
Temperature Stability<±3℃
Temperature Uniformity<±0.3℃
Anaerobic LevelOperation room<5ppm
Time for Creating Anaerobic State in Sample Chamber<10 minutes
Anaerobic Status CreatingVacuum+air replacement (N2+mixed gas)
Time for Creating Anaerobic State in Operation Chamber<70 minutes
Anaerobic Environment Maintenance Time>13 hrs. (when no supply of mixed gas)
Air ReplacementAutomatic
Internal Chamber Size (W×D×H)(mm)420×300×500
Sample Room Size (W×D×H)(mm)400×330×320
Sampling Room Channel Ruler (W×H)(mm)275×295
Operation Chamber Size (W×D×H)(mm)950×680×750
External Size (W×D×H)(mm)1400×730×1370
Shipping Size (W×D×H)(mm)1510x910x1610
N.W./G.W. (kg)255/315

Anaerobic Chamber Features:

  1. Imported oxygen sensor for direct oxygen concentration display.

  2. Large touch screen and high precision plc controller for easy operation, also equipped usb interface for data storage.

  3. Transparent impact resistant window for clear observation.

  4. Removable front cover for easy anaerobic chamber placement and cleaning.

  5. With uv lamp for sterilization, light and power socket.

  6. Efficient palladium catalyst for stable oxygen concentration.

  7. Full-automatic gas replacement with positive and negative pressure protection.

  8. Automatic vacuum pumping and pressure maintaining, adopt oil-free vacuum pump.

  9. Unique oil bottle type pressure relief design for safety.

  10. The best anaerobic chamber is equipped with leakage protection function.
