Model | HA-6510 |
---|---|
Throughput | 60 tests/hour |
Parameters | 25 Reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# |
1 3D Scattergram | |
3 Histograms (WBC/BASO, RBC, PLT) | |
4 Research Parameter | ALY%, ALY#, LIC%, LIC# |
Test Mode | CBC mode, CBC+DIFF mode |
Venous whole blood, Capillary whole blood and Prediluted | |
Sample Volume | CBC+DIFF mode: ≤20ul |
CBC mode: ≤10ul | |
Reagent | Diluent, LH Lyse, LD Lyse, Probe Cleanser. |
Consumables | Part Diluent: 20L |
Part LD Lyse: 500ml | |
Part LH Lyse: 500ml | |
Probe Cleanser: 50ml | |
Data Memory | Up to 100,000 results (including histogram, scarttergram, patient information) |
Display | 14 inch touch screen, resolution 1366x768 |
Language | Chinese, English |
Interface | 1 LAN port, 4 USB ports |
Communication | Support LIS connection, HL7 protocol, Internal RFID reader. |
Printout | Support various external USB printers, printout |
Formats user definable | |
Power Supply | AC100-240V, 50/60Hz |
Working Environment | Temperature: 10-30°C, Humidity: 20% – 85% |
Air pressure | 70~106kPa, Working latitude: <3500m. |
1 roller mixer and 1 kb online UPS is required along with all parts. | |
Certification | CE |
Warranty | 1 year |
Sizes (W×D×H)(mm) | 480x375x517 |
Shipping Size (W×D×H)(mm) | 700x620x820 |
N.W./G.W. (kg) | 36/62 |

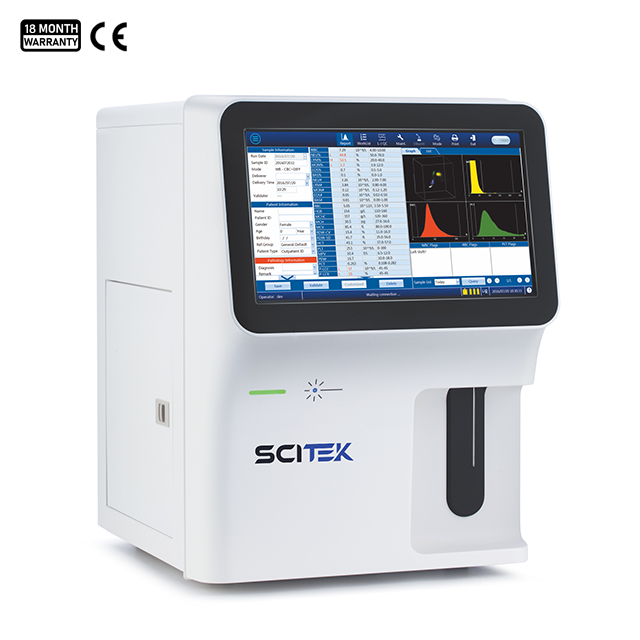

The HA-6510 is an automated 5-part hematology analyzer with a compact size and advanced design. It is a biochemistry analyzer for the small to medium-sized diagnostic laboratory, hospital, and clinic market. It offers lower running costs, more user-friendly operation, and a more cost-effective budget.
14" touch screen for more intuitive operation and searching of test results
3D Scatterplot visualizes the distribution of biochemistry experimental data. It helps you understand the distribution pattern, outliers, and trends of data more intuitively.
A large data storage capacity of 100,000 results
