Model | HA-3020VET |
---|---|
Working Principles | Electrical impedance method to measure the volume and number of cells |
HGB: Colorimetric method | |
Parameters | 21 Parameters: WBC, Lym#, Gran#, Mid#, Lym%, Gran%, Mid%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RWD-CV, PLT, MPV, PDW, PCT, P-LCR,P-LCC |
3 Histograms: WBC/RBC/PLT | |
Repeatability | WBC≤2.0% (3.5-15×10^9/L) |
RBC≤1.5% (3.5-6.5×10^12/L) | |
HGB≤1.5% (100-180g/L) | |
PLT≤4.0% (100-500×10^9/L) | |
MCV≤1.5% (70-110) fL | |
HCT≤1.5% (35.0-50.0)% | |
Analysis Mode | CBC |
Working Environment | Temperature: 10-30℃ |
Humidity≤70% | |
Pressure: 70-106kPa | |
Sample Volume | Venous mode, Capillary mode, Pre-diluted mode≤20μL |
Reagent | Diluent, Lyse |
Language | English, Chinese, Spanish, Portuguese |
Display | 10.4" IPS color touch screen Resolution: 800x600 |
Storage | 50,000 sample results with histograms |
QC Mode | L-J /X-B |
Calibration | Auto calibration, Manual calibration |
Throughput | 60 samples / h |
Species | Dog, cat, horse, pig, cattle, sheep, rabbit, monkey, rat, mouse and 10 user-defined species. |
Sizes(W×D×H)(mm) | 364x498x431 |
Shipping Size (W×D×H)(mm) | 650x600x600 |
N.W./G.W. (kg) | 23.5/45 |

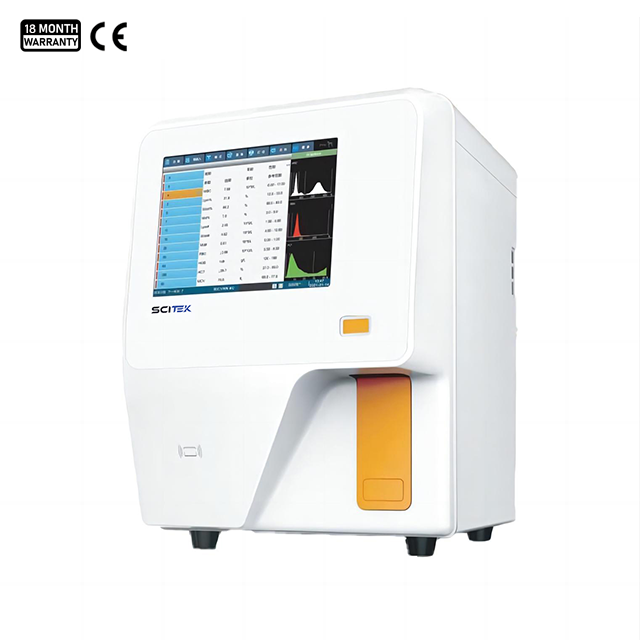

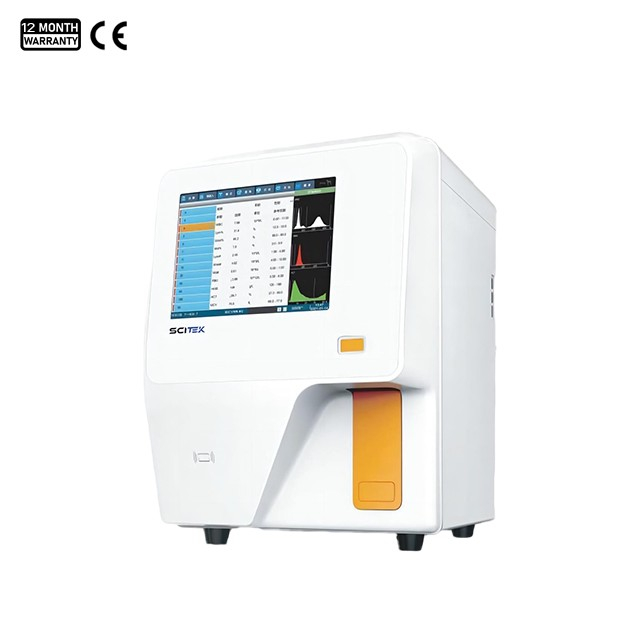

HA-3020VET 3-Part auto veterinary hematology analyzer is a specialized medical instrument designed for veterinary use, particularly for the analysis of blood samples from animals. It provides comprehensive information about various blood parameters in animals. Please note that the features may vary depending on the specific model or brand.
High throughput: The veterinary 3 part hematology analyzer is designed to handle large numbers of samples efficiently, making it suitable for veterinary practices with varying workloads.
Built-in quality control features to ensure accuracy and reliability of test results
To cater for a wide range of animal species, the HA-3020VET haematology analyzer often includes species-specific settings for more accurate results.
Compact and streamlined design
High-definition display allows for more intuitive operation and searching of test results
