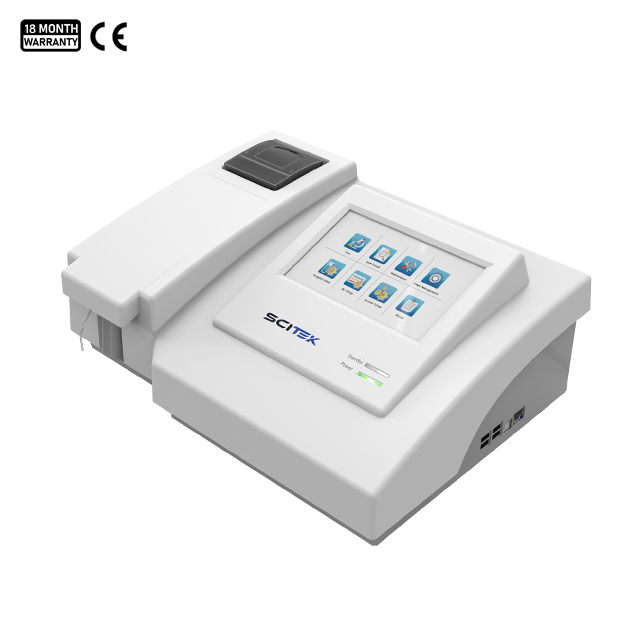

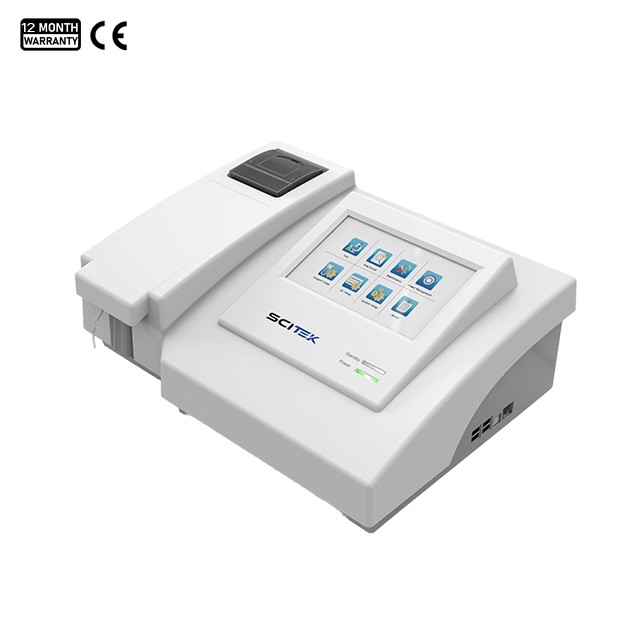

Economical Semi-auto Biochemistry Analyzer

Model : BA-S100P

Test Method : 1 point end, 2 point end(Sample blank), Kinetics, Fixed-time
Flow Cell : 32ul, 10mm
Wavelength : 7 standard filters: 340, 405, 450, 505, 546, 578, 630. 2 more for optional.
Sizes(W×D×H)(mm) : 400x300x160
This semi-auto chemistry analyzer is suitable for use in small research laboratories, clinics or medical institutions for the analysis of routine biochemical indicators.
Availability:
Quantity:

Semi-auto Biochemistry Analyzer Specifications:

ModelBA-S100P
Test Method1 point end, 2 point end (Sample blank), Kinetics, Fixed-time
Optics7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm. 2 more for optional.
Lamp HouseLong-life tungsten halogen lamp (6V/10W), auto-sleep function.
Display7.0″ TFT LCD with touch screen, 800x480 pixels.
PrinterBuild-in thermal printer, 57mm printer paper.
Temperature25, 30, 37℃ and Room temperature. By means of Peltier elements.
Flow Cell Capacity & Optical Path32ul, 10mm.
Resolution0.0001 Abs.
Photometric Range0.0000-4.0000 Abs.
CPUARM Cortex-A8, 720MHz
MemoryDDR2 SDRAM: 1G bit;
Flash256 MB; Over 300 programs, 200000 results can be stored.
Interface4 USB Hosts, 1 USB Slave, 1 Ethernet port.

USB port (host) for keyboard, mouse, printer, U disk, bar code reader etc.

USB port (slave) for PC connection (support PC software control function).
Operational EnvironmentTemperature: 10°C~30°C, Humidity: 30%~80%.
Power SupplyAC100-240V, 50/60Hz
LanguageRussian, English, Portuguese, Spanish, Chinese
Sizes(W×D×H)(mm)400x300x160
Shipping Size (W×D×H)(mm)530x420x320
N.W./G.W. (kg)4.7/8

Semi-auto Chemistry Analyzer Features:

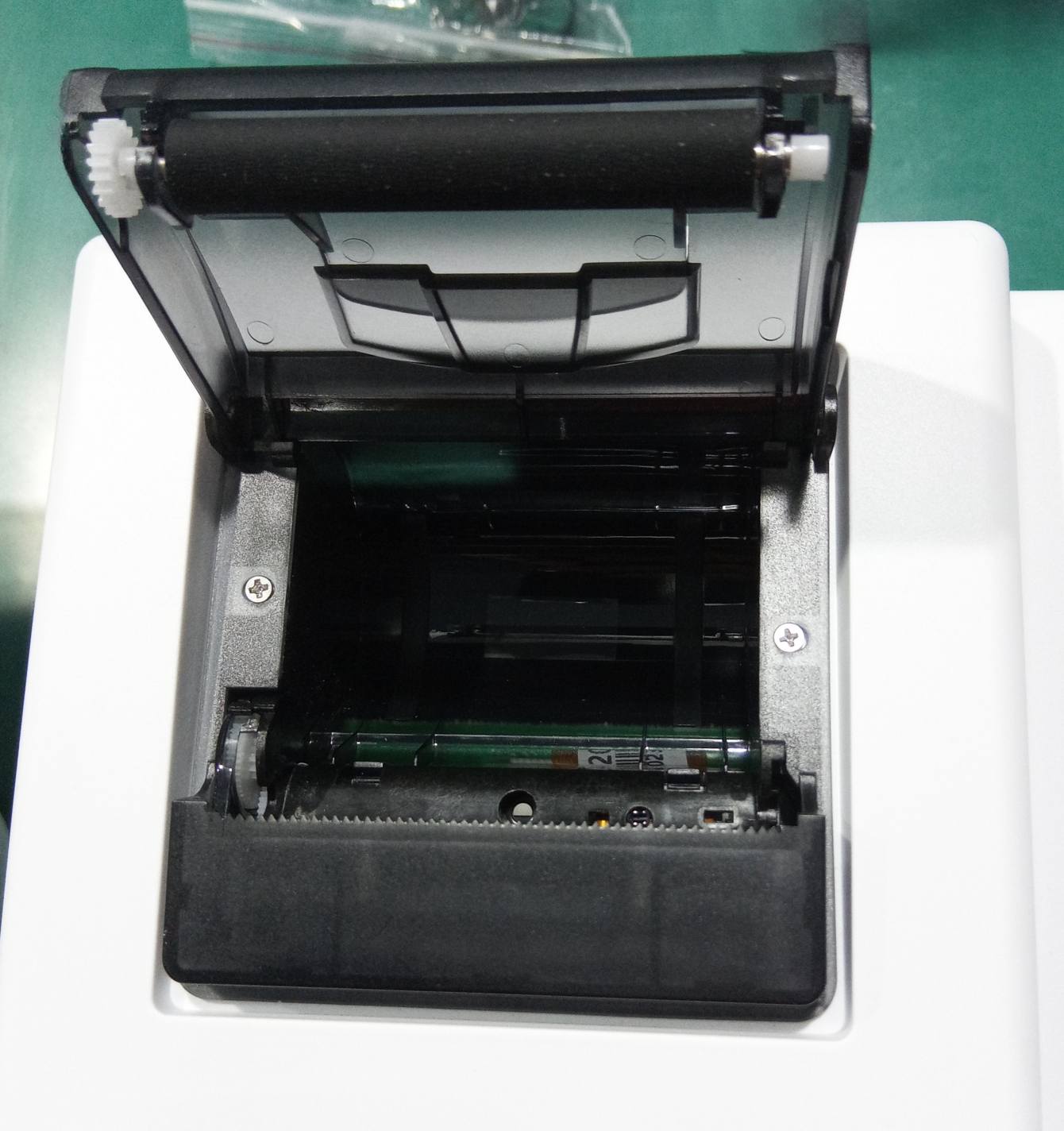

  1. Built-in thermal printer for direct data printing (57mm paper)

  2. 7" colour display touch screen, 800x480 pixels, for quick test setup, progress monitoring and result retrieval

  3. Storage for more than 300 procedures and 200,000 results, allowing users to store and retrieve patient results and lab records.

  4. USB port for easy data transfer

  5. Provides quality control and calibration functions to ensure the accuracy and reliability of test results.

  6. Suitable for routine blood chemistry testing. Monitors disease markers

  7. Space-saving and compact design makes it suitable for small laboratories with limited workspace.
