Pilot Freeze Dryer for Liquid and Solid Samples

Model : FD-P3S; FD-P4S; FD-P5S

Freeze Drying Area (m2) : 0.24; 0.36; 0.48
Tray Size(mm) : 300x400
Minimum Cold Trap Temperature(℃) : -65℃
Shelf Temperature(℃) : -50~60℃
Size(W×D×H)(mm) : 980x790x1280; 980x890x1380; 1480x1080x1580
The Freeze Dryer's operating system offers flexibility and convenience through an easy-to-use touch screen display.
Availability:
Quantity:
Inquiry Add to Inquiry List

Point Freeze Dryer Specifications:

ModelFD-P3SFD-P4SFD-P5S
Freeze-drying Area(m2)0.240.360.48
Cold Trap Water Capture Capacity(kg)235
Tray Size(mm)300x400
Tray Quantity2+1(temperature compensation board)3+1(temperature compensation board)4+1 (temperature compensation board)
Minimum Cold Trap Temperature(℃)-65℃
Shelf Temperature(℃)-50~60℃
Vacuum Degree(Pa)≤1Pa
Number of Penicillin Bottles That Can be Placed (For Reference Only)16mm/2ml160024003200
22mm/5ml70010501400
22mm/7ml50010001500
Vacuum PumpStandard
Power SupplyAC220V, 50/60Hz
Consumption(W)260033003500
Shipping Size(W×D×H)(mm)Main machine:
980x790x1280;
Vacuum pump:
550x190x310		Main machine:
980x890x1380;
Vacuum pump:
550x190x310		Main machine:
1480x1080x1580;
Vacuum pump:
650x300x420
G.W. (kg)(Including Vacuum Pump)250270310

FD-PS series can be used for both liquid and solid samples, and all operations can be carried out inside the chamber. Based on the set temperature, time, and vacuum pressure, the sample can be pre-frozen in situ, with temperature probes on each shelf. The transparent organic glass cold trap door allows observation of the ice formation inside the cold trap. Quick hot gas defrosting can be selected, with shelf temperatures ranging from 50°C to +60°C. The effective shelf area ranges from 0.1 to 0.48m2.

Freeze Dryer Features:

  1. Microcomputer control and touch screen

  2. Remote control via mobile phone and computer

  3. Internationally renowned compressor

  4. Acrylic transparent door

  5. Standard vacuum control function

  6. Adjustable heating and cooling speed


Previous:
Next:
Get Quotation/Become Distributor

Related Products

Benchtop Freeze Dryer, -60℃ Condenser Temp.
Benchtop Freeze Dryer, -60℃ Condenser Temp.
Vertical Freeze Dryer -60/-80℃ Condenser Temp.
Vertical Freeze Dryer -60/-80℃ Condenser Temp.

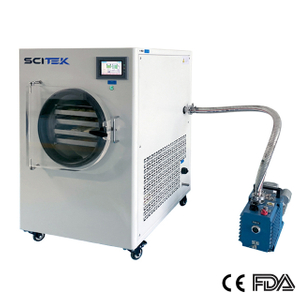

Freeze Dryer, -40/-70 ℃ Condenser Temp.
