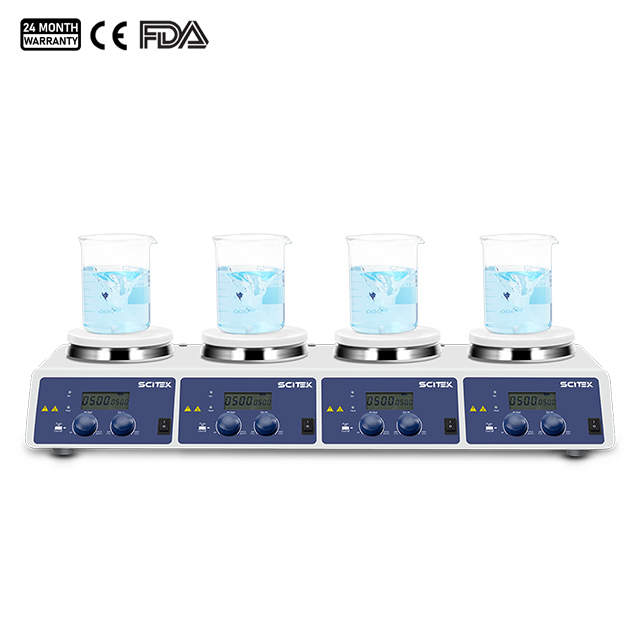

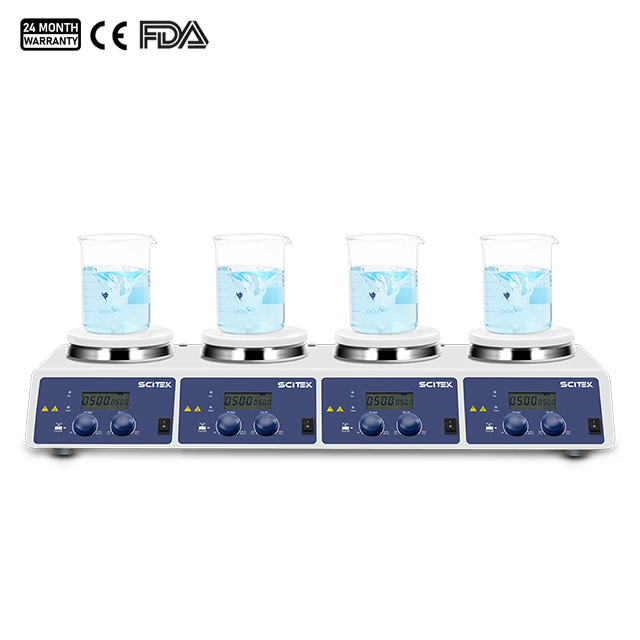

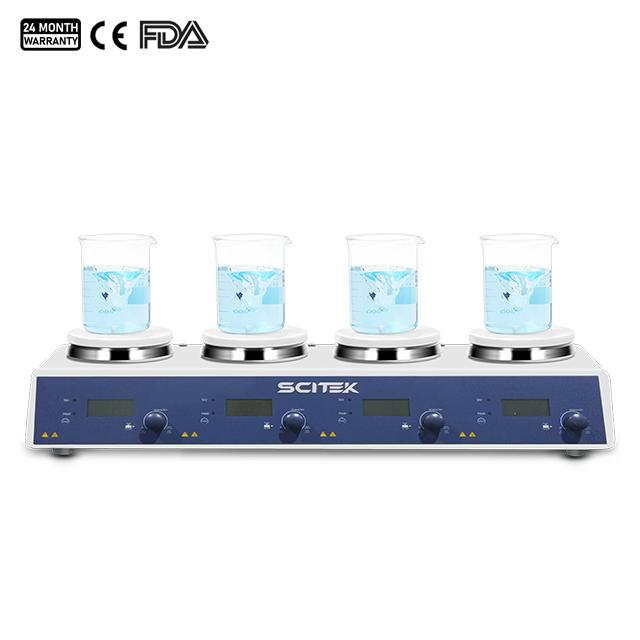

Model | MMS-H4 |
---|---|
Work Plate Size | Φ135mm (5 inch) |
Plate Material | Stainless steel with ceramic coating |
Motor Type | Brushless DC motor |
Stirring Positions | 4 |
Max. Stirring Quantity of Single Position (H2O) | 10L |
Max. Magnetic Bar | 40mm |
Speed Range | 200-1500rpm |
Speed Display | LCD |
Temperature Display | LCD |
Control Accuracy of Sensor | ±20rpm |
Temperature Range | 25-340℃ |
Over Temperature Protection | 420℃ |
Temperature Display Accuracy | ±0.1℃ |
Permissible Ambient Temperature and Humidity | 5~40℃, 80%RH |
External Temp. Sensor | PT1000 (Accuracy±0.2℃) |
IP Protection Class | IP21 |
Motor Rating Input | 1.8W×4 |
Power | 515W×4 |
Heating Power | 500W×4 |
Power Supply | 100-120V, 60Hz; 200-240V, 50 Hz |
Size(W×D×H)(mm) | 698x270x128mm |
Shipping Size(W×D×H)(mm) | 825x400x260 |
N.W./G.W. (kg) | 10/12 |
Realize independent stirring or heating.
PID controller and brushless DC motor realize precise control of stirring speed.
Real-time feedback of actual temperature and speed through LCD display.
Max. temperature up to 340℃.
The external temperature control with an accuracy of ± 0.2 ℃ can be achieved by connecting a temperature sensor (PT1000).
Model | MMS-H4 |
---|---|
Work Plate Size | Φ135mm (5 inch) |
Plate Material | Stainless steel with ceramic coating |
Motor Type | Brushless DC motor |
Stirring Positions | 4 |
Max. Stirring Quantity of Single Position (H2O) | 10L |
Max. Magnetic Bar | 40mm |
Speed Range | 200-1500rpm |
Speed Display | LCD |
Temperature Display | LCD |
Control Accuracy of Sensor | ±20rpm |
Temperature Range | 25-340℃ |
Over Temperature Protection | 420℃ |
Temperature Display Accuracy | ±0.1℃ |
Permissible Ambient Temperature and Humidity | 5~40℃, 80%RH |
External Temp. Sensor | PT1000 (Accuracy±0.2℃) |
IP Protection Class | IP21 |
Motor Rating Input | 1.8W×4 |
Power | 515W×4 |
Heating Power | 500W×4 |
Power Supply | 100-120V, 60Hz; 200-240V, 50 Hz |
Size(W×D×H)(mm) | 698x270x128mm |
Shipping Size(W×D×H)(mm) | 825x400x260 |
N.W./G.W. (kg) | 10/12 |
Realize independent stirring or heating.
PID controller and brushless DC motor realize precise control of stirring speed.
Real-time feedback of actual temperature and speed through LCD display.
Max. temperature up to 340℃.
The external temperature control with an accuracy of ± 0.2 ℃ can be achieved by connecting a temperature sensor (PT1000).
