Laboratory/Medical Refrigerator, Auto Defrost

Model : MR-5V60; MR-5V100; MR-5V100F

Capacity (L) : 60 / 100 / 100
Internal Size : 410x315x560 / 385x356x737 / 385x356x737
Shelves / Drawers (Qty) : 2 Shelves / 3 Shelves / 3 Shelves
Temperature Range (℃) at RT.10~32℃ : 2~8（Optional 2~10 ; 2~14）

Safe for storing samples at temperatures from 2° to 8°C, the laboratory refrigerator features adjustable temperature control and automatic defrost.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Laboratory Refrigerator Specifications:

Model		MR-5V60	MR-5V100	MR-5V100F
Capacity (L)		60	100	100
Size(WxDxH)(mm)	Internal	410x315x560	385x356x737	385x356x737
Size(WxDxH)(mm)	External	495x450x710	505x510x875	505x520x875
Temperature	Range (℃) at RT.10~32℃	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)
	Sensor	NTC	NTC	NTC
	Controller	Microprocessor	Microprocessor	Microprocessor
Cooling system	Refrigerant	R600a (CFC Free)	R600a (CFC Free)	R600a (CFC Free)
	Defrost	Auto	Auto	Auto
	Compressor Qty	1	1	1
Display		Digital display	Digital display	Digital display
Audible & Visible Alarm	Standard	High/Low temperature, door ajar
Audible & Visible Alarm	Power Failure Backup System (Alarm)	8h	10h	10h
Material	Internal	Electro-galvanized steel with antimicrobial powder coating	HIPS	HIPS
Material	External	Electro-galvanized steel with antimicrobial powder coating
Accessories	USB Port	Optional	/	/
	Casters	/	Standard	Standard
	Chart Recorder	/	/	/
	Data Logger	Optional	Optional	Optional
	Remote Alarm Port	Standard	/	/
	Test Hole (Qty) / Φ (mm)	1/25	/	/
Shelves / Drawers (Qty)		Shelves/2	Shelves/3	Shelves/3
Sound Emission (dB)		50	50	50
Electricity	Voltage/ Frequency	AC110/220V±10%, 50/60Hz
Electricity	Consumption (W)	72	80	80
N.W./G.W. (Kg)		33/37	35/38	30/33
Shipping Size (WxDxH) (mm)		558x510x760	580x580x940	580x580x940

Laboratory Refrigerator Features:

Forced-air cooling system with electrical heat compensation controlled by microprocessor.
Auto-defrost system ensure no moisture on cooling surface.
Hollow Insulation designed double-layer toughened glass door(MR-5V100).
Clear LED screen and control panel support easy display and operation.
Leveling feet for easy fixation.

Safety

Lockable doors and password protected microprocessor parameter setting.
Build-in backup battery up to 8 hours to display temperature and operate audible and visual alarm systems.
Inner doors monitor to turn on/off cooling fan to prevent cold air from leaking out.
Audible buzzer and visible flashing temperature alarm system for high/low temperature, power failure, voltage abnormal, door ajar, backup battery.

Ergonomic Design

Safety lock prevents unauthorized access.
Detachable and separated basket for maximum safety storage and use.
Automatic ON/OFF light also controlled from control panel.
Standard 25mm test hole for connecting temperature monitoring systems.
Lockable universal castor wheels.
5 adjustable steel wire shelves for easy storing.

Details of Laboratory Refrigerator:

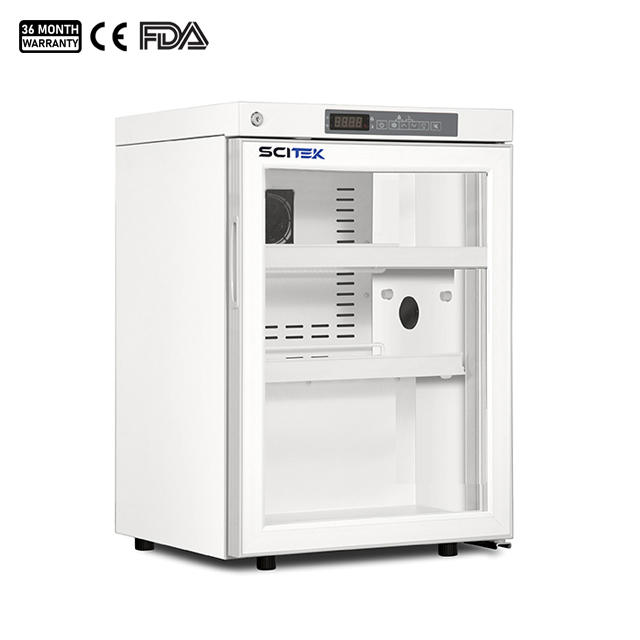

MR-5V60 (3)

The front centre features a clear glass door that clearly displays samples from inside the fridge. Above the door, there is an easy-to-operate control panel to adjust the temperature and other settings of the refrigerator.

MR-5V60 (6)

The interior is constructed with high-quality materials and is well-designed to adjust different temperature zones as needed.

MR-5V60 (4)

The back is equipped with ventilation holes and a heat sink to ensure a stable temperature and good heat dissipation inside the refrigerator.

Above picture is MR-5V60

The overall design is simple and generous, suitable for laboratory use.

Adjustable shelves for easy storage of different sizes and types of samples.

Above picture is MR-5V100

Warranty for Laboratory Refrigerator

3 years for the whole machine.
Long life-time maintenance, 24/7 English online support.
Except the damage artificially, we are responsible for offering the fittings free of charge during warranty.
Certificate support: CE, FDA, SGS.

Model	MR-5V60	MR-5V100	MR-5V100F
Capacity (L)	60	100	100
Size(WxDxH)(mm)	Internal	410x315x560	385x356x737	385x356x737
External	495x450x710	505x510x875	505x520x875
Temperature	Range (℃) at RT.10~32℃	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)	2~8 (Optional 2~10; 2~14)
Sensor	NTC	NTC	NTC
Controller	Microprocessor	Microprocessor	Microprocessor
Cooling system	Refrigerant	R600a (CFC Free)	R600a (CFC Free)	R600a (CFC Free)
Defrost	Auto	Auto	Auto
Compressor Qty	1	1	1
Display	Digital display	Digital display	Digital display
Audible & Visible Alarm	Standard	High/Low temperature, door ajar
Power Failure Backup System (Alarm)	8h	10h	10h
Material	Internal	Electro-galvanized steel with antimicrobial powder coating	HIPS	HIPS
External	Electro-galvanized steel with antimicrobial powder coating
Accessories	USB Port	Optional	/	/
Casters	/	Standard	Standard
Chart Recorder	/	/	/
Data Logger	Optional	Optional	Optional
Remote Alarm Port	Standard	/	/
Test Hole (Qty) / Φ (mm)	1/25	/	/
Shelves / Drawers (Qty)	Shelves/2	Shelves/3	Shelves/3
Sound Emission (dB)	50	50	50
Electricity	Voltage/ Frequency	AC110/220V±10%, 50/60Hz
Consumption (W)	72	80	80
N.W./G.W. (Kg)	33/37	35/38	30/33
Shipping Size (WxDxH) (mm)	558x510x760	580x580x940	580x580x940
