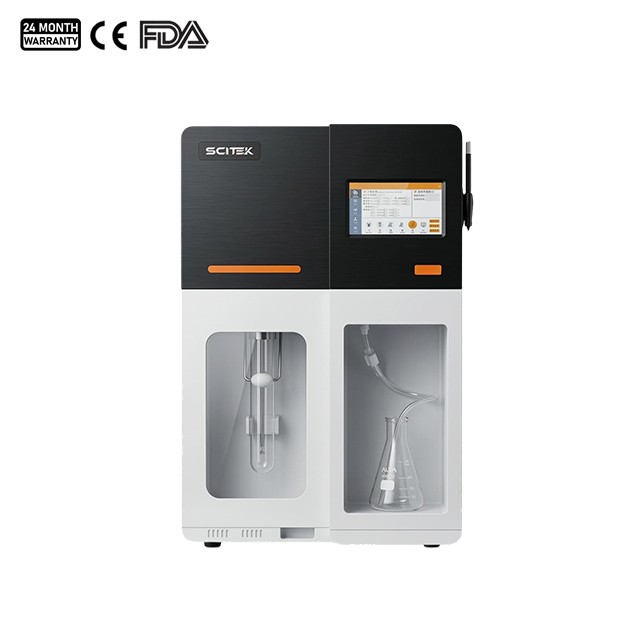

KA-520 kjeldahl apparatus adopts an advanced 16-bit triple-base chromaticity color sensor and unique titration system structure, ensuring the titration process's extremely high accuracy. KA-520 also introduces self-developed alkali pump anti-crystallization technology, which successfully solves the problem of crystallization of the alkali pump and significantly improves the reliability and stability of the instrument.
The modular structure design of the kjeldahl apparatus ensures stability and reliability during use, as well as the accuracy of test results. This makes the KA-520 kjeldahl apparatus a state-of-the-art instrument with excellent performance and reliable operation in nitrogen determination.
Model | KA-520 |
---|---|
Determination Range | 0.1-220mgn (mg nitrogen) |
Measuring Speed | 3-5min/sample |
Sample Weight | Solid ≤ 5G; Liquid ≤ 20ml |
Reproducibility | 0.3% relative error |
Rate of Recovery | Over 99.5% 1-250mgn |
Nitrogen Pipe Emptying | / |
Storage Capacity | Data storage > 2000set |
Power | AC100~240V, 50/60Hz, 1300W |
Sizes(WxDxH)(mm) | 500x410x850 |
Shipping Size(WxDxH)(mm) | 590x550x970 |
N.W./G.W. (kg) | 35/50 |
Test automation
Add acid, alkali, distillation, titration, result calculation and printout, automatic sample measurement.
Sample explosion-proof boiling
The methods of sample dilution and alkali addition can be set arbitrarily according to the different samples of users, so as to prevent the sample from bursting and boiling and improve the measurement accuracy.
Alkali pump anti crystallization.
The self-developed alkali pump anti crystallization technology solves the problem of alkali pump crystallization and improves the reliability of the instrument.
Steam adjustable
Steam pre adding mode, steam flow rate (1-100%) can be adjusted automatically, so as to achieve better distillation effect and ensure the accuracy of the experiment.
Security protection
Multiple intelligent protections, such as digestive tube in place detection, safety valve, condensate detection, steam generator overheating, overpressure protection, liquid level detection, etc., ensure the instrument and operator Staff safety.
