Model | LC-I1100 | LC-G1100 |
---|---|---|
Pump | P1100 x 1 | P1100 x 2 |
Detector | D1100 x 1 | |
Gradient Mixer | / | TD-1-15 x 1 |
Solvent Bottle Tray | ST1100 x 1 | |
Sampler Injector | Rheodyne 7725i x1 | |
Column | Supersil ODS2 5μm; ID4.6x200mm x 1 | |
Workstation | Elitapex x 1 | |
Valve Mounting Frame | VB1100 x 1 | |
System Kit | Agressl 100 x 1 | |
Power Supply | AC220V±10%, 50Hz | |
Optional Accessory | 500ml solvent bottle x2, Column, Column Oven | |
Shipping Size(W×D×H)(mm) | 530x390x330x1; 610x430x310x2 | 530x390x330x1; 610x430x310x3 |
G.W. (kg) | 45 | 60 |

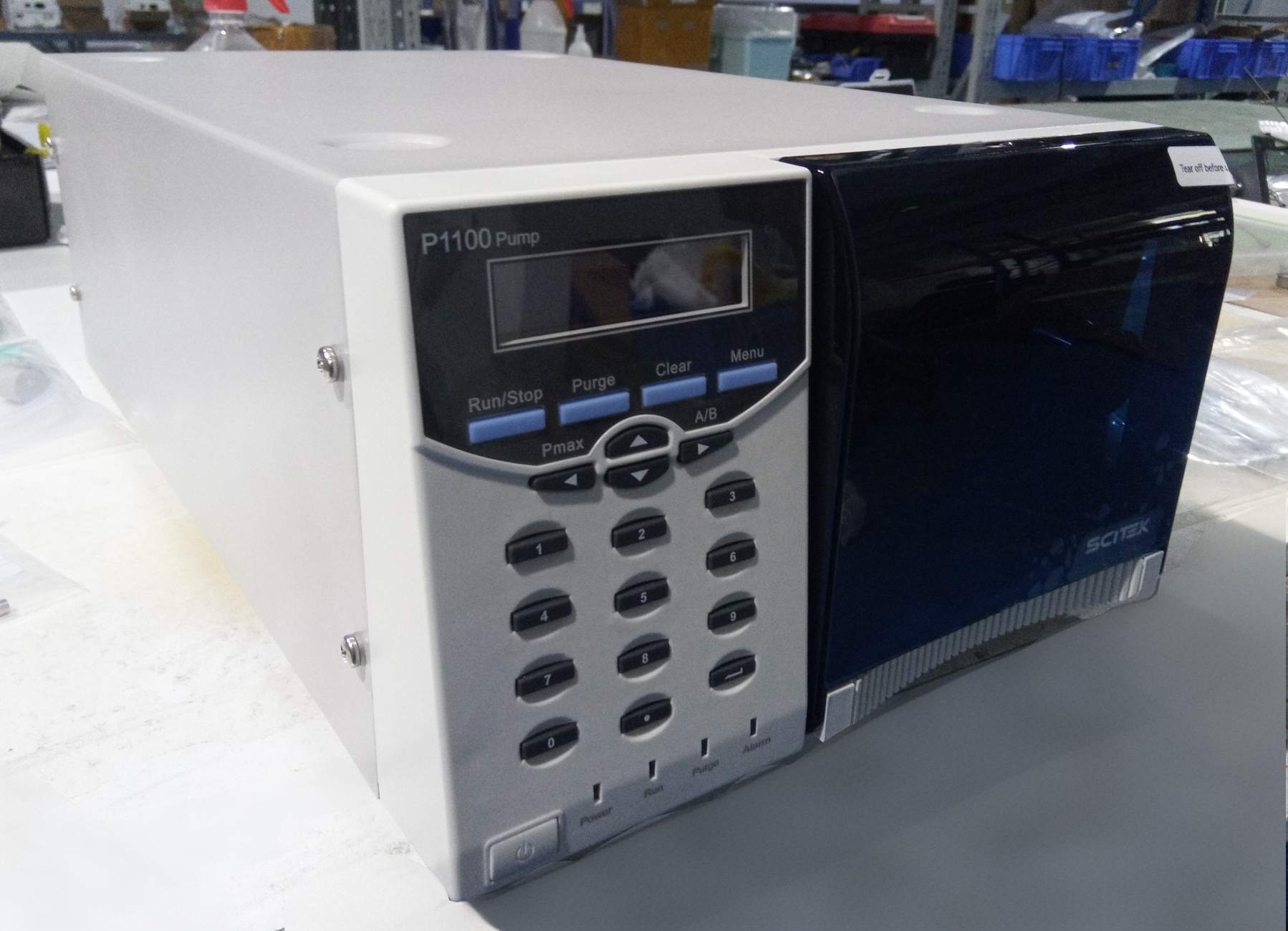

P1100 High Pressure Constant Flow Pump | |
---|---|
Flow Rate | 0.001-10.000 mL/min (Step: 0.001 mL/min) |
Accuracy | <+0.3% |
Precision | <0.1% RSD |
Max Pressure | 42 MPa (6000 psi) |
Power Supply | AC220V, 50Hz |
Shipping Size(W×D×H)(mm) | 600x420x300 |
G.W. (kg) | 17 |
D1100 UV-Visible Detector | |
---|---|
Linearity | 1.8 AU |
Wavelength Range | 190~700 nm |
Noise | ≤±1.0x10-5 AU |
Drift | ≤2.0x10-4AU/h |
Power Supply | AC220V, 50Hz |
Shipping Size(W×D×H)(mm) | 600x420x300 |
G.W. (kg) | 17 |
O1100 Column Oven | |
---|---|
Temperature range | Ambient +5 °C~99 °C |
Accuracy | ± 0.1 °C |
Precision | M 0.1 °C |
Power Supply | AC220V, 50Hz |
Shipping Size(W×D×H)(mm) | 720x530x330 |
G.W. (kg) | 12 |
Application:
LC1100 System is a cost-effective product, and it is suitable for use in the production or manufacture which needs to strict cost control.
Advantages:
1. Affordable
2. VFD display screen
3. Control mode: external/internal
4. Easy to use
5. Superior repeatability
