Model | MT-A3345 |
---|---|
Slice thickness range | 0.5μm~100μm(3~5μm is the best slicing effect) |
Specimen retraction | 10~150μm(can be closed), in 1μm increments |
Section Thickness Setting Range | 0.5~5μm, increment 0.5μm |
5~20μm, increment 1μm | |
20~60μm, increment 5μm | |
60~100μm, increment 10μm | |
Trimming thickness | 1~600μm |
Trimming thickness setting | 1~10μm, increment 1μm |
10~20μm, increment 2μm | |
20~50μm, increment 5μm | |
50~100μm, increment 10μm | |
100~600μm, increment 50μm | |
Specimen vertical stroke | 60mm |
Specimen horizontally stroke | 25mm |
Min specimen size with cassette clamp (HxW) | 40x28mm |
Max specimen size with cassette clamp (HxW) | 55x45mm |
Size(W×D×H)(mm) | 590×430×310 |
Shipping size(W×D×H)(mm) | 700x550x500 |
N.W./G.W. (kg) | 35/55 |

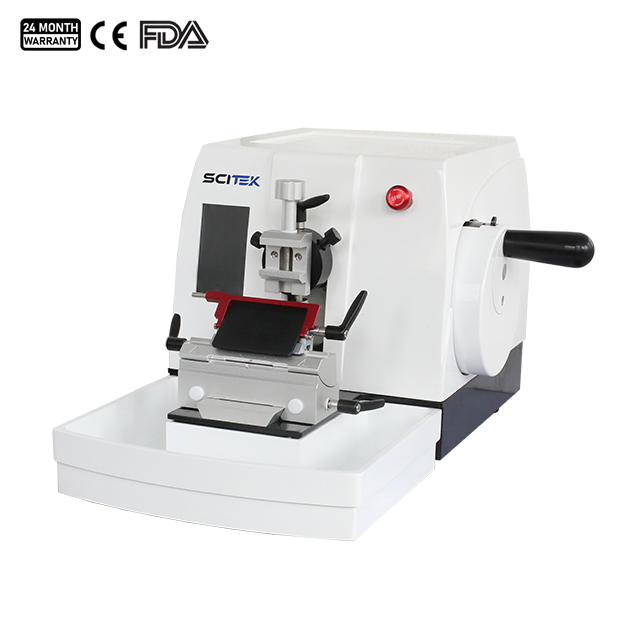

MT-A3345 is an automated microtome available in a continuous, progressive, single slice. The MT-A3345 is highly intelligent and requires little labor during operation.
It supports fast switching between slicing and retouching during operation.
Specimen retraction function can ensure complete slicing
The knife holder can be shifted horizontally, eliminating the need for staff to move the blades, preventing sample scratches and avoiding danger.
Can use all three positions of the blade to cut waxed tissue, which prolongs the blade's life.
Ergonomic design of the handwheel ensures quick and easy rotation of the handwheel.
Emergency switch for immediate stopping of the machine in case of danger.
8° XY-axis adjustment for precise positioning of the sample head.
Advanced cross-roller guide for precise cutting.
