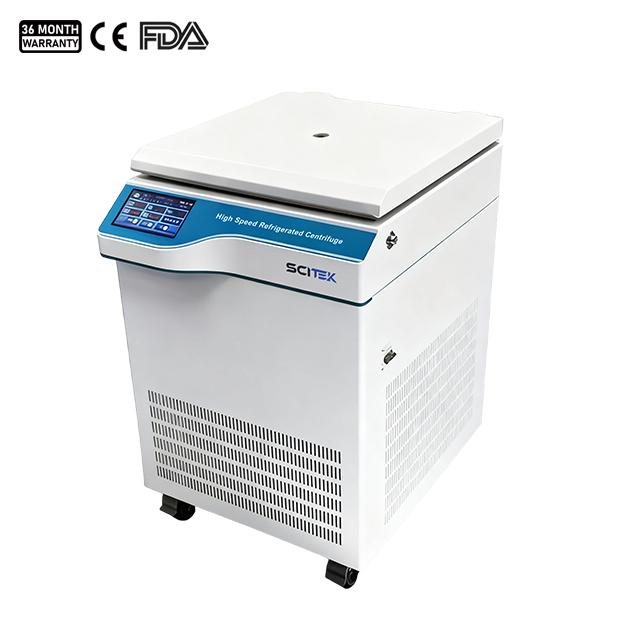

Floor Standing Refrigerated Centrifuge

Model : CFG-F24HR; CFG-F24HRI

Max Speed (rpm) : 23000 / 24000
Max RCF (xg) : 36795 / 40217
Temperature Setting (℃) : -20～+40
Timer : 1s-99 min
Max Capacity : 300ml×4 / 750ml×4
Availability:
Quantity:
Inquiry Add to Inquiry List

Floor Standing Refrigerated Centrifuge Features:

  • Versatile centrifuge with multiple rotor options (fixed-angle, swing-bucket, microplate).

  • Microprocessor control allows for precise speed and time adjustments.Customizable programming capability allows users to save and execute up to 20 personalized programs.

  • LCD display enables easy parameter setting and clear visibility of rotor model, temperature, time, RCF, and RPM.

  • Maintenance-free brushless AC motor ensures durability and reliability.

  • Double lids and locks provide enhanced safety by securely holding the lid during rotor operation.

  • Adjustable ramp and brake speeds with a wide range of speed selections (up to 15 options).

  • Convenient features include countdown timer at set RPM and one-touch short spin operation.

  • Automatic imbalance detection with audible alarm and overspeed protection ensure safe operation.

  • On-the-fly parameter adjustment allows users to modify settings during centrifuge operation (excluding programming).

  • Pre-cooling function and quick cooling capability enable the rotor chamber to reach 4°C from ambient temperature in just 10 minutes with Danfoss compressor.

  • Stand-by function maintains a constant temperature for efficient operation.

Refrigerated Centrifuge Specifications:

ModelCFG-F24HRCFG-F24HRI
Max. speed23,000 rpm24,000 rpm
Max. RCF36,795×g40,217×g
Max. Capacity300 mL×4750 mL×4
Speed Accuracy±20 rpm
Timer1 s-99 min, continuous operation, one touch short spin operation
Noise≦60 dB
Temperature range-20℃-40℃
Power220V 50Hz
N.W./G.W. (kg)95/120150/170
Sizes (W×D×H) (mm)620x648x525600x720x890
Shipping Size (WxDxH) (mm)820x740x685830x700x1080

Fixed-angle

rotor model

Max. capacityParameterCFG-F24HRCFG-F24HRI
H0.51212×0.5 mLMax. rpm23000 rpm24000 rpm
Max. RCF32625×g32625×g
H0.52424×0.5 mLMax. rpm18000 rpm18000 rpm
Max. RCF24631×g24631×g
H021212×1.5 mL/2.2 mLMax. rpm22000 rpm23000 rpm
Max. RCF36795×g40217×g
H022424×1.5 mL/2.2 mLMax. rpm16500 rpm16500 rpm
Max. RCF25871×g25871×g
H023636×1.5 mL/2.2 mLMax. rpm14000 rpm14000 rpm
Max. RCF34237×g34237×g
H051212×5 mLMax. rpm16500 rpm16500 rpm
Max. RCF25871×g25871×g
H101212×10 mLMax. rpm15000 rpm15000 rpm
Max. RCF22891×g22891×g
H15088×15 mLMax. rpm12500 rpm12500 rpm
Max. RCF15721×g15721×g
H300686×30 mLMax. rpm15000 rpm15000 rpm
Max. RCF21885×g21885×g
H50066×50 mLMax. rpm13000 rpm13000 rpm
Max. RCF19838×g19838×g
H85044×100 mLMax. rpm12000 rpm12000 rpm
Max. RCF16904×g16904×g
H0.54848×0.5 mLMax. rpm16000 rpm16000 rpm
Max. RCF22324×g22324×g
H0.23232×0.2 mLMax. rpm12000 rpm12000 rpm
Max. RCF10464×g10464×g
H85066×100 mLMax. rpm12000 rpm12000 rpm
Max. RCF19320×g19320×g
ModelCFG-F24HRCFG-F24HRI
Swing Out Rotor4×300 mL, 4500 rpm, 3781×g4×750 mL, 4200 rpm, 3550×g

Adapter1:

(Bucket)

4×250 mL, 4×100 mL,12×50 mL (round bottom),  40×10 mL (round bottom), 20×15 mL (conical), 56×5 mL

4×500 mL, 4×250 mL, 12×100 mL (round bottom), 20×50 mL (conical), 56×15 mL/20 mL (round bottom), 76×15 mL, 96×5 mL, 144×5 mL

Microplate2×2×96
