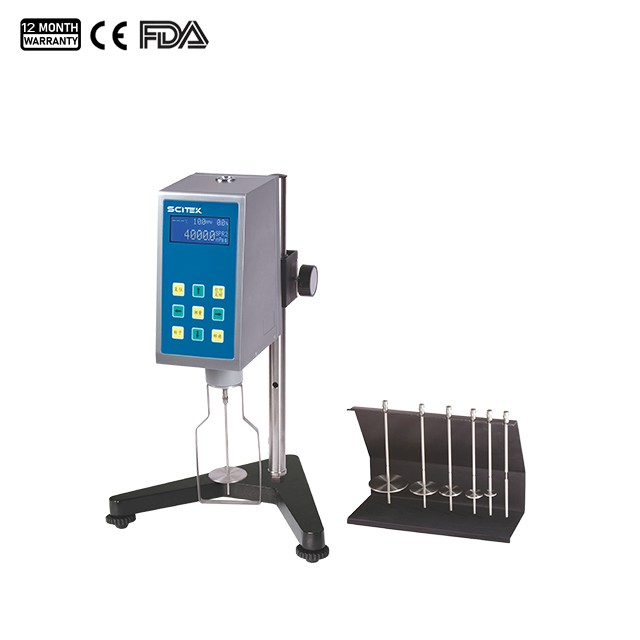

Viscometer DV Series

Model : VSC-LDV1; VSC-RDV1; VSC-HDV1; VSC-LDV2; VSC-RDV2; VSC-HDV2

Measuring Range (mPa·s) : 12~6M; 80~40M; 640~320M; 6~6M; 40~40M; 320~320M
Number of Spindles : 4 types (L1~L4); 6 types (R2~R7)
Accuracy : ±1%(FS)(Newtonian Fluid)
Repeatability : ±0.5%(FS)(Newtonian Fluid)

Availability:
Quantity:
Inquiry Add to Inquiry List

Rotational Viscometer Features:

DV series digital viscometers are the most commonly used viscometers at present, basically covering all functions of VSC-S and VSC-N series products, with a wider measurement range. DV-2 series products can display shear rate and shear stress. The DV program-controlled download software which is optional can download the custom measurement program to the viscometer to achieve automated or personalized operation.

  1. Extreme low viscometer adapter (with one spindle L0)

  2. Small sample adapter (with spindle 21, 27, 28 and 29 each)

  3. Spindle L5(VSC-LDV1/VSC-LDV2)

  4. Spindle R1(VSC-RDV1/VSC-HDV1/VSC-RDV2/VSC-HDV2)

  5. Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)

  6. Special software that can complete the function in collecting the data automatically

  7. Specially used printer

Appliction of Rotational Viscometer:

The rotational viscometers of the DV series are perfect for measuring the viscosity of liquids by rotating a shaped probe to measure the rheological properties of the liquid.

The following are descriptions of its applications:

  1. Coatings and Paint Industry: In coatings and paint manufacturing, the rotational viscometer is used to measure the viscosity of liquids to ensure product consistency and accurate coating performance.

  2. Pharmaceutical Manufacturing: The rotational viscometer is commonly used in the pharmaceutical sector to measure the viscosity of pharmaceutical solutions, pastes and other preparations to ensure stability and quality during the manufacturing process.

  3. Chemical Industry: In the chemical industry, rotational viscometers are used to measure the viscosity of a wide range of liquid products to help control the rheological properties of the reaction process.

Rotational Viscometer Specifications:

SeriesDV-1DV-2
ModelVSC-LDV1VSC-RDV1VSC-HDV1VSC-LDV2VSC-RDV2VSC-HDV2
Measuring Range(mPa·s）12~6M80~40M640~320M6~6M40~40M320~320M
Rotating Speed (RPM)0.1～99.90.1 ～ 200
Number of Spindles4 types
(L1~L4)		6 types(R2~R7)4 types
(L1~L4)		6 types(R2~R7)
Accuracy±1%(FS)(Newtonian Fluid)
Repeatability±0.5%(FS)(Newtonian Fluid)
Readability1. when viscosity is lower than 10.0 cp : 0.01
2. when viscosity is lower than 10000 cp : 0.1
3.when viscosity is equal or higher than 10000 cp : 1
Power SupplyAC100~240V, 50/60Hz

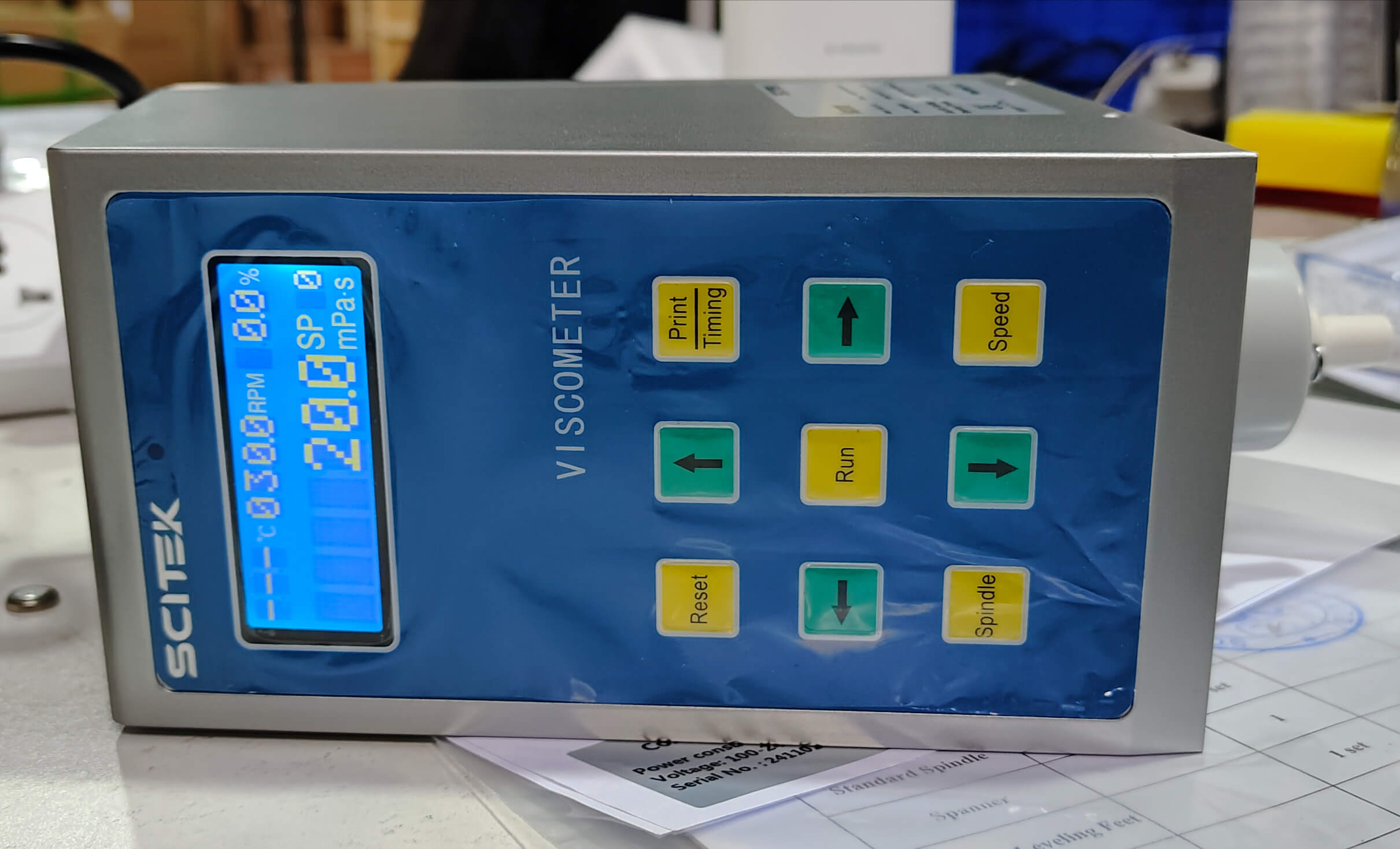

LCD Screen DisplayThe LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value.
L0 Spindle is for Option Measured Range (mPa·s)0.6~6K6~60K50~500K0.3~6K3~60K25~500K
R1 Spindle is for Option
Measured Range (mPa·s)		—20~100K160~800K—10~100K80~800K
Shipping Size
(WxDxH)(mm)		400x350x360400x350x550400x350x550400x350x360400x350x550400x350x550
G.W(kg)910.510.5910.510.5

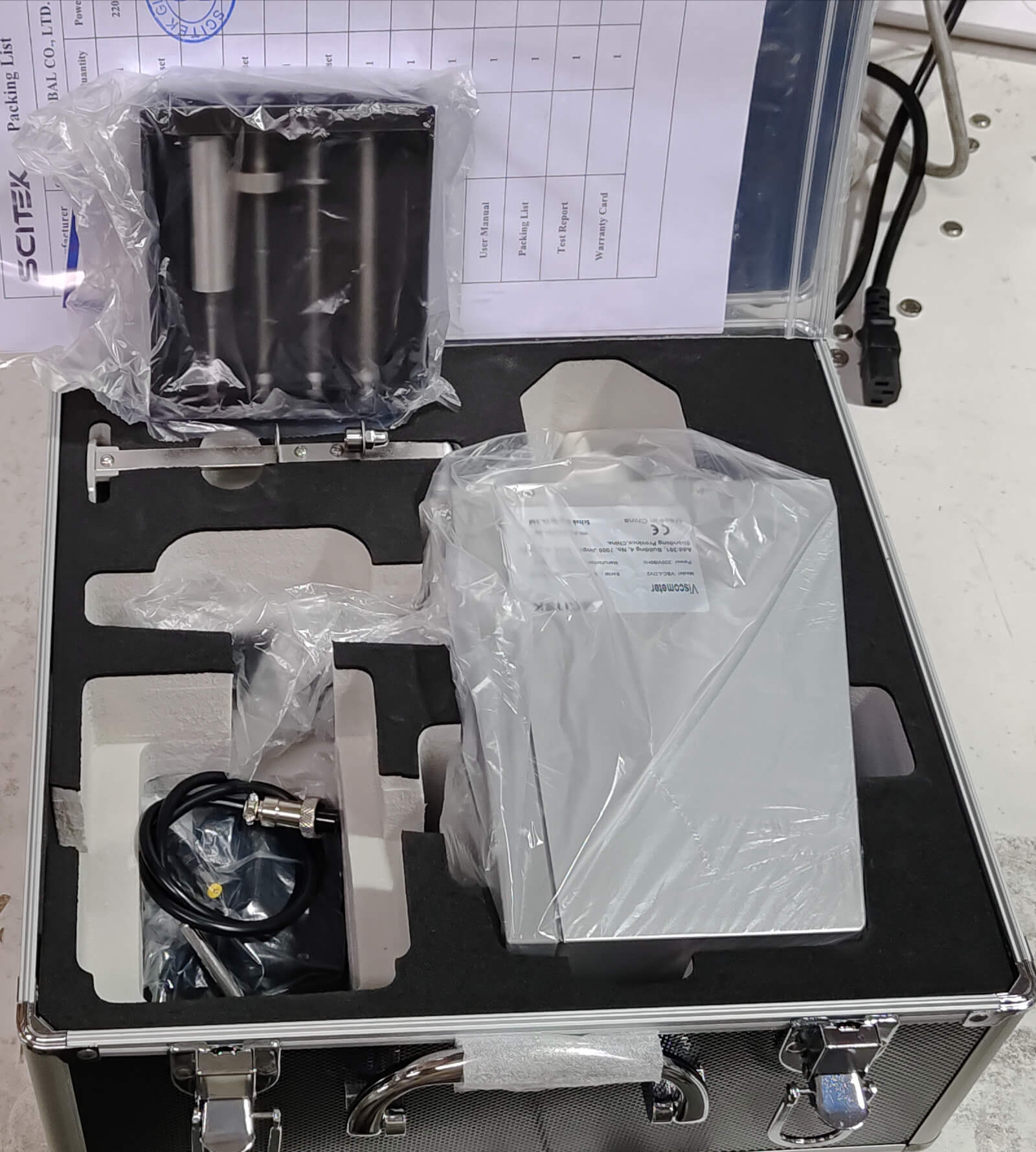

Apparatus to be equipped

Digital viscosity meter1 pceAscending and falling rack1 set
Standard Spindle1 setPower Adapter1 pce
Protective Frame of Spindle1 pceSpanner1 pce
Seat and Leveling Feet1 setRS232 Standard Output Interface1 pce
RTD Temperature Probe1 pce


Previous:
Next:
Get Quotation/Become Distributor

Related Products

Digital Viscometer VSC-KU2
Digital Viscometer VSC-KU2
Rotational Viscometer
Rotational Viscometer
Digital Viscometer
Digital Viscometer

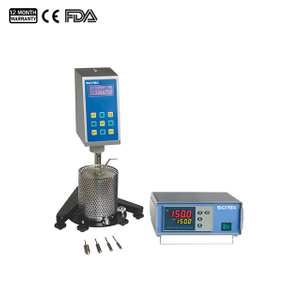

Viscometer, Manual/Auto Measurement
