Availability: | |
---|---|
Quantity: | |
Model | MSC-D208 |
Optical System | Finite distance optical system |
Viewing Head | 10-inch display screen |
Video Adapter | C Mount 0.5×/1× |
Objective | Plan achromatic objective: 4×, 10×, x20×, 40×, 100× |
Nosepiece | Quadruple Nosepiece/xQuintuple Nosepiece |
Stage | Double layers mechanical stage 140x135mm, range of movement: 75x50mm |
Condense | Abbe condenser N.A. 1.25 with iris diaphragm & filter |
Focusing System | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm |
Illumination | 3W LED light, brightness continuously adjustable |
Optional | Turret phase contrast Kit; dark field attachment; fluorescent attachment |
Microscope camera/win10 Pad/Digital display | |
Shipping Size (W×D×H)(mm) | 370x260x470 |
G.W. (kg) | 8 |
Digtal microscope features finite-distance optics to provide clear and detailed imaging for precise observation

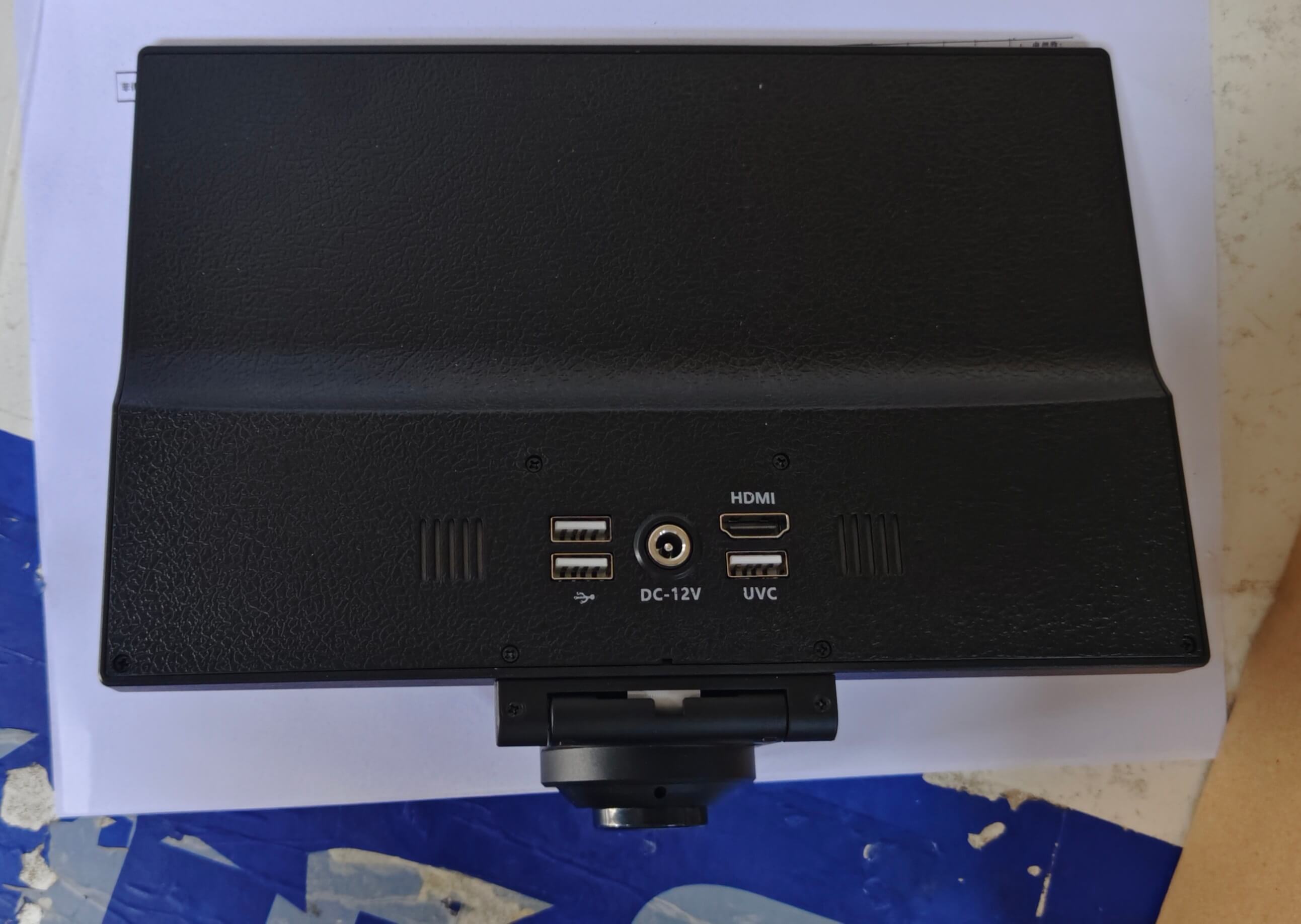

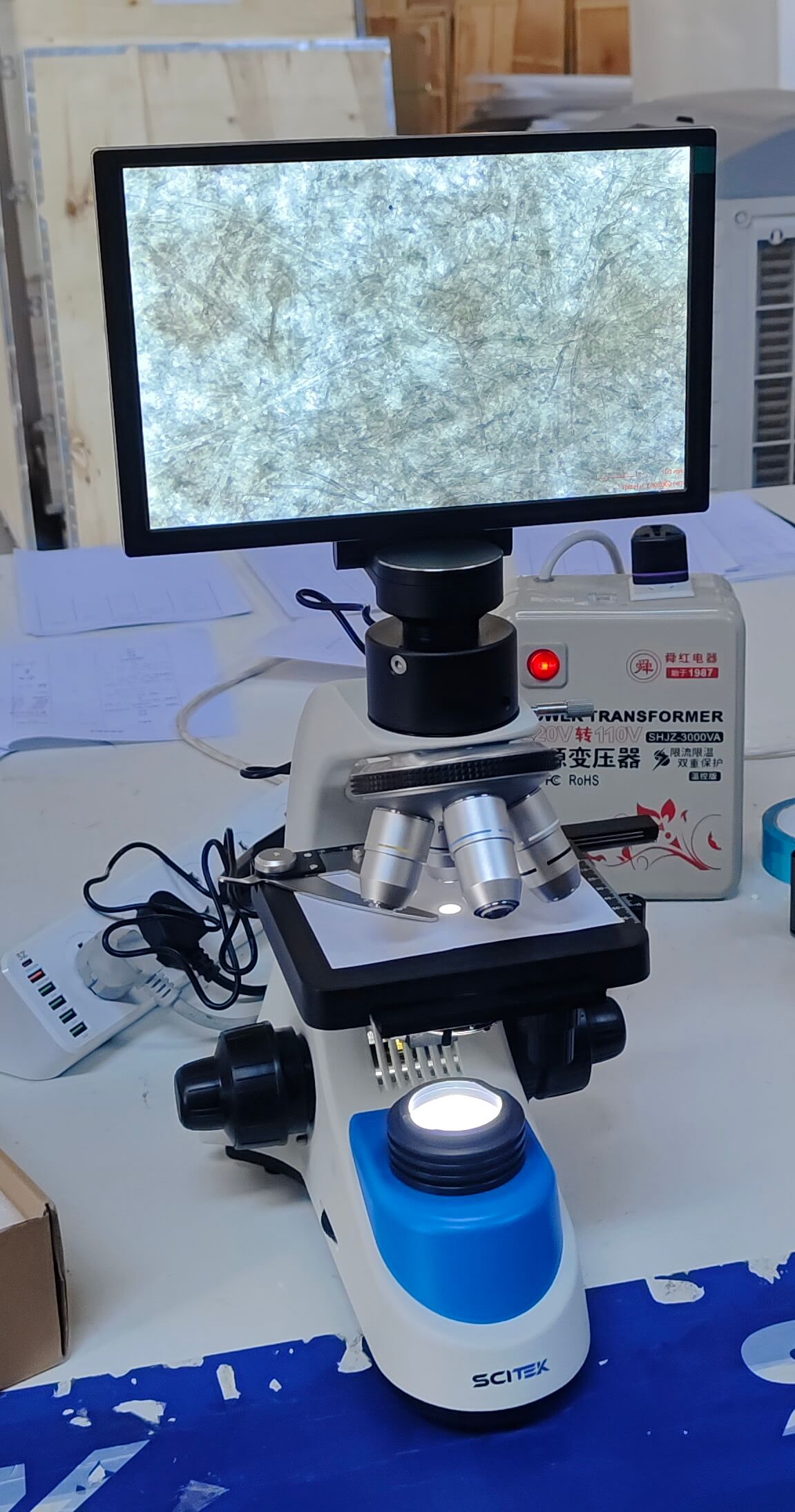

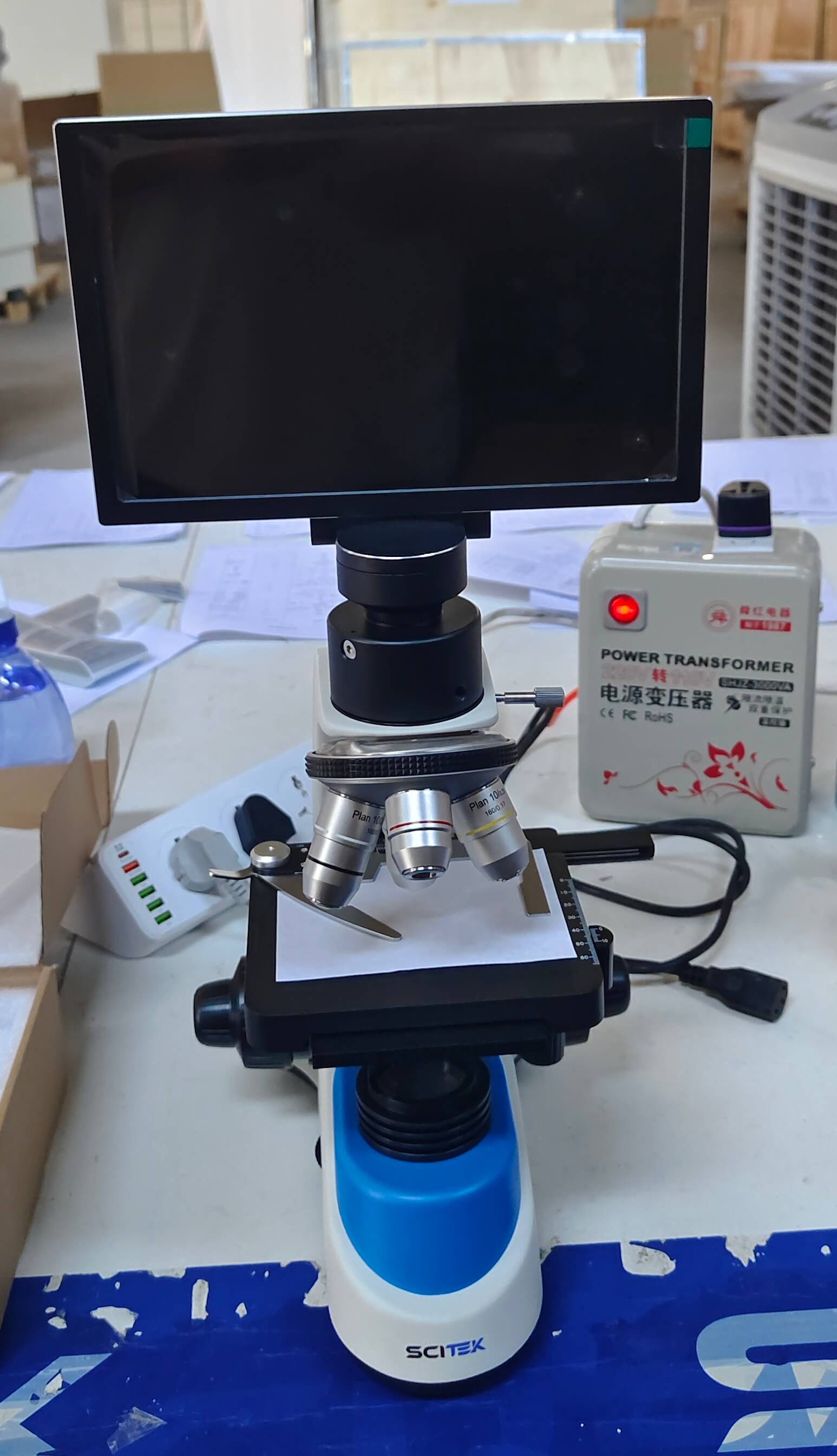

10" display integrated into the viewing head enhances the user experience, eliminating the need for traditional eyepieces and providing a convenient and immersive visual platform.
Microscope's video adapter (C Mount 0.5×/ 1x) supports seamless connectivity with imaging devices.
Achromatic objectives (4x, 10x, 20x, 40x, 100x) ensure high-quality optical performance at various magnifications, making the microscope versatile for various specimen examinations.

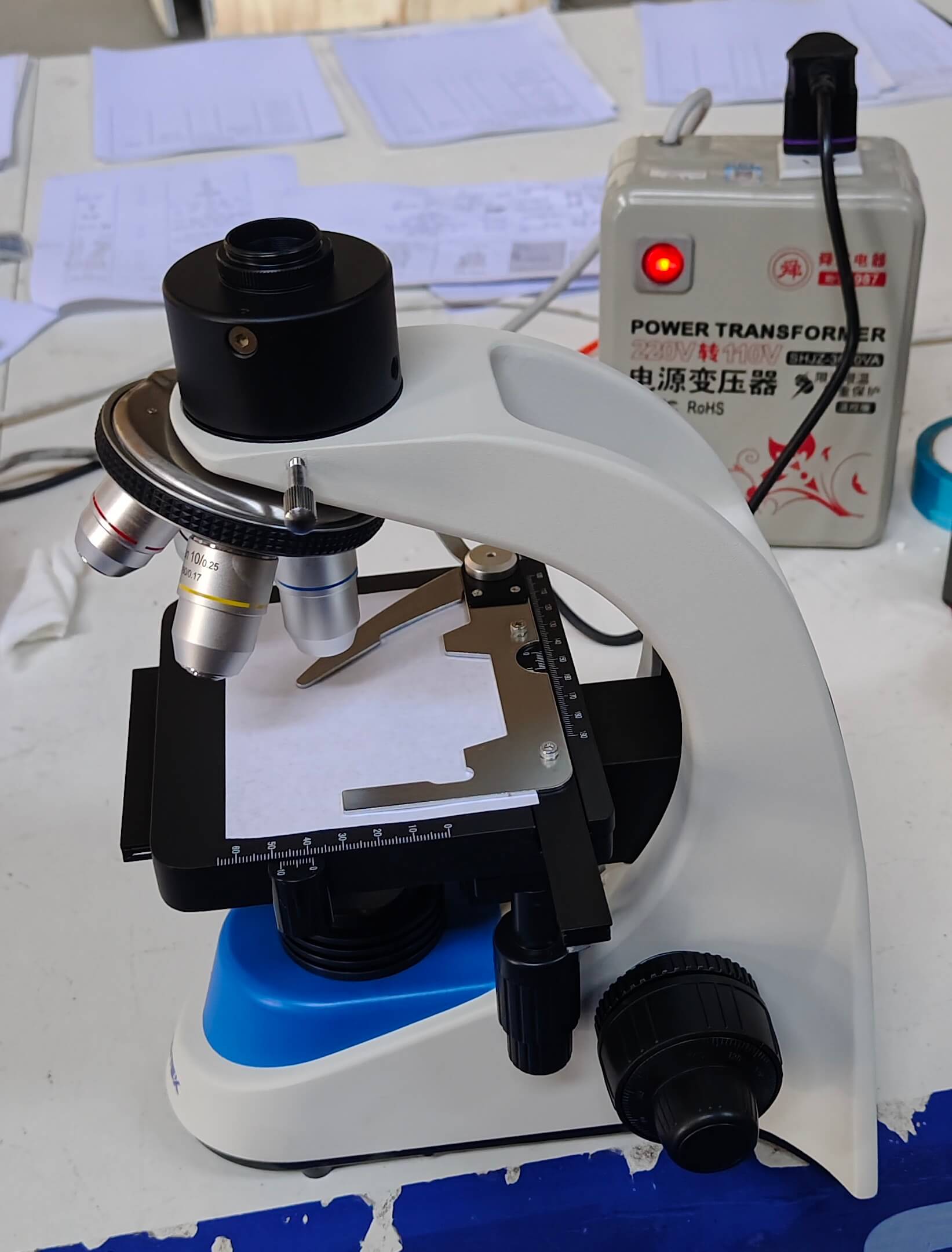

The double mechanical stage provides stability and flexibility for precise sample manipulation.
Energy-saving LED illumination ensures long-lasting performance and promotes a comfortable and well-illuminated viewing environment.
This digtal microscope combines a limited-distance optical system with digital integration, precise optics, and versatility, making it well-suited for various applications, including research, education, and clinical use.
Model | MSC-D208 |
Optical System | Finite distance optical system |
Viewing Head | 10-inch display screen |
Video Adapter | C Mount 0.5×/1× |
Objective | Plan achromatic objective: 4×, 10×, x20×, 40×, 100× |
Nosepiece | Quadruple Nosepiece/xQuintuple Nosepiece |
Stage | Double layers mechanical stage 140x135mm, range of movement: 75x50mm |
Condense | Abbe condenser N.A. 1.25 with iris diaphragm & filter |
Focusing System | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm |
Illumination | 3W LED light, brightness continuously adjustable |
Optional | Turret phase contrast Kit; dark field attachment; fluorescent attachment |
Microscope camera/win10 Pad/Digital display | |
Shipping Size (W×D×H)(mm) | 370x260x470 |
G.W. (kg) | 8 |
Digtal microscope features finite-distance optics to provide clear and detailed imaging for precise observation
10" display integrated into the viewing head enhances the user experience, eliminating the need for traditional eyepieces and providing a convenient and immersive visual platform.
Microscope's video adapter (C Mount 0.5×/ 1x) supports seamless connectivity with imaging devices.
Achromatic objectives (4x, 10x, 20x, 40x, 100x) ensure high-quality optical performance at various magnifications, making the microscope versatile for various specimen examinations.
The double mechanical stage provides stability and flexibility for precise sample manipulation.
Energy-saving LED illumination ensures long-lasting performance and promotes a comfortable and well-illuminated viewing environment.
This digtal microscope combines a limited-distance optical system with digital integration, precise optics, and versatility, making it well-suited for various applications, including research, education, and clinical use.
