Digital High-shear Homogenizer

Model : HMG-DH500

Range of Rotation : 10000-28000rpm
Speed Mode : Stepless speed regulation
Processing Capacity : 50ml-7000ml(H2O)
Shipping Size (W×D×H)(mm) : 803x400x140
The digital high-shear homogenizer is suitable for a wide range of laboratory applications in sample preparation, toxicology and food science.
Availability:
Quantity:

This digital high-shear homogenizer is often used in pharmaceuticals, biochemicals, food, nanomaterials, coatings, adhesives, daily chemicals, printing and dyeing, petrochemicals, paper chemistry, polyurethane, inorganic salts, asphalt, organic silicon, pesticides, water treatment, heavy oil emulsification And other industries.

Digital High-shear Homogenizer Specifications:

ModelHMG-DH500
Range of Rotation
10000-28000rpm
Speed Display ModeDigital Display
Speed ModeStepless speed regulation
Processing Capacity50ml-7000ml(H2O)

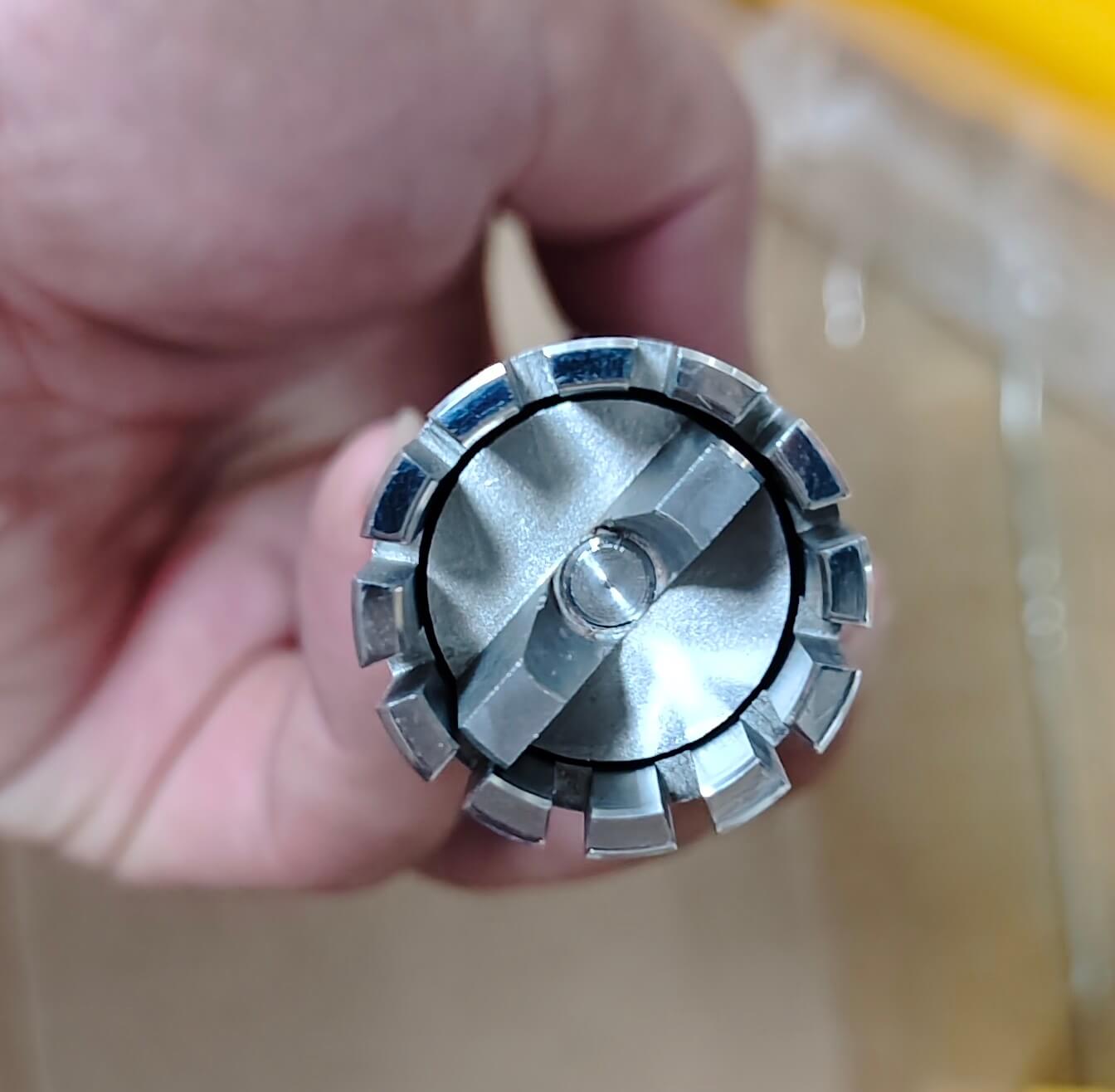

Standard Working Head25G
Contact MaterialSUS316L
Immersion Material Shaft Sleeve MaterialPTFE
Speed Deviation1%
Maximum Viscosity5000CP
Process TypeBatch processing
Allowable Ambient Temperature5-40 degrees
Relative Humidity80%
Weight9KG
Protection LevelIP 20
No Dispersive Noise75DB(A)
Contact MaterialSUS316L
Immersion Material Shaft Sleeve MaterialPTFE
Power500W
Power Supply220V/50/60Hz
Shipping Size (WxDxH)(mm)803x400x140
G W/N.W (KG)3/9

Digital High-shear Homogenizer Features:

  1. Use german original motor, stable operation, lower noise, long-term operation, safe and reliable design;

  2. All parts of the working head contacting materials are made of high-quality stainless steel with good corrosion resistance;

  3. The working head is connected with the drive motor by a coupling, which is easy and flexible to disassemble and assemble;

  4. The speed control frame adopts stepless speed governor, which is convenient for speed control and stable operation;
