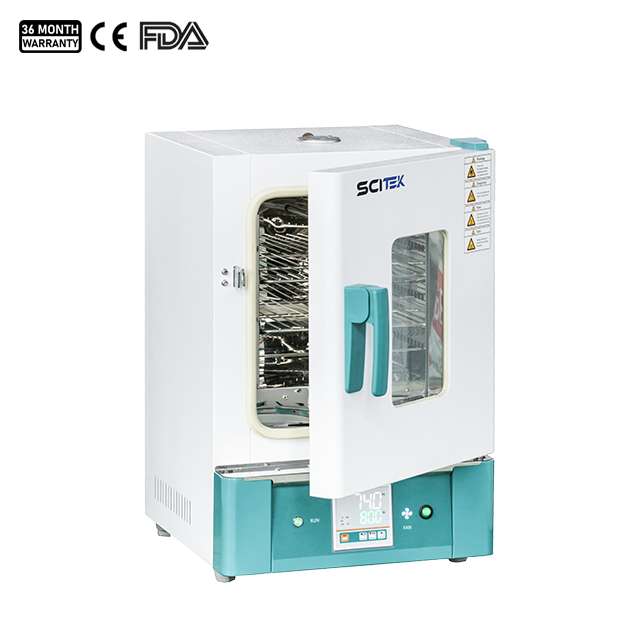

Benchtop Constant-Temperature Drying Oven

Model : TDO-18D; TDO-18

Capacity : 18L
Circulation Mode : Natural convection
Temperature Range: RT+10~300℃
Timer : 0~9999min (with timing wait function)
The benchtop constant-temperature drying oven offer flexibility, accuracy and reliability
Availability:
Quantity:

Benchtop Constant-Temperature Drying Oven Specifications:

Model TDO-18D TDO-18
Capacity(L) 18
Circulation Mode Natural convection
Size(WxDxH) Internal (mm) 260x260x260
External (mm) 380x455x568
Temperature Range (℃) RT+10~300
Fluctuation (℃) ±1
Resolution (℃) 0.1
Uniformity (℃) ±3.5%
Sensor PT100
Controller PID
Display Digital LED
Timer 0~9999min (with timing wait function)
Material Internal

Without D model: Mirror stainless stee
With D model: High strengthgalvanized sheet

External Cold rolled steel electrostatic spraying exterior
Shelves(Standard/Max ) 2 / 6
Exhaust Hole Standard Φ35mm top with function of test hole
Safety Device Over temperaure visible & audible alarm
Electricity Voltage/Frequency AC 220/110V, 50/60Hz
Consumption (W) 600
N.W./G.W. (kg) 27/35
Shipping Size (WxDxH) (mm) 515x480x640
Optional Spare shelf

Benchtop Constant-Temperature Drying Oven Features:

  1. Hot air is convected naturally and cyclically in the work room

  2. Intelligent Microcomputer PID temperature controller with digital display

  3. Anti-hot handle


Optional

Shelf & Programmable controller

Details of Benchtop Constant-Temperature Drying Oven:

TDO-18 (1)

The front of the benchtop constant-temperature drying oven has a simple design with a clear control panel and easy-to-use buttons.

TDO-18 (3)

The interior of the drying oven is made of high-quality stainless steel, with spacious interior space, equipped with adjustable brackets, easy to place samples of different sizes and shapes.

TDO-18 (4)

Simple back design with power socket

TDO-18 (5)

Above picture is TDO-18


TDO-18D-6

TDO-18D (4)

TDO-18D-5

Above picture is TDO-18D

Benchtop Constant-Temperature Drying Oven Application:

  1. For removing moisture from samples to make them suitable for subsequent analyses or experimental operations.

  2. Drying of laboratory equipment, glassware, etc., as well as drying of samples during biological experiments such as culture media, cell culture, protein preparation, etc.

  3. Drying of samples during materials research and preparation, e.g. pre-preparation of ceramics, polymers, etc.

  4. For testing temperature stability and verifying the temperature control performance of other equipment in the laboratory.

WHY SCITEK

  1. 3 Years Limited Warranty

  2. FDA & CE European Standards

  3. 1-2 Days Handling and 7-30 Days Shipping
