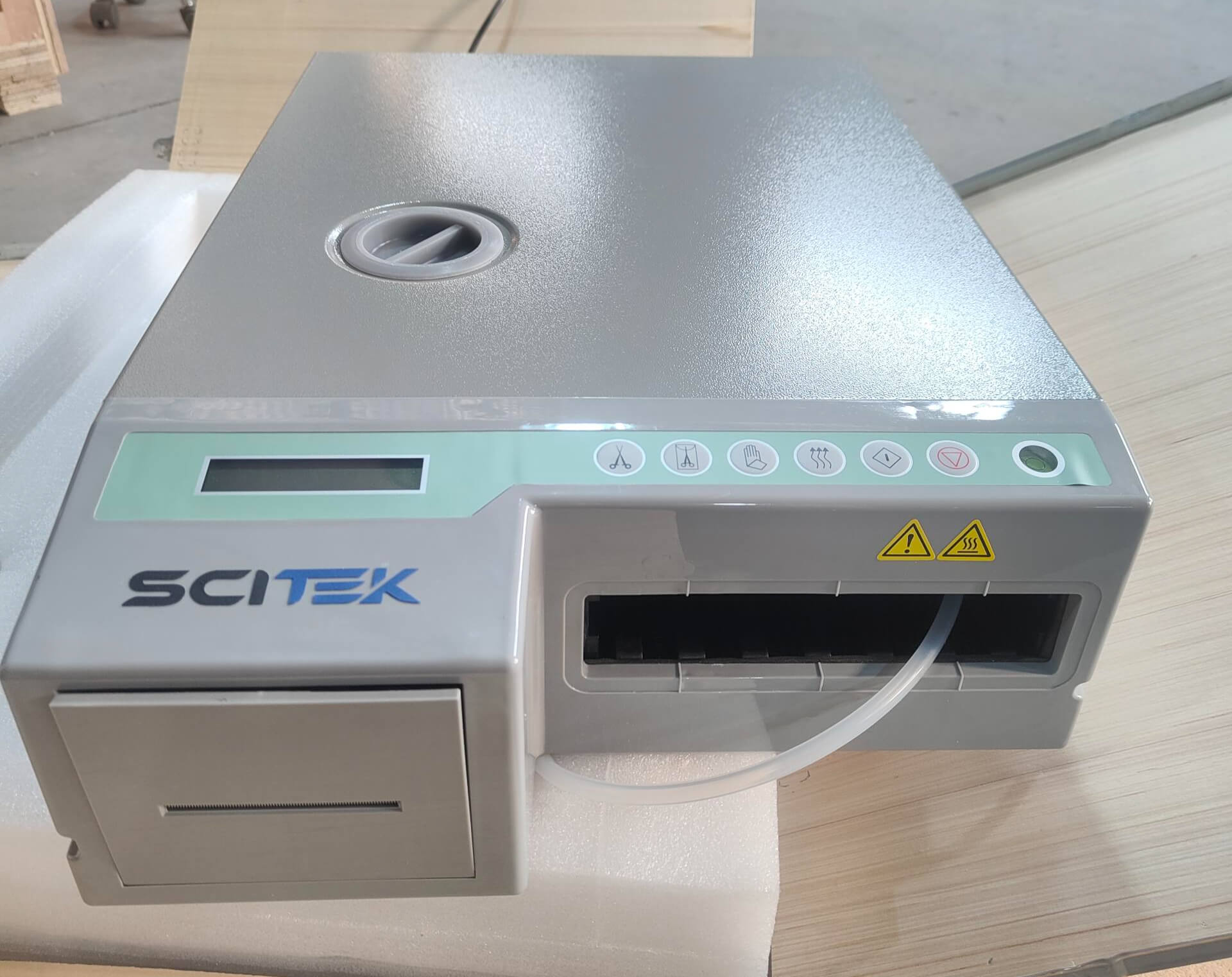

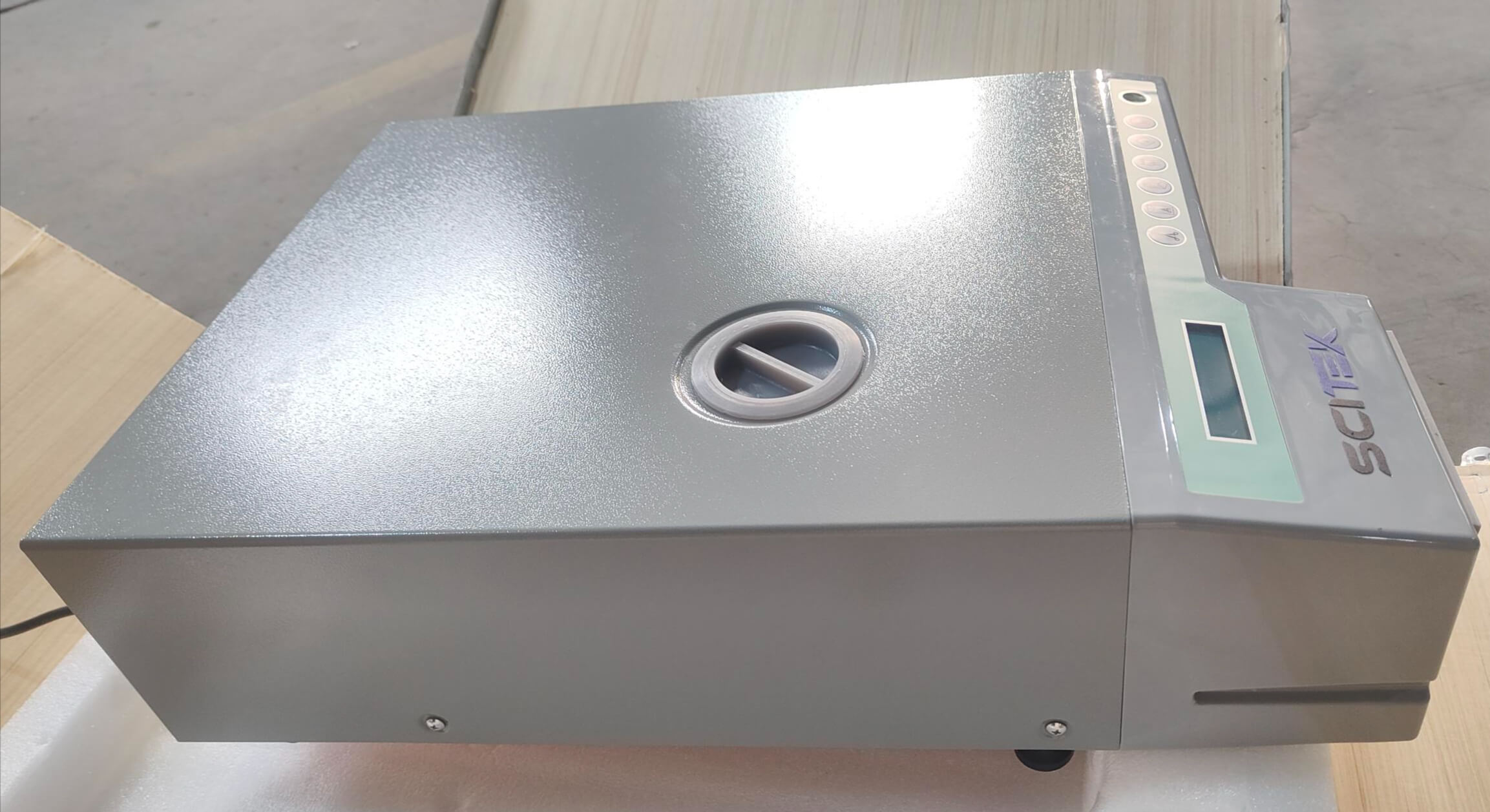

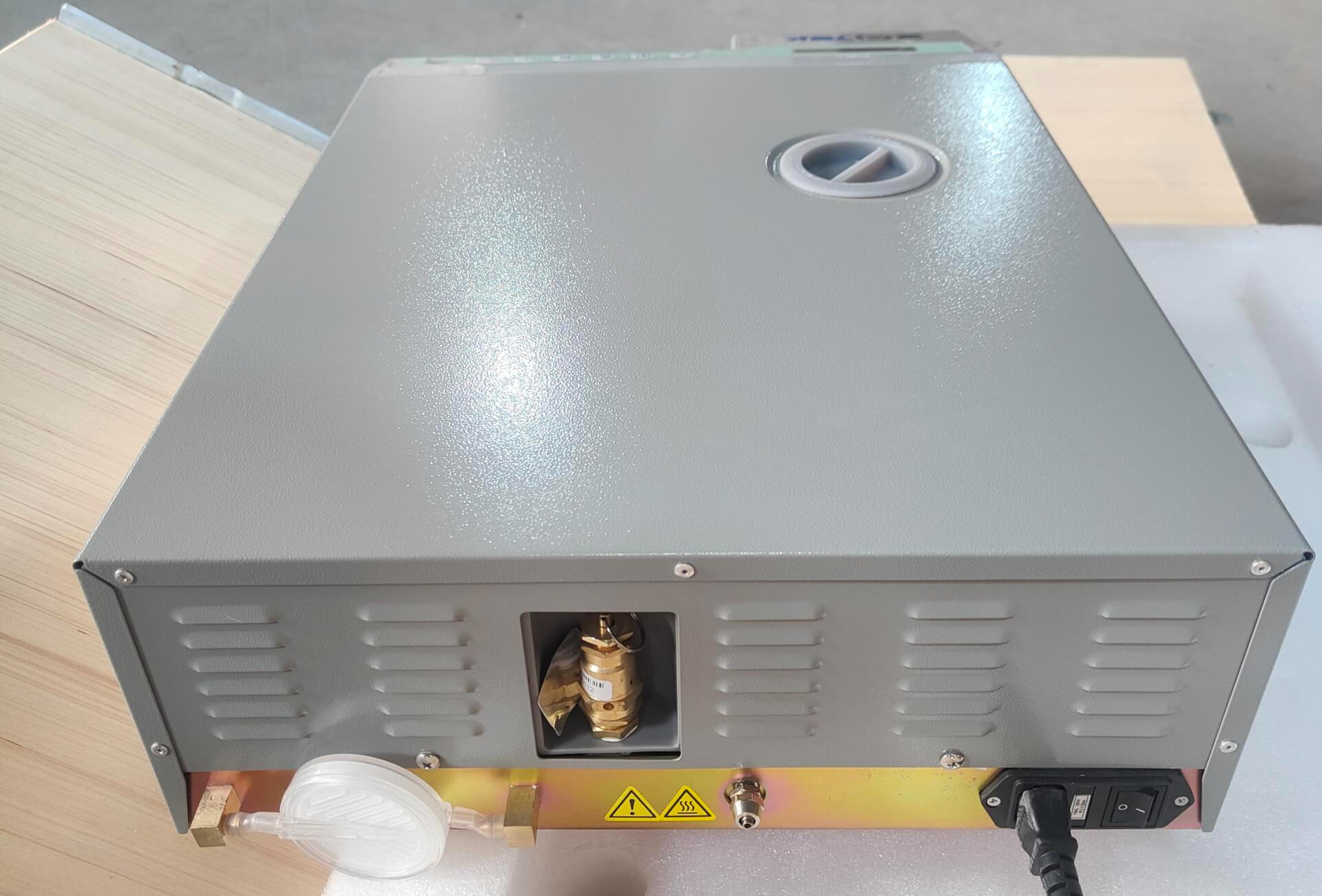

Cassette Sterilizer

Model : ST-2000C; ST-5000C; ST-6000C

Sterilization Volume (L) : 1.8 / 5.2 / 6.0
Operating Pressure Range (kPa) : 42~212
Operating Temperature Range (℃) : 115~135
Atmospheric Pressure Range : 70.0 kPa to 106.0 kPa
An economical, compact and reliable cassette sterilizer for medical, laboratory and other applications.
Availability:
Quantity:

Cassette Sterilizer Specifications:

ModelST-2000CST-5000CST-6000C
Sterilization VolumeAbout 1.8 LitersAbout 5.2 LitersAbout 6.0 Liters
Tank Volume3.4 Liters3.4 Liters3.4 Liters
Maximum Operating Pressure242 kPa
Operating Pressure Range42 kPa ~ 212kPa
Maximum Operating Temperature138° C
Operating Temperature Range115 °C ~ 135 °C
Display Accuracy0.1 ℃
Water

Ultra-pure water, deionized water,

laboratory water.

Ultra-pure water, deionized water,

laboratory water,

distilled water,

purified water.

Ultra-pure water, deionized water,

laboratory water,

distilled water,

purified water.

Voltage/FrequencyAC 220V/50 Hz
Input Power≤1.3 kVA
Atmospheric Pressure Range70.0 kPa to 106.0 kPa
Ambient Temperature Range+ 5 °C ~ + 40 °C
Steam Generator Power1.2 kVA ± 5%
FuseF8AL250V phi 5 x 20 mm
Safety Valve Setting Pressure0.25 MPa
Equipment Working MediumWater Vapor
Working Relative Humidity≤85%
Normal Use PlaceWork room
Run ModeRun Intermittently (≤6 cycles/hour)
Sizes(WxDxH)(mm)570x415x170580x460x190580x460x190
Shipping Size (WxDxH)(mm)700x580x580700x580x580700x580x580
N.W./G.W. (kg)35/5045/6045/60

Cassette Sterilizer Features:

  1. The sterilization effect is reliable and rapid, with a non-wrapped sterilization time of 6 minutes, making it suitable for small instruments in departments such as stomatology and ophthalmology.

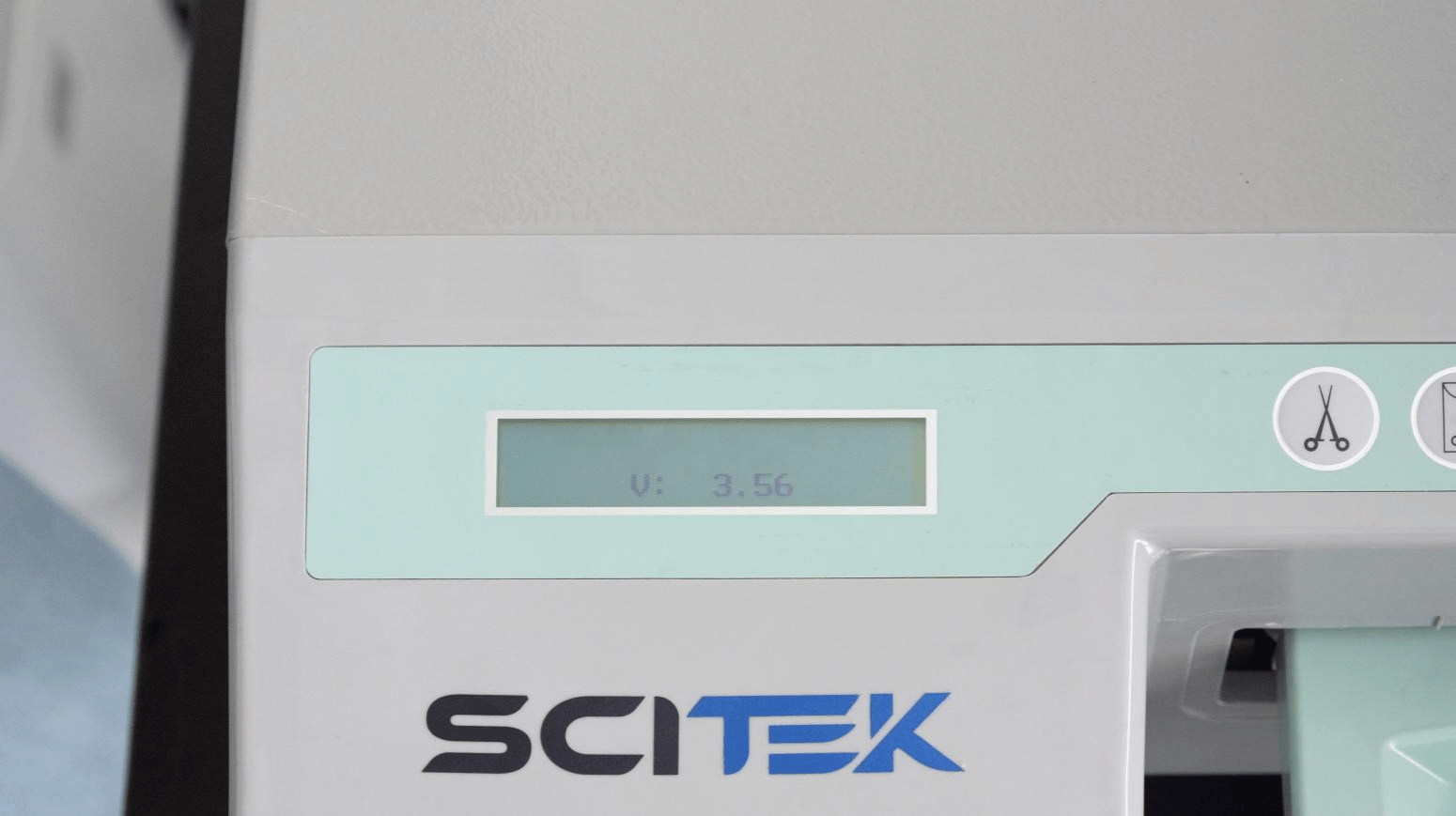

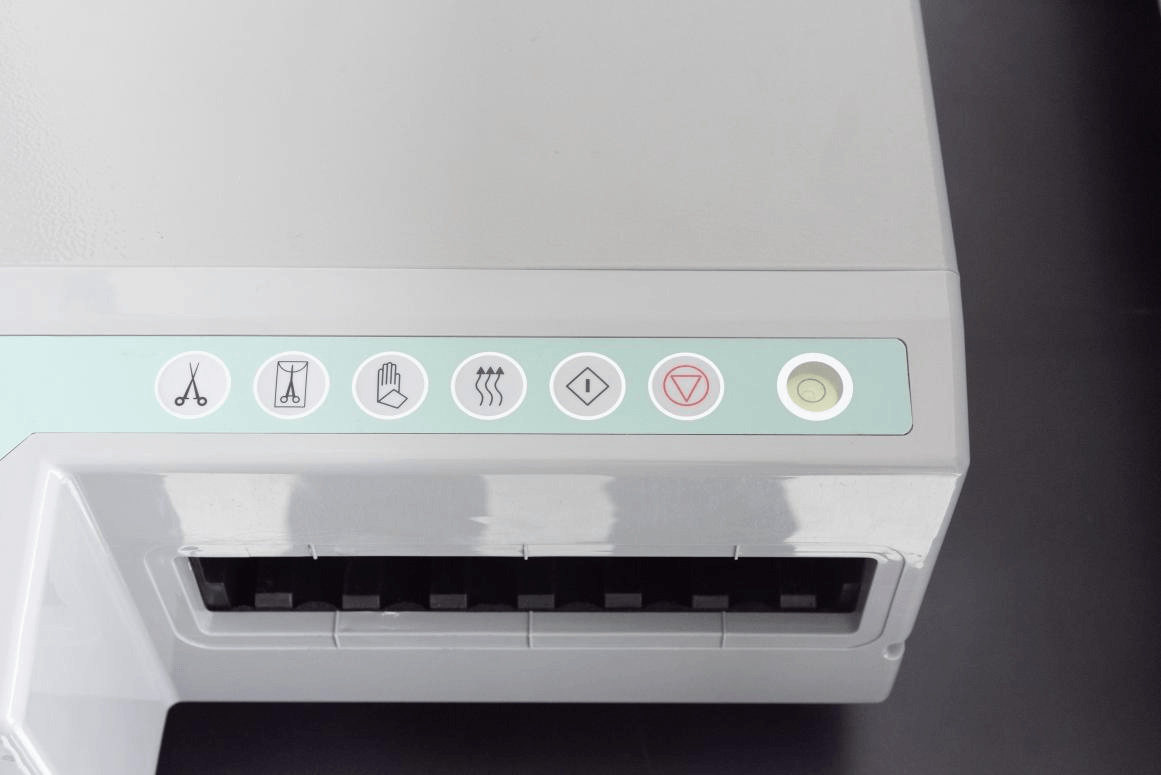

  2. Easy operation with a display screen showing the system operation. Sterilization procedures can be safely interrupted at any time.

  3. Self-detection system automatically stops and displays an error code on the screen if a problem occurs during operation.

  4. Suitable for sterilizing instruments with cavities and solid instruments, offering the option for non-wrapped sterilization.
