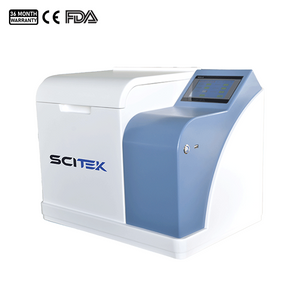

Blood Thawing Machine, Touch Screen

Model : BTM-O

Maximum Thawing Quantity(200ml) : 36
Temperature Control Range : 25-42℃
Temperature Control Accuracy : ±1℃
Size(W×D×H)(mm) : 950x650x945
The blood thawing machine's high-definition touch screen monitors the thawing temperature in real time, making it suitable for use in blood stations and hospital transfusion units.
Availability:
Quantity:

Blood thawing machine is mainly suitable for blood centers, blood stations, hospital blood transfusion departments, and other units, and is widely used for the rapid thawing of frozen blood components and biological products.This blood thawing machine is also equipped with a UV lamp, providing a sterilization function for the internal heating water tank.

Blood Thawing Machine Features:

  1. Automatic drainage function, standby automatic water replenishment, one-key clear function and temperature and water level protection function

  2. Equipped with dual-core components

  3. A medical-grade 8-inch IPS high-definition touch screen

  4. Real-time monitoring of thawing temperature, forming a temperature curve, recording and saving the entire thawing process, supporting wireless data export

  5. Automatic constant temperature control

  6. Has multiple quick thawing modes, including thawing, rapid, and custom settings

  7. Built-in FOF water purification system, thoroughly solving the problem of scale

  8. Built-in UV sterilization lamp for automatic disinfection of the inner chamber

  9. Independent oscillation system

Blood Thawing Machine Specifications:

ModelBTM-O
Maximum Thawing Quantity (200ml)36
Temperature Control Range25-42℃
Temperature Control Accuracy±1℃
Timing Range1-999min
Thawing Time≤20min
Cycling Ability20L/min
Equipped with automatic water inlet, drainage, preheating, and circulating cleaning functions.
Data Recording and StorageStorage capacity of 64GB, capable of recording and storing over 32,000 sets of data records
Consumption3500W
Power SupplyAC220/110V, 50/60Hz
Size(W×D×H)(mm)950x650x945
Shipping Size(W×D×H)(mm)1020x720x1000
N.W./G.W. (kg)90/113

Optional Features:

  1. Internet of Things (IoT) functionality

  2. Reserved communication port, can be connected to the hospital's HIS system

  3. Optional cloud alarm system

  4. Optional scanner, can scan and input data from blood plasma bag barcodes
