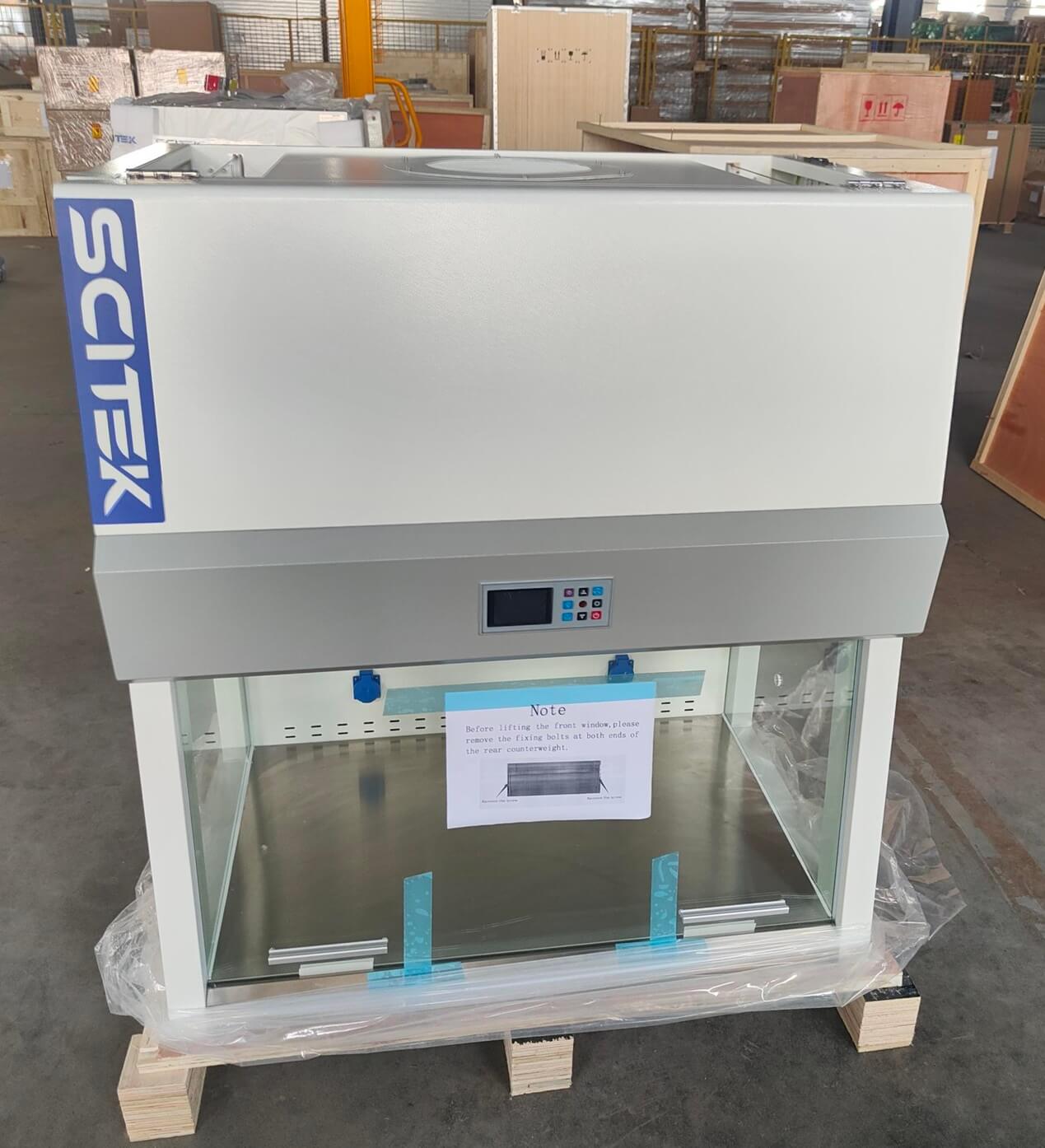

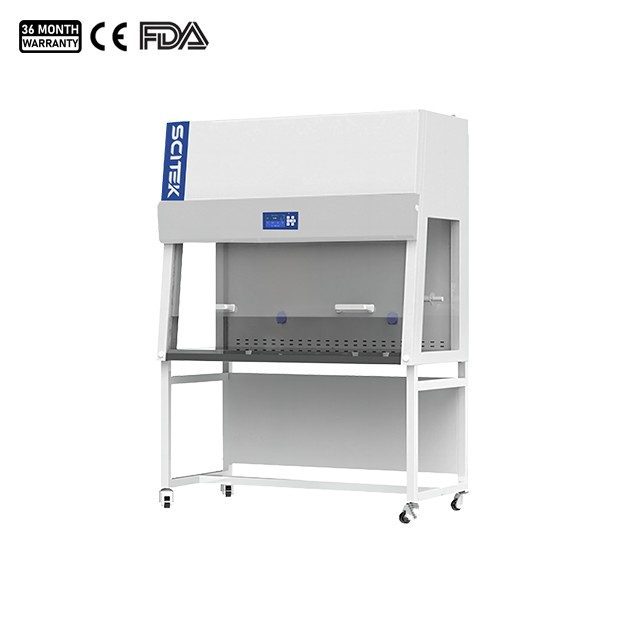

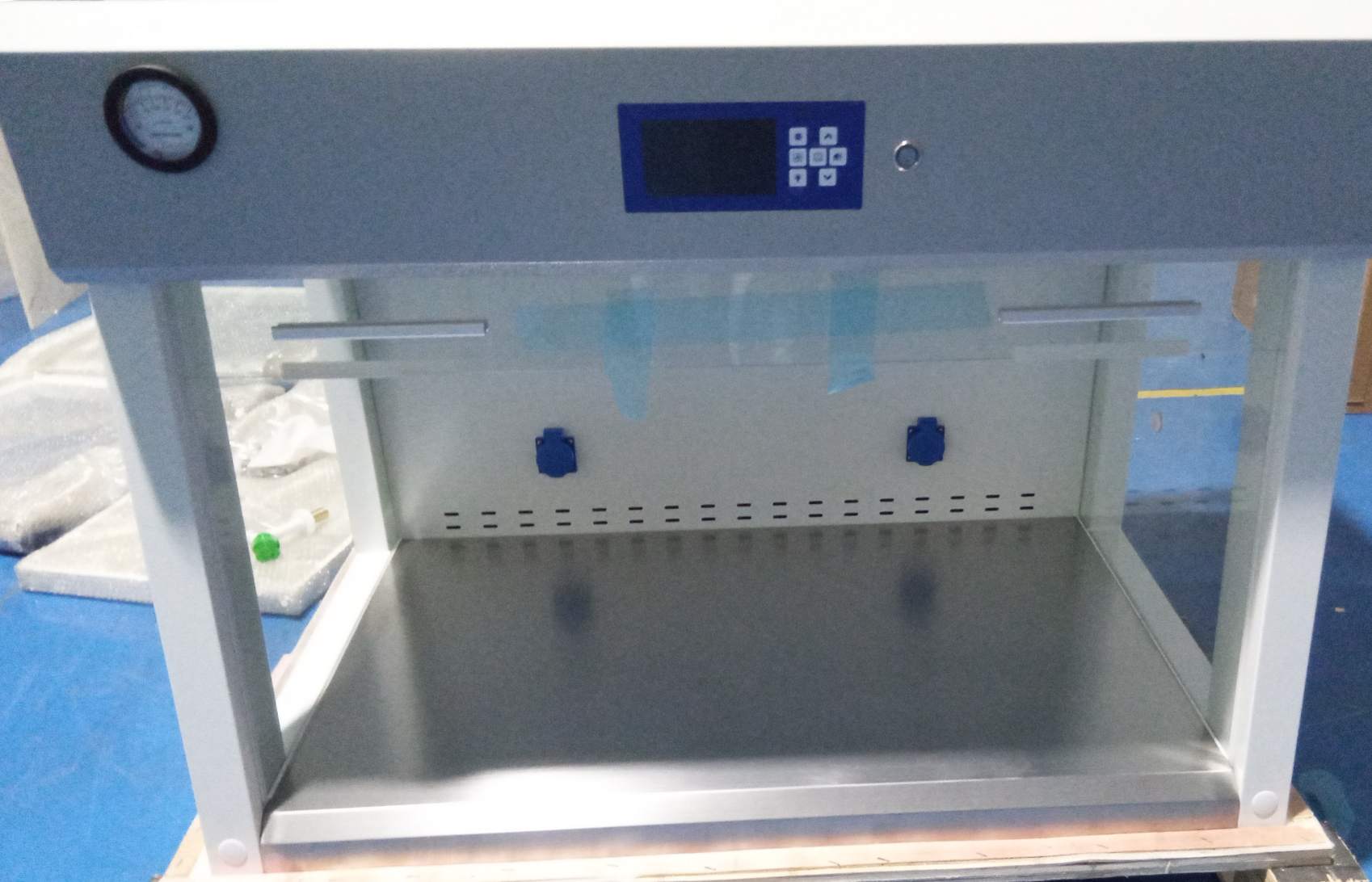

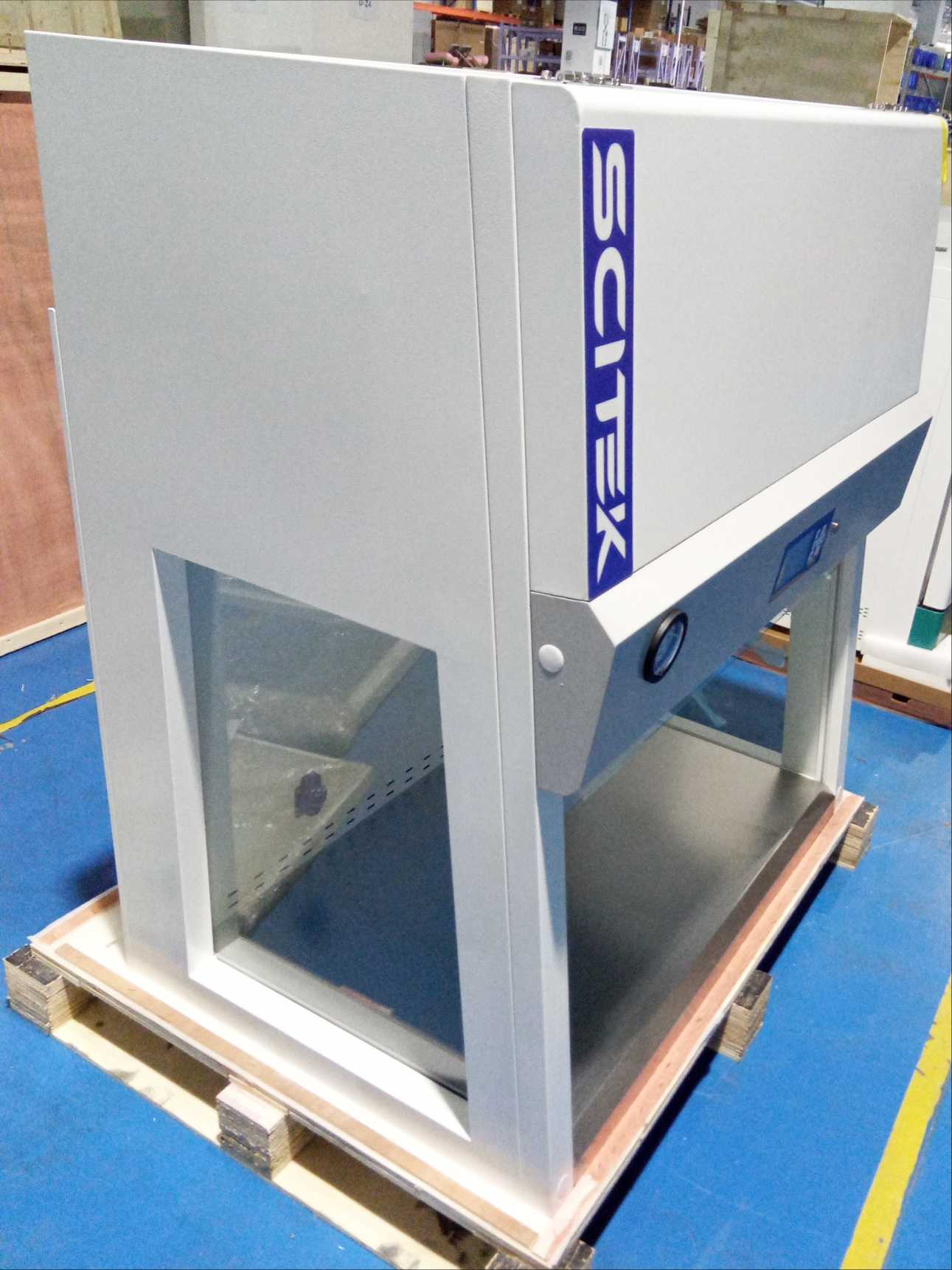

Biological Safety Cabinet Class I

Model: BSC-I-1100; BSC-I-1300; BSC-I-1600; BSC-I-1900

Work Surface Height : 750mm
Sound Emission : ≤62dB(A)
Illuminating Lamp : LED Type, Illumination ≥900Lx
Airflow Velocity : 0.5~1 m/s, Speed adjustable
Perform everyday applications safely and efficiently with this easy-to-order Biological Safety Cabinet Class I!
Availability:
Quantity:

Biological Safety Cabinet Specifications:

ModelBSC-I-1100BSC-I-1300BSC-I-1600BSC-I-1900
External Size (WxDxH)1050x710x1850mm1320x710x1850mm1625x710x1850mm1930x710x1850mm
Internal Size (WxDxH)950x615x625mm1220x615x625mm1525x615x625mm1830x615x625mm
Work Surface Height750mm
Control SystemMicroprocessor controller with LCD display, graphical and digital display of the operating status
Audio and visual alarm on filter and UV changing
Front sliding sash interlock with fan and UV lamp
HEPA filter and UV life indicators facilitate a timely replacement plan
Air Filtration SystemCleannessISO Class 5 (Formerly Class 100)
Airflow Velocity0.5~1 m/s, Speed adjustable
HEPA Filter1 pcs, Efficiency: > 99.995% at particle size of 0.3 μm

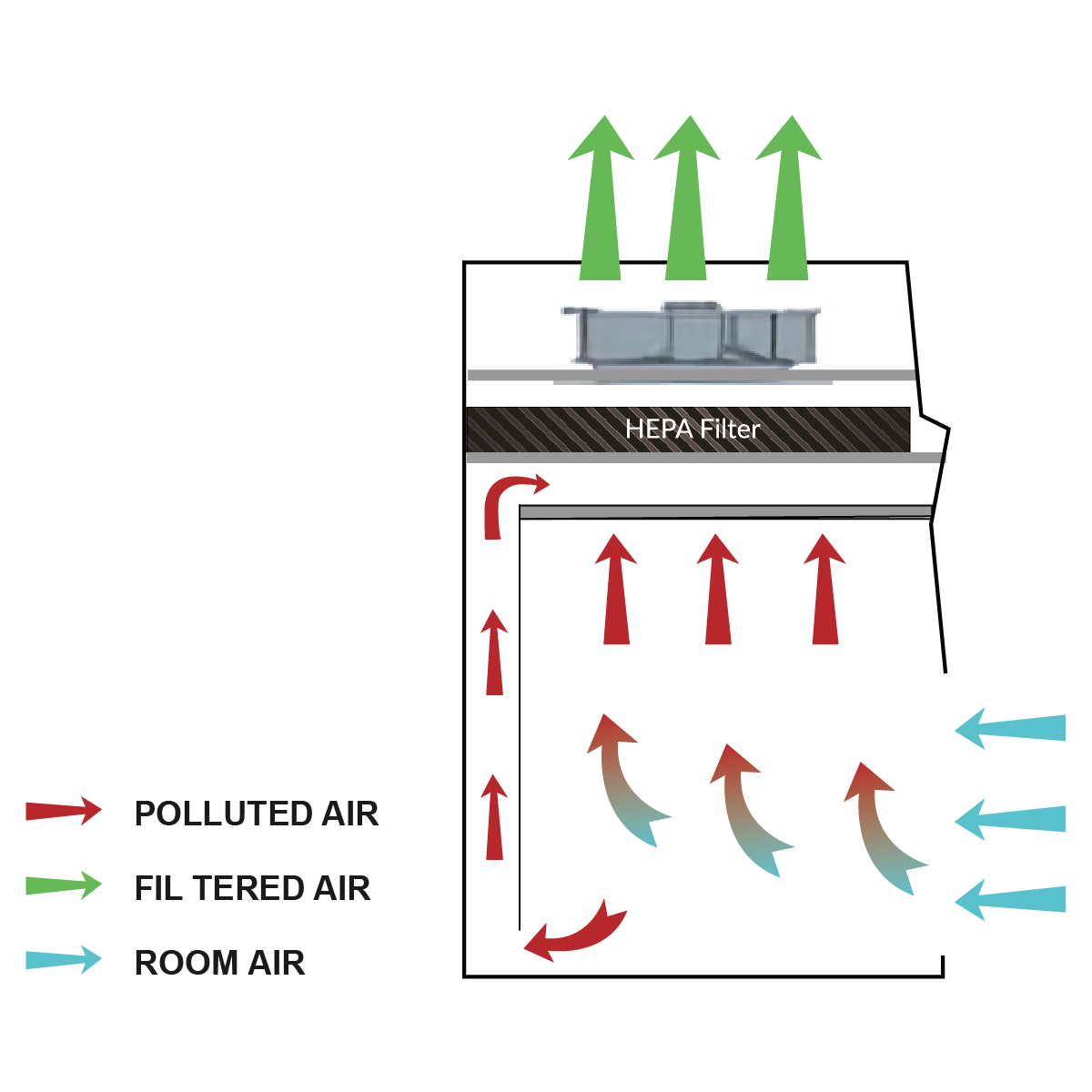

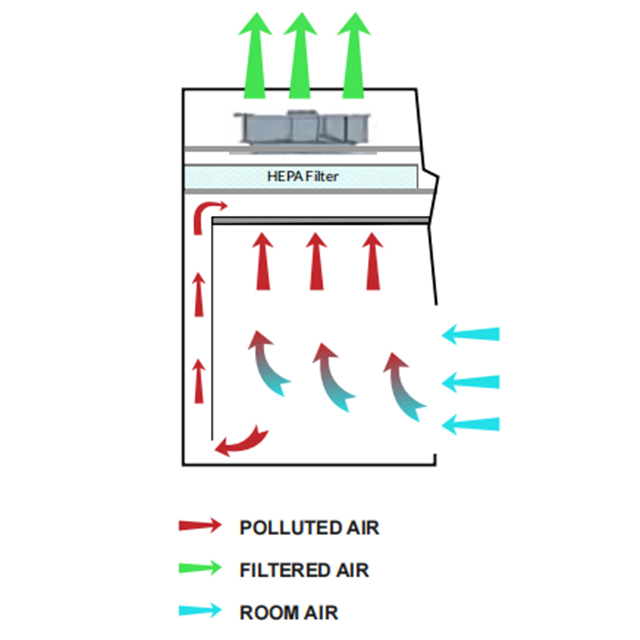

Partial Air CirculationPerforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Sound Emission≤62dB(A)
Illuminating LampLED Type, Illumination ≥900Lx
UV Decontamination SystemWith timing function from 0 to 999 minutes
Interlock with front sliding sash.
Emission of 253.7 nanometers for best sterilization effect.
20Wx130Wx130Wx120Wx2
Power Consumption155W285W285W300W
External devices connected via power socket are not included.
Cabinet StructureMain body: Electro-Galvanized steel with antimicrobial powder coating
Work zone: 304 Stainless steel, an angled front, rounded work surface front edge
Side windows: 5 mm UV resistant tempered glass
Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle
Power SupplyAC 220V, 50/60Hz; 110V, 60Hz
Standard AccessoryBase stand; LED lamp; UV lamp; Waterproof socket×2 (only 1 for BSC-I-1100)
Optional AccessoryWater Tap, Gas Tap, Height adjustable base stand
Gross Weight225kg255kg285kg330kg
Shipping Size (W×D×H) mm1190x990x13251460x990x13251765x990x13252070x990x1325
Shipping Volume (m3)1.561.922.32.7

Biological Safety Cabinet Features:

Class I biological safety cabinet is a biological safety isolation equipment used in biological safety laboratories or other laboratories. It is usually used to handle low-risk biological materials. Suitable for testing samples without requiring protection. Protect operator and the environment.


Humanized design:

  1. Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.

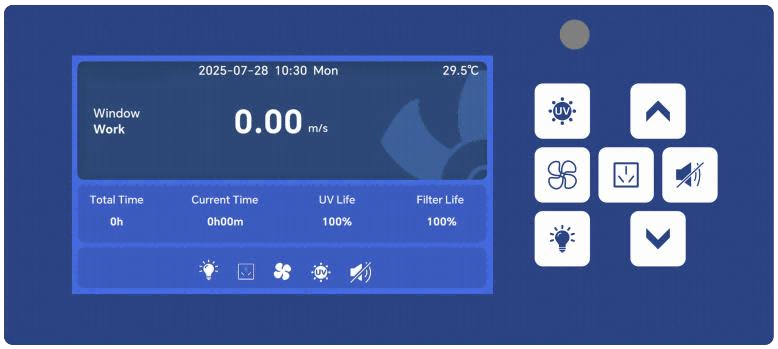

  2. Intuitive and easy-to-use microprocessor controller with LCD display, graphical and digital display of the operating status of each function, such as filter life, UV life etc.

  3. Ergonomic control panel location, centered and angled down for an easy reach & viewing.

  4. The non-direct light source design can effectively relieve the operator's visual fatigue under the condition of ensuring the illumination.

  5. Brushed stainless steel work surface is for easy cleaning.


Safety Performance:

  1. Front sliding sash interlock with fan and UV lamp.

  2. UV sterilization with UV lamp timing function.

  3. Front sash and side windows are made of UV-resistant tempered glass.

  4. The host and sockets have independent capacitors to prevent current overload.

  5. Audio and visual alarm on filter life, UV life etc.


Convenience Features:

  1. Memory function in case of power-failure.

  2. HEPA filter and UV life indicators facilitate a timely replacement plan .

  3. Two side glass windows installed for easy experiment observation.

  4. Equipped with temperature sensor to show the real temperature during operation.

  5. Waterproof socket provide convenience for small instruments to be used in the operating area.
