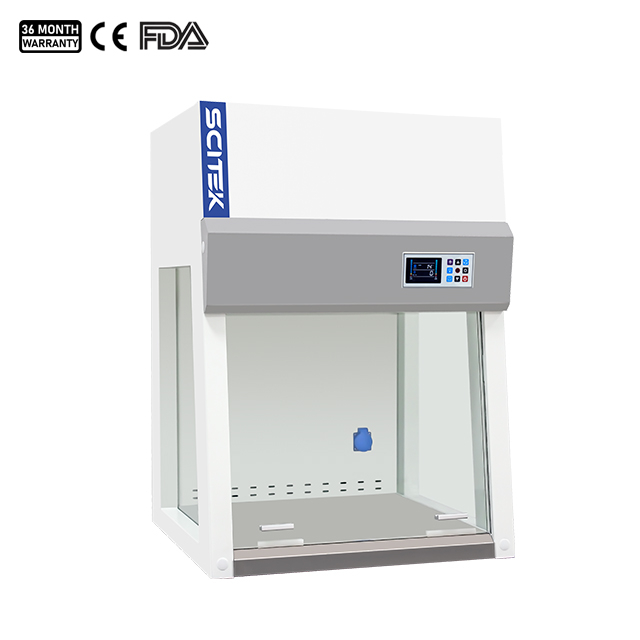

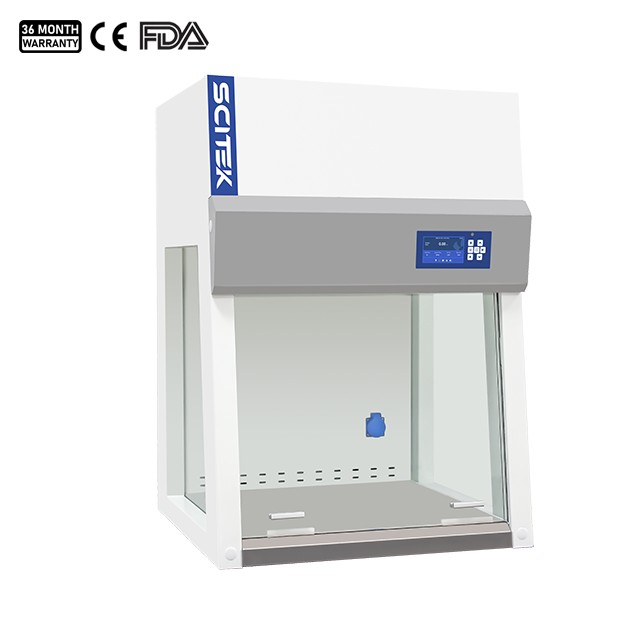

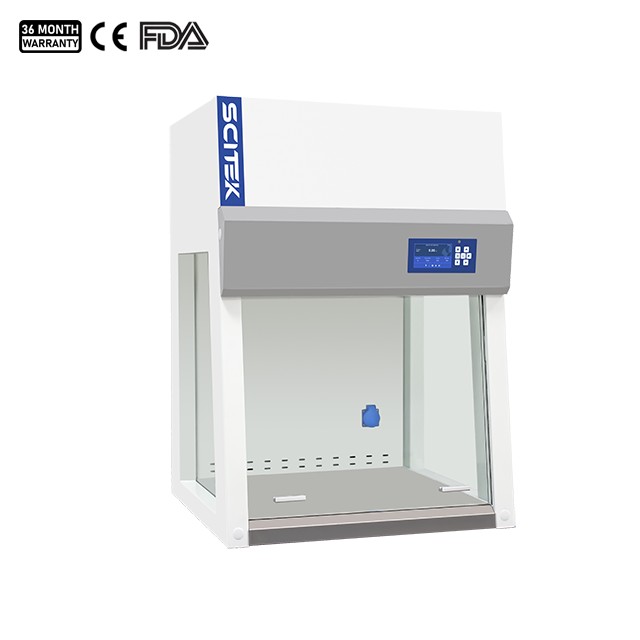

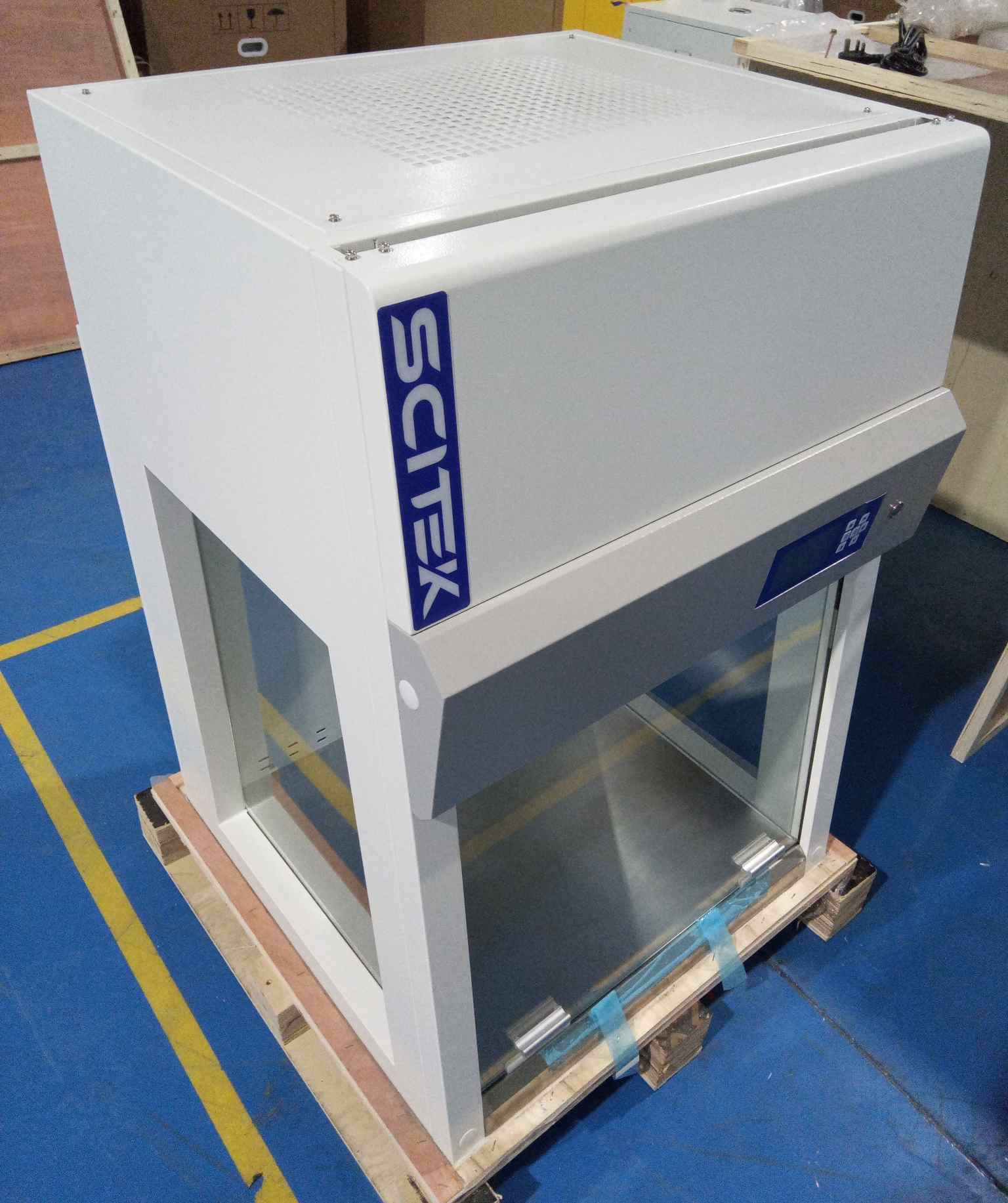

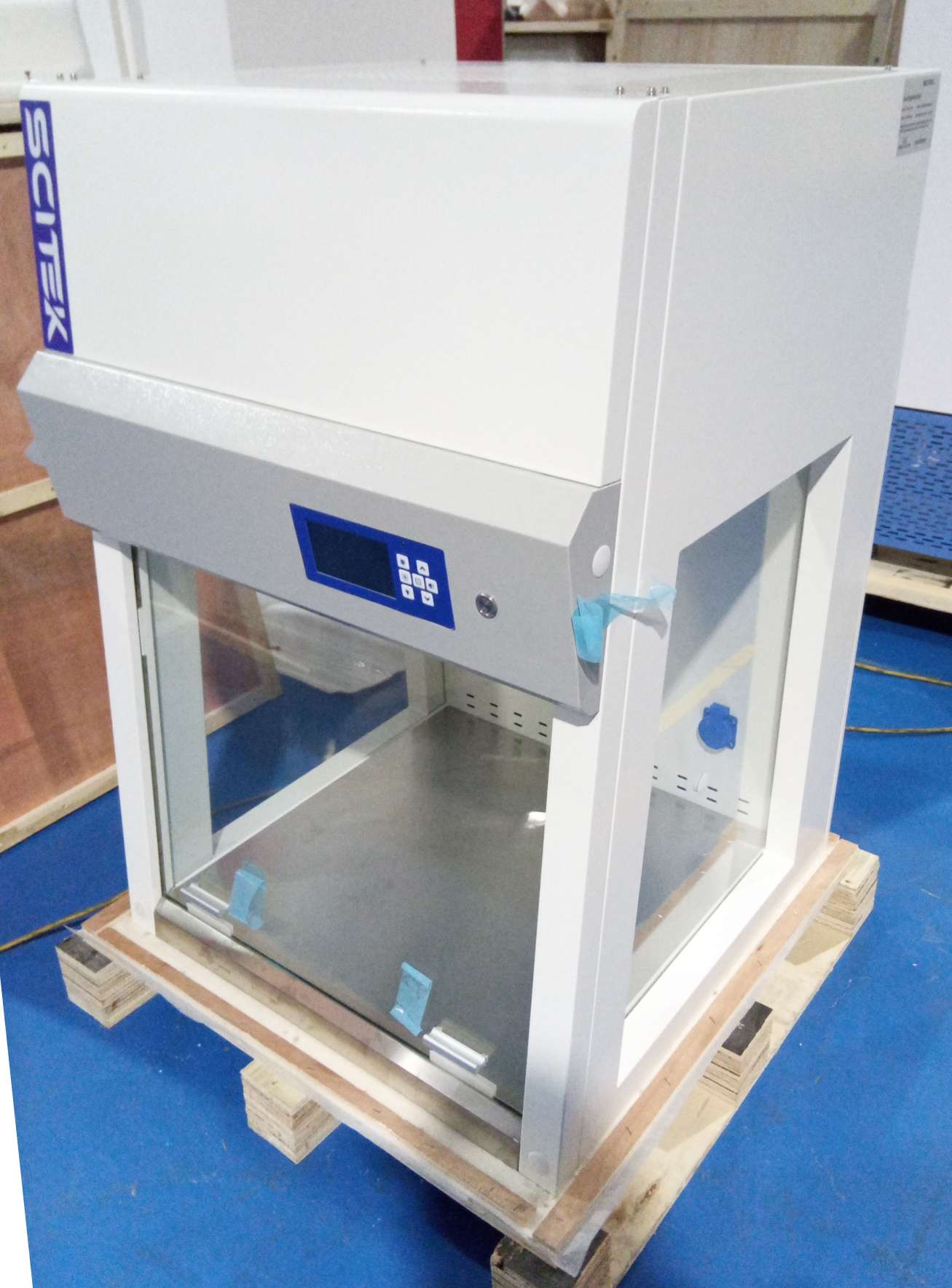

Class I biological safety cabinet is a biological safety isolation equipment used in biological safety laboratories or other laboratories. It is usually used to handle low-risk biological materials. The class 1 bsc is suitable for testing samples without requiring protection. Protect Operator and the Environment.
Humanized design:
Memory function in case of power-failure
HEPA filter and UV life indicators facilitate a timely replacement plan .
UV lamp for sterilization.
Class 1 bsc is equipped with temperature sensor to show the real temperature during operation.
Waterproof socket provide convenience for small instruments to be used in the operating area.
Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Safety Performance:
Audio and Visual alarm on filter life, UV life etc
Front sliding sash interlock with fan and UV lamp
Front sash and side windows are made of UV-resistant tempered glass.
The host and sockets have independent capacitors to prevent current overload.
Model | BSC-I-800 | |
---|---|---|
External Size (WxDxH)(mm) | 710x680x1050 (Without Base Stand); 710x680x1680 (With Base Stand) | |
Internal Size (WxDxH)(mm) | 610x590x625 | |
Work Surface Height | 750mm | |
Control System | Microprocessor controller with LCD display, graphical and digital display of the operating status | |
Audio and Visual alarm on filter and UV changing | ||
Front sliding sash interlock with fan and UV lamp | ||
HEPA filter and UV life indicators facilitate a timely replacement plan | ||
Air Filtration System | Cleanness | ISO Class 5 (formerly Class 100) |
Airflow Velocity | 0.2~0.5m/s,Speed adjustable, | |
HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3 μm | |
Partial Air Circulation | Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | |
Sound Emission | ≤62dB(A) | |
Illuminating Lamp | LED Type, Illumination ≥900Lx | |
UV Decontamination System | With timing function from 0 to 999 minutes Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | |
8W*1 | ||
Power Consumption | 149W (External devices connected via power socket are not included.) | |
Cabinet Structure | Main body: Electro-Galvanized steel with antimicrobial powder coating | |
Work zone: 304 Stainless steel, an angled front, rounded work surface front edge | ||
Side windows: 5 mm UV resistant tempered glass | ||
Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | ||
Power Supply | AC220V ±10%, 50/60Hz,1P | |
Standard Accessory | Base stand; LED lamp; UV lamp; Waterproof socket*1pcs | |
Optional Accessory | Water Tap, Gas Tap, Height adjustable base stand | |
Net Weight | 80kg (Without base stand), 130kg (With base stand) | |
Gross Weight | 115kg (Without base stand), 165kg (With base stand) | |
Shipping Size (W×D×H) (mm) | 920x850x1190 | |
Shipping Volume (m3) | 0.93 |

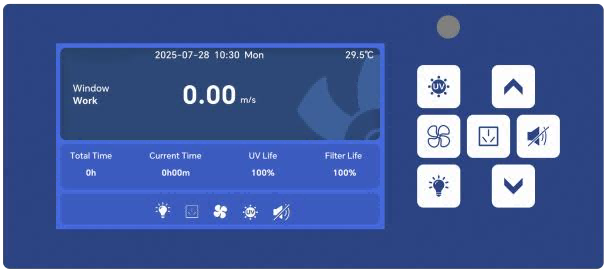

LCD Display (Real-time show the Time, Temperature, UV life and Filter life)
UV Lamp (Emission of 253.7 nanometers for most efficient decontamination)

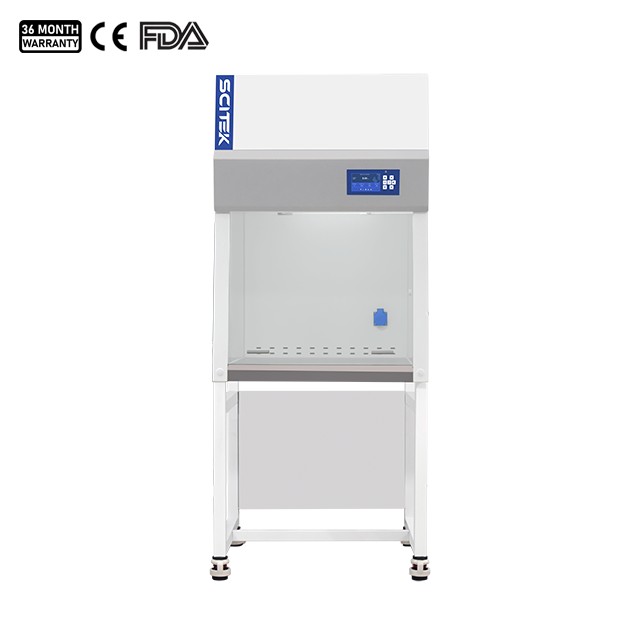

Base stand (Optional)

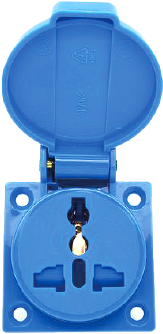

Waterproof Socket (Standard with 1pcs socket, it's located in back wall, for optimum convenience of using small device inside the cabinet.)

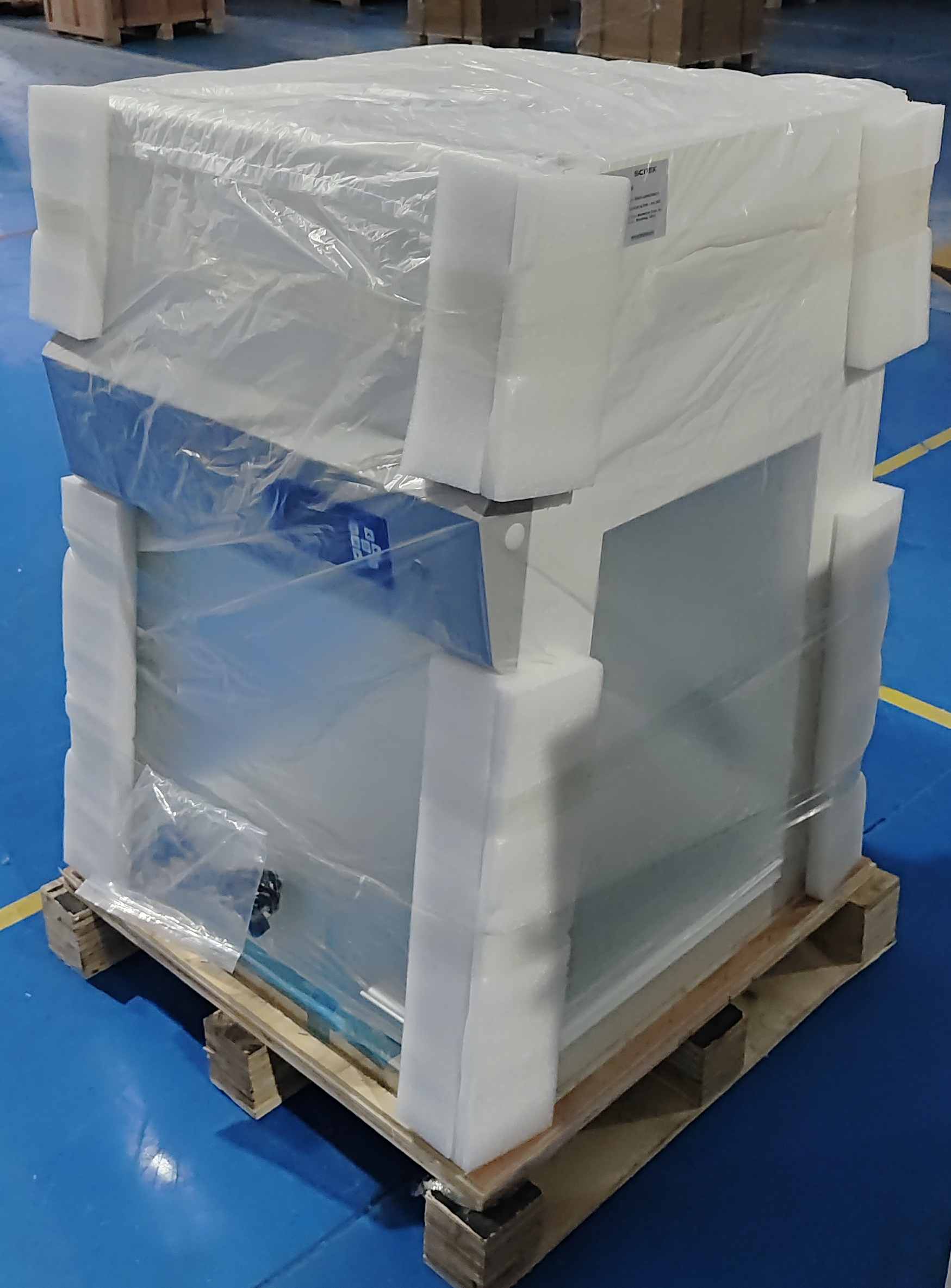

Our class I bsc is packed in sturdy packaging to ensure transport safety. Each biosafety cabinet is double-protected with high-strength foam and wooden crates to avoid collision or damage during transport. We work with reputable logistics companies to ensure our products reach you safely and promptly. We provide a full tracking service during transport so that you can keep track of the status of your order at any time.
18 Months Limited Warranty
ISO, CE and FDA Standards
1-2 Days Handling and 7-30 Days Shipping
Difference between Class I and II BSC?

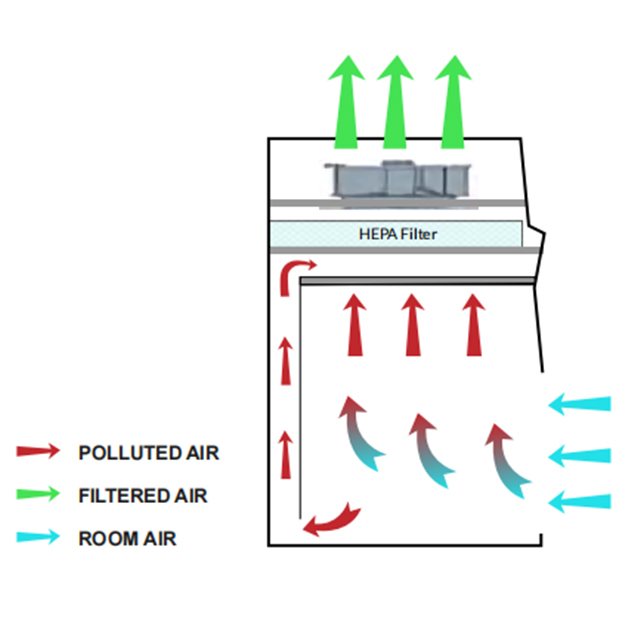

Class I BSC : Protects the operator and the environment but not the sample. Air enters through the front opening and is filtered and discharged to prevent the leakage of hazardous substances.
Class II BSC: This system protects the operator, the sample, and the environment. Air enters through the front opening and is double-filtered. Part of the air is circulated internally, and part is filtered through a HEPA filter and discharged, providing more complete protection.
