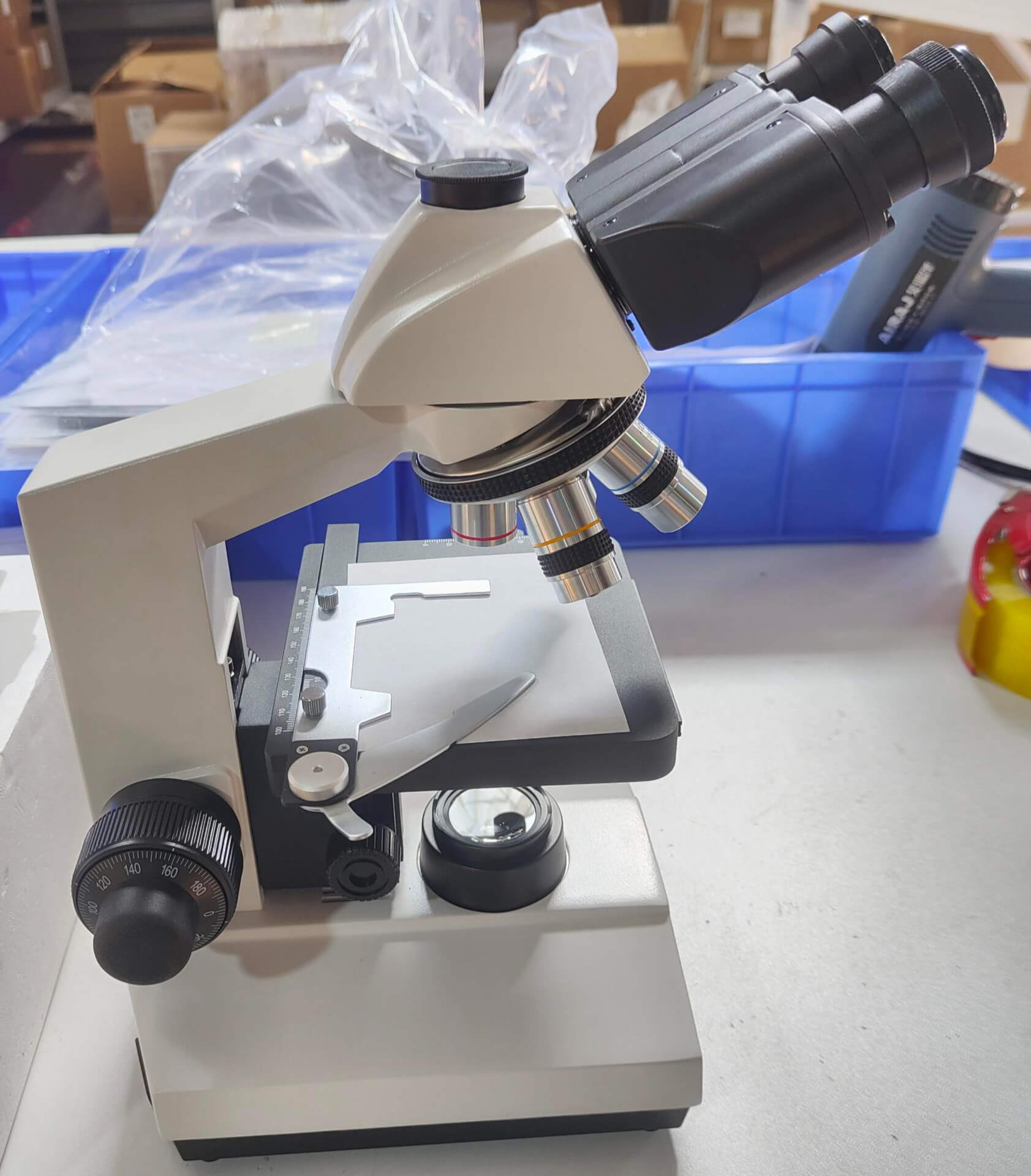

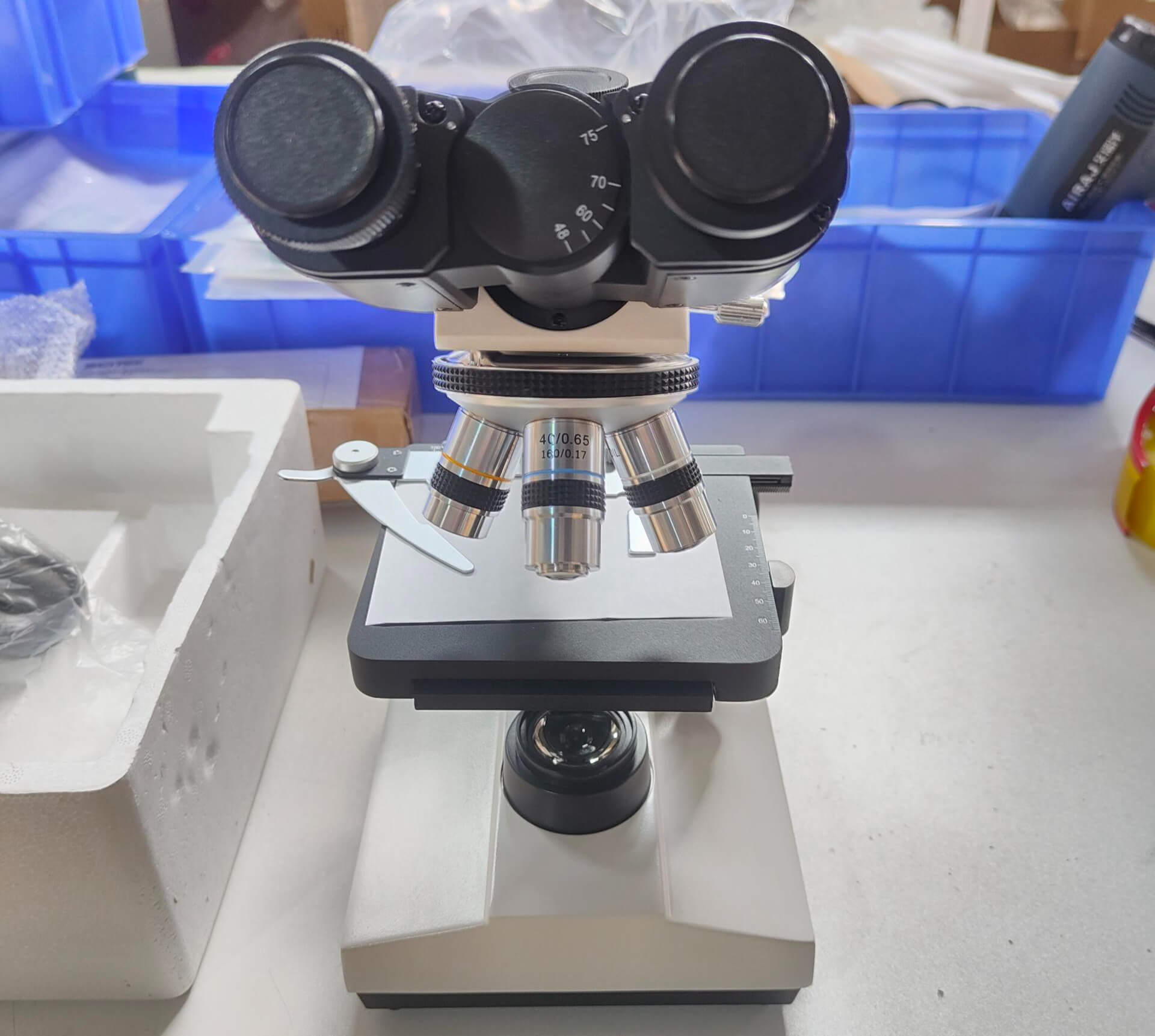

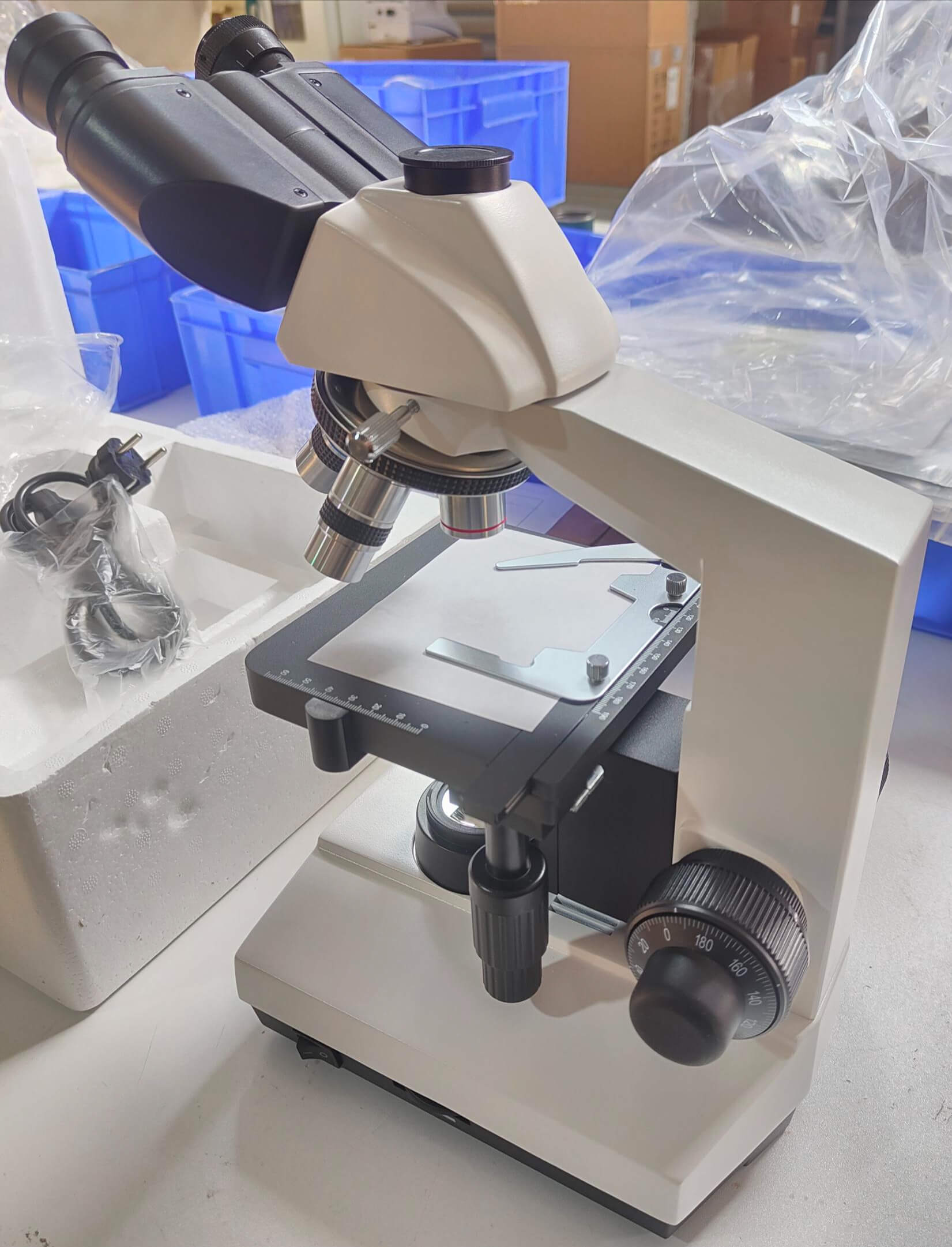

Biological Microscope, Phase Trinocular

Model : MSC-BH107T; MSC-BS107T

Viewing Head : Siedentopf Free Trinocular Head lnclined at 45° Interpupillary (55-75mm) / Sliding Free Trinocular Head lnclined at 45° Interpupillary (55-75mm)
Eyepiece : Wide Field Eyepiece WF10x18mm
Objective : Achromatic Objective 4x, 10x, 40x, 100x
The trinocular head inclined microscope is designed for research use in hospitals and life science laboratories.
Availability:
Quantity:

Biological Microscope Specifications:

ModelMSC-BH107TMSC-BS107T
Viewing Head

Siedentopf Free Trinocular Head

lnclined at 45° Interpupillary (55-75mm)

Sliding Free Trinocular Head

lnclined at 45° Interpupillary (55-75mm)

EyepieceWide Field Eyepiece WF10x18mm
NosepieceQuadruple Nosepiece
ObjectiveAchromatic Objective 4X, 10X, 40X, 100X
StageDouble Layers Mechanical Stage 140x135mm/ 75x50mm
CondenseAbbe NA1.25 with Iris Diaphragm & Filter
Focusing System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke

 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation, Moving Range 28mm

IlluminationS-LED Illumination, Brightness Adjustable
Halogen Lamp 100V-240V/ 6V20W
Plan-concave Mirror
PackageStyrofoam
Carton
Wooden Case
FilterBlue Filter
Note: Standard Outfit(Optional)
Shipping Size(W×D×H)(mm)330x280x440
G.W. (kg)7

Biological Microscope Features:

Designed for advanced microscopy applications, the MSC-BH107T and MSC-BS107T microscopes have a range of features that contribute to accurate and versatile observation.

Both models are equipped with a 45° tilted Siedentopf free-angle trinocular lens, adding flexibility to the observation setup and allowing the user to adjust the positioning as required.

Wide-field eyepieces ensure they can change clear and detailed imaging and the objective quickly and efficiently with the quadruple nosepiece.

The double mechanical stage facilitates precise sample handling and positioning, providing flexibility for specimen examination.

Illumination is provided by S-LED illumination with adjustable brightness, ensuring consistent and customizable illumination. The microscope is also equipped with a halogen lamp for additional illumination options.

Packaging includes sturdy packaging options such as Styrofoam, cardboard boxes and wooden crates to ensure safe transport and storage.
