Benchtop pH/Conductivity Meter

Model : PHC-B904

Measurement Range : (-1.999 ~ 19.999)pH
Resolution : 0.1/0.01pH
Accuracy : ±0.02 pH
Input Impedance : ≥3×1012 Ω
External Size : 215x170x40mm
Compact benchtop pH/conductivitymeter provides High Quality pH/MV/Conductivity/Temp Measurements at the Click of a Button
Availability:
Quantity:
Inquiry Add to Inquiry List

Benchtop pH/Conductivity Meter Features:

  1. 6.5-inch LED screen with concise and friendly-use interface.

  2. Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.

  3. It supports wireless bluetooth printing. Real-time data transfer to mobile phone via bluetooth is optional.

  4. Smart electrode status display to ensure accurate use.

  5. Adopt advanced conductivity measurement technology, with conductivity electrode (K=1), it can meet measuring accuracy requirement for range of 0.5μS/cm ~ 200mS/cm.

  6. Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full range.

  7. Omron long lasting and light touch key can be used more than 100,000 times.

  8. Auto recognition of 25 buffers with three kinds of options: Europe & USA, NIST and China. Auto recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA, and China.

  9. Can store 1000 sets of test data, which can be saved and transferred to USB memory stick and opened with Excel.

Benchtop pH/Conductivity Meter Specifications:

ModelPHC-B904
pHMeasurement range(-1.999 ~ 19.999)pH
Resolution0.1/0.01 pH
AccuracyElectrode: ±0.02 pH
Input current≤1×10-12 A
Input impedance≥3×1012 Ω
Stability±0.02 pH/3h
Temperature Compensation(0 ~ 100)℃, auto or manual
mVMeasurement Range(-1999.9 ~ 0 ~1999.9) mV
Resolution0.1 mV
Accuracy±0.03% FS
ConductivityMeasuring RangeConductivity:
(0.00~20.00)μS/cm
(20.0~200.0)μS/cm
(200~2000)μS/cm
(2.00~20.00)mS/cm
(20.0~200.0)mS/cm
(200~2000)mS/cm(K=10)
TDS: (0 ~ 100)g/L
Salinity: (0 ~ 100)ppt
Resistivity: (0 ~ 100)MΩ·cm
Resolution0.01/0.1/1μS/cm; 0.01/0.1/1mS/cm
AccuracyElectrode: ±0.5% FS, Meter: ±0.8% FS
Temp. compensation Range(0 ~ 50)℃, auto
Electrode Constant0.1/0.5/1/5/10/50/100 cm-1
Reference Temp.25℃, 20℃, 18℃
TemperatureRange(-10 ~ 110)℃
Resolution0.1℃
Accuracy5 ~ 60℃: ±0.4℃  Others: ±0.8℃

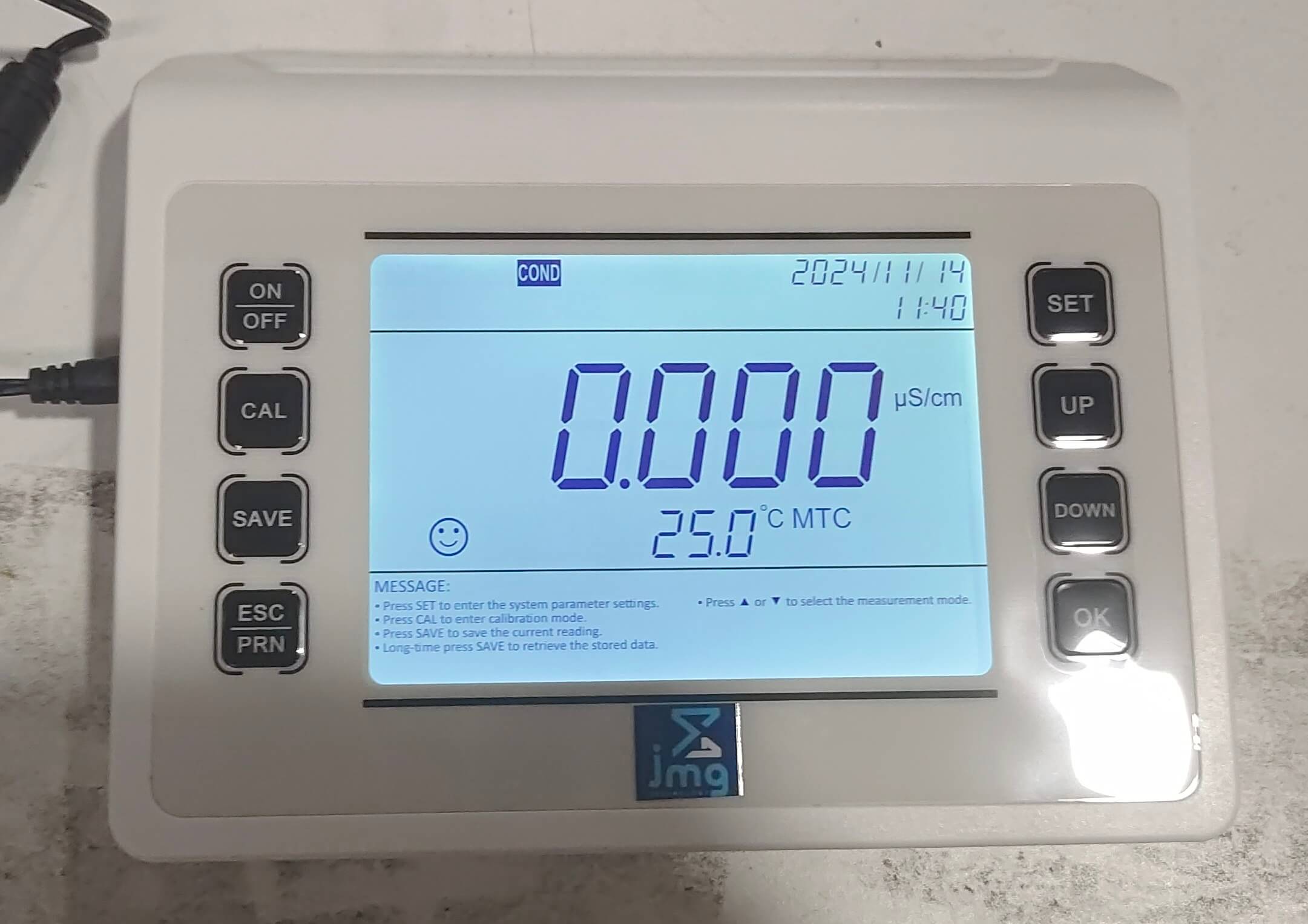

Other ParametersDisplay6.5-inch LED screen
Data Storage1000 sets
Power12V (110-220, 50-60Hz adapter)

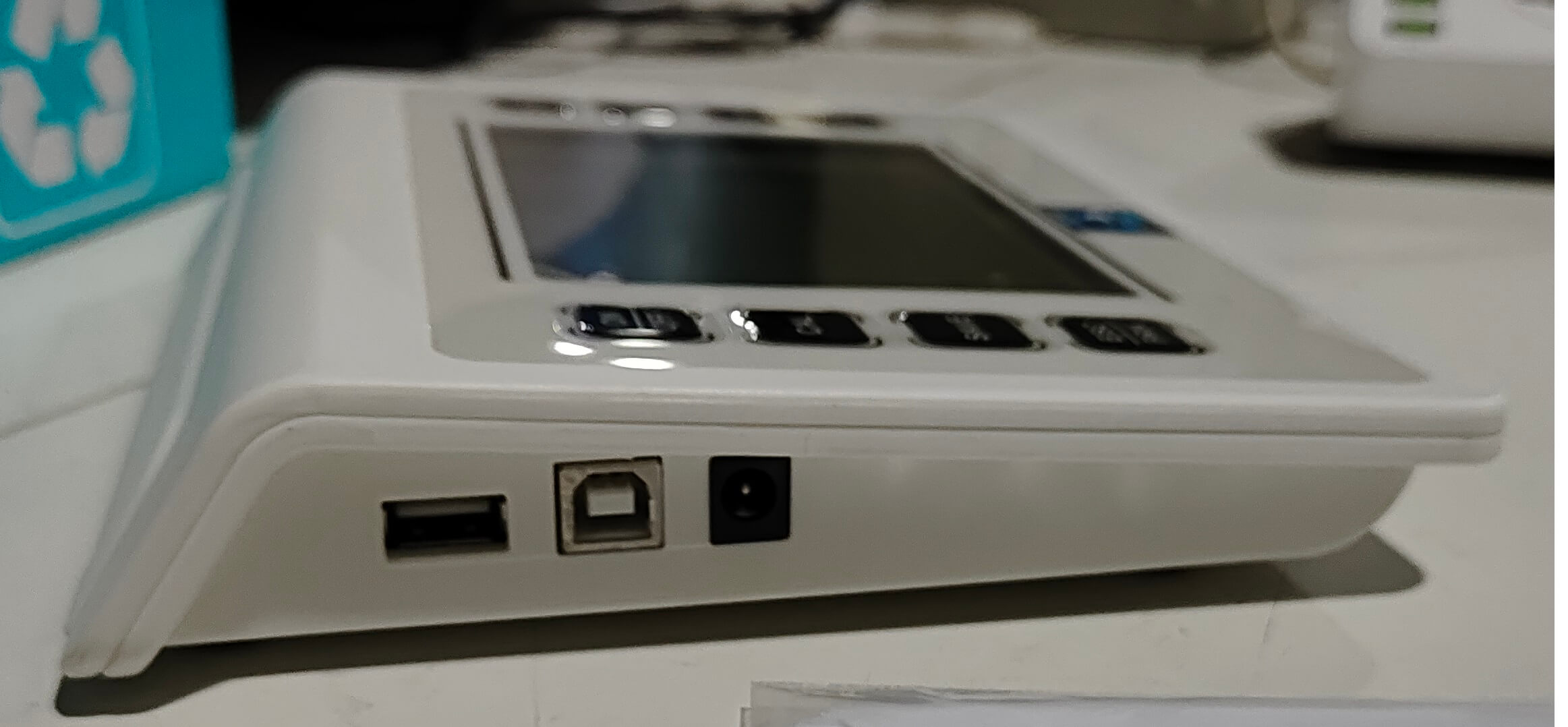

Communication InterfaceUSB, RS232, Bluetooth
Dimensions & Weight240×170×70mm/600g
Working ConditionsTemperature5 ~ 35 ℃
Humidity≤80%
IP gradeIP54

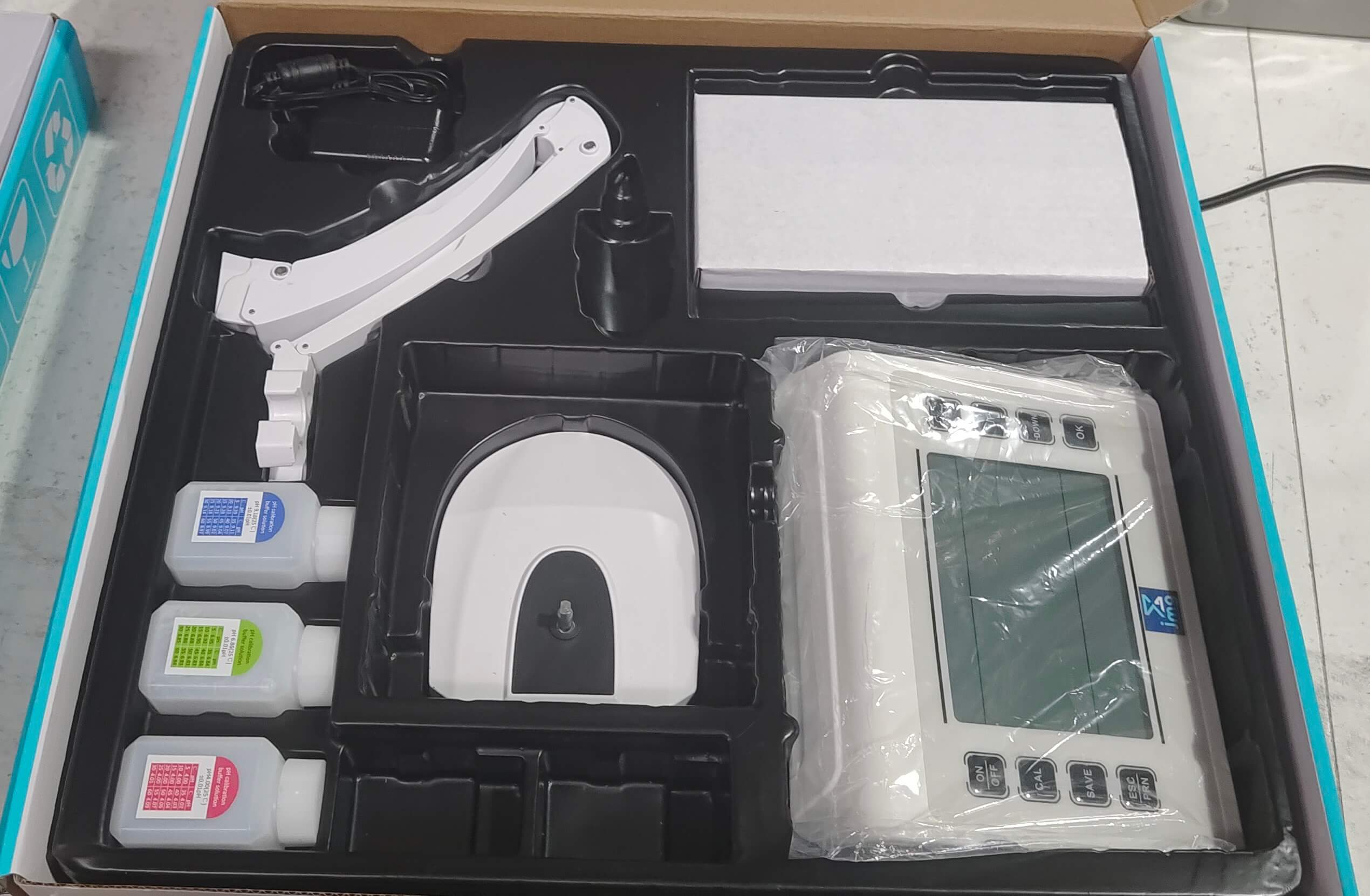

Meter Kits1) pH & Conductivity Meter
2) Electrode holder

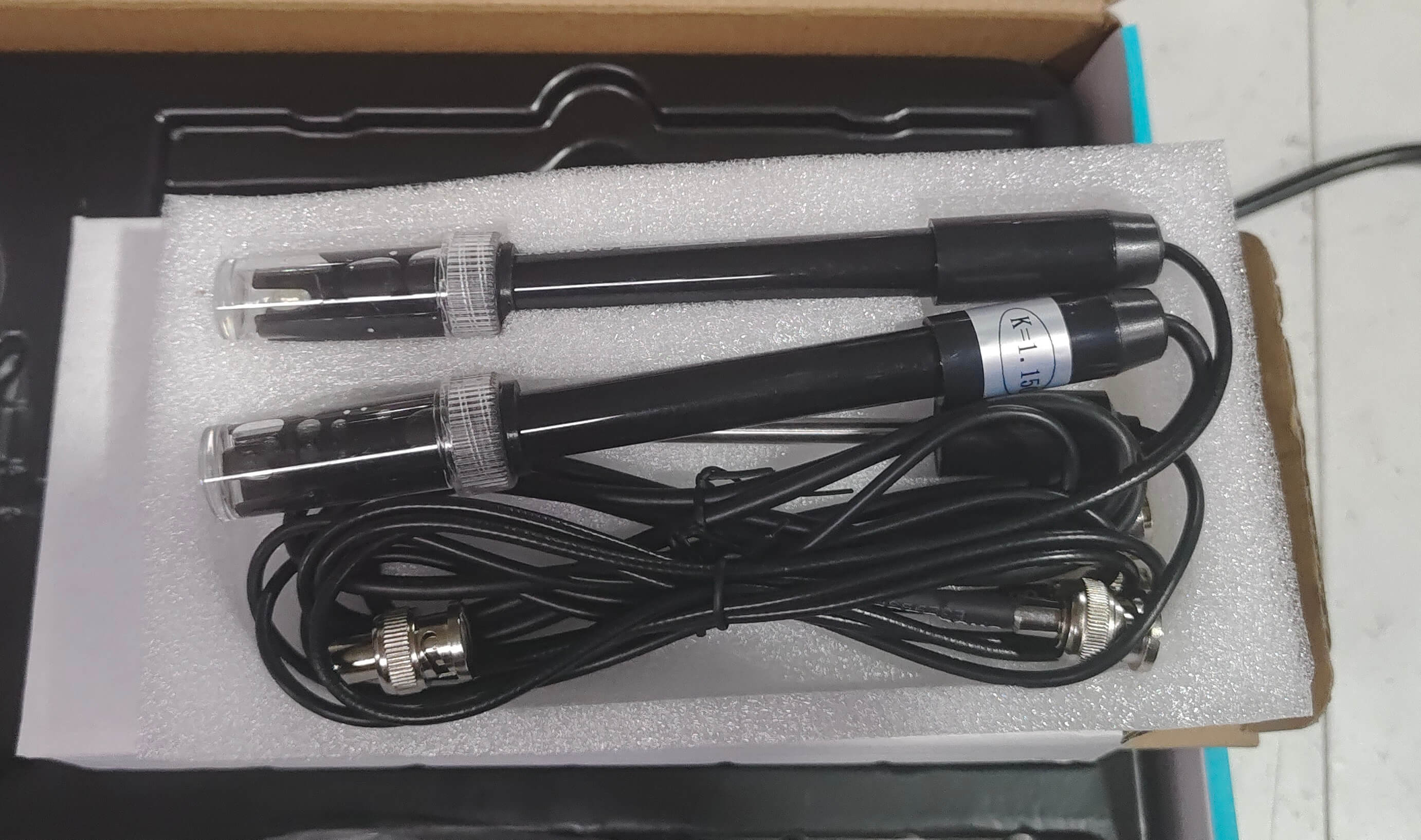

3) pH composite electrode
4) Conductivity electrode  (K=1)
5) Temperature probe
6) pH buffer solution
7) Power adapter
External Size215x170x40mm
Shipping Size475x430x75mm
Net /Gross Weight(kg)0.6/3
