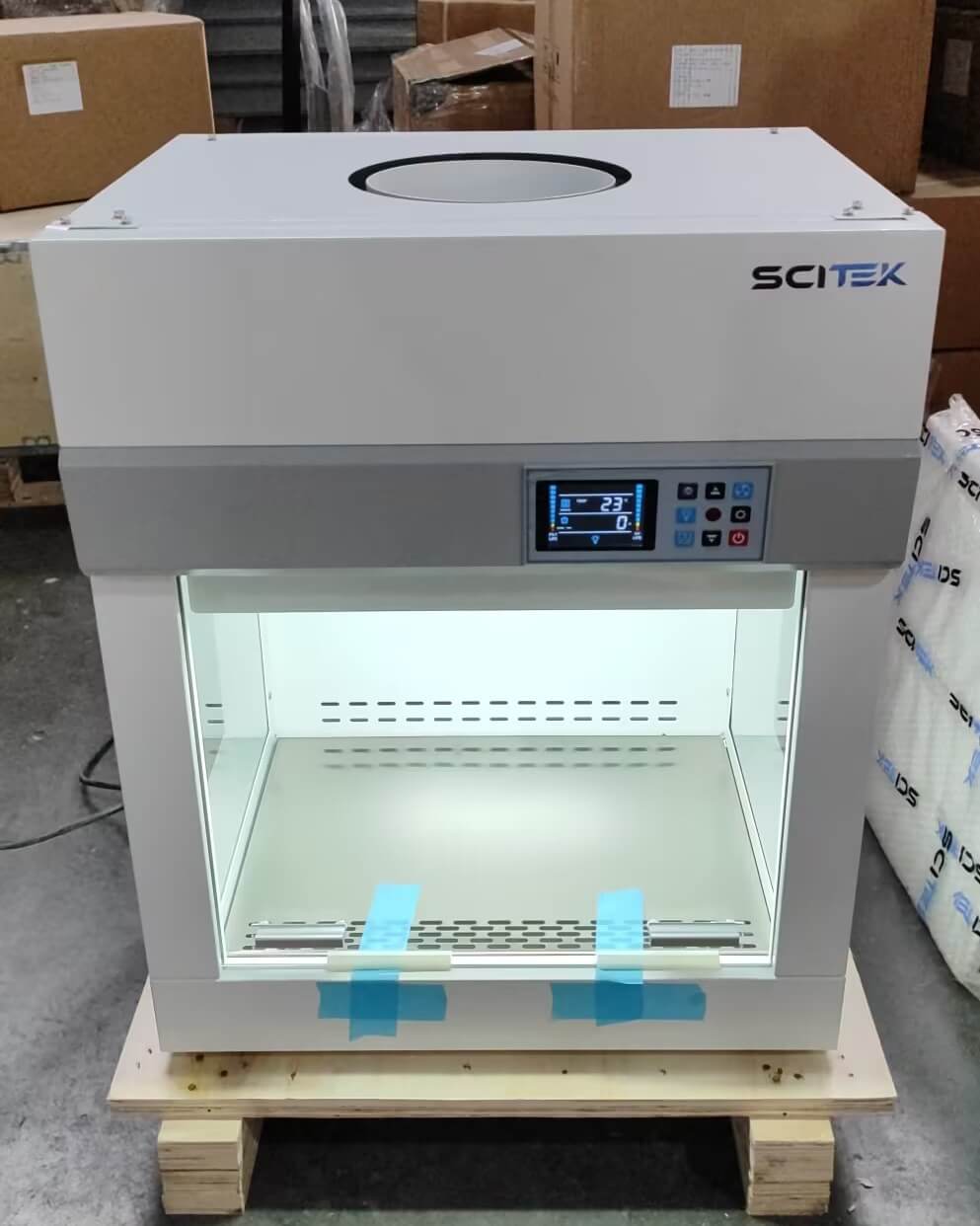

This mini fume hood offers excellent flexibility and is perfect for small labs. It can easily vent contaminated air from the lab. The pre-filter cartridge is made of washable polyester fibre to meet a wide range of installation and application requirements. Our benchtop fume hood utilizes HEPA filtration to protect laboratory personnel from particles. Known for its plug-and-play feature and mobility, Ductless fume hood guarantees a hassle-free installation and no lab work interruption.
Model | FMH-500II |
---|---|
Applicable Scope | Protect operator and environment |
Airflow Direction | Vertical |
Cleanliness | Class 100 |
HEPA Filter | 0.3um partical ≥ 99.999% |
Colony Count | ≤0.5pcs/vessel (petri dish is φ 90mm) |
Wind Speed | >0.5 (m/s) |
Wind Speed Range | 0.2-0.6 (m/s) |
Noise Level | ≤62db |
Vibration Semi-peak Value | ≤3um |
Work Surface Bearing | 10kg |
Inner Chamber | SUS304 Stainless steel plate |
Outer Shell | Cold rolling steel electrostatic spraying exterior |
Operation Door | Tempered Glass |
Max Door Opening | 310mm |
Pre-Filter | Polyurethane |
LED Lamp | 8Wx1 |

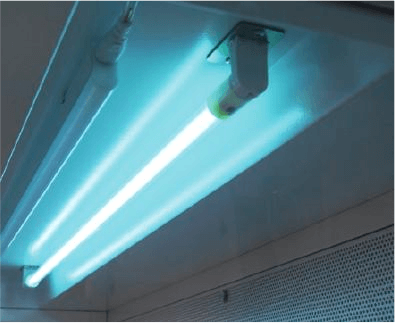

UV Lamp | 8Wx1 |
Top Fan | 90W one piece |
Display | LCD display |
Wind Speed Control | Intelligent multi-level adjustable |
Additional Function | One key to open and close lighting sterlization |
Inner Size (WxLxH)(mm) | 480x340x370 |
External Size (WxLxH)(mm) | 580x460x700 |
Packing Size (WxLxH)(mm) | 710x590x850 |
Max Power | 110W |
Current Rating (50/60Hz) | AC220V/0.5A |
NW/GW kg | 36/41 |
Standard Accessories | Wind speed sensor |
HEPA filter with efficiency: 99.995% at 0.3um. It also has pre-filter which made of washable polyester fiber, can extend the life of the HEPA filter.
Manual front window is 5mm toughened glass, anti-oxidation.
Air speed adjustable.
UV lamp and front window has interlock function.
Microprocessor control system, LCD Display.
Desktop type, with a handle, saving space and easy to move.
Pre-filter is polyester fiber, washable and anti-ultraviolet radiation.
Automatic cutting off UV lamp function by opening glass.
The mini fume hood have color screen LCD controller (with sterilization timing, built-in socket controllable switch, front window status display,
Can set three position interlock, cumulative work timing, remote control.

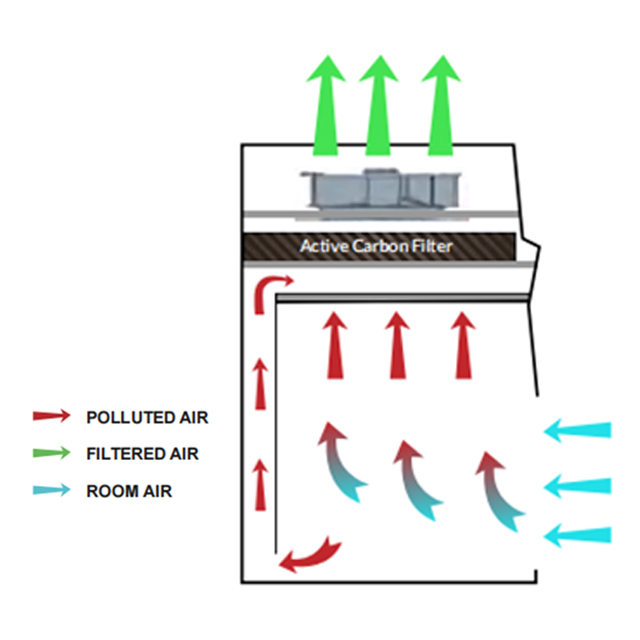

Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
304 Stainless Steel work surface

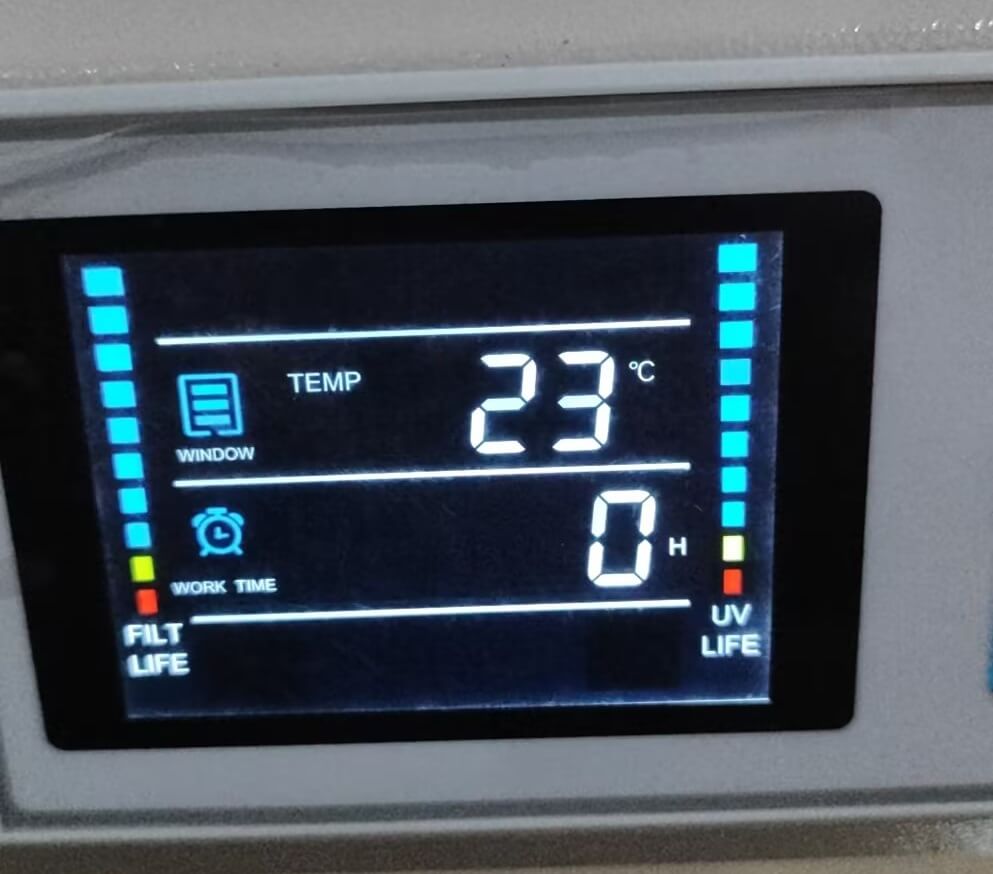

High Definition LCD Display

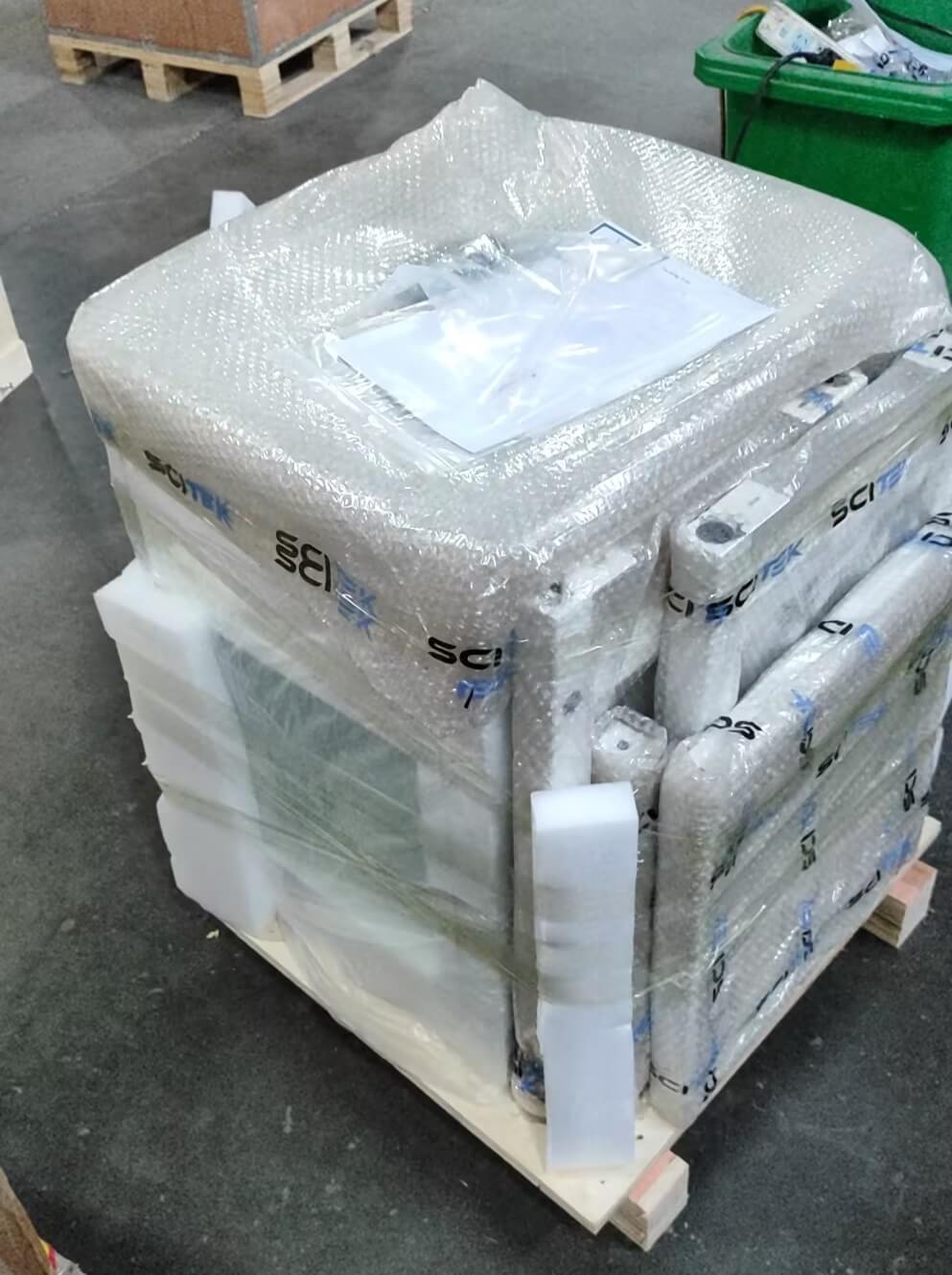

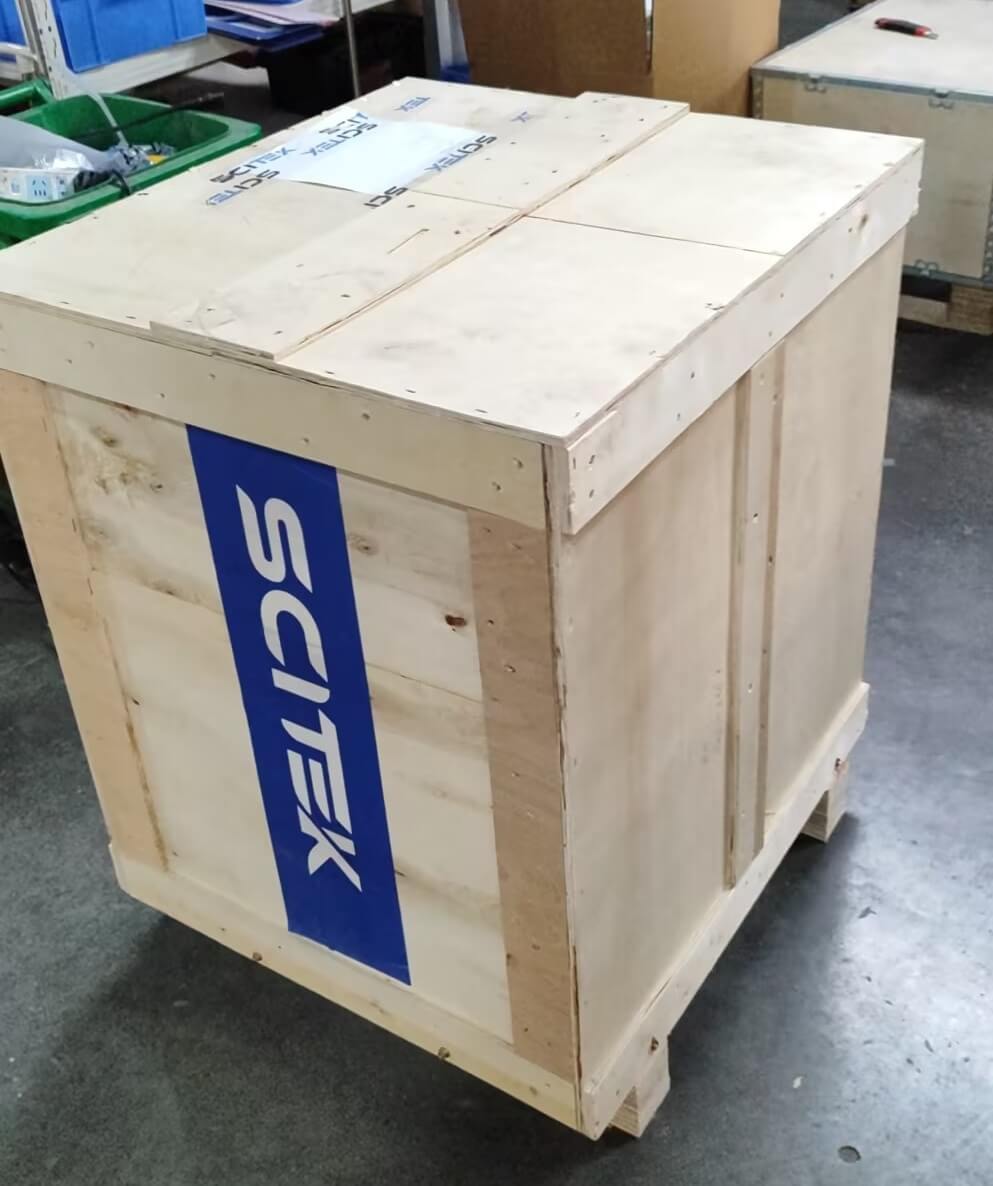

Packing & Delivery
Adopting standard international export packaging, the packaging can adapt to long-term international transportation.
We provide sea freight, air freight, land freight, express service, accept EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP and other trade terms.
Pre-sale services
●24-hour quick response to customer inquiries.
●Recommend models that meet customer requirements.
●Provide competitive prices and detailed product parameters and related information.
●Provide product customization services.
●Sample testing support, production view service.
After-sales services
●Product installation and use training.
●Provide overseas maintenance services in response to customers technical problems.
●Three-year warranty on air protection products, life time maintenance service.
●Online and offline technical personnel training services.
