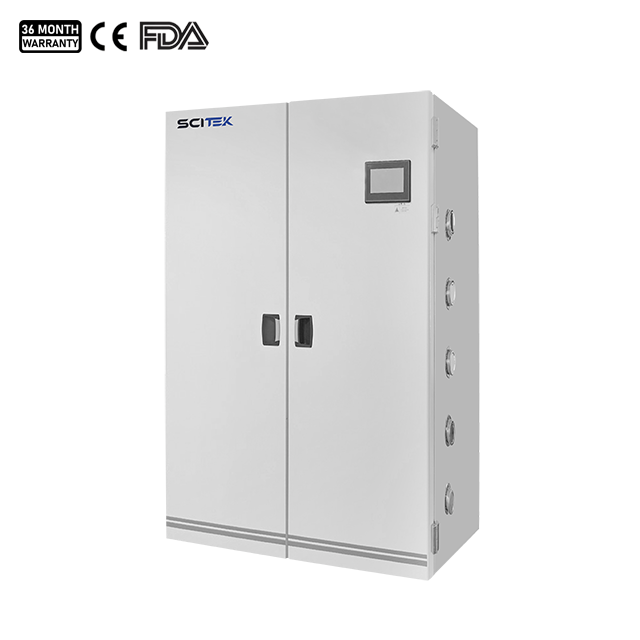

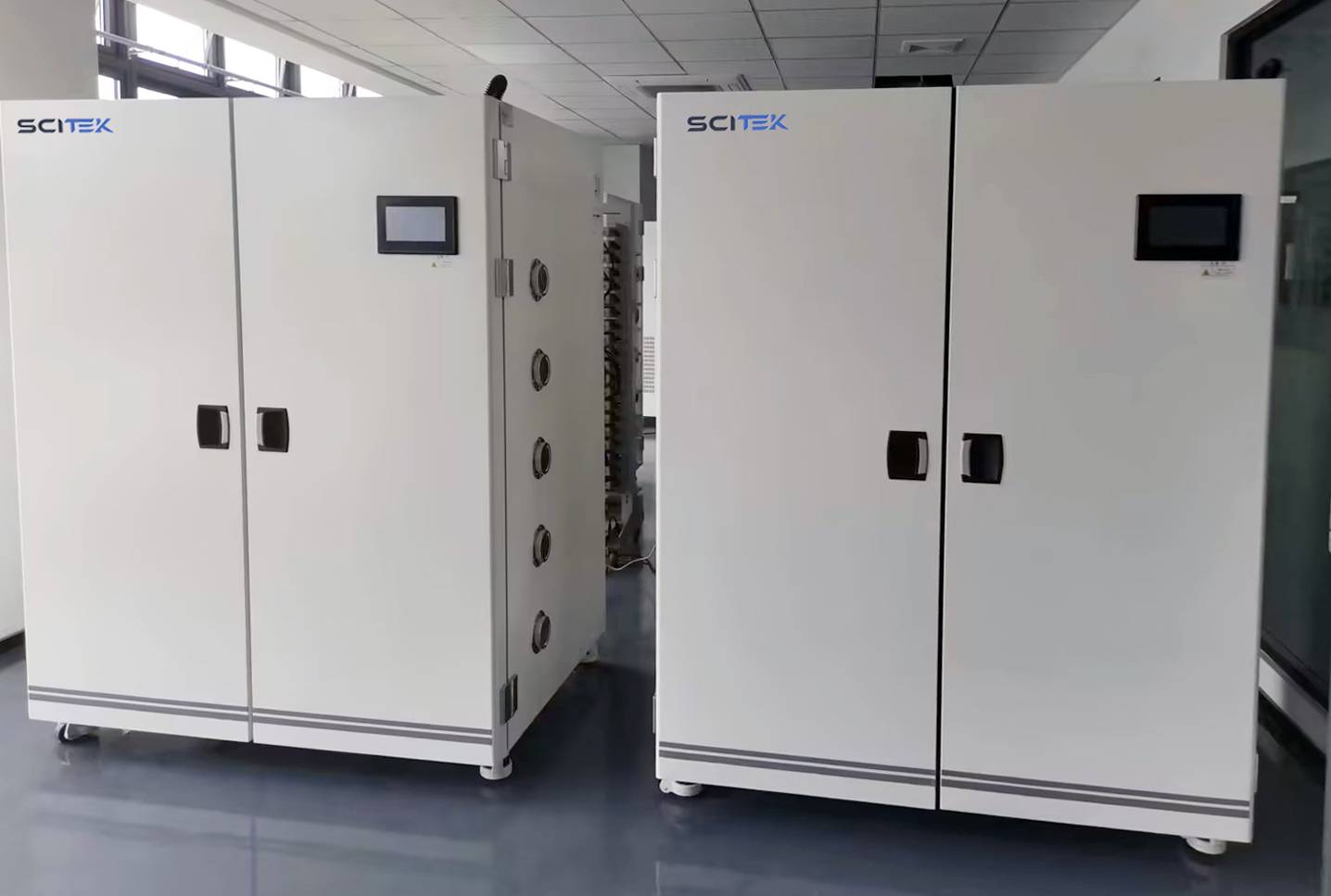

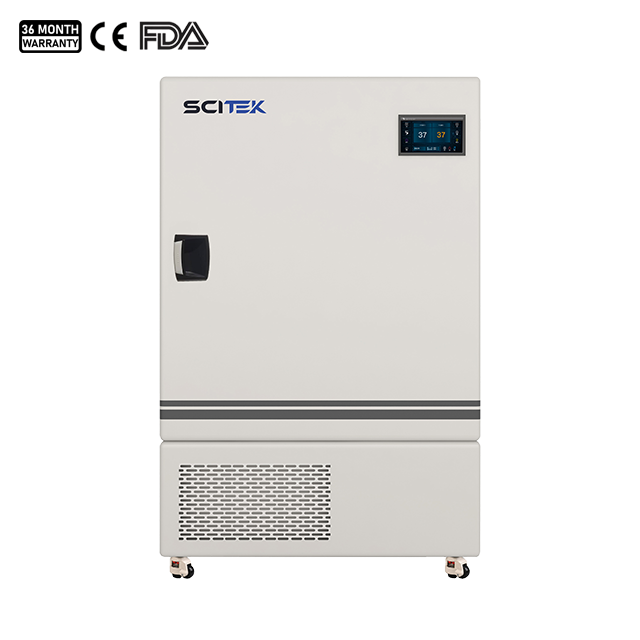

Battery Stability Test Chamber

Model : BSTC-250; BSTC-460; BSTC-760; BSTC-860; BSTC-1000

Control Mode : Intelligent Fuzzy PID Control, Normal/Program Operation
Convection Method : Forced convection
Working Conditions : 5 ℃~35 ℃ (it is recommended to use an ambient temperature of 25~28 ℃)
Temperature Control Range : -10℃～+85℃
This battery stability testing chamber is the first choice for battery research and production.
Availability:
Quantity:
Inquiry Add to Inquiry List

Battery Stability Test Chamber Specification:

ModelBSTC-250BSTC-460BSTC-760BSTC-860BSTC-1000
Chamber Capaticy250L460L760L860L1000L
Display7-inch LCD touch screen
Control ModeIntelligent Fuzzy PID Control, Normal/Program Operation
Convection MethodForced convection
Working Conditions5 ℃~35 ℃ (it is recommended to use an ambient temperature of 25~28 ℃)
Temperature Control Range-10℃～+85℃
Temperature Resolution0.1℃
Temperature Control Accuracy±0.1℃
Temperature Deviation(15~45℃)±0.2~0.6℃
Insulation MaterialPolyurethane integral foaming
Program ControlProgrammable intelligence, program operation mode, and regular operation mode
Defrost FunctionAutomatic defrost or intermittent defrost
Test HoleΦ 50, 75, 100 (choose one)
Refrigeration MethodEnvironmentally friendly variable frequency compression refrigeration technology
Temperature SensorGerman HERAEUS PT100 temperature sensor
Safety Settingautomatic start, automatic stop, Power resumption, scheduled operation, with compressor overpressure protection, overtemperature alarm, leakage protection, door open alarm, and sensor malfunction alarm functions.
ShelvesThree (Standard)
Optional AccessoriesPrinter, Computer monitoring software, Remote control alarm system
Power SupplyAC220V, 50/60Hz
Consumption1100W1200W2000W2000W2000W
Chamber Size (W×D×H)(mm)912x670x4101105x750x5601300x1180x5001300x1180x5001300x1180x660

External Size

(W×D×H)(mm)

1510x850x7971765x933x9601790x1490x8871790x1490x8871790x1490x1050
Shipping Size (W×D×H)(mm)1730x975x9602030x1090x10452030x1650x10502100x1530x11902030x1650x1210
N.W./G.W. (kg)160/190210/240295/335310/350355/395

Battery stability testing chamber is used for battery performance testing to ensure that the battery undergoes constant current and constant voltage charge/discharge processes, in order to analyze and evaluate the performance and behavior under the specified environmental conditions during the test.

Battery Stability Test Chamber Features:

  1. Electronic PID control, intelligent operating system, high-performance processor

  2. Utilizes a full-color LCD touch screen

  3. Data recording and storage function; capable of storing test data for over 10 years; original data exportable via USB drive

  4. Temperature data can be viewed through curve display

  5. Features event recording, permission management, multi-point temperature correction, and variable frequency refrigeration system

  6. Equipped with Danfoss (SECOP) compressor and German EBM condensing fan, environmentally friendly refrigerant

  7. Capacitive temperature sensor

  8. Box insulation material using integrated polyurethane foam technology

  9. Double-door structure design, with tempered glass inner door

  10. The standard communication interfaces USB, RS485, and RS232 are reserved for the cabinet
