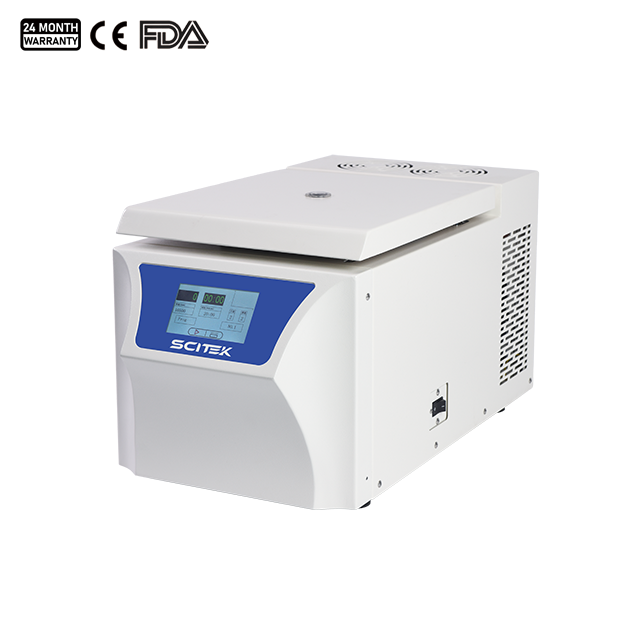

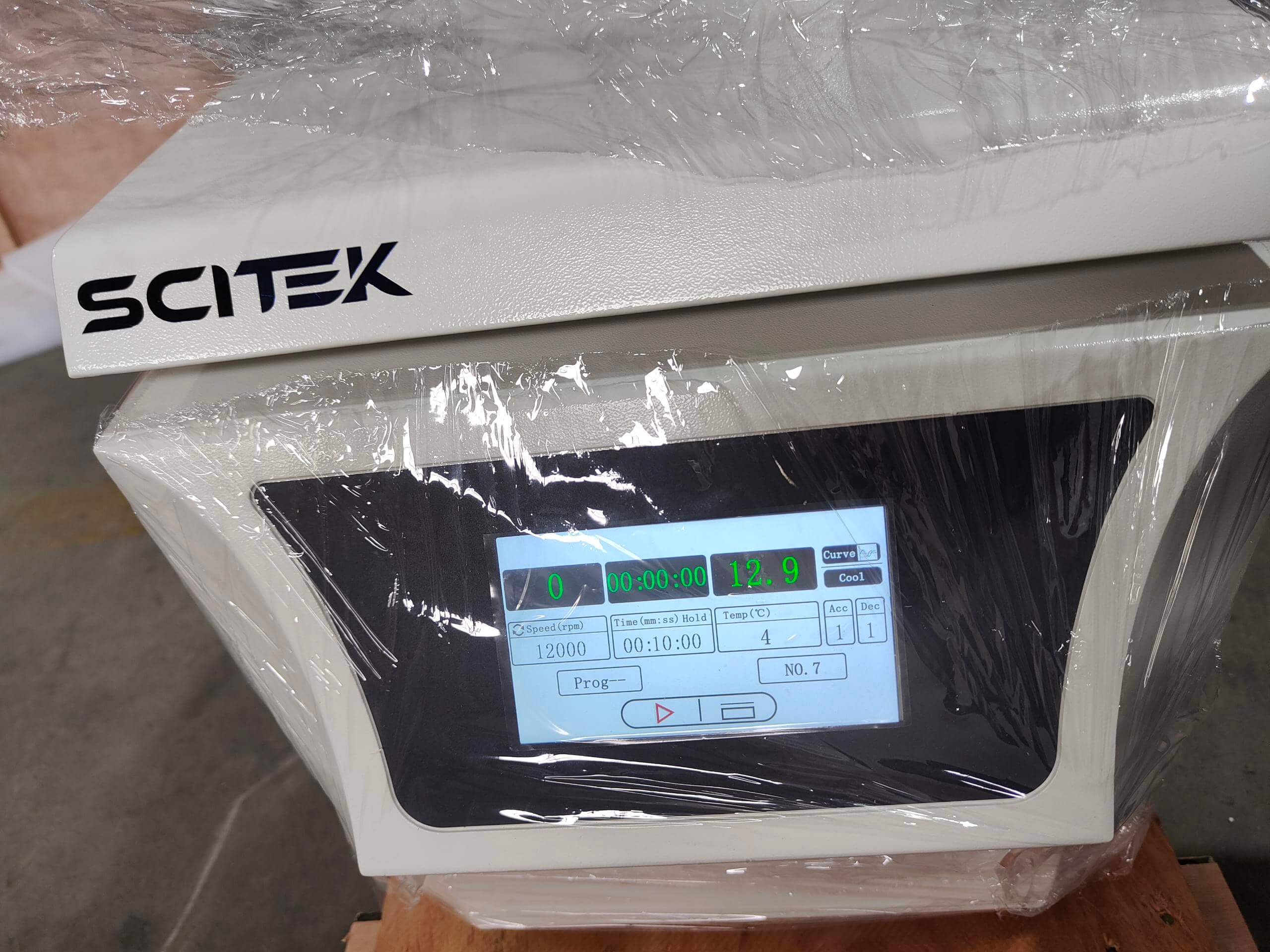

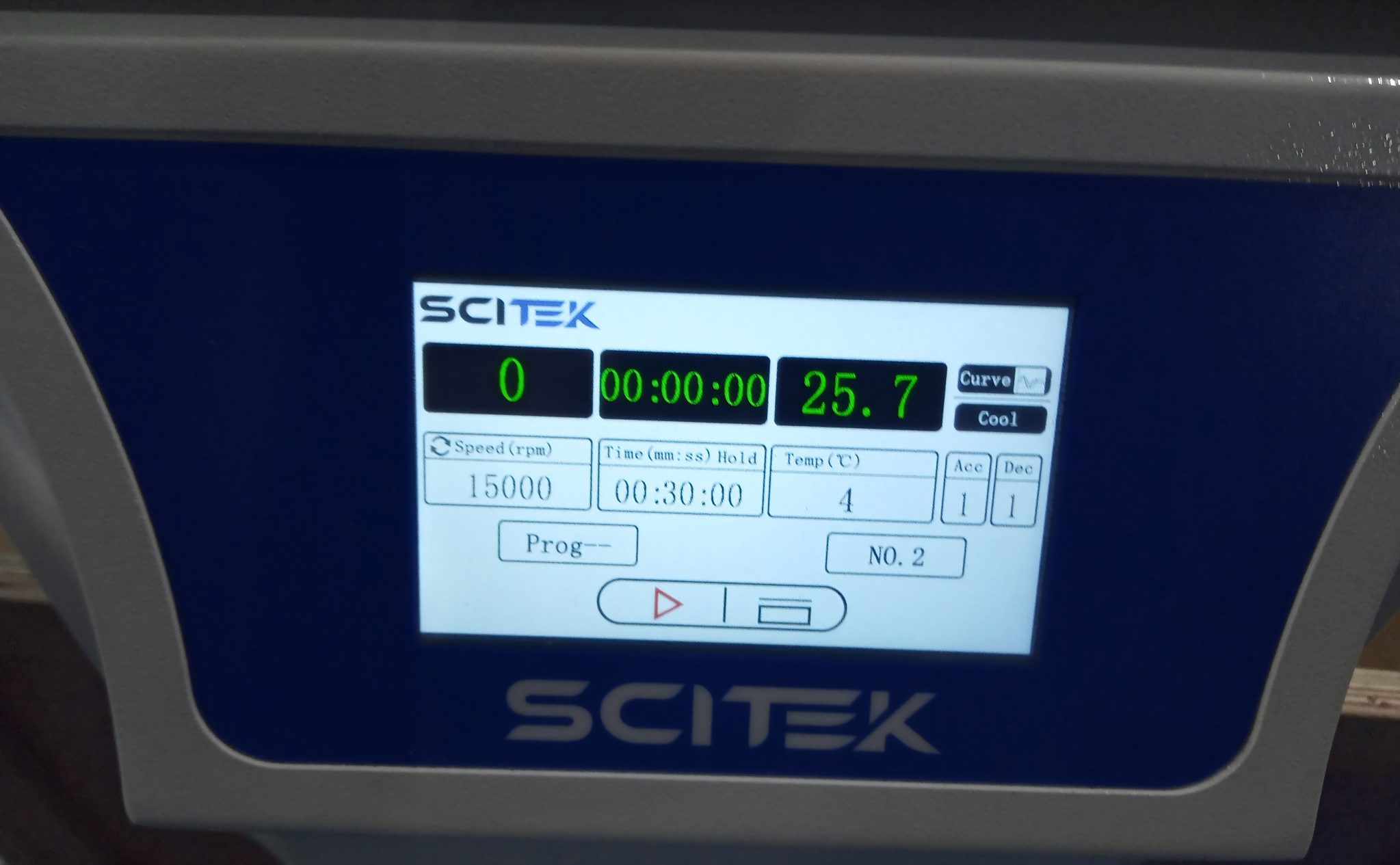

The high speed refrigerated centrifuge is equipped with a 5-inch high-definition touch screen for easy operation and intuitive display.

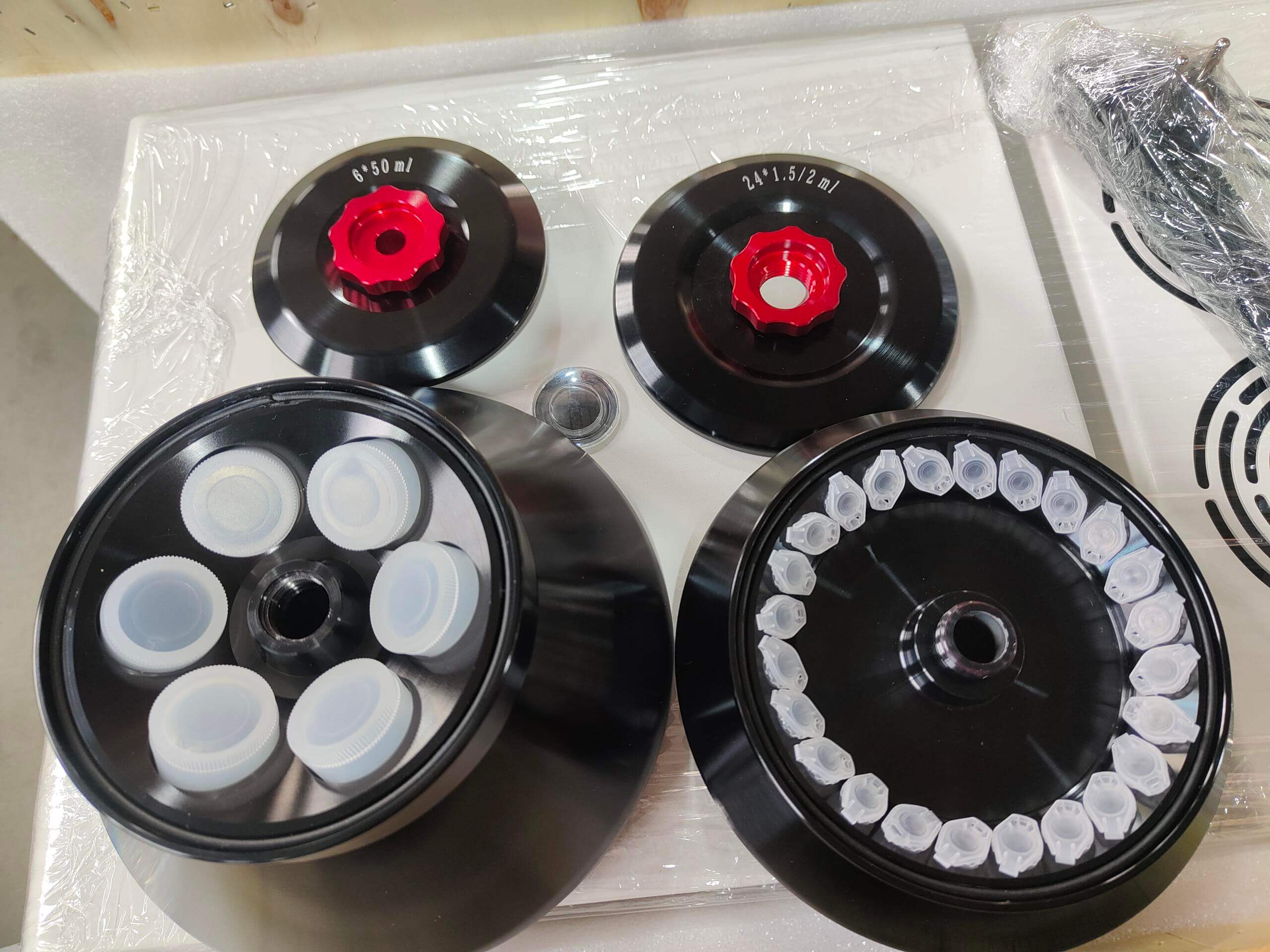

Automatically identifies 7 different rotors to prevent potential safety hazards caused by user misoperation.
Offers 9 levels of acceleration and 10 levels of deceleration for optimal centrifugal performance and to prevent sample disturbance.
Capable of storing up to 15 different program settings for convenient and quick access.
Features an AC variable frequency motor for precise speed control and an imported environmental-friendly compressor for efficient operation.
Incorporates various safety measures including overspeed protection, door protection, and imbalance protection to ensure user and machine safety.
Refrigerated centrifuge is designed with a dedicated air duct to maintain a normal temperature inside the rotor during operation.
Ensures effective prevention of aerosols and contamination during centrifugation.
Model | CFG-T16HR |
---|---|
Max. Speed | 16500r/min |
Max. RCF | 21500×g |
Max.Capacity | 6×50ml |
Speed Accuracy | ±20r/min |
Time Setting | 0~99h59min59s |
Temperature Control Range | -20℃~40℃ |
Temperature Control Accuracy | ±1℃ |
Compressor | Imported high-performance compressor unit, fluorine-free refrigerant |
Electricity | AC 220V 50Hz 15A |
Sizes(W×D×H)(mm) | 650x350x370 |
Package | Wooden Case |
Shipping Size(W×D×H)(mm) | 750x445x530 |
N.W./G.W. (kg) | 50/70 |

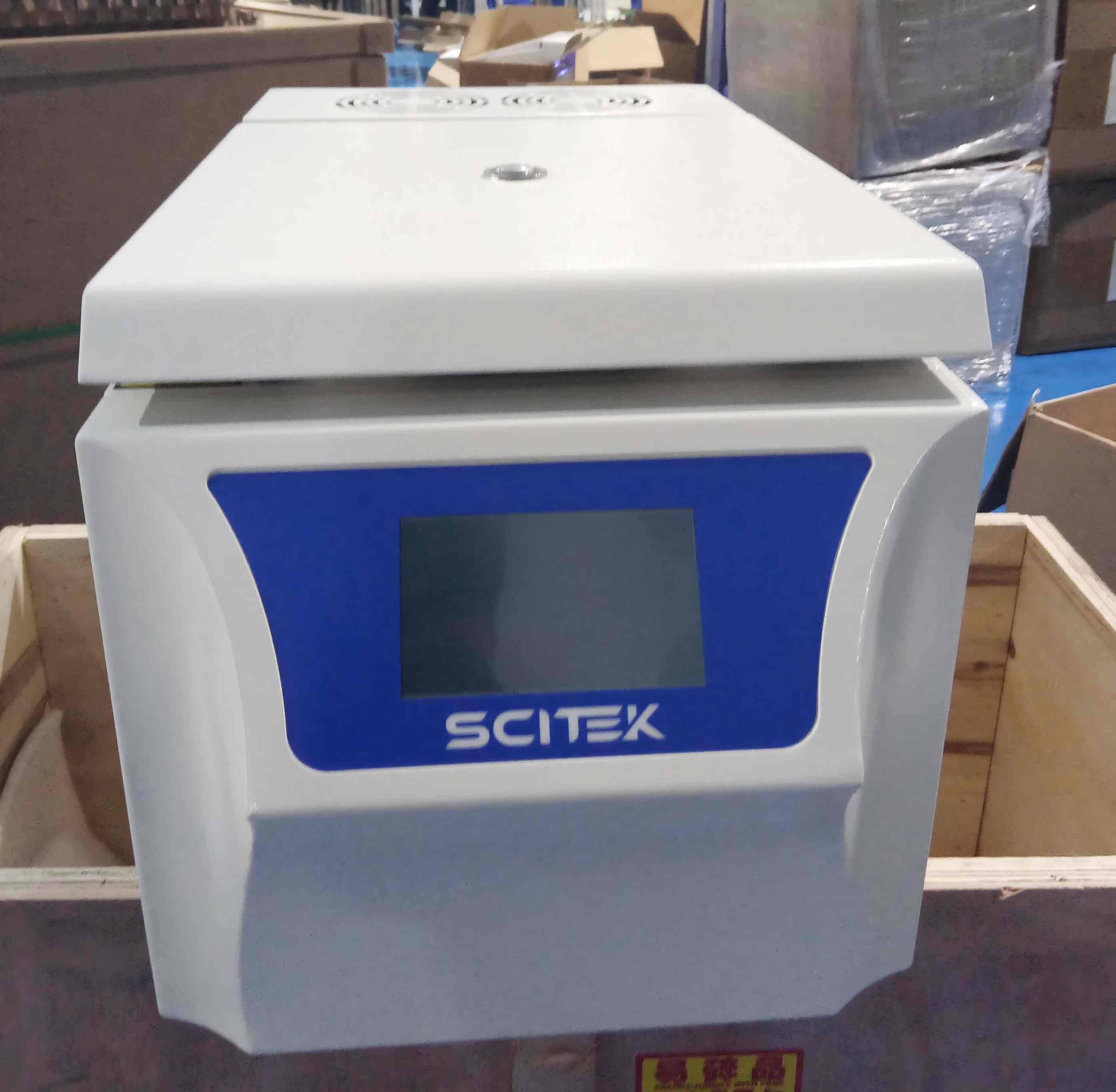

The compact desktop design of the refrigerated centrifuge saves laboratory space and is suitable for placement on a lab bench for easy operation. The centrifuge's intuitive control panel makes operation easy and allows the user to easily set and monitor operating parameters.
Reasonable heat dissipation design ensures that the equipment can effectively dissipate heat even at high rotational speeds, prolonging the service life of the equipment.

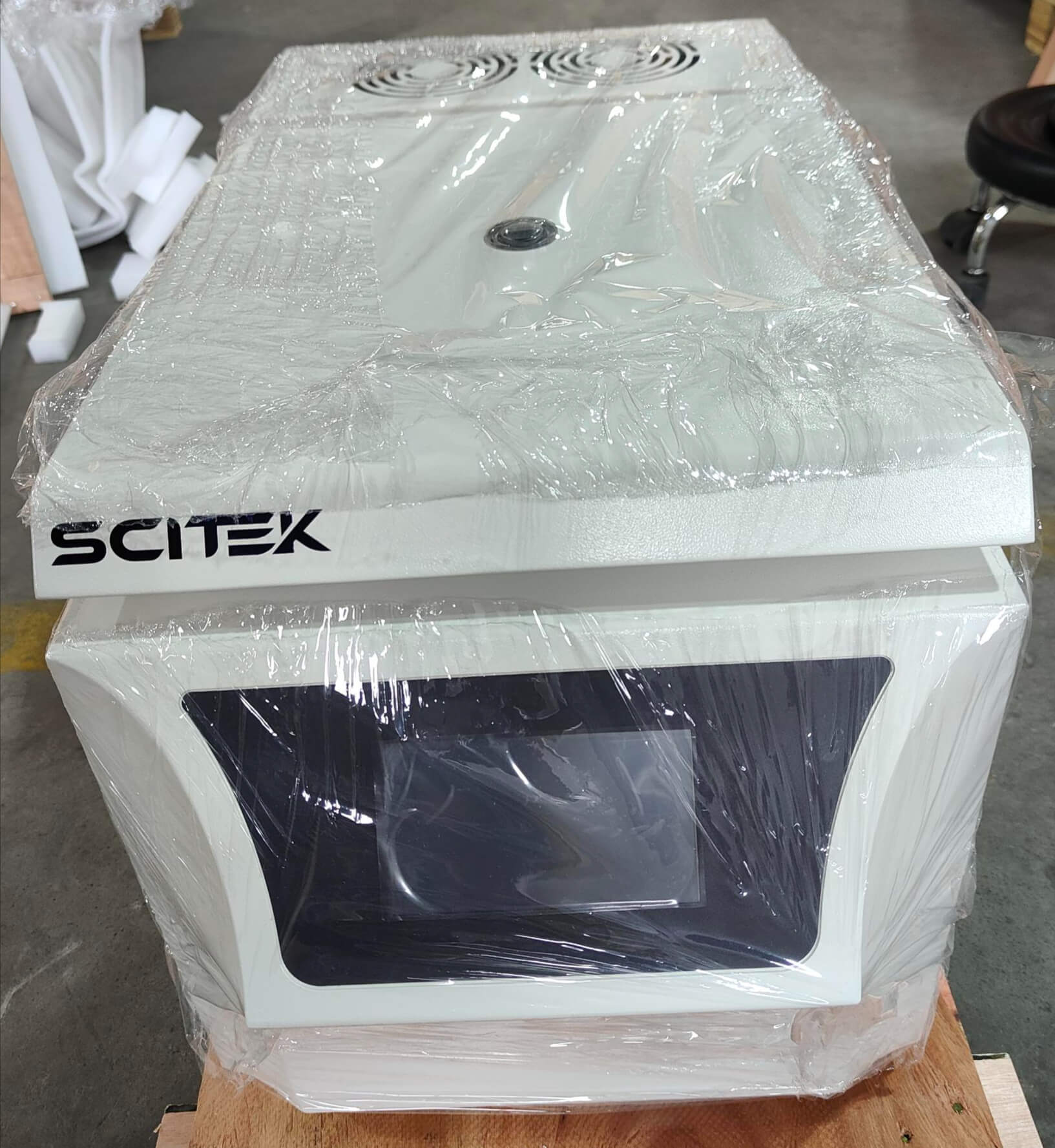

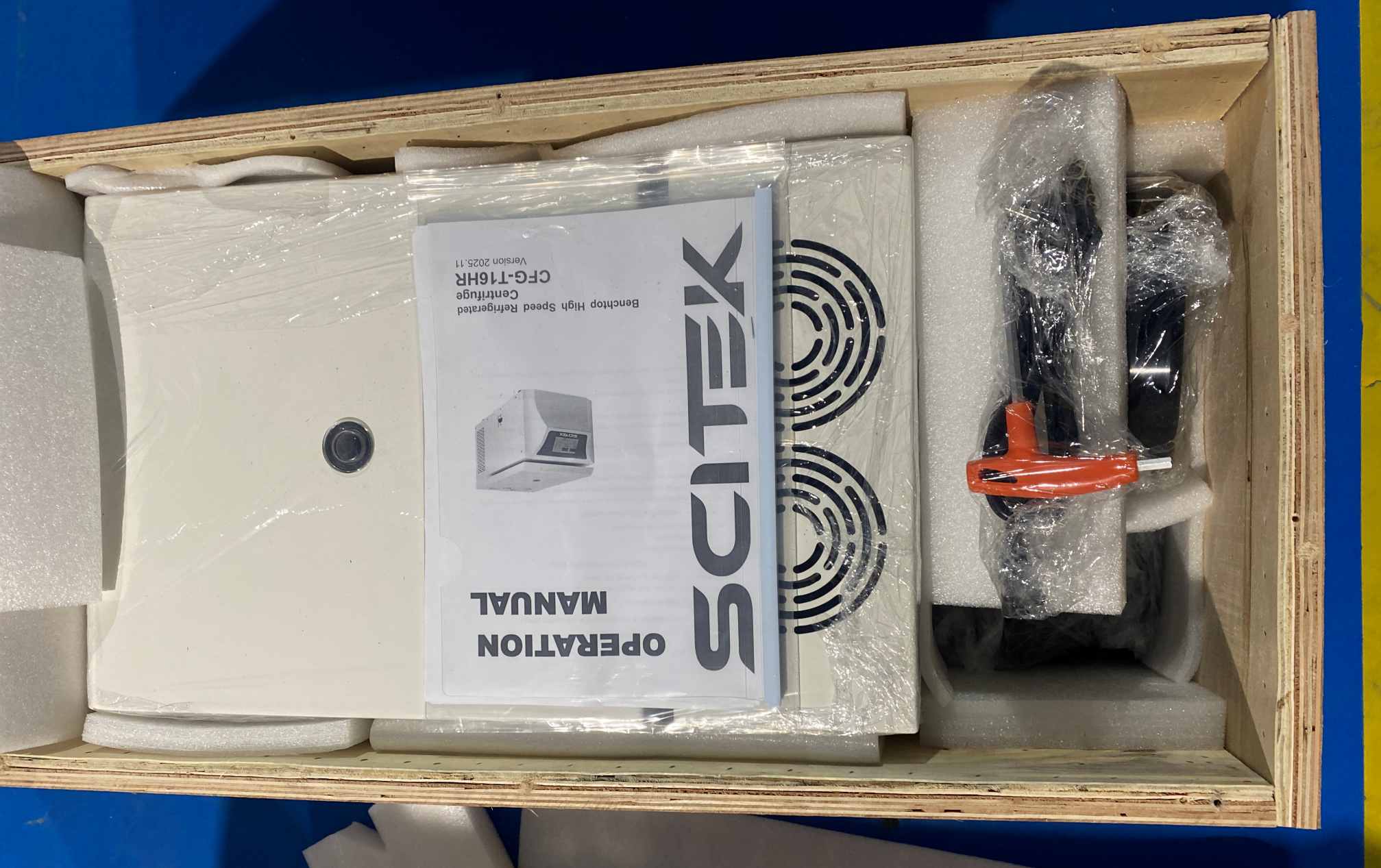

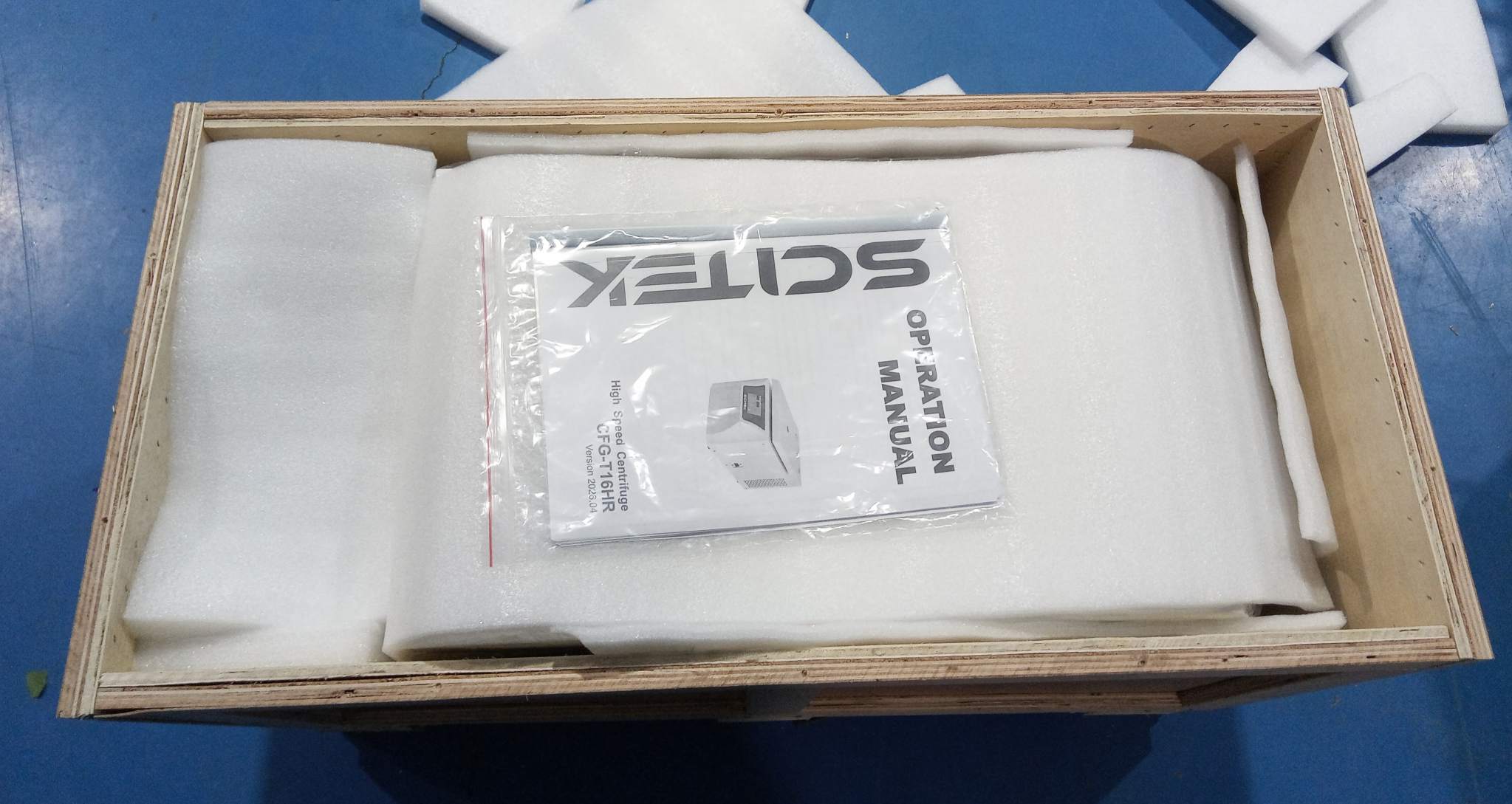

The exterior of the machine is covered with a waterproof layer to protect it from moisture or humidity during transport. The corners of the box are reinforced to increase pressure resistance and ensure that the equipment is not easily damaged during stacking and handling.
Pre-sale services
●24-hour quick response to customer inquiries.
●Recommend models that meet customer requirements.
●Provide competitive prices and detailed product parameters and related information.
●Provide product customization services.
●Sample testing support, production view service.
After-sales service
●Product installation and use training.
●Provide overseas maintenance services in response to customers technical problems.
●Three-year warranty on air protection products, life time maintenance service.
●Online and offline technical personnel training services.
How do I open the lid in the event of a power failure?
You need to open the lid manually after a power failure during operation. Wait for a complete stop and unplug the power cord
What are the minimum speed increments?
Speed can be increased in 100 rpm increments.
How do I balance the samples?
If there is only one sample, place the same volume of water in the other well. If the sample and water have different densities, equilibrate by mass. Check the rotor wells to make sure there is no residue. Always keep the sample balanced to prevent damage to the benchtop refrigerated centrifuge.
How do I care for the rotor and interior of my benchtop refrigerated centrifuge?
Clean it once a month. Unplug the power cord and remove the rotor. Clean the rotor and internal chamber with a soft damp cloth and a neutral detergent (e.g. alcohol). Disinfection can be done with diluted 70% ethanol. Avoid pouring water directly into the cavity and wipe up spills immediately. Allow to dry after cleaning before installing.
