Model | FZ-40V270E | FZ-40V280E | FZ-40V330E | FZ-40V360 | RFZ-40V370 | FZ-40V530 | FZ-40V1000 | |
---|---|---|---|---|---|---|---|---|
Capacity (L) | 268 | 278 | 328 | 358 | 368 | 528 | 936 | |
Size (WxDxH)(mm) | Internal | 508x455x1137 | 480x415x1460 | 508x455x1393 | (466x636x625)x2 | F:580x626x625 R:466x636x625 | (651x631.5x635)x2 | 1000x700x1335 |
External | 673x676x1630 | 659x600x1694 | 673x676x1886 | 720x830x1870 | 720x830x1870 | 900x818x1875 | 1304x1000x2017 | |
Temperature Range (℃) at RT. 10~32℃ | -20~-40 | -20~-40 | -20~-40 | -20~-40 | F: -20~-40 R: 2~8 | -20~-40 | -25~-40 | |
Sensor | NTC | NTC | NTC | NTC | NTC | NTC | PTC | |
Controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | |
Cooling Stystem | Refrigerant | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) |
Defrost | Manual | Manual | Manual | Manual | Manual | Manual | Manual | |
Compressor (Qty) | CUBIGEL/1 | CUBIGEL/1 | CUBIGEL/1 | CUBIGEL/2 | CUBIGEL/1 HUAYI/1 | CUBIGEL/1 | SECOP/2 | |
Display | Digital display | Digital display | Digital display | Digital display | Digital display | Digital display | Digital display | |
Audible & Visible Alarm | Standard | High/Low temperature, Sensor error | ||||||
High Ambient Temperature | / | / | / | Standard | Standard | Standard | Standard | |
Low Battery | / | / | / | / | / | / | Standard | |
Power Failure Backup System(alarm) | 8h | / | 8h | 8h | 8h | 8h | 72h | |
Material | Internal | Electro-galvanized steel with antimicrobial powder coating | Stainless steel grade 304 | |||||
External | Electro-galvanized steel with antimicrobial powder coating | |||||||
Accessories | USB Port | / | / | / | Standard | Standard | Standard | Standard |
Casters | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
Remote Alarm Port | Standard | / | Standard | Optional | Optional | Standard | Standard | |
Test Hole (Qty / Diameter (mm) | 2/20 | 2/20 | 2/20 | 2/20 | 2/20 | 2/20 | 2/20 | |
Shelves / Drawers (Qty) | Shelves/3 | Drawers/7 | Shelves/4 | Shelves/4 Drawers/12 | Shelves/2 Drawers/6 | Shelves/4 Drawers/18 | Shelves/3 | |
Sound Emission (dB) | 48 | 50 | 48 | 49 | 50 | 55 | 50 | |
Electricity | Voltage/Frequency | AC110/220V±10%, 50/60Hz | ||||||
Consumption (W) | 300 | 280 | 300 | 310 | 430 | 340 | 1000 | |
N.W./G.W. (Kg) | 98.5/118 | 79/104.5 | 110.3/132 | 138/178 | 137/166 | 151/184 | 372/416 | |
Shipping Size (WxDxH) (mm) | 760x760x1750 | 725x665x1850 | 750x760x2030 | 780x920x1990 | 775x920x1990 | 930x970x2000 | 1360x1135x2170 |
Clear LED screen and control panel support easy display and operation.
Lockable universal caster wheels.
Inner doors or drawer design makes separated storage possible.
Eco friendly CFC-free refrigerant also save energy.
Reliability
Audible buzzer and visible flashing temperature alarm system for High/low temperature, power failure, sensor error, door ajar, thermostat failure alarm.
Safety password protected control panel prevents unauthorized system modification.
Door lock for storage safety.
Ergonomic Design
Upright door with limit door hinge prevents collision when door opens.
Controller password protected to avoid unauthorized system modification.
Lockable universal caster wheels for easy moving.
-40°C upright freezer internal structure and layout
Removable shelves
The simple and intuitive operator interface allows you to control and adjust its functions with ease.
Check temperatures and pressures regularly to ensure the unit is properly working.
Avoid switching on and off or adjusting temperature settings frequently to maintain a stable temperature.
Avoid over-stacking items in the freezer to ensure air circulation.
Clean the equipment regularly and deal with abnormalities promptly.
Once a year. Usually, it is appropriate to defrost an ultra-low temperature refrigerator every few months to six months.

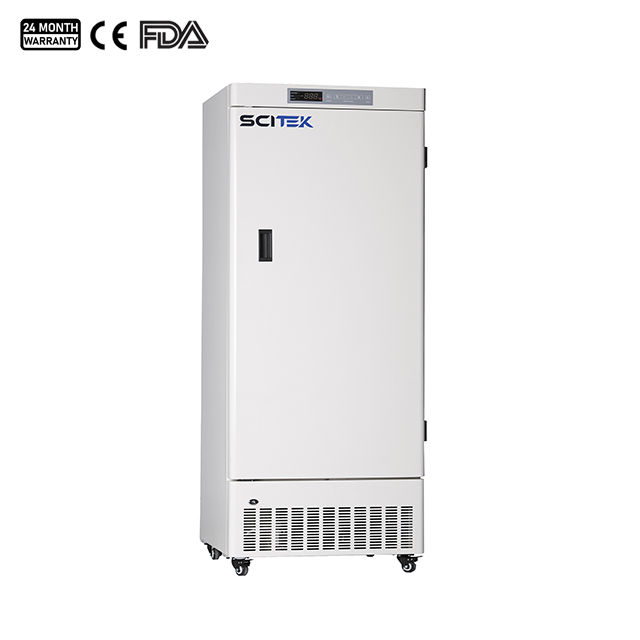

This -40°C upright freezer of ours is usually used for preserving biological samples, biologics, vaccines, pharmaceuticals, enzymes and cells that require extremely low temperatures. It is popular in the fields of biomedicine, scientific laboratories, life science research and pharmaceutical industry.
